Engineered Industrial Racking Systems & Components
Direct-from-manufacturer storage systems roll-formed with certified structural steel, compliant with RMI (ANSI MH16.1), FEM 10.2.02, and CE safety standards for global distribution centers.
2001
Established Pioneer
30,000 m²
Facility Footprint (~323k sq.ft)
30,000 Tons
Monthly Steel Output
10,000+
Global Turnkey Installations
Global Procurement Horizons: Strategic Racking Analysis
As supply chains navigate omnichannel fulfillment pressures and escalating per-square-foot facility leases, warehouse infrastructure is shifting from static steel shelving toward modular, high-tolerance intralogistics ecosystems.
High-Density Vertical Maximization

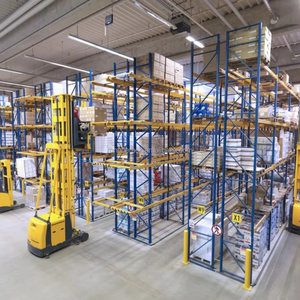

With real estate costs rising globally, distribution centers are transitioning from wide-aisle configurations to Very Narrow Aisle (VNA), drive-in, and automated pallet shuttle frameworks. By reaching clearances of 12 to 30 meters, facilities achieve up to 80% cubic footprint utilization compared to traditional 40% floor-bound systems.
ASRS & AMR Automation Compatibility
The convergence of Automated Storage and Retrieval Systems (ASRS) and Autonomous Mobile Robots (AMRs) mandates deflection limits stricter than 1/500th of the span. OEM/ODM manufacturing now requires automated laser punching and continuous CNC cold-roll profiling to eliminate racking tolerance stacking across multi-tier structures.
Total Cost of Ownership (TCO) Procurement
Procurement directors are shifting focus from initial freight-on-board (FOB) price tags toward 15-year lifecycle durability. Pretreatment protocols such as multi-stage pickling, phosphating, and electrostatic powder coating prevent premature corrosion, significantly lowering long-term maintenance overhead.
Certified Engineering, In-House Metallurgy & Turnkey Execution
Guangzhou HEDA Shelves Co., Ltd. operates as a dedicated OEM/ODM manufacturer, engineering customized heavy-duty storage racking systems tailored to project-specific seismic zones, floor slab capacities, and material handling workflows.
- Structural Steel Selection: Mill-certified Q235B and Q355B cold-rolled steel tested for tensile strength, elongation, and yield resilience under heavy cyclical loading.
- Rapid 24-Hour Design Proposals: Full architectural layout support, structural calculations, and 2D/3D CAD models issued within 24 hours to accelerate permitting and planning approvals.
- Rigorous Quality Certification: Factory processes audited and validated under ISO 9001:2015, CE Construction Products Regulation (2435-CPR-8605159), and RoHS directives.
- Export-Ready Logistics: Strategic palletizing, bundle nesting, and container-optimized sea packaging to prevent transit abrasion across North American, European, and Asia-Pacific routes.
Next-Generation Storage Infrastructure Trends
How progressive material handling engineering is addressing seismic resilience, cold chain operational efficiency, and circular sustainability.
Seismic & Geo-Specific Engineering
Modern international installations require micro-zoned finite element analysis (FEA). Baseplates, column splices, and horizontal/diagonal frame bracing are modeled under dynamic accelerations to satisfy UBC, IBC, and EN 16681 seismic frameworks, safeguarding both operational assets and personnel.
Cold Chain Thermal Optimization
Refrigerated and blast-freezer operations face high energy consumption. High-density semi-automated radio shuttle systems eliminate fork-truck entry while operating reliably down to -30°C, lowering thermal dissipation per pallet position and maximizing dense refrigeration volumes.
Hybrid Multi-Tier Mezzanine Infill
Combining heavy-duty selective rack bases with walkable mezzanine decks and carton-flow picking levels allows 3PLs to balance case reserves with high-frequency manual piece-picking without expanding outward into costly greenfield developments.
Frequently Asked Questions for Commercial Procurement
Direct technical guidance on system specification, load ratings, shipping protocols, and layout development for distribution planners and B2B buyers.
What parameters are required to generate an engineering layout?
To produce an optimized CAD proposal within 24 hours, our engineering office requires your warehouse architectural boundary (DWG/PDF), clear internal ceiling height, concrete slab thickness, pallet dimensions (Width x Depth x Height including cargo overhang), gross weight per pallet, and forklift mast specifications (reach clearance and minimum turning radius).
Can load capacities and calculations be provided in Imperial units?
Yes. For North American procurement managers and registered Professional Engineers (PEs), we furnish structural calculations, load-capacity charts, and component dimensioning dual-annotated in Imperial units (lbs, inches, feet) and Metric standards (kg, mm), streamlining local engineering-of-record approval.
Are your systems compatible with standard 48x40-inch GMA pallets?
All upright frame depths (typically 42-inch or 48-inch), box beam spans, and front-to-back wire mesh decking accessories are precision-engineered to accommodate GMA standard pallets, Euro-pallets (800x1200mm), and industrial custom skids or wire containers with safe forward/rear overhang.
How do you ensure structural integrity and surface protection during export?
Upright columns and roll-formed box beams undergo automated shot blasting, degreasing, and a thermoset electrostatic powder coat curing process tested to ASTM salt spray standards. Structural members are bundled with high-strength composite straps, edge-corner guards, and custom dunnage to maximize container cube utilization and prevent shipping abrasion.
Plan Your Storage Racking Project with Senior Structural Engineers
Submit your warehouse floor plans or pallet profiles. Receive an initial CAD layout, structural capacity report, and itemized factory-direct quote within 24 hours.
