Engineered Structural Integrity for High-Density Logistics
Selective pallet racking remains the cornerstone of modern global fulfillment, offering immediate 100% individual pallet accessibility (SKU selectivity), adaptive beam elevations, and structural versatility. As a direct OEM/ODM industrial rack manufacturer with over two decades of engineering authority, we deliver end-to-end turnkey solutions ranging from raw Q235B/Q355B structural steel roll forming to finite element analysis (FEA) compliant seismic warehouse racking installations.
Engineering Whitepaper: Structural Kinematics of Selective Pallet Racking

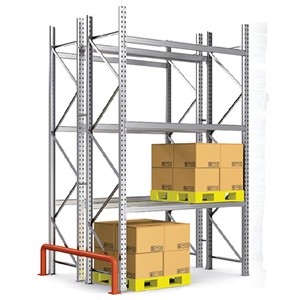

Selective pallet racking serves as the baseline benchmark across all material handling installations due to its direct accessibility to 100% of product inventory. Unlike accumulated storage paradigms (such as drive-in or deep gravity lanes), selective configurations eliminate SKU honeycombing while accommodating non-uniform pallet footprints, including North American GMA 48x40-inch pallets, European EUR/EPAL containers, and customized steel stillages. Fabricated from certified structural carbon steel coils, our upright frames employ advanced cold-rolled profiles punched with precision teardrop or multi-hook diamond perforations along vertical increments (50mm, 75mm, or 76.2mm pitch).
Load-bearing integrity is secured through double-slotted interlocking beam connectors welded to high-tensile twin-C box beams or step beams. By integrating cold-drawn safety spring pins with high shear resistance, our racking systems prevent accidental beam dislodgement under dynamic forklift impact. Every structural layout is engineered using Finite Element Analysis (FEA) to withstand seismic ground acceleration parameters, live horizontal impact loads, and extreme load deflection limits set at L/250 under full static capacity.
Future Trends in Pallet Racking Procurement
As industrial supply chains evolve toward hybrid automation and automated guided vehicles (AGVs), structural storage specifications are shifting from basic static storage toward hyper-precise, data-driven frameworks.
AGV & AMR Compatibility
Transition from standard counterbalanced forklift clearances to laser-guided automated guided vehicle requirements, requiring sub-millimeter beam deflection tolerances and ultra-flat floor baseplate engineering.
High-Bay Vertical Optimization
Surging metropolitan land prices drive warehouse ceiling clear heights above 12 to 18 meters, necessitating super-tall roll-formed uprights that utilize high-strength low-alloy (HSLA) steel grades.
Corrosion-Proof Finishing
Accelerated expansion of temperature-controlled cold chains demands multi-stage pickling, automated phosphating, and nano-ceramic electrostatic polyester powder coatings resistant to condensation-induced micro-fractures.
Modular Hybrid Racking
Hybrid configurations that integrate heavy-duty selective lower pallet beams with upper rack-supported mezzanine walkways, carton flow conveyors, or mini-load bin automation within unified structural frames.
Custom OEM & ODM Racking Capabilities Built on 25+ Years of Trust
Founded in 2001, Guangzhou Heda Shelves Co., Ltd. has grown into an international manufacturing titan encompassing over 30,000 square meters (approx. 323,000 sq ft) of specialized fabrication facilities. We operate as a direct factory-direct partner for systems integrators, material handling distributors, and industrial EPC contractors worldwide.
Our bespoke OEM/ODM design workflow is calibrated to meet stringent international standards including ANSI MH16.1, RMI, FEM 10.2.02, and EN 15512. Whether supplying private-label racking products or engineering site-specific storage systems for extreme seismic zones, our vertically integrated manufacturing ensures rigorous quality control at every phase.
- Bespoke Roll-Forming Lines: Tailored upright column cross-sections, diamond or teardrop configurations, and heavy box-beam profiles.
- Certified Seismic Calculations: Imperial (lbs/ft) and metric layout engineering ready for municipal building department approvals and stamped PE reviews.
- Turnkey Containerized Packing: Steel strap bundling, corrugated protective cradling, and moisture-sealed ocean containerization designed for rapid uncrating.
- Integrated System Verification: In-house ultrasonic weld inspection, salt spray corrosion tests (500+ hours), and structural deflection stress testing.
Certified Production Performance
Frequently Asked Questions: Industrial Pallet Racking Sourcing
Direct answers compiled by senior structural engineers to address critical commercial, mechanical, and regulatory concerns during procurement.
Q: How do I determine the appropriate beam length and depth for standard 48x40-inch GMA pallets?
For standard GMA pallets (40" wide by 48" deep), standard beam lengths are typically 96" or 108" for two-pallet bays, allowing required flue spaces (3" between pallets, 3" from uprights). Upright frame depths are usually engineered at 42" to ensure a 3" overhang at the front and rear, which guarantees proper seating on beams while maximizing stability.
Q: What documentation is provided to support seismic engineering and building permit compliance?
We provide full structural engineering documentation packages including shop drawings, material test reports (MTRs) for Q235B/Q355B steel, anchorage calculations, and finite element stress analysis models. These drawings are prepared in accordance with IBC (International Building Code) and RMI guidelines to facilitate stamping by local Professional Engineers (PE).
Q: What is the standard surface pre-treatment and powder coating process?
Raw steel sections undergo a multi-stage pre-treatment: alkaline degreasing, acid pickling to eliminate mill scale, rinsing, and zinc phosphating. Components then pass through automated electrostatic powder booths applying high-grade polyester coatings (60 to 90 microns dry film thickness) cured at 180°C–200°C for high impact and scratch resistance.
Q: Can selective pallet racking accommodate non-uniform or damaged wooden pallets safely?
Yes. We integrate heavy-duty drop-in wire mesh decking (featuring reinforced channel supports), roll-formed pallet support crossbars, and solid steel deck plates. These accessories prevent undersized, weak, or splintered pallets from falling between beam spans, ensuring OSHA and warehouse safety compliance.
Q: What is the operational lifespan of heavy-duty selective racking, and how is impact damage managed?
Under recommended operational conditions and periodic maintenance, high-grade pallet racking has an operational life exceeding 20 years. To protect critical vertical members from forklift collisions, our designs incorporate wrap-around steel column protectors, heavy structural corner guards, and aisle-end floor-anchored safety barriers.
Q: What lead times are standard for bespoke OEM roll forming and international container shipments?
Standard fabrication runs range between 15 to 25 days depending on total project steel tonnage. Ocean shipping typically requires 18 to 30 days depending on the destination port (e.g., Long Beach, Houston, Rotterdam, Sydney). We offer both FOB and CIF terms, packaging cargo into dense, container-optimized bundles to minimize landed freight costs.
