Engineered Heavy-Duty Pallet Racking Systems
Direct factory manufacturing customized for 48×40 inch GMA pallets, Euro pallets, and non-standard industrial containers. Every system is load-engineered with Finite Element Analysis (FEA) to exceed ANSI/RMI MH16.1, EN 15512, and AS 4084 compliance thresholds.
CE Certified Warehouse Storage Racks Steel Pallet Rack Heavy Duty Cargo Shelving System Industrial Steel Rack
Constructed from high-tensile Q235B/Q355B structural steel, featuring 50mm/75mm adjustable beam pitch, seismic baseplates, and up to 5,000 kg per beam level.

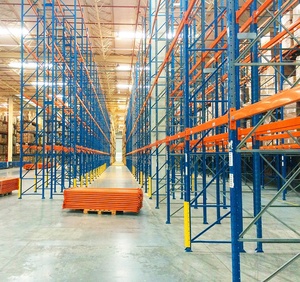

Warehouse Storage Racking System Industrial Metal Racks Heavy Duty Selective Pallet Racking
The gold standard for multi-SKU logistics and 3PL hubs. Enables immediate direct reach to all pallet positions with zero SKU obstruction and high throughput speeds.

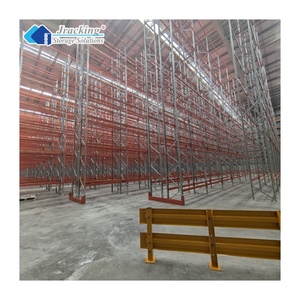

Jracking Heavy Duty Steel Warehouse Storage Rack System Customized AU Standard Pallet Racking For Factory Workshops
Configured specifically for Australian and oceanic structural codes. Welded end-connectors with safety lock pins prevent accidental dislodgement during reach-truck loading.
Warehouse Rack Heavy Duty Rack Shelf Storage Shelves Heavy Duty Warehouse Racking Storage Shelf Pallet Shelving System
Versatile dual-purpose racking supporting heavy pallet loads on upper tiers and wire mesh or steel-paneled case-pick shelving on lower accessible working levels.

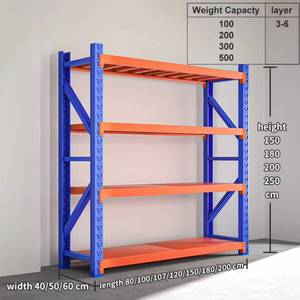

Customizable Industrial Steel Metal Shelving Shelves Adjustable Bolts Garage Warehouse Rack For Pallet Stacking Racks Shelves
Pre-punched teardrop or diamond upright columns engineered for tool-less beam adjustment. Excellent for light-industrial workshops, automotive parts depots, and maintenance hubs.

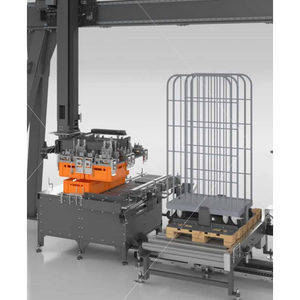

TRAPO PalletMaster Tailored Solution For Efficient Palletizing Packaging Processing Line Systems
Integrated pallet handling and live buffering matrix designed for automated packaging and palletizing lines. Bridges manufacturing output directly into warehouse pallet buffer lanes.

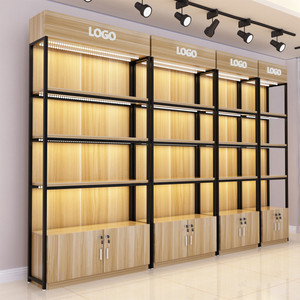

Supermarket Wooden Retail Shelving Display Shop Shelves Cosmetic Grocery Display Convenience Store Rack Shelves for Retail Store
Commercial grade display integration combining architectural wood grains with reinforced cold-rolled steel backbone frames for grocery, supermarket, and cash-and-carry retail environments.
Automated Radio Shuttle Rack High Density Warehouse Storage System 2 Way Pallet Racking FIFO LIFO for Boxed Goods
Semi-automated deep-lane storage system utilizing high-speed lithium-powered robotic shuttles. Eliminates forklift rack entry, maximizes lane density, and optimizes FIFO/LIFO turnover.
HEDA Shelves: Tier-1 OEM/ODM Manufacturing Infrastructure
In the highly demanding realm of industrial warehouse logistics, structural reliability is non-negotiable. Guangzhou Heda Shelves Co., Ltd. (operating since 2001) has established itself as an authoritative global manufacturer and exporter of heavy-duty pallet racking systems, industrial mezzanines, and precision storage accessories. Serving international distribution center operators, system integrators, and racking distributors throughout the United States, Canada, Australia, and Western Europe, we eliminate the costly markups of domestic middlemen through direct engineering collaboration.
Every structural upright, box beam, step beam, horizontal brace, and baseplate is manufactured inside our modern 30,000 m² (323,000 sq ft) production campus. By utilizing precision multi-stage roll-forming lines, automated CNC punch stamping, robotic gas-shielded arc welding, and fully automated multi-stage pre-treatment powder coating systems, we ensure millimeter-level dimensional repeatability across thousands of pallet bays.
The 10-Stage Precision Heavy Steel Fabrication Process
From prime metallurgical coil testing to sea-worthy export palletization, every structural bundle follows strict ISO 9001:2015 traceability controls.
STEP 01
High-yield certified Q235B/Q355B coils verified via metallurgical spectrometry.
STEP 02
Automated high-speed coil slitting ensuring zero camber and micro-tolerance edges.
STEP 03
Continuous CNC punching for exact 50mm, 75mm, or 76.2mm teardrop beam pitches.
STEP 04
16-to-24 station roll-forming trains yielding rigid open and enclosed profiles.
STEP 05
High-speed cut-to-length systems delivering laser-exact beam and upright heights.
STEP 06
Chamfering and grinding of weld seams and edges to prevent handling injuries.
STEP 07
Multi-axis robotic GMAW welding for 3-claw, 4-claw, and 5-claw beam connectors.
STEP 08
Multi-tank acid pickling, rust removal, and phosphate passivation bath dips.
STEP 09
Electrostatic epoxy-polyester powder baking (180°C–200°C) with 70–90µm dry film.
STEP 10
Protective wrapping and specialized bundle nesting maximizing 40HQ container cube.
Future Procurement Trends in Pallet Racking (2026–2030)
Global supply chain shocks, persistent real estate escalation, and warehouse labor constraints have fundamentally changed the procurement criteria of warehouse racking. What once was treated as an unspecialized steel commodity has transformed into a critical structural asset requiring deep alignment with material handling equipment (MHE) and software automation.
Shifting from Selective to Ultra-High Density
With industrial land costs in tier-1 North American and European logistics corridors climbing consistently, procurement managers are systematically phasing out standard wide-aisle selective layouts in favor of radio shuttle, double-deep, and push-back configurations. Deep-lane systems cut wasted aisle floor area by up to 60%, delivering a significantly lower capital cost per stored pallet footprint.
Cold-Chain Dynamic Density Surge
The explosive growth of pharmaceutical temperature-controlled logistics, meal kit delivery, and frozen food e-commerce has made freezer racking procurement a paramount priority. Because cold storage refrigeration operating costs ($/kWh per cubic foot) are exponentially higher than ambient warehouses, buyers require sub-zero embrittlement-resistant steel capable of operating reliably at -25°C to -30°C.
Standardized OEM Modularity & Hybridization
Modern supply chain dynamics require infrastructure that can pivot within weeks. Enterprise logistics teams are actively avoiding proprietary non-interchangeable racking profiles. The dominant trend centers on universal teardrop or standardized diamond-pattern uprights combined with rack-supported mezzanine levels, allowing warehouse bays to seamlessly convert from bulk pallet storage to manual tote-pick modules.
Racking Engineering Development & Technical Trends
Structural steel pallet racking engineering is evolving rapidly alongside advancements in robotics, automation, and metallurgical sciences. Modern warehouse storage installations are engineered not merely as passive load-bearing frames, but as precision structural frameworks integrated with cyber-physical warehousing systems.
ASRS & Shuttle Interfacing
Tightening robotic tolerances require beam deflection limits tighter than $L/300$. Robotic 4-way shuttles and automated stacker cranes demand precision rail levelling to avoid micro-jamming along deep storage channels.
Seismic Calculation & FEA
Advanced Finite Element Analysis (FEA) dynamically simulates peak seismic base shears according to IBC (International Building Code) and Eurocode 8 standards, verifying column anchoring before steel fabrication.
Micro-Alloy High-Yield Steel
By adopting thermo-mechanically controlled cold-rolled coil steels (such as Q355B with minimum 355 MPa yield strength), upright sections achieve higher structural load ratings with reduced steel deadweight, decreasing freight costs.
IoT Structural Telemetry
Integration of wireless accelerometer nodes on ground-level upright frames detects reach-truck collision impact exceeding safety thresholds, logging incident telemetry instantly to facilities management dashboards.
Technical Comparison: Pallet Storage Topologies
Evaluate storage density, operational throughput, SKU selectivity, and capital expenditure indices across major racking systems.
| Racking Architecture | Pallet Selectivity | Floor Space Utilization | Stock Rotation Strategy | MHE Forklift Requirement | CAPEX Index |
|---|---|---|---|---|---|
| Selective Pallet Racking | 100% Immediate | 35% – 45% (Aisle Intensive) | FIFO or LIFO | Standard Counterbalance / Reach | Low (Base 1.0) |
| Double-Deep Racking | 50% Selective | 50% – 60% (Fewer Aisles) | LIFO | Pantograph Double-Reach Truck | Low-Mid (1.2) |
| Drive-In / Drive-Thru | Low (Lane Locked) | 65% – 75% (Aisles Eliminated) | LIFO (Drive-In) / FIFO (Drive-Thru) | Counterbalance / Spec-Cab Reach | Moderate (1.4) |
| Push-Back (Cart / Rail) | Medium (Face Pick) | 60% – 70% (2–6 Deep) | LIFO | Standard Counterbalance / Reach | Moderate (1.8) |
| Pallet Flow (Gravity Roller) | Pick-Face Pure FIFO | 70% – 80% (Dynamic Slopes) | Strict FIFO (Date Coded) | Separate Loading / Offload Trucks | High (2.5) |
| Radio Shuttle System | Deep-Lane Automated | 75% – 85% (Maximum Cube) | FIFO or LIFO (Software Switch) | Standard Forklift (Loads Shuttle Only) | Advanced (2.8) |
| Heavy Cantilever Racking | 100% Clear Front | Specialized Linear Footprint | Free Access / Any Order | Side Loader / Multi-Directional Reach | Moderate (1.5) |
Global Compliance & Engineering Quality Assurance
When sourcing pallet racking overseas, procurement executives and third-party logistics firms must satisfy strict safety certifications, local municipal building codes, and structural engineer-of-record (EOR) plan reviews. HEDA Shelves operates under verified quality management certifications:
Certificate No. 18624Q00169R0M. Full structural steel production, cold-roll forming, robotic welding, and anti-corrosive powder coating operates under tightly monitored batch tracking protocols.
Construction Products Regulation Certificate No. 2435-CPR-8605159. Full verification of static calculation tolerances, load safety factors, and welding execution under stringent European standard EN 15512.
Strict adherence to hazardous material exclusions across all surface paints and electrostatic powder coatings, allowing safe, long-term deployment across food, beverage, grocery, and pharmaceutical storage facilities.
Strategic Procurement & Engineering FAQ
Detailed technical answers to common questions raised by facility design engineers, supply chain vice presidents, and international logistics operations teams.
What exact building and pallet specifications are required for a 24-hour CAD layout and formal quotation?
Are HEDA pallet racking systems fully compatible with North American 48×40 inch GMA pallets?
How do you support seismic engineering reviews and local municipal permit approvals?
What are the standard ocean freight packing methods to prevent transit damage and optimize container cube?
What steel grades and surface anti-corrosion treatments are specified for sub-zero cold storage?
What are the differences between OEM and ODM programs for racking distributors and integrators?
Plan Your Storage Architecture with HEDA Engineers
Receive an engineered CAD floor plan, 3D elevation renderings, structural weight calculations, and a comprehensive container-landed quotation within 24 hours. Our senior technical team is ready to review your warehouse specifications.
- Free Engineering CAD & 3D Modeling
- Imperial (lbs/ft) & Metric (kg/mm) Formats
- FOB, CIF, & DDP Project Shipping Support
