Boltless Medium Duty Shelving Unit With Partition Board
Interlocking modular system with partition plates designed for rapid manual-pick configuration and organized parts separation.
Featured OEM Portfolio
High-Capacity Industrial Racks & Precision Shelving Units
Engineered to withstand rigorous dynamic loads, seismic specifications, and demanding throughput cycles across modern manufacturing plants, fulfillment distribution centers, and bulk storage facilities.
Lean Pipe Flow Rack Roller Sliding Shelf System
Gravity-fed sliding track structure optimizing ergonomics, live-assembly lines, and strict FIFO inventory rotation cycles.

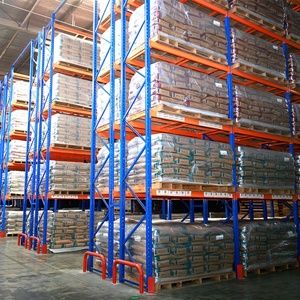

Custom Heavy Duty Pallet Storage Stacking Racks
Rugged tubular steel engineering built for high-density vertical stacking without requiring permanent floor-anchored aisles.
Powder Coated Steel Heavy Duty Warehouse Pallet Rack
Corrosion-resistant epoxy electrostatic finish featuring adjustable step-beam profiling for intensive logistics handling.
Heavy Duty Warehouse Cantilever Storage Shelving
Column and cantilever arm setup engineered specifically for long-span structural materials, timber, steel piping, and bulky assets.
High Density Q235B Cold Rolled Steel Pallet Rack
Certified standard structural steel frame supporting 1,000kg to 4,000kg UDL capacities per layer for multi-tier fulfillment.
High Capacity 3-Layer Adjustable Steel Shelving Rack
High-versatility industrial rack featuring precision-punched pitch holes for quick level repositioning and heavy batch retention.
Burst Silver Finish 5-Shelf Steel Display & Storage Unit
Multi-functional commercial-industrial hybrid unit combining 200kg layer capacity with aesthetic, scratch-resistant electrostatic finish.
Strategic OEM/ODM Procurement: Engineering Standards in Storage Fabrication
Modern global logistics require warehouse storage systems engineered beyond conventional static ratings. Industrial racking procurement demands rigorous vetting of base metal provenance, structural profile calculations, beam-to-column connector tolerances, and chemical-thermal powder coating dynamics. In standard supply chain environments, failure under seismic excitement or continuous reach-truck vibration can compromise facility safety, disrupt automated guided vehicles (AGVs), and result in severe capital liabilities.
As a specialized OEM/ODM manufacturer, our production floor standardizes strictly on Q235B and high-yield certified cold-rolled coils, eliminating microscopic wall variances through progressive, multi-stage cold bending lines. Beam connectors are stamped with interlocking three- and four-claw configurations to resist dynamic beam dislodgement, while our automated immersion lines execute micro-crystalline phosphating prior to epoxy powder curing. This technical precision preserves column rigidity under full design live loads and minimizes axial deflection over multi-year cyclic stresses.
25+
Years OEM Mastery30,000
Tons Monthly Output323,000
Sq. Ft. Factory Footprint10,000+
Global InstallationsTechnical Evaluation Framework for Industrial Rack Sourcing
Tensile Verification & Alloy Purity
Full mill test certificates (MTC) accompanying every batch ensure silicon and carbon thresholds minimize brittle fracture hazards under freezing and seismic conditions.
Electrostatic Chemical Passivation
Multi-stage ultrasonic degreasing, clean-water rinses, and hot phosphating guarantee optimal polymer adhesion, exceeding standard ASTM salt spray testing thresholds.
Parametric Stress FEA Modeling
Finite element analysis underpins all custom column perforations, confirming dynamic stability, vertical eccentric buckling thresholds, and load redistribution factors.
Market Horizon
Emerging Trajectories in Industrial Storage Engineering
The global warehousing market is shifting rapidly toward automated material handling, dense footprint utilization, and strict ESG compliance. OEM/ODM suppliers can no longer serve solely as metal-rolling plants; they must function as structural systems integrators capable of interoperating with autonomous robotics, telemetry-driven inventory monitoring, and complex building lifecycle standards.
ASRS & Shuttle Synergies
Tolerances for pallet deflection must narrow to millimetric precisions (L/600 or tighter) to prevent automated cranes, shuttles, and picking arms from optical misalignments.
Cold-Chain Optimization
Refrigerated logistics costs demand high-density radio shuttle and drive-in formats utilizing specialized low-temperature steels resistant to sub-zero embrittlement.
Seismic Resilience Standards
Global regulatory bodies require comprehensive seismic calculations and dynamic simulations to prevent progressive structural collapse during earth movements.
Low-VOC Green Fabrication
International corporate supply chains prioritize vendors utilizing non-toxic powders, zero-heavy-metal wastewater processing, and fully recyclable steel feedstock.
Procurement teams are consolidating vendor bases into comprehensive Tier-1 partners. The traditional split between structural shelving manufacturers and automation integrators is blurring; the future belongs to precision-driven OEMs who deliver modular engineering tailored for robotic handling right off the pallet.
Why Choose HEDA
Guangzhou HEDA Shelves: Enterprise Manufacturing Authority
Operating since 2001, Guangzhou Heda Shelves Co., Ltd. has grown from a regional steel fabrication shop into a premier international supplier of heavy-duty pallet racking, industrial shelving, and multi-tier mezzanine floors. With an expansive 30,000 square meter (approx. 323,000 sq. ft.) automated production base and over 300 experienced technical specialists, welders, and structural engineers, our facility delivers more than 30,000 metric tons of custom-engineered steel systems every month.
Our OEM/ODM process ensures complete end-to-end accountability. From initial architectural layout review, clear-height evaluation, and imperial load distribution schedules to computerized roll forming, certified robotic welding, and export bundle crating, we streamline procurement for distribution contractors, distributors, 3PL facilities, and global industrial distributors.
Turnkey CAD & 3D Modeling
Receive engineered spatial plan views, structural elevations, and 3D visual walkthroughs in feet/inches or millimeters within 24 hours of inquiry submission.
ISO 9001 & CE Quality Systems
Audited manufacturing pathways certified under ISO 9001:2015 and CE EN-1090 guarantee component traceability, consistent weld penetration, and uniform powder film thickness.
Container-Optimized Shipping
Export packaging features modular banded cradles and protective corner profiles designed for clean offloading at key global ocean ports without transit damage.
Knowledge Base
Frequently Asked Questions: Global Industrial Rack Procurement
What engineering information is required to generate an accurate OEM/ODM layout quote?
To provide an itemized quotation and CAD drawing within 24 hours, our engineering team requires: facility floor dimensions and clear ceiling clearance; maximum pallet dimensions (including load overhang: width, depth, height); gross pallet weights; operating forklift model, turning radius, and maximum reach height; as well as local seismic zone classifications and operational temperature ranges (such as ambient dry warehouse or -25°C cold storage).
How are load ratings and deflection ratios certified for heavy-duty beam configurations?
All beams are calculated based on uniformly distributed loads (UDL) in accordance with international RMI (Rack Manufacturers Institute) and FEM guidelines. Design deflection limits typically do not exceed L/200 under maximum static service loads, and can be customized to L/400 or L/600 for automated crane and shuttle systems to avoid triggering optical sensor faults.
Can you manufacture components matching teardrop or custom upright hole pitches for integration?
Yes. Our tooling workshop develops dedicated punch dies for standard North American teardrop upright patterns, 50mm metric pitched omega profiles, 75mm euro profiles, and customized proprietary hook styles. We routinely supply private-label racking distributors with components fully compatible with existing installed bases.
What surface treatment protections are applied for high-humidity or chemical warehouse environments?
Prior to coating, steel components undergo an automated multi-stage bath: alkaline degreasing, acid pickling, rinse, iron/zinc phosphating, and final passivation. Components are then sealed via automated electrostatic spray booths with thermoset epoxy-polyester hybrid powders (minimum 60-80 microns thickness) baked at 180°C-200°C. For aggressive exterior or corrosive chemical conditions, hot-dip galvanizing per ISO 1461 standards is available.
What documentation is provided to support local permitting and engineer-of-record (EOR) reviews?
We supply full architectural shop drawings, detailed anchor baseplate dimension sheets, component specification sheets, mill test certificates (MTC) detailing steel yield points, and comprehensive finite element calculation packages. These documents allow local licensed professional engineers to review and apply their official stamps for building authority permits.
Ready to Engineer Your Optimized Storage Facility?
Connect directly with our senior racking structural engineering department. Receive customized CAD blueprints, 3D renderings, and transparent FOB/CIF volume pricing within 24 hours.
