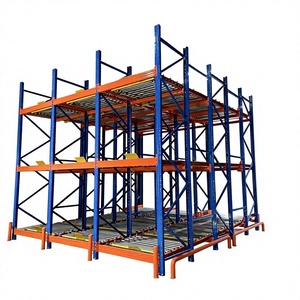

Gravity-driven roller lanes enforce strict first-in, first-out rotation for high-throughput perishables, cold chain, and fast-moving consumer goods.

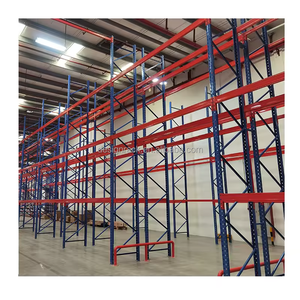

Engineered for 48x40-inch GMA pallets, featuring heavy-duty teardrop connectors, boltless beam attachments, and load ratings up to 6,000 lbs per tier.

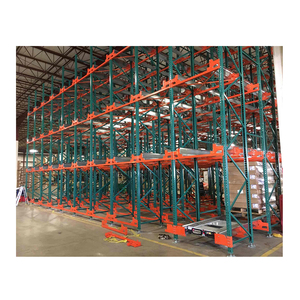

Semi-automated deep lane storage. Motorized battery shuttles handle pallet transfer inside deep channels, drastically reducing lift truck travel time.

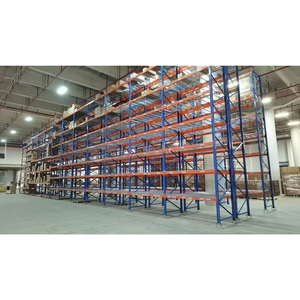

Optimized for manual carton picking, bulk automotive components, and archive storage. Features drop-in steel or wire mesh decking panels.

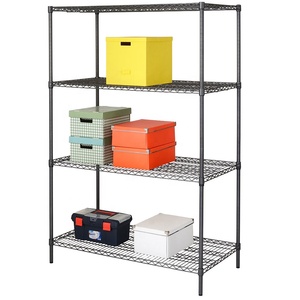

Powder-coated scratch-resistant utility shelving designed for ancillary distribution hubs, maintenance shops, and e-commerce picking zones.

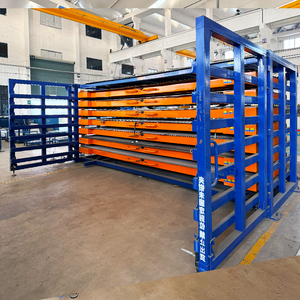

High-density roll-out drawers allowing 100% crane-hoist or forklift access to heavy sheet stock, stamping dies, and industrial fabrication plates.
Engineered with universal connection brackets for fast field erection, minimum labor footprint, and scalable expansion in fast-growing facilities.

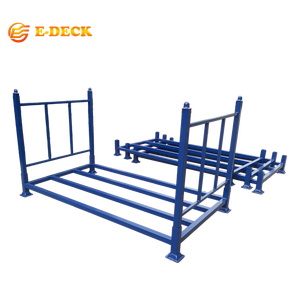

Interlocking heavy-gauge tubular steel construction, designed for modular stacking 4-5 units high to optimize seasonal automotive warehousing.
A comprehensive procurement and technical guide for supply chain executives, industrial architects, and automated material handling system integrators.
In modern high-density distribution and automated logistics hubs, vertical space optimization has transitioned from a basic shelving requirement into a precision-engineered structural science. Industrial high bay racking systems—often extending from 12 meters (40 feet) up to over 40 meters (130+ feet)—subject cold-formed structural steel to complex multi-axial loads, dynamic crane impact forces, second-order $P-\Delta$ sway effects, and localized seismic ground accelerations.
Procuring these monumental structures from an established OEM/ODM high bay racking exporter demands rigorous technical vetting far beyond standard commercial pallet racking. As supply chain infrastructure embraces automated storage and retrieval systems (AS/RS), stacker cranes, and autonomous mobile robots (AMRs), structural tolerances shrink from fractions of an inch to millimeters. Structural failure or elastic deformation exceeding FEM 9.831 limits can halt multi-million-dollar automation lines, trigger crane mast collisions, and pose severe occupational hazards.
Whether deploying a free-standing high bay within a pre-engineered metal building (PEMB) or erecting a full rack-clad warehouse structure (silo building) where the racking framework directly supports the exterior wall cladding and roof trusses, structural integrity depends directly upon the exporter's in-house engineering depth, roll-forming precision, robotic welding quality, and comprehensive compliance with international standards such as RMI ANSI MH16.1 in North America, EN 15512 in Europe, and AS 4084 in Australasia.
| Storage Typology | Typical Height (m / ft) | Handling Equipment | Deflection Criteria (Beam/Frame) | Kinematic Tolerance | OEM/ODM Customization Scope |
|---|---|---|---|---|---|
| AS/RS Clad-Rack High Bay | 24m – 45m (80 – 148 ft) | Automated Stacker Crane (SRM) | $L/300$ beam; $H/500$ top frame sway | ±1.5 mm per bay pitch | Crane guide rail brackets, top tie trusses, wall girts, roof purlins |
| Very Narrow Aisle (VNA) High Bay | 12m – 18m (40 – 60 ft) | Man-Up / Man-Down VNA Turret Truck | $L/200$ beam; $H/350$ frame sway | ±3.0 mm floor/rail guide | Magnetic wire guidance slots, bottom guide rails, aisle run-out stops |
| Automated Radio Shuttle High Bay | 10m – 22m (33 – 72 ft) | Reach Truck + Deep Shuttle Cart | $L/250$ beam; $H/400$ frame sway | ±2.0 mm track gauge | Galvanized shuttle running rails, pallet centering stops, optoelectronic sensor flags |
| Dynamic Pallet Flow (FIFO) High Bay | 8m – 16m (26 – 52 ft) | Counterbalanced / Reach Truck | $L/200$ beam; gradient slope 3.5% | ±2.0 mm roller alignment | Centrifugal speed controller mounts, entry guide funnels, separating separators |
Anticipate structural evolutions, automated logistics integrations, and sustainable supply chain requirements shaping worldwide high bay investments.
Rising industrial land valuations and civil construction expenses are driving procurement teams toward rack-supported building (clad-rack) systems. By utilizing high bay upright columns as the primary load-bearing skeleton for building envelopes, enterprises eliminate secondary structural steel pillars, slashing overall capital expenditure by 25% to 35% and expediting project delivery schedules.
Capex OptimizationAs modern stacker cranes reach horizontal travel velocities exceeding 240 m/min and hoisting speeds of 90 m/min, high bay steel frames must absorb extreme dynamic braking vectors. Procurement specifications now dictate millimetric upright straightness tolerances, micro-welded connector nodes, and specialized high-damping ground anchorages to prevent structural resonant vibration.
Automation ToleranceGlobal pharmaceutical and frozen food operations are consolidating into ultra-tall refrigerated high bay facilities to minimize cubic cooling loss. Sourcing mandates certified impact-tested structural steels (Q355ND/NE or ASTM A572 Grade 50 Charpy V-Notch rated at -30°C) to eliminate risk of brittle fracture under continuous cryogenic operating stress.
Cryogenic MetallurgyCorporate ESG directives are reshaping international procurement tenders. Global exporters must now provide Environmental Product Declarations (EPDs), document low-emission electric arc furnace (EAF) steel sourcing, and utilize heavy-metal-free, zero-VOC electrostatic powder coatings that withstand 500+ hours of ASTM B117 salt spray testing.
ESG & Life-Cycle AssessmentNext-generation high bay projects integrate strain-gauge telemetry, IoT tilt sensors, and digital twin BIM models. During OEM design, exporters pre-drill calibrated sensor brackets and generate comprehensive 3D Revit models, enabling real-time structural load monitoring and predictive maintenance alerts during seismic or operational anomalies.
Industry 4.0 IntegrationFounded in 2001, Guangzhou Heda Shelves Co., Ltd. provides comprehensive engineering, OEM contract fabrication, and global export packaging for high bay logistics installations across North America, Europe, Latin America, and Southeast Asia.
Operating from a 30,000 square meter (approx. 323,000 sq ft) state-of-the-art manufacturing complex, HEDA Shelves integrates modern automated cold roll-forming lines, automated CNC punching centers, multi-axis robotic welding cells, and an eco-friendly automated electrostatic powder coating system. With an active portfolio exceeding 10,000 completed warehouse projects worldwide, we serve as the trusted OEM/ODM manufacturing engine for global warehouse equipment distributors, racking installers, and system integrators.
Our in-house structural engineering department delivers custom CAD layouts, 3D Finite Element Analysis (FEA), and dual-dimensioned imperial/metric calculation packages within 24 hours. We design around standard 48x40-inch GMA pallets, Euro-pallets, and oversized non-standard containers. Every project includes complete calculation packets supporting review and seismic stamping by local registered Professional Engineers (PE / EOR) in compliance with local municipal building departments.
