Structural Engineering Rigor: Material Integrity & Deflection Mechanics

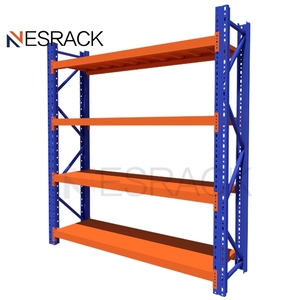

In high-bay warehouse operations and automated distribution hubs, bulk storage shelving systems are structural engineering installations subjected to multi-axis kinetic and dead-weight loads. Structural failure compromises high-value capital assets and worker safety. Guangzhou Heda Shelves Co., Ltd. applies strict engineering controls from raw coil slitting to automated roll profiling and robotic welding, complying with ANSI/RMI MH16.1 (Specification for the Design, Testing and Utilization of Industrial Steel Storage Racks), EN 15512 (European Steel Static Storage Systems), and AS 4084 standards.
Our upright columns and box-welded cross beams are engineered exclusively with prime certified structural steel grades: standard Q235B (Yield Strength fy ≥ 235 MPa, Tensile Strength fu = 370–500 MPa) and cold-environment high-tensile Q355B (Yield Strength fy ≥ 355 MPa, Tensile Strength fu = 470–630 MPa). Material selection is matched against dynamic cyclic stress and thermal variables. For cold storage freezers operating at -30°C, we verify ductile transition behavior and impact toughness Charpy V-notch energy ratings to eliminate brittle cleavage fracture risks under static fork impacts.
Deflection Limiting Criteria (RMI & EN Compliance): All HEDA structural beam calculations are restricted to a maximum horizontal and vertical deflection threshold of δ ≤ L / 200 under uniform static load, with high-tolerance automated sorting applications engineered to δ ≤ L / 240. Connector end plates feature precision robotically welded 3-claw to 5-claw configuration hooks with high-shear carbon safety locking pins (0.8 kN upward disengagement resistance) to prevent accidental forklift tine displacement.
Pretreatment involves a 7-stage automated chemical cleaning process: continuous vapor degreasing, twin acid pickling baths for oxide scale eradication, micro-crystalline zinc phosphating, and deionized water flushes. Structural sections then travel through an automated electrostatic reciprocator booth applying premium AkzoNobel or PPG thermosetting polyester powder coatings at an average dry film thickness (DFT) of 60 to 90 microns. This yields over 500 hours of continuous ASTM B117 salt spray corrosion resistance for maritime transit and unconditioned industrial humidity.
Comparative Systems Engineering
Structural Matrix: Bulk Storage Racking Architecture Selection
A multi-factor engineering matrix balancing aisle utilization efficiency, SKU selectivity ratios, floor load distribution, and material handling capital expenditure.
| Racking Architecture | Direct Selectivity | Volumetric Space Utilization | Floor Footprint Conservation | MHE Machinery Compatibility | Inventory Rotation | Primary Industrial Use Case |
|---|---|---|---|---|---|---|
| Selective Pallet Racking | 100% Direct | 40% – 50% Spatial Efficiency | Standard Floor Grid | Counterbalance, Reach Truck, VNA | FIFO or LIFO | Fast-turnaround 3PL, FMCG, retail consolidation hubs |
| Drive-In / Drive-Through | 15% – 25% (Lane End) | 75% – 85% High Density | High Cubic Utilization | Specialized Narrow Counterbalance | LIFO (Drive-In) / FIFO (Through) | Cold storage freezers, seasonal beverage packaging |
| Gravity Pallet Flow | Lane Pick Face Only | 70% – 80% Continuous Density | Self-Feeding Lanes (Slope 3-4%) | Standard Counterbalance, Reach | Strict FIFO Rotation | Perishable produce, pharmaceuticals, date-coded chemicals |
| Semi-Automated Radio Shuttle | Batch / Channel Face | 80% – 90% Ultra Density | Deep Lane Matrix (Up to 40m) | Standard MHE + 48V Electric Shuttles | Flexible FIFO & LIFO | Mass production buffer, deep-freeze distribution hubs |
| Heavy-Duty Cantilever | 100% Facade Access | Open Clear-Span Front | Column-Free Horizontal Runs | Side Loaders, Multi-Directional MHE | Continuous Batch Pick | Structural timber, steel pipe, drywall, extrusions |
| Rack-Supported Mezzanine | Multi-Tier Manual Pick | 100% Vertical Footprint Doubling | Integrates Storage + Floor Grid | Conveyors, Vertical Lifts, Hand Trucks | Dynamic Each-Pick | Automotive aftermarket, apparel e-commerce, small parts |
Forward-Looking Sourcing
Macro Trends Shaping Bulk Storage Procurement: 2025–2030
Evaluating total cost of ownership (TCO), decarbonization mandates, and autonomous mobile robot (AMR) compatibility in warehouse structural layouts.
AMR & AGV Floor Interface Engineering
Modern distribution centers are transitioning from manned counterbalanced forklifts to fleet-operated Autonomous Mobile Robots (AMRs) and automated guided high-reach reach trucks. Racking procurement now demands tighter dimensional tolerances: column baseplate positioning within ±1.5mm, floor flatness compliant with DIN 18202 Table 3 Group 4 (superflat tolerances), and base deflection profiles engineered to prevent reflective sensor interference from dynamic navigation LiDAR.
Decarbonization & Green Steel Audits
Global multi-national enterprises and EPC contractors require documented Scope 1, 2, and 3 embodied carbon declarations. HEDA Shelves leads this shift through audited supply agreements with electric arc furnace (EAF) steel mills utilizing scrap feeds, lowering total CO₂ per manufactured ton by up to 38% compared to blast-furnace routes. Powder lines utilize heavy-metal-free, low-cure thermoset polymers that reduce kiln thermal consumption by 22%.
Modular Reconfigurability & Circularity
Rapid SKU churn driven by omnichannel fulfillment has rendered welded, static storage configurations obsolete. Tier-1 enterprise buyers prioritize universal beam connectivity, standardized 50mm teardrop or diamond hole pitch patterns, and modular rack-supported mezzanine frames. These modular assemblies allow rapid conversion from selective pallet positions to double-deep or carton-flow lines without requiring torch cutting, structural re-welding, or operational downtime.
Industrial Manufacturing Evolution
Advanced Production Dynamics: The HEDA Manufacturing Ecosystem
Combining heavy-tonnage roll-forming lines, automated CNC punch stamping, and robotic laser welding to guarantee consistent mechanical tolerances across container-scale export shipments.
Automated CNC Piercing
Multi-station automated hydraulic presses punch upright column profiles with ±0.1mm centerline tolerance, preventing pitch drift across 15-meter tall continuous vertical members.
Progressive Cold Roll-Forming
Custom 24-stand progressive roll-forming stations cold-work high-yield coil without induced thermal residual stresses, increasing section yield strength by cold-work hardening.
Robotic GMAW Fusion
Connector end plates and base foot assemblies are joined via 6-axis ABB robotic Gas Metal Arc Welding (GMAW) units utilizing 99.9% Argon/CO₂ gas shielding for complete penetration welds.
Automated Pretreatment
Continuous tunnel dipping and spray baths clean, degrease, and phosphate steel profiles prior to electrostatic powder deposition, providing a scratch-resistant surface with high impact resistance.
Technical Resolution Center
Engineering, Procurement & Compliance FAQ
Direct technical answers addressing structural calculation submittals, seismic PE stamping, container load planning, and cold storage metallurgy.
How does HEDA support seismic calculations and local engineer-of-record (EOR) stamping in North America?
HEDA delivers complete structural drawing submittal packages that include component sectional properties (cross-sectional area, moments of inertia Ix and Iy, and radius of gyration), yield stress verification sheets, baseplate connection load transfers, and Finite Element Analysis (FEA) reports in imperial units (lbs, kips, inches). These engineering submittals are prepared to facilitate direct review, seismic modeling (ASCE 7, IBC chapters 16 & 22), and official PE stamping by your regional engineer-of-record.
What standard structural deflection ratio limits govern your cross-beam designs?
Our cross beams adhere to RMI MH16.1 and EN 15512 standards, enforcing a maximum vertical deflection limit of δ ≤ L / 200 under uniformly distributed pallet static loads. For automated systems like Radio Shuttle and AS/RS where conveyor or shuttle tolerance is critical, we design to δ ≤ L / 240. Beam calculation packages verify maximum flexural bending moments, shear capacity at the connector weld line, and safety lock disengagement capacity.
How are ocean export shipments packed to prevent transit abrasion and container cube loss?
Components are bundled with custom-molded protective polymer edge protectors, corrugated separation sheets, heavy-duty PET strapping bands, and vapor-barrier poly wraps. Bundles are configured to optimize 40-foot High Cube (40HC) container dimensions, using wooden dunnage to prevent frame-on-frame friction. Upright frames are sequenced by bay orientation, and structural beams are nested back-to-back to maximize shipping volume, reducing freight costs per pallet position.
What OEM/ODM customization options are supported for private-label distributors?
For distributor and systems integrator partnerships, we provide full private-label OEM/ODM services: custom punched company emblems on column caps, proprietary hole-punch patterns (teardrop, slotted, hex, keyhole), customized corporate RAL color schemes (powder coating), proprietary end-connector castings, and neutral or co-branded installation manuals and component packaging.
What surface treatment is specified for refrigerated and sub-zero cold storage warehouses?
For sub-zero cold chain freezers (-30°C) where condensation and moisture vapor cycling cause rust, we offer hot-dip galvanization compliant with ASTM A123/ISO 1461 (minimum zinc coating 65–85 μm) or high-durability epoxy-polyester powder coats formulated with low-temperature crosslinking agents. Fasteners, locking pins, and leveling shims are supplied in Dacromet-coated or 304/316 grade stainless steel to prevent galvanic corrosion.
What is the typical engineering turn-around time for preliminary CAD layouts and quotes?
Our dedicated structural engineering team provides complete preliminary AutoCAD layout drawings, isometric 3D system views, and itemized bill-of-materials (BOM) quotations within 24 hours of receiving building floor plans (DWG/PDF), clear hook heights, pallet dimensions (W × D × H), pallet maximum weights, and forklift turning radius specifications.
