Industrial-Grade Adjustable Warehouse Racking & Shelving Systems
Direct from our 30,000 m² automated manufacturing facility. Every racking profile is cold-formed from high-yield certified steel, precision punched on 50mm/75mm pitches, pretreated via 10-step pickling-phosphating, and finished with impact-resistant electrostatic powder coating.

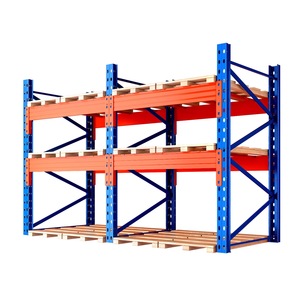

Heavy-Duty Beam-Type Steel Industrial Warehouse Drive-In Storage Racks

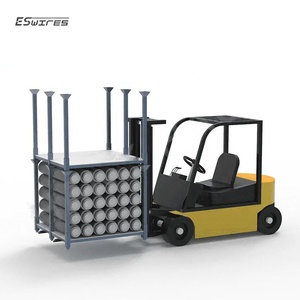

Heavy Duty Fabric Roll Stackable Metal Steel Racks for Warehouse Storage

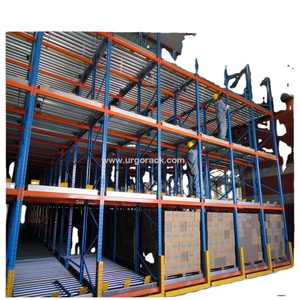

High Efficiency Order Picking Gravity Flow Roller Racking System
Customized Premium Material Heavy Duty Post Pallet Rack for Cold Warehouse

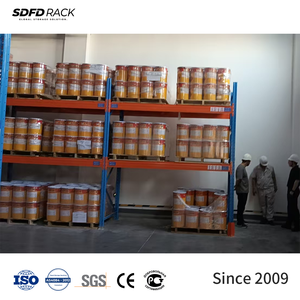

SDFD Industrial Heavy Duty Steel Pallet Rack Warehouse Shelving System

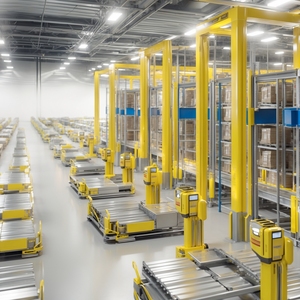

Pteris ASRS Shuttles Pallet Racking System Smart Warehouse Automation
Multifunction Modular Fitness Equipment Storage & Heavy Display Rack

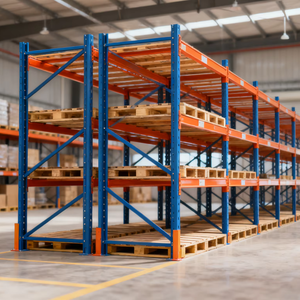

Wholesale Heavy Duty Steel Pallet Racking System Anti-Corrosion CE Certified
The Mechanics of High-Density Adjustable Warehouse Shelving Systems
Modern distribution centers, 3PL logistics facilities, and manufacturing staging hubs demand storage solutions that maximize volumetric cube utilization while guaranteeing absolute mechanical safety under fluctuating live, dead, dynamic, and seismic load combinations.
Adjustable industrial shelving and heavy-duty beam rack systems derive their operational integrity from the structural interaction between cold-formed vertical upright frames, horizontal interlocking load beams, diagonal and horizontal bracing trusses, and engineered floor anchoring assemblies. In high-throughput industrial environments, the selection of an OEM/ODM adjustable warehouse shelving manufacturer is a crucial risk-mitigation decision that directly impacts floor capacity, personnel safety, and regulatory compliance.
1. Metallurgy and Section Modulus Optimization: Structural reliability begins with premium-grade steel coils (predominantly Q235B and high-yield Q355B structural steel). Utilizing automated multi-station cold roll-forming machinery, the steel is shaped into complex omega, open C, or enclosed box profiles. Each successive pass of roll forming introduces work hardening along bend radiuses, elevating yield strength without adding dead weight. The structural section modulus is engineered to counter Euler buckling under vertical compression and resist local torsional deflection caused by asymmetrical pallet placement.
2. Precision Punching & Beam Connector Mechanics: The core feature of adjustable shelving is the beam-to-column connector system. High-precision automated punching lines stamp continuous column patterns—typically spaced on standardized 50mm, 75mm, or North American 2-inch or 3-inch increments (including standard Teardrop, Keyhole, and Heavy Diamond patterns). Our engineered beam end-connectors feature 3 to 5 stamped cold-forged locking claws that nest tightly into the upright slots. Under downward load, the tapered profile of the claw forces the connector into a mechanical wedge fit, drastically minimizing joint rotation and structural wobble while transferring bending moments across the entire frame bay. Every connector is equipped with an integrated or independent spring steel safety lock pin rated to resist upward forklift dislodgement forces exceeding 1,000 lbs (4.45 kN) in strict adherence to ANSI MH16.1 and EN 15512 safety codes.
3. Seismic Resistance and Base Plate Dissipation: In seismic risk zones (such as western North America, Oceania, and coastal Asia-Pacific), industrial shelving frames must be engineered as ductile moment-resisting structures. Base plates are calculated with enlarged footings, dual anchor bolt holes for heavy wedge or chemical anchors, and reinforced gusset brackets. These base assemblies absorb, dissipate, and transfer dynamic ground accelerations into the concrete foundation, preventing progressive catastrophic frame buckling during seismic events.
Why Global Brands & Integrators Trust HEDA Shelves as Their OEM/ODM Partner
Operating since 2001, Guangzhou Heda Shelves Co., Ltd. provides complete end-to-end manufacturing accountability—from initial structural CAD & FEA finite element analysis to containerized maritime packaging.
Full Customization & Tooling Flexibility
We offer tailored OEM/ODM production for specialized storage requirements. Whether adapting beam connectors to match existing proprietary teardrop, slotted, or hex hole patterns, creating custom roll diameters for textile storage, or fabricating extra-deep frames for oversized cargo, our internal tooling and mold design division delivers bespoke prototypes in as fast as 7 business days.
24-Hour Free CAD & 3D Engineering Layouts
Eliminate layout guesswork before allocating capital. Our professional logistics engineering team analyzes your warehouse clear height, column grid spacing, floor levelness (FF/FL), pallet load dimensions, and forklift turn radiuses (Aisle Turn Clearances) to produce optimized 2D CAD architectural floor plans and 3D realistic spatial renderings within 24 hours.
Certified Global Compliance Standards
Quality is backed by verifiable documentation. Our factory holds accredited ISO 9001:2015 Quality Management certification (Cert. No. 18624Q00169R0M) and European CE Marking for structural steel execution under EN 1090 / CPR (No. 2435-CPR-8605159). Load tables, mill test certificates (MTC), and imperial/metric calculation dossiers are provided ready for professional engineer (PE) site stamping.
Automated Surface Treatment & Coating Line
Durability is defined by pre-treatment chemistry. Unlike budget fabricators that spray over mill oils, all HEDA components pass through an automated 10-step immersion system consisting of degreasing, ultrasonic rust removal, pickling, and zirconium-phosphating. Components receive an automated electrostatic powder coat with TGIC-free polyester epoxy baked at 200°C for superior scratch and salt-spray resistance.
Container-Optimized Logistics Packaging
Exporting to over 100 countries requires specialized bundle nesting and seaworthy packaging. Upright frames are modularly strapped with protective corrugated corner guards, heavy-gauge steel bands, and moisture-barrier film. Beams are palletized on custom timber runners for fast forklift offloading at port, eliminating maritime abrasion damage and minimizing ocean freight container wastage.
Comprehensive Quality Testing Protocol
Every steel heat batch is sampled in our metallurgical lab. Tests include tensile yield verification, weld ultrasonic checks, coating thickness measurement (dry film gauge: 60-90 microns), cross-hatch adhesion testing (ISO Class 0), and beam full-load deflection trials ensuring structural deflection strictly stays within the L/200 maximum limit under 100% nominal live capacity.
Buyer's Strategic System Selection Guide
Select the optimal warehouse shelving architecture based on SKU variety, pallet throughput velocity, inventory turnover model, and warehouse floor cubic constraints.
| System Architecture | Pallet Accessibility | Floor Space Utilization | Inventory Rotation | Recommended Aisle Width | Primary Industrial Application |
|---|---|---|---|---|---|
| Selective Pallet Racking | 100% Direct Access | Moderate (35% - 40%) | FIFO / LIFO Flexible | 3.0m - 3.8m (Standard Counterbalance) | High SKU distribution centers, retail fulfillment, spare parts centers, e-commerce staging. |
| Drive-In / Drive-Through | Low (Lane-Entry Access) | High (Up to 75%) | Strict LIFO (Drive-In) / FIFO | Aisle-less lane design | Cold storage freezers, batch manufactured goods, seasonal inventory, low-variety bulk items. |
| Push-Back Rack (2-6 Deep) | Medium (Front Face Access) | High (60% - 65%) | LIFO | 2.8m - 3.2m (Reach Truck) | Beverage bottling, food processing, building material staging, medium SKU counts with 3-6 pallets per line. |
| Gravity Pallet Flow | High at Pick Face | Maximum (Up to 80%) | Strict FIFO | Separate dedicated loading & picking aisles | Pharmaceuticals, perishable dairy/meat, fast-moving consumer goods (FMCG) with strict expiration dates. |
| Radio Shuttle Automation | Controlled End-of-Lane | Ultra-High (80% - 85%) | Programmed FIFO or LIFO | External access aisle only | Automated cold stores, buffer staging before shipping dock, hazardous chemical storage, deep lane reserves. |
| Heavy-Duty Cantilever | 100% Clear Front Span | High for Linear Cargo | Open Rotation | Determined by material handling vehicle | Lumber, steel pipes, extruded aluminum, gypsum drywall, bar stock, furniture, long automotive chassis. |
| Rack-Supported Mezzanine | Multi-Level Hand Pick | 200% - 300% Cubic Gain | Discrete SKU Bin Picking | 1.0m - 1.5m pedestrian catwalk aisles | Automotive aftermarket distribution, apparel order picking, small parts archiving, electronic assemblies. |
Emerging Trends in Warehouse Shelving & Industrial Logistics Procurement
As commercial real estate leasing rates surge and supply chains face persistent labor shortages, warehouse shelving systems are transforming from passive structural steel racks into high-precision, automation-ready logistics platforms.
1. AMR & AGV Integration Tolerances
Autonomous Mobile Robots (AMRs) and automated forklifts require tighter mechanical tolerances. Future shelving frameworks incorporate laser-aligned bottom guide channels, reflective optical fiducial targets, and zero-deflection base plates to eliminate sensor navigation failures.
2. Decarbonized Steel & Eco-Coatings
Enterprise ESG mandates are driving structural procurement toward Green Steel produced via Electric Arc Furnaces (EAF) with recycled scrap content. Coating formulations are transitioning to zero-VOC, heavy-metal-free, low-bake thermosetting powder coats that cut factory carbon emissions by up to 28%.
3. Smart IoT Stress & Impact Monitoring
Racks are becoming sensorized. Emerging smart upright posts integrate low-power piezoelectric sensors and Bluetooth Mesh nodes that instantly detect forklift impact overloads, measuring real-time deflection to alert facility managers before micro-fissures cause catastrophic structural collapse.
4. Modular Reconfigurable Architecture
Modern multi-tenant 3PL warehouses face rapid contract turnover. Storage assets must adapt swiftly. Next-generation shelving features standardized boltless connectors, quick-release beam locks, and universal frame designs that reconfigure between selective, carton-flow, and mezzanine picking within hours.
Our 10-Step Quality-Controlled Production Sequence
Every component manufactured in our Guangzhou production campus passes through a rigorous ten-stage sequence designed to maintain zero-defect standards for global distribution.
Raw Material Coil Audit
Incoming hot/cold rolled Q235B/Q355B coils verified for tensile yield, chemical composition, and thickness tolerances.
Precision Slitting & Cutting
High-speed rotary gang slitting lines shear master coils into exact ribbon widths ready for profile roll forming.
Automated CNC Punching
High-tonnage progressive punching presses stamp teardrop or diamond slot patterns with pitch tolerances within ±0.1mm.
Multi-Station Roll Forming
Continuous 24-station cold roll-forming lines shape upright columns and interlocking step/box beams without micro-fracturing.
Laser Cutting & Notching
Fiber optic 3D laser cutting systems machine baseplate mounts, beam end copes, and bracket attachment points cleanly.
Robotic Shielded Welding
Panasonic robotic welding cells execute dual-shield CO2 / Argon welding on beam end-connectors, producing continuous deep-penetration fillets.
Mechanical Polishing
Automated deburring machines remove all sharp flash, slag, and micro-burrs to prevent snagging and personnel cuts during assembly.
Pickling & Phosphating
Immersion chemical degreasing, ultrasonic descaling, acid pickling, and zirconium phosphating create optimal microscopic coating adhesion.
Electrostatic Powder Coat
Reciprocator electrostatic spray guns apply uniform polyester powder, baked inside a 200°C curing tunnel for durable gloss and impact resistance.
Final Inspection & Packing
Dry film thickness testing, batch destructive load sampling, barcoding, nested bundle wrapping, and containerized seaworthy packing.
Frequently Asked Questions for Warehouse Shelving Procurement
Get reliable technical clarity on certifications, engineering calculations, metallurgy, international shipping, and on-site assembly guidance.
Q: How do you verify load capacities and beam deflection limits?
All our beam profiles are designed in accordance with RMI (Rack Manufacturers Institute) MH16.1 and European EN 15512 specifications. Under maximum uniformly distributed load (UDL), allowable beam deflection cannot exceed L/200 (where L is the clear span distance between uprights). For a 96-inch (2,438 mm) beam, maximum allowable center deflection under full load is strictly limited to 0.48 inches (12.19 mm). We supply certified deflection charts and destructive test reports with every bulk order.
Q: Can you manufacture custom hole patterns to match existing warehouse systems?
Yes. As a full-service OEM/ODM factory, our in-house tooling division can fabricate specialized punching dies for North American standard Teardrop configurations, British Dexion-compatible slotted patterns, European 50mm diamond patterns, and Australian 76.2mm hole centers. We can match your existing warehouse uprights for seamless expansion without replacing whole frame runs.
Q: What engineering documentation is provided for local building permits and PE stamping?
For North American, European, and Australian projects requiring municipal building permits, we supply detailed 2D architectural CAD plans, 3D structural isometric layouts, assembly elevation drawings, component cross-section profiles, raw material Mill Test Certificates (MTC), and structural calculation packages. These documents are prepared to enable your local licensed Professional Engineer (PE) to perform seismic certification and provide the required engineering stamp.
Q: Are your racking and shelving components compatible with standard 48x40-inch GMA pallets?
Absolutely. Our standard selective and dynamic racking configurations are specifically dimensioned around North American 48" wide × 40" deep Grocery Manufacturers Association (GMA) pallets, as well as European 1200mm × 800mm EUR/EPAL pallets and Australian 1165mm × 1165mm pallets. Standard frame depths are configured at 42" or 44" to provide safe 3" overhangs on front and rear beams, and standard beam pairs span 96" or 108" to comfortably accommodate two pallets per level with appropriate lateral clearances.
Q: How do your finishes withstand harsh cold storage and high-humidity environments?
For walk-in cold rooms and sub-zero blast freezers (-30°C to -40°C), standard paint can become brittle and chip. We recommend our heavy-duty hot-dip galvanized finish (minimum 65-85 micron zinc coating thickness adhering to ASTM A123 / ISO 1461) or specialized low-temperature modified epoxy-polyester powder formulations. Furthermore, we select certified Q355D/E cold-toughness steels that retain impact ductility in freezing conditions without experiencing brittle fracture failure.
Q: What is your typical production lead time and shipping port arrangements?
Standard production lead times range between 15 to 25 business days depending on order tonnage and custom tooling needs. Our headquarters and factory are strategically located in Guangzhou, Guangdong, with direct, low-cost freight access to major deep-water export ports including Guangzhou (Nansha/Huangpu) and Shenzhen (Yantian/Shekou). We handle FOB, CIF, CFR, and DDP shipping terms, ensuring complete export customs clearance documentation is delivered on schedule.
Q: How do you prevent freight damage during overseas container shipping?
Over two decades of international freight experience has perfected our export packing protocol. Upright frames are packaged in modular nested bundles wrapped with heavy corrugated edge protection, high-tensile steel strapping, and multi-layer plastic film wrap. Beams are bundled with non-slip timber dunnage spacers and capped with steel corners. Hardware, anchor bolts, row spacers, and safety pins are sorted, bagged, and crated in fumigated export wooden cases to prevent lost items.
Q: Can HEDA provide on-site assembly guidance and installation manuals?
Yes. Every project includes comprehensive step-by-step 3D exploded assembly diagrams, frame bracing connection schedules, anchor bolt torque parameters, and video walk-through guides. For major projects, we can dispatch senior installation supervisors to your job site or provide real-time remote video engineering assistance to guide your local mechanical contractors.
Accelerate Your Warehouse Capacity with Direct Factory Pricing
Submit your warehouse floor plans, ceiling clearance, and pallet specifications today. Our engineering department will return an optimized CAD layout, detailed structural load matrix, and transparent factory-direct quotation within 24 hours.
