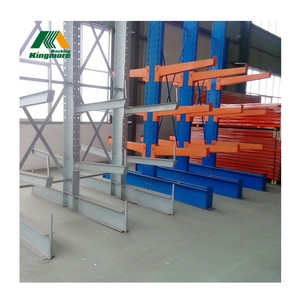

Heavy Duty Storage

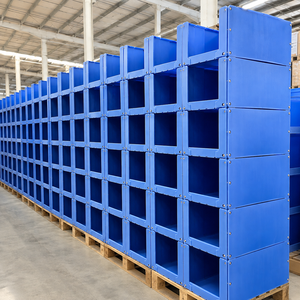

Order Picking

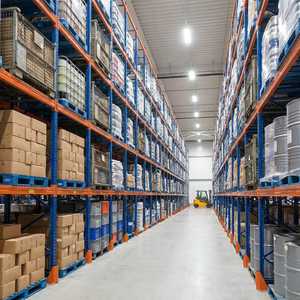

Core Selective Rack
OEM Enclosure CNC

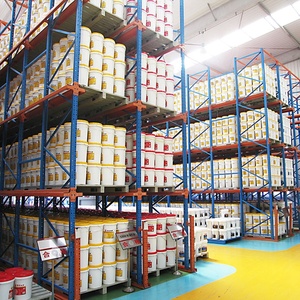

Deep Density

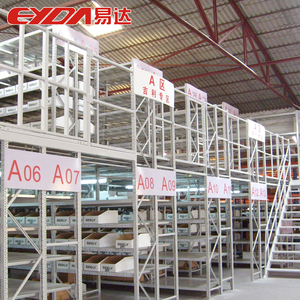

Vertical Mezzanine
Engineering Whitepaper
Custom OEM Wide Aisle Racking: Mechanical Design, Structural Load Dynamics & Global Procurement Strategies
An authoritative engineering breakdown of selective wide aisle configurations (Standard Aisle Widths: 3.5 m to 4.2 m / 11.5 ft to 13.8 ft), dynamic seismic bracing limits, deflection ratios, and high-efficiency material flow economics.
In modern industrial logistics, warehouse supply chain operators balance three core pillars: floor density, product accessibility (selectivity), and handling equipment flexibility. Wide Aisle Racking, technically termed Standard Selective Pallet Racking, represents the globally recognized foundational architecture for distribution centers, third-party logistics (3PL) hubs, raw material staging zones, and FMCG manufacturing plants. Unlike high-density systems such as Drive-In or Push-Back that compromise SKU selectivity for lane depth, wide aisle systems deliver unconstrained 100% immediate pallet access, accommodating conventional counterbalance forklifts, reach trucks, and emerging Autonomous Mobile Robots (AMRs) without requiring expensive wire-guidance or super-flat flooring tolerances.
Key Engineering Formula & Clearance Protocol: Aisle Clearances (Ast)
The minimum required operating wide aisle width for standard counterbalanced lift trucks is calculated via: Ast = Wa + x + b + a, where Wa represents the turning radius of the forklift, x is the load distance from the drive axle center, b is the overall pallet length along the fork axis, and a denotes the mandatory safety clearance factor (consistently specified between 200 mm to 350 mm / 8 in to 14 in per OSHA and EN 15635 guidelines). In wide aisle configurations, this translates to clear operational widths ranging between 3,500 mm and 4,200 mm.
1. Cold-Formed Structural Steel Physics and Dynamic Upright Design
As an established custom OEM wide aisle racking supplier, our manufacturing process utilizes premium grade high-yield hot-rolled micro-alloyed steel coil, compliant with ASTM A1011 SS Grade 50 or EN 10025 S355JR. The vertical load transmission depends strictly on the cold-roll-formed upright column profile. Each upright column features optimized cross-sectional geometry engineered with multiple stiffening ribs to counter torsional-flexural buckling under axial stress.
Column pitch is perforated at precise 50 mm (European standard) or 2.0-inch / 3.0-inch (North American Teardrop profile) increments, providing infinite adaptability for varying pallet unit heights. Box-step beams and closed-welded tubular beams are fabricated by seam-welding dual C-channel sections, maximizing cross-sectional inertia (Ix and Iy) to satisfy beam deflection limits strictly governed by L/200 (under RMI ANSI MH16.1) or L/180 (under EN 15512). When supporting heavy 48" × 40" GMA pallets, Euro-pallets (800 × 1200 mm), or bulk industrial cages weighing up to 2,500 kg (5,500 lbs) per level, our load calculations incorporate dynamic impact factors, eccentric load variations, and seismic lateral acceleration coefficients tailored specifically to your seismic zone category.
2. Comparative System Topology: Wide Aisle vs. Alternative Storage Matrix
To assist procurement directors and facility architects in evaluating total lifecycle efficiency, the following engineering matrix contrasts Wide Aisle Selective Racking with narrow aisle, high-density, and automated storage architectures:
| Storage Topology | Aisle Width (Clearance) | Pallet Selectivity | Handling Equipment Type | Floor Flatness (DIN 18202) | Capital Cost / Position |
|---|---|---|---|---|---|
| Wide Aisle Selective Racking | 3.5 m – 4.2 m (11.5 – 14 ft) | 100% Immediate | Standard Counterbalance / Reach Truck | Standard Industrial Slab (Class E) | Lowest TCO Benchmark ($45 - $85) |
| Very Narrow Aisle (VNA) | 1.6 m – 1.9 m (5.2 – 6.2 ft) | 100% Immediate | Man-Up / Man-Down VNA Turret Truck | Superflat Slab (DIN 15185 / F-min 75) | Moderate-High ($110 - $175) |
| Drive-In / Drive-Through | Continuous Deep Lanes | Low (LIFO / FIFO by lane) | Counterbalance or Reach Truck | Standard Industrial Slab | Moderate ($80 - $130) |
| Push-Back Cart Racking | 3.0 m – 3.6 m (10 – 12 ft) | Moderate (2 – 6 deep LIFO) | Standard Counterbalance | Standard Industrial Slab | High ($140 - $210) |
| Radio Shuttle Automation | Continuous Deep Lanes | LIFO or Channel FIFO | Electric Pallet Shuttle + Standard Forklift | Tight Tolerances Required | High-Advanced ($180 - $320) |
3. Future Procurement Trends: Modular Scalability & AMR Integration
Over the 2026–2035 industrial horizon, procurement of wide aisle racking is rapidly evolving beyond basic static storage. Two major macro-trends govern current high-volume purchases:
A. Hybrid Human-Robot Operational Aisles: The expansion of Autonomous Mobile Robots (AMRs) and automated forklifts (AGVs) requires consistent aisle dimensions, standardized pallet overhang margins, and high-visibility upright column protection. Wide aisle spacing provides the optimal spatial buffer for mixed operation, allowing automated guidance vehicles and human operators to safely navigate identical aisles without acoustic collision risks.
B. Anti-Corrosion Longevity & Circular Pretreatment: Environmental regulations (such as RoHS and strict industrial VOC controls) have phased out legacy solvent paints. High-grade OEM wide aisle racking utilizes 10-stage automated surface pretreatments—including acidic pickling, high-density zinc phosphating, and electrostatic epoxy-polyester powder thermosetting cured at 200°C. This process guarantees salt-spray corrosion resistance exceeding 500 hours, making the components resilient in non-climate-controlled cross-dock terminals and cold chain staging environments.
Certified Seismic Integrity
Engineered with oversized footplates, multi-anchor wedge bolt patterns, and K-bracing diagonal trusses rated for earthquake-active regions conforming to IBC 2024 and ASCE 7 seismic load criteria.
OEM Custom Bay Profiling
Tailored beam lengths (up to 3,900 mm / 154 inches) and frame depths engineered around non-standard drums, timber crates, oversized IBC totes, and multi-tier wire mesh decking.
Rapid Free CAD Layouts
Full CAD layout designs, structural load calculations, and itemized bill-of-materials delivered within 24 hours in imperial (lbs/ft) or metric units ready for Engineer of Record (EOR) review.
Enterprise Production Advantages
Why Tier-1 Global Distributors Partner with Our Factory
Combining 25+ years of production excellence with vertically integrated CNC stamping, automated roll-forming, and strict batch-level quality control across every exported container.
323,000 Sq Ft Industrial Hub
Our 30,000 m² modern manufacturing plant houses 20+ automated continuous roll-forming lines, robotic CNC beam welding stations, and high-capacity dual powder coating tunnels.
30,000 Tons Monthly Output
Massive monthly steel processing capacity ensures rapid fulfillment of fast-track mega distribution centers without material shortage bottlenecks or delivery delays.
ISO 9001 & CE Certified
Independently verified ISO 9001:2015 Quality Management and CE Construction Product Regulation compliance (Certificate 2435-CPR-8605159) ensuring verified load-bearing authenticity.
Port-Optimized Export Packing
Custom steel dunnage, waterproof PE wrap, and precision bundle strapping optimized for 20GP/40HQ container ocean freight directly to Long Beach, Houston, Savannah, and Vancouver.
Private-Label OEM / ODM
Custom beam connector stamping, proprietary hole punches (teardrop, slot, keyhole, bullet-hole), custom brand colors, and private-label packaging for international dealers.
Engineering Calculation Sheets
Complete structural design packages including dead load, live load, seismic horizontal shear calculations, and anchor pull-out ratings prepared for fast municipal building permits.
Technical Clarifications
Custom OEM Wide Aisle Racking: Frequently Asked Questions
Authoritative answers addressing engineering tolerances, regulatory standards, seismic considerations, and international container procurement logistics.
What is the standard aisle width required for wide aisle pallet racking?
Wide aisle selective racking systems typically require clear operating widths between 3.5 meters (11.5 feet) and 4.2 meters (13.8 feet). This clearance allows standard 3-wheel and 4-wheel counterbalance forklifts and standard reach trucks to perform right-angle stacking of standard 48″ × 40″ GMA or 1200 × 800 mm Euro-pallets with safe working tolerances.
Can you provide custom beam dimensions and upright load profiles?
Yes. As a direct OEM manufacturer, we engineer custom upright frame depths (from 600 mm to 1500 mm / 24″ to 60″) and frame heights over 12 meters (40 ft). Beams are custom-formed in step, box, or tube profiles with 3-claw, 4-claw, or 5-claw connectors designed to carry loads ranging from 1,000 lbs to 11,000 lbs (500 kg to 5,000 kg) per pair.
How are structural load calculations validated for seismic zones?
All structural calculations are modeled using Finite Element Analysis (FEA) compliant with RMI (Rack Manufacturers Institute) ANSI MH16.1 specifications or EN 15512. We calculate ground acceleration, torsional moment, and base plate shear forces to specify exact anchoring bolt embedment depths and seismic footplate dimensions for local permitting approval.
Are drawings and load tables supplied in Imperial (lbs/ft) units?
Yes. We regularly supply comprehensive CAD layout plans, 3D warehouse isometric models, component schedules, and capacity plaques in dual units (Imperial lbs/ft/in and Metric kg/mm) so your local installation contractors and municipal safety inspectors can evaluate them without unit conversion errors.
What safety accessories are recommended for wide aisle systems?
Because wide aisles allow fast counterbalance truck traffic, heavy-duty column protectors, wrap-around corner bullnose guards, and double-ended aisle protection barriers are critical. We also supply galvanized wire mesh decking, drop-in pallet support bars, row spacers, and rear anti-spill mesh backing to prevent carton displacement.
What is the typical production and shipping lead time for ocean containers?
Standard fabrication cycle for a 5-to-20 container order is approximately 20 to 25 business days. Cargo is strapped with heavy-duty export packaging designed to maximize container cubic space utilization. FOB, CIF, CFR, and DDP terms are supported across major ocean routes with direct bill-of-lading tracking.
