RMI Standard
Industrial US Standard Warehouse Shelving Storage Racks Heavy Duty Pallets Racking System for Retail Distribution Center
- 48" × 40" GMA Pallet Configured
- Up to 6,000 lbs Beam Capacity
- Tear-Drop Punch Pattern (2" pitch)
Direct Factory Catalog
Precision-Engineered Industrial Warehouse Racking & Shelving Systems
Manufactured using high-strength Q235B and Q355B cold-rolled structural steel. Every system undergoes finite element stress analysis (FEA), automated CNC roll-forming, and certified multi-point inspection to fulfill RMI MH16.1, EN 15512, and AS4084 engineering safety protocols.
RMI Standard
100% Selectivity
Heavy Duty Industrial Storage Warehouse Rack Selective Pallet Racking Shelves
- Continuous Roll-Formed Uprights
- 1,000–4,500 kg/Level Loading
- Electrostatic Powder Coat (60-80μm)
Manual Picking
Factory Price Customized Medium-Duty Rack Warehouse Steel Metal Rack Shelf
- 200–800 kg Uniform Distributed Load
- Boltless Quick-Snap Assembly
- Steel Panel / Wire Mesh Options
Custom Modularity

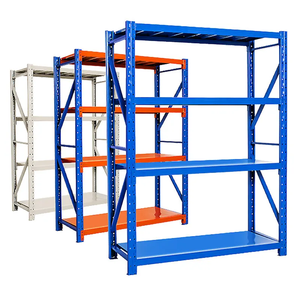

Factory Custom Adjustable Storage Shelves Heavy Duty Shelving Unit Rack Warehouse Storage
- High-Precision 50mm Pitch Slots
- Heavy Box & Step Beams
- Abrasion-Resistant Finish
Structural Building
High Strength Prefabricated Steel Structure Warehouse Multi Functional Workshop Hangar Two-Car Parking Garage Storage Building
- Primary Portal Frame H-Beams
- Seismic Zone IV & Wind Certified
- Clear-Span Space Optimization
Modular Stacking
Hot Sale Heavy-Duty Adjustable Galvanized Steel 2-Layer Stacking Rack for Tire Storage & Warehouse
- Hot-Dip Galvanized Anti-Corrosion
- 4-to-6 Tier Vertical Stacking
- Demountable Posts for Empty Return
VNA High-Density

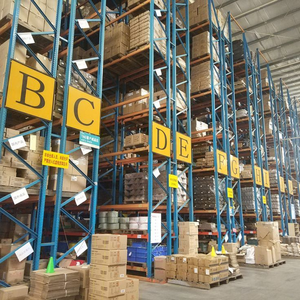

1000kg Per Layer Very Narrow Aisle VNA Pallet Racking High Density Space Saving Warehouse Storage Rack
- Up to 15m (50ft) Vertical Elevation
- 1,500–1,800mm Ultra-Slim Aisles
- Integrated Floor Guide Rails / Wire
Cold Chain Duty
Customized Premium Material Heavy Duty Post Pallet Rack for Cold Warehouse
- Sub-Zero Rated Metallurgy (-30°C)
- Impact-Absorbing Steel Upright Posts
- Thermal Embrittlement Tested
Technical Whitepaper Deep-Dive
Structural Engineering, Steel Metallurgy & Seismic Design Criteria
In industrial storage racking infrastructure, mechanical failure is never an option. High-density warehouse shelving systems operate under tremendous dynamic and dead loads. As an OEM manufacturer, our structural design philosophy is anchored in strict adherence to RMI MH16.1: 2021 (Specification for the Design, Testing and Utilization of Industrial Steel Storage Racks), EN 15512: 2020 (European standard for adjustable pallet racking), and AS 4084-2023 (Australian steel storage racking standards).
We specify prime structural grade coils—predominantly Q235B (yield strength ≥ 235 MPa) and Q355B (yield strength ≥ 355 MPa), corresponding directly to ASTM A36 and ASTM A572 Grade 50 standards. Our in-house metallurgical testing validates tensile performance, Charpy V-notch impact toughness (critical for sub-zero cold freezer facilities at -30°C), and minimum elongation ratios (≥ 21%) to eliminate brittle rupture risks during accidental forklift impacts or seismic events.
ANSI/RMI MH16.1 Certified
EN 15512 / FEM 10.2.02
AWS D1.1 Structural Welding
IBC Seismic Site Class D-F
Deflection and Moment Resistance: Beam deflection limits are rigorously calculated and capped at either L/180 (standard commercial warehouse specifications) or L/240 (for sensitive Automated Guided Vehicle [AGV] and Automated Storage & Retrieval Systems [ASRS] interface tolerances). Utilizing precision multi-tooth welded beam connectors with safety locking pins, each connection acts as a semi-rigid joint, contributing frame rotational stiffness ($K_b$) critical to lateral drift reduction under earthquake ground motions ($S_s$ and $S_1$ spectral accelerations).
OEM Manufacturing Verification Protocol
- Spectroscopy: Continuous direct-reading spark spectrometer chemical element analysis (C, Si, Mn, P, S).
- Tensile Proof: Hydraulic universal tensile testing machine tracking upper/lower yield points and rupture elongation.
- DFT Profiling: Magnetic induction thickness gauges verifying 60–80 μm dry film thermoset coating.
- Salt Spray: ASTM B117 neutral salt spray corrosion chamber testing surpassing 500+ hours with zero creep.
Full MTRs (Mill Test Reports) provided
Inquire Now
Engineering Selection Matrix
Comparative Analysis of Industrial Storage Racking Architectures
Balancing volumetric cubic utilization against SKU selectivity index is the decisive procurement equation for warehouse architects, operations directors, and 3PL distribution engineers.
| Racking Architecture | Floor Space Utilization | SKU Selectivity Index | Inventory Rotation | Throughput Speed | Typical Applications & Payback Target |
|---|---|---|---|---|---|
| Selective Pallet Racking | ~40% | 100% Direct Access | FIFO or LIFO | High (Immediate pick) | E-commerce fulfillment, general distribution, fast-turning consumer retail. |
| Very Narrow Aisle (VNA) | ~65% | 100% Direct Access | FIFO or LIFO | High (Turret truck/Wire) | High-bay regional hubs, pharmaceutical central DCs, space-constrained urban centers. |
| Double Deep Pallet Racking | ~55% | 50% Direct Access | Strict LIFO | Moderate (Pantograph reach) | Dry grocery warehouses, manufacturing staging, identical multi-pallet SKU batches. |
| Drive-In / Drive-Through | ~75% | Low (Lane-by-lane) | LIFO (Drive-In) / FIFO (Drive-Thru) | Slow to Moderate | Cold storage freezers, seasonal inventory holding, raw agricultural bulk materials. |
| Push Back Racking (2-6 Deep) | ~70% | Moderate (Per lane face) | Strict LIFO (Gravity carts) | Fast (Single aisle access) | Beverage distribution, food processing plants, high-throughput consolidation staging. |
| Pallet Flow (Gravity Roller) | ~80% | Moderate (Per lane lane) | Absolute FIFO | Ultra-High (Separated charge/pick) | Perishable produce, temperature-sensitive pharmaceuticals, high-volume production buffer. |
| Radio Shuttle Automation | ~85% | Channel-Managed | Software Configured FIFO / LIFO | Automated Internal Transfer | Deep-lane freezer facilities, automated manufacturing cross-docks, high-labor-cost hubs. |
| Heavy-Duty Cantilever | Specialized | 100% Linear Access | Direct Crane / Fork Access | High (Unobstructed face) | Structural steel beams, dimensional timber, extruded tubing, drywall, coils. |
Industry Megatrends 2025–2035
Strategic Evolution of Warehouse Storage Racking Procurement
Macro-economic shifts, escalating industrial real estate lease rates, carbon footprint regulations, and the explosive integration of mobile robotics (AMRs) are radically redefining warehouse equipment procurement.
1. Hybrid Automation & AMR Integration
Traditional racking designs are rapidly modernizing to integrate with Autonomous Mobile Robots (AMRs) and Automated Storage/Retrieval Systems (ASRS). Modern OEM procurement emphasizes tighter column verticality tolerances (≤ 1:1000 plumbness), floor-level guidance rails, optical QR-code integration zones on upright bases, and precision-stamped bottom clearance channels for autonomous pallet jacks and tuggers.
2. Cold-Chain Thermal Efficiency Demands
With energy operating expenses soaring across frozen food and biopharmaceutical distribution, facilities are actively converting from conventional selective layouts to high-density radio shuttle and mobile rack architectures. Storing 70% more pallets within identical insulated freezer enclosures directly slashes refrigerated power bills per pallet position by up to 35–45%.
3. Low-Carbon "Green Steel" & ESG Scrutiny
Global supply chain corporations and institutional logistics developers now enforce stringent Scope 3 emission audits on imported steel infrastructure. As a forward-thinking OEM supplier, we optimize raw coil sourcing from Electric Arc Furnace (EAF) mills, maximize closed-loop steel recycling scrap streams, and utilize eco-friendly, zero-VOC TGIC-free thermoset powder coatings that minimize atmospheric volatile compounds.
4. Dynamic Seismic Compliance Verification
Municipal permitting jurisdictions throughout North America (IBC, CBC) and seismically active international regions increasingly require site-specific PE-stamped calculations. Specifiers demand full-scale physical push-out and portal testing data on upright-to-beam connectors, baseplate anchorage tension-shear interaction proofs per ACI 318 Chapter 17, and finite element moment-rotation curves.
5. Multi-Tier Rack-Supported Structures
Rather than bearing exorbitant capital expenditures on greenfield commercial warehouse construction, supply chain engineers are aggressively deploying multi-tier rack-supported mezzanine platforms. By engineering vertical frame columns to double as multi-level building structural posts, organizations effectively expand usable picking and packout square footage by 200% to 300% inside current leased envelopes.
6. Resilient Factory-Direct Supply Chains
Intermediary distributor markups, localized broker capacity limitations, and delayed lead times have driven multinational 3PLs and logistics operators toward direct OEM partnership models. Factory-direct engineering provides comprehensive CAD/BIM model turnarounds in 24 hours, custom color matching, and container-optimized ocean freight packing designed to eliminate in-transit damage.
Enterprise OEM Infrastructure
Why Global Logistics Leaders Partner with HEDA Shelves
Over 25 years of specialized storage manufacturing, operating a 30,000 m² (323,000 sq ft) heavy manufacturing campus with 300+ technicians, producing 30,000 tons of structural steel monthly with end-to-end trace control.
25+ Yrs Field Pedigree
Founded in 2001, our engineering department has successfully delivered 10,000+ warehouse facilities across 130+ nations, solving demanding warehouse density challenges.
Free Rapid CAD/3D Plans
Send your building schematics, pallet metrics, and forklift turning radius. Our structural engineers provide complete 2D CAD layouts and 3D realistic renderings within 24 hours.
Certified Quality Rigor
Fully accredited under ISO 9001:2015 Quality Management Systems and CE Factory Production Control (FPC No. 2435-CPR-8605159), accompanied by third-party RoHS and SGS verification.
Export Container Packing
Custom steel frame skids, protective foam interlays, moisture-barrier wrapping, and bundle serialization guarantee zero transit deflection and rapid container destuffing on site.
The 10-Stage High-Precision Racking Manufacturing Sequence
From uncoiling certified mill hot-rolled steel strip to automated high-speed punching and automated electrostatic polymerization, our factory maintains rigorous digital tolerance checkpoints at every phase.
01
Certified Raw Steel
Hot-rolled steel coil inspected for dimensional tolerance, chemical makeup, and surface planar regularity.
02
Precision Coil Slitting
High-speed CNC slitting lines shear master wide coils into exact structural channel development widths.
03
Automated Column Piercing
Tear-drop, hexagonal, or diamond pitch punch presses run with continuous optical pitch tracking.
04
Cold Roll-Forming
Multi-stand heavy rolling mills cold-form continuous uprights and interlocking box/step beams.
05
High-Precision Cutting
Flying hydraulic shear cutting ensures dead-square post profiles within ±0.5mm structural length tolerances.
06
Robotic Mig Welding
Multi-axis OTC robotic welding cells join beam end connectors with consistent penetration and zero spatter.
07
Surface Pickling & Wash
9-stage chemical degreasing, acid pickling, rust removal, and dense microcrystalline zinc-phosphating.
08
Electrostatic Coating
Automated GEMA powder spray booths apply pure polyester/epoxy thermoset polymer evenly across all surfaces.
09
High-Temp Curing
Gas-fired convection curing tunnels polymerize the finish at 180°C–200°C to achieve high scratch resistance.
10
Container Palletization
Batch dimensional verification, adhesion cross-hatch check, strapped packing, and container stowing.
Procurement Due Diligence
Frequently Asked Questions for Industrial Warehouse Racking Buyers
Critical answers regarding seismic engineering calculations, international structural standards, container logistics, corrosion mitigation, and custom OEM manufacturing terms.
What structural engineering standards do your warehouse storage shelving systems comply with?
Our systems are engineered in strict alignment with international intralogistics structural codes. For the North American market, our calculations and component geometries follow ANSI/RMI MH16.1 (Specification for the Design, Testing and Utilization of Industrial Steel Storage Racks) and the International Building Code (IBC). For European, Middle Eastern, and African logistics hubs, we build to EN 15512:2020, EN 15620, and FEM 10.2.02. For projects in Australia and New Zealand, we manufacture per AS 4084-2023. We regularly provide complete structural component calculation packages, steel test certificates, and Finite Element Analysis (FEA) reports to support your local licensed Professional Engineer (PE) or Engineer of Record (EOR) during municipal permit submissions.
Can you provide seismic load calculations for high-risk earthquake zones?
Yes. We frequently engineer heavy-duty pallet racking and structural mezzanine platforms for high seismic categories (Seismic Design Categories C, D, E, and F per USGS / ASCE 7). By assessing site-specific spectral acceleration parameters ($S_s, S_1$), floor slab depth, concrete compressive strength ($f'_c$), and soil site class, we specify heavy-gauge seismic footplates with expanded anchor bolt spacing, thickened column bottom sections, welded upright reinforcing inserts, and dynamic cross-bracing frameworks. Our engineering team validates post-anchor concrete breakout and pullout capacities according to ACI 318 Chapter 17 criteria.
How does your factory accommodate North American GMA 48" × 40" pallet standards?
Our roll-forming tooling and punch-indexing dies produce industry-standard imperial dimensions tailored directly to GMA (Grocery Manufacturers Association) 48" long × 40" wide wood pallets, plastic skids, and Euro-pallets (1200 × 800mm / 1200 × 1000mm). Standard selective bay widths are configured in 96" (2-pallet 48" clear), 108" (3-pallet 36" or 2-pallet oversize), and 144" spans. Standard upright frame depths are roll-formed to 42" or 44" to ensure a clean 3-inch pallet overhang at the front and back beam planes, preventing pallet drops and facilitating smooth wire-mesh deck integration.
What steel grades and surface pre-treatment chemistries do you use?
We purchase prime, fully traceable cold-rolled and hot-rolled structural steel coils (Q235B with yield stress $\ge 235\text{ MPa}$ and Q355B with yield stress $\ge 355\text{ MPa}$, equivalent to ASTM A36 and ASTM A572 Grade 50). Prior to powder coating, components pass through a 9-stage automated chemical immersion tunnel featuring alkaline degreasing, acid pickling, rinse, and advanced microcrystalline zirconium/zinc phosphating. This chemically etches the steel substrate, creating superior mechanical bonding for our electrostatic TGIC-free polyester powder coat (60–80 μm thickness). For harsh chemical or outdoor environments, we offer Hot-Dip Galvanization (HDG) per ISO 1461 / ASTM A123, yielding a minimum 65–85 μm metallurgical zinc alloy layer that resists corrosion for decades.
What is the minimum order quantity (MOQ) and production turnaround for custom OEM orders?
Because our automated production lines are optimized for industrial containerization, our typical cost-effective Minimum Order Quantity (MOQ) is one 20GP or 40HQ ocean freight shipping container (approximately 18 to 26 metric tons of steel depending on component volume). For standard selective and medium-duty shelving configurations, production turnaround is typically 15 to 25 business days from final CAD layout sign-off. Highly customized systems (such as high-density radio shuttle racks, automated carton flow lines, or multi-level mezzanines) generally ship within 25 to 35 business days.
How do you protect structural steel members from shipping damage during transoceanic transit?
Export freight packaging is engineered with the same precision as our racking. Upright frames are nested with corrugated edge-protectors, wrapped in heavy-duty polyethylene stretch-film, and banded with high-tensile steel strapping onto rigid steel support saddles. Beams are bundle-packed with wooden dunnage blocks preventing metal-to-metal friction abrasion and paint scuffing. Small hardware, connectors, baseplates, and safety drop-pins are packed in reinforced wooden crates or heavy-gauge galvanized steel cages. Every sea container is modeled digitally using 3D container packing software to optimize cubic fill, eliminate cargo shifting in transit, and allow straightforward forklift destuffing at the destination dock.
Do you offer private-label OEM manufacturing for domestic racking distributors and system integrators?
Yes. A significant portion of our global manufacturing volume serves as confidential OEM/ODM production for equipment distributors, material handling dealers, and automated system integrators across North America, Europe, Latin America, and Australia. We offer custom punch-tooling configurations (matching existing legacy profiles), custom corporate RAL powder coating colors, private-label brand packaging, laser-engraved capacity plates, and serialized batch compliance markings directly on upright and beam members.
What documentation and inspection protocols are provided prior to container loading?
Prior to sealing shipping containers, our Quality Assurance department generates a comprehensive Vendor Data Package (VDP). This includes: (1) Raw Material Mill Test Certificates (EN 10204 Type 3.1) stating chemical and mechanical properties; (2) Batch powder coating DFT and adhesion cross-hatch test reports; (3) Detailed dimensional QA inspection sign-offs; (4) Step-by-step CAD installation shop drawings with numbered component manifests; (5) Container loading photo documentation verifying dunnage security, packing counts, and container seals.
Start Your Factory-Direct Procurement
Accelerate Your Storage Efficiency with Custom Engineered OEM Racking
Connect directly with our senior intralogistics structural engineering team. Whether you need an optimized CAD layout comparison, seismic compliance verification, or competitive factory-direct volume pricing, we deliver turnkey engineering solutions within 24 hours.
Zero-Cost 2D/3D CAD Layouts
Direct Factory Container Pricing
Seismic & Structural PE Calculation Packages
Inquire Now
Strict NDA Confidentiality Guaranteed on All Facility CAD Drawings
