Featured Industrial Warehouse Racking Systems
Discover factory-direct OEM/ODM racking lines precision-rolled from high-yield Q235B and Q355B structural steel coil. Each design is optimized for high-density space utilization, automated handling compatibility, and extreme seismic resistance.

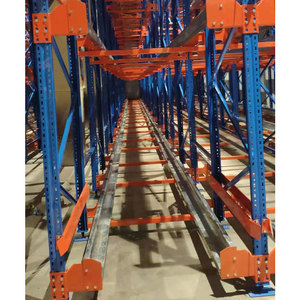

High Quality Metal Storage Rack Durable Warehouse Teardrop Pallet Rack Shuttle Racking
Automated high-density shuttle storage utilizing precision deep-lane guide rails and intelligent radio-controlled carriers for high-throughput cold-chain operations.

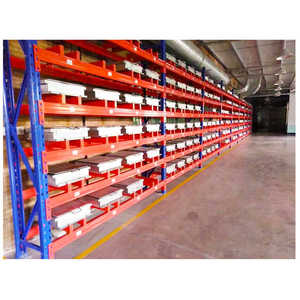

Direct Factory Metal Free Layout Design High-Density Drive-In Pallet Storage Rack
Continuous drive-in lane architecture that eliminates forklift aisles to maximize warehouse volumetric cubic storage by up to 75% for uniform product inventories.

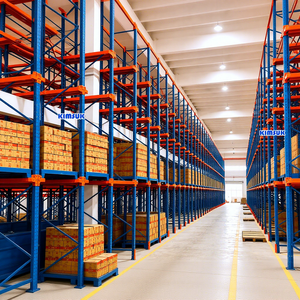

Drive-in Pallet Racking Tall Upright Frame Fully Use Warehouse Height Increase Capacity
Custom heavy-gauge cold-rolled upright columns engineered up to 12 meters clear height, equipped with seismic heavy floor footplates and column reinforcement wraps.
Customized Office Mezzanine System Elevator 2-3 Floors Stairs 500-3000kg Per Sqm
Heavy structural steel and rack-supported multi-tier platforms designed to multiply facility floor area without physical building expansion; rated for light machinery and offices.
China Professional Industrial Racking Manufacturer Custom Cheap Drive in Pallet Rack System
Factory-direct optimized drive-in configuration engineered for maximum cost-per-pallet savings, featuring continuous one-piece arm supports and zinc-plated anti-skid rails.

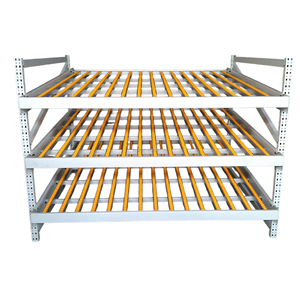

AOCHEN Collapsible Powder Coated Warehousing Logistics Mobile Gravity Pallet Roller Steel Rack
Gravity-driven inclined roller track racking enforcing rigorous FIFO inventory rotation with automatic braking rollers and separated loading and picking operational aisles.
Steel Storage Rack Q235B Steel Industrial Racks 1000kg Heavy Duty Pallet Rack
Anti-corrosion standard industrial warehouse storage racks with 10-step surface passivation treatment, anti-topple beam safety locks, and high beam deflection tolerance.
OEM ODM Selective Pallet Racking for Warehouse Storage with Adjustable Beam
The world's most versatile, direct-access 100% selective pallet racking platform featuring 50mm/75mm adjustable pitch beam connectors, compatible with all forklift classes.
Guangzhou HEDA Shelves: 25+ Years of Racking Manufacturing Excellence
Established in 2001, Guangzhou Heda Shelves Co., Ltd. operates a state-of-the-art 30,000 m² (323,000 sq ft) manufacturing campus with over 300 engineering and production specialists, delivering over 10,000 successful commercial racking projects globally.
Strict Metallurgical Control
We source exclusively from primary state-owned steel mills with certified heat-batch chemical traceability, utilizing certified Q235B and cold-formed high-tensile Q355B structural steel.
- Guaranteed yield strength ≥ 235-355 MPa
- Charpy V-Notch impact tested steel grades
- Full mill test certificates (MTC) supplied
24-Hour CAD & Structural Stamping
Our in-house team of 30+ structural engineers provides optimized AutoCAD layouts, 3D photorealistic renderings, and complete calculations ready for local PE stamp approval.
- Metric & Imperial (lbs, in, ft) documentation
- Floor slab point-load distribution analysis
- Aisle dimensioning optimized for truck fleets
Certified Global Compliance
All manufacturing workflows strictly conform to ISO 9001:2015 Quality Management standards, with CE Certification (EN 15512) for European and North American building code enforcement.
- ISO 9001:2015 Registration No. 18624Q00169R0M
- CE Construction Products No. 2435-CPR-8605159
- RoHS-compliant low-VOC powder coating
Structural Principles of Industrial Pallet Racking Systems
Designing safe warehouse infrastructures requires balancing dynamic seismic accelerations, live deflection limits, structural member geometry, and connection stiffness. Below is an engineering comparison matrix for enterprise procurement teams.
| Racking Architecture | Pallet Access Rate | Density Rating | Live Load Standard | Inventory Rotation | Target Handling Fleet |
|---|---|---|---|---|---|
| Selective Pallet Racking | 100% Direct Access | Standard (40-50%) | 1,000 - 4,500 kg/beam level | FIFO or LIFO | Counterbalance, Reach Trucks |
| Double-Deep Racking | 50% Immediate Access | High (60-65%) | 1,000 - 3,200 kg/beam level | LIFO | Pantograph Reach Trucks |
| Drive-In / Drive-Through | Lane Entry Access | Ultra-High (75-85%) | 1,500 kg/pallet lane run | LIFO (Drive-In) / FIFO | Narrow Counterbalance |
| Push-Back Cart Racking | Face Pallet Access (2-6 Deep) | High (70-75%) | 1,400 kg/nested cart | LIFO | Standard Forklifts |
| Gravity Pallet Flow | Pick Face Access (Up to 20 Deep) | Maximum (85-90%) | 1,200 kg/roller lane | Strict FIFO | Standard Forklifts / AGVs |
| Radio Pallet Shuttle | Automated Lane Shuttle Access | Maximum (85-92%) | 1,500 kg/automated cycle | FIFO or LIFO Automated | AGVs, AMRs, Reach Trucks |
Beam Deflection Standards (L/200)
Under ANSI MH16.1 and EN 15512 specifications, load beams must maintain an operational deflection limit of no more than 1/200th of the clear beam span (L/200) under full rated capacity. HEDA upright-to-beam connectors feature multi-claw engineered hooks that maximize rotational stiffness, preventing frame drift under non-uniform pallet positioning.
Seismic Engineering & ASCE 7 / IBC
Seismic rack engineering accounts for vertical live loads combined with lateral kinetic ground accelerations ($S_s$, $S_1$ factors). Our custom baseplates are precision-punched for heavy wedge or chemical anchors, distributing high overturning moments safely across the concrete slab while preserving structural column ductility.
Omega-Profile Upright Geometry
Unlike generic open C-sections, HEDA uprights utilize advanced cold-rolled Omega profiles featuring multi-bend stiffening ribs along both column flanges and webs. This increases the cross-sectional moment of inertia, dramatically elevating resistance to torsional buckling and accidental forklift mast impact.
The HEDA 10-Step Automated Production Process
Every racking component passes through an automated, monitored 10-phase manufacturing cycle to ensure structural reliability, uniform coating adhesion, and dimensional precision.
Yield and tensile verification of certified coil stock.
High-speed CNC slitting to strip tolerances ±0.1mm.
High-speed mechanical stamping for hole pitch accuracy.
Multi-station cold-bending ensuring profile symmetry.
Burr-free dimensioning according to approved shop drawings.
Continuous deep-penetration weld lines on connectors.
Chemical surface descaling and iron contaminant removal.
Micro-crystalline conversion layer for anti-corrosion grip.
Automated powder gun lines with 180°C curing tunnels.
Steel-strapped ocean-freight bundles with corner protection.
Key Strategic Trends Reshaping Warehouse Racking Procurement
Modern supply chain logistics are shifting away from static standalone racking toward integrated, flexible, and automated intralogistics ecosystems. Forward-thinking procurement managers must evaluate several overarching developments.
Integration with Autonomous Mobile Robots (AMR/AGV)
Traditional static racking designs are increasingly being re-engineered with expanded lower-bay clearances, automated laser-guided floor docking targets, and low-profile cantilever baseplates to facilitate driverless pallet movers, AGVs, and autonomous mobile lifters.
Vertical Real Estate Optimization via Mezzanine High-Bays
With industrial real estate costs soaring globally, enterprise operators are abandoning horizontal expansions in favor of high-density vertical rack-supported mezzanines and catwalk shelving systems. This approach doubles or triples usable operational floor area within the exact same structural footprint.
Cold-Chain & Semi-Automated Shuttle Dominance
The global surge in temperature-controlled pharmaceutical and frozen food distribution has driven massive adoption of semi-automated radio shuttle pallet systems. By eliminating forklift traffic inside frozen chambers, cold air dissipation and structural frame impact risks are drastically reduced.
Dynamic Simulation & Digital Twin Engineering
Procurement teams now expect full digital BIM (Building Information Modeling) objects and finite element analysis (FEA) models prior to purchase. HEDA provides accurate digital CAD models, enabling systems integrators to simulate material handling throughput before ground is broken.
Eco-Friendly Surface Pretreatments & Durability
Environmental regulations demand high-durability, heavy-metal-free, and TGIC-free polyester powder finishes. Advanced zinc-iron phosphate pretreatments deliver superior salt-spray corrosion resistance (up to 500+ hours ASTM B117) without hazardous heavy metal runoff.
OEM Direct Modular Customization
Global 3PL providers are turning away from generic standard-stock distributors. Direct factory partnerships with manufacturers like HEDA enable custom teardrop, slotted, or keyhole punch profiles, bespoke beam roll gauges, and custom corporate branding colors at direct-from-source wholesale pricing.
Frequently Asked Questions for B2B Racking Buyers
Everything engineering consultants, logistics directors, and global procurement officers need to know when sourcing custom factory-direct warehouse storage systems.
How do you verify seismic ratings for US, Canadian, or EU projects?
We supply comprehensive structural calculations, cross-sectional geometry properties, connection stiffness test data, and steel chemical analysis. These documents allow your regional Engineer of Record (PE/SE) to easily verify local International Building Code (IBC), NFPA 13 sprinkler clearances, and regional seismic zone (SDS) compliance.
Are your beam lengths and frames compatible with 48×40 inch GMA pallets?
Yes. Our beams are standardly designed in 96-inch, 108-inch, and 144-inch lengths to accommodate two, three, or four standard North American 48×40 inch GMA pallets with proper clearance between uprights. We also produce custom lengths for Euro pallets (1200×800mm), industrial skids, and custom steel stillages.
What is the typical turnaround for CAD layouts and engineering quotes?
Upon receipt of your warehouse floor plan (.DWG or PDF), clear eave height, pallet dimensions, maximum load weights, and forklift turning radiuses, our engineering department delivers a complete 2D layout, 3D visualization, and itemized CIF/FOB pricing proposal within 24 business hours.
How are structural components packed to prevent transit damage?
Upright frames and beams are nested, banded with heavy-gauge high-tensile steel straps, and shielded with industrial corrugated cardboard, corner edge protectors, and waterproof PE thermal shrink wrap. Palletized small accessories (base plates, row spacers, safety pins) are secured in labeled wooden export crates for efficient offloading.
Can you manufacture custom OEM punching patterns (e.g., Teardrop, Slotted)?
Yes. As a direct OEM/ODM fabricator, we produce standard North American Teardrop configurations compatible with universal interchangeable systems, European 50mm pitch Omega profiles, and Australian 76.2mm pitch profiles. We also supply custom private labeling and powder-coat color-matching on request.
What surface treatments are used for cold storage freezer warehouses?
For sub-zero cold rooms (-25°C to -40°C), we recommend hot-dip galvanized steel components (HDG) or specialized low-temperature, high-adhesion thermosetting epoxy powder coatings to prevent surface condensation corrosion, micro-cracking, and premature finish failure.
