Industrial Racking & Material Handling Systems
Explore our custom OEM factory portfolio engineered to ANSI MH16.1, RMI, and EN 15512 seismic standards. Fabricated from certified Q235B and Q355B high-tensile cold-rolled steel.
Direct Manufacturing Strengths for Global OEM Buyers
Combining advanced automated roll-forming, rigorous European CE and ISO quality verification, and North American distribution engineering to de-risk overseas industrial procurement.
323,000 Sq Ft Integrated Facility
Operating dedicated CNC slitting, precision profile cold bending lines, automated column punch matrices, and robotized weld cells under one roof for uniform dimensional tolerance.
Free 24h CAD & 3D Modeling
Our dedicated structural logistics engineers generate complete site layout options, load engineering calculation sheets, and 3D architectural views within 24 hours of receipt of project drawings.
Dual ISO 9001 & CE Certified
Full manufacturing lifecycle compliance with ISO 9001:2015 (Cert No. 18624Q00169R0M), CE Construction Marking (2435-CPR-8605159), and certified RoHS powder coat finishing lines.
Export Packaging & Ocean Logistics
Specialized containerization protocols utilizing heavy-gauge timber chocks, protective polyester wrapping, and weight-balanced frame banding to guarantee damage-free transit to US/CA ports.
Engineering Whitepaper: Heavy-Duty OEM Warehouse Racking Structural Optimization
Modern distribution center engineering has evolved past simplistic square-footage calculations into dynamic volumetric optimization. As warehouse clear heights expand from traditional 24-foot baselines to upward of 40 to 45 feet, structural static racking must withstand extreme multi-axial stress states. At Guangzhou Heda Shelves, our engineering approach integrates cold-formed thin-walled steel analysis compliant with AISI S100 and ANSI MH16.1 specifications, ensuring cold-chain warehouses, hazardous containment cells, and high-velocity retail sorting centers maintain catastrophic failure safety factors exceeding 1.65.
Key among performance parameters is the exact sizing of column uprights, baseplate anchor arrays, and beam connector rivet tabs. When designing high-density drive-in racking or stereoscopic automated AS/RS matrix structures, the reduction of lateral displacement under seismic acceleration (P-Delta effect) is paramount. Our factory deploys high-grade continuous roll-forming lines to manufacture omega-profile upright sections featuring stiffened return flanges. This cold-work hardening profile augments torsional rigidity by 27% compared to open C-channels, preventing premature localized buckling under asymmetrical seismic shear loading.
| Racking Topology | Structural Load Rating (lbs/Level) | Space Utilization Ratio | Standard Inventory Rotation | Seismic & Cold Chain Suitability |
|---|---|---|---|---|
| Selective Pallet Racking | 2,200 – 9,000 lbs | 40% – 50% footprint density | 100% Selective (FIFO) | Universal / Excellent with floor anchors |

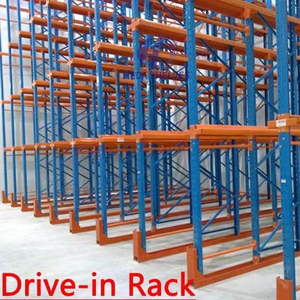

| Drive-In / Drive-Through | 2,500 – 4,500 lbs | 65% – 80% footprint density | LIFO (Drive-In) / FIFO (Drive-Thru) | Optimized for uniform SKUs / Freezers |
| Push-Back Nested Cart | 2,000 – 3,500 lbs | 60% – 70% footprint density | LIFO (2–6 Pallets Deep) | Moderate seismic zones / Fast cycle times |
| Automated AS/RS Stereoscopic | 1,000 – 6,000 lbs | 85% – 95% volumetric density | Dynamic FIFO / WMS Controlled | High precision required / Heavy-duty cold rated |
| Structural Mezzanine Floor | 60 – 250 lbs/sq.ft (UDL) | 200% Floor Multiplier | Multi-tier Batch Picking | Custom moment-resisting rigid frames |
Furthermore, corrosion mitigation plays an indispensable role in warehouse lifespan preservation. Traditional single-stage wet painting suffers brittle failure during forklift impact, fostering sub-film oxidation. HEDA applies an industrial 10-stage automated pre-treatment sequence including acid pickling, zinc phosphate conversion coating, and nano-ceramic passivation. The electrostatic thermoset powder coat is cured at 200°C (392°F), achieving an adherence test score of Grade 0 (ISO 2409) and salt-spray corrosion resistance surpassing 500 hours—crucial for sub-zero frozen logistics facilities operating at -30°C.
Strategic Sourcing & Technological Trends (2025–2030)
In-depth insights into capital expenditure shifts, macro supply chain resilience, and integration pathways reshaping global warehouse racking procurement.
1. Transition Toward Automated AS/RS Integration
Labor shortages and escalating industrial real estate costs are forcing a decisive move from purely manual reach-truck aisles to semi-automated and automated storage retrieval systems (AS/RS). Sourcing managers are prioritizing OEM manufacturers capable of holding tight structural fabrication tolerances (±0.5mm) required by stacker cranes and four-way radio shuttles, ensuring compatibility between static steel uprights and high-speed robotic machinery.
2. Seismic Engineering Compliance & Stamped Calculations
North American municipalities and insurance underwriters are implementing stringent enforcement of the International Building Code (IBC) and NFPA 13 sprinkler clearances. Buyers now look past FOB unit pricing to assess an exporter's structural validation capabilities. Modern procurement demands comprehensive PE/SE stamp-ready finite element analyses (FEA) and physical pallet deflection tables formatted in imperial units.
3. Modular Multi-Tier Mezzanine Micro-Fulfillment
With same-day e-commerce order fulfillment expanding, brownfield urban facilities are turning to rack-supported mezzanines rather than expensive greenfield development. By leveraging vertical cubic volume, logistics operators insert integrated pick modules, carton flow tracks, and spiraled package accumulation conveyors directly onto heavy-duty racking columns, doubling pick faces without inflating real estate overhead.
Procurement & Engineering FAQ
Direct answers to the most critical technical, seismic, logistical, and structural questions encountered during commercial racking tenders.
What specific steel grades and quality verifications are utilized in your heavy-duty upright frames?
Can your engineering team support structural calculations in imperial units (lbs, inches, feet)?
How does HEDA handle corrosion resistance for cold storage and harsh warehouse environments?
What are the lead times, and how are high-volume OEM ocean freight containers optimized?
Are your systems compatible with standard 48x40 GMA pallets and existing teardrop frame networks?
Plan Your Heavy-Duty Warehouse Racking Project
Submit your facility layout, clear height, pallet dimensions, and operational throughput targets. Our engineering team will supply an itemized quotation, structural CAD layout, and load capacity table within 24 hours.
