As modern high-throughput fulfilment hubs, e-commerce distribution nodes, and automated factories face relentless square-footage constraints, traditional static racking introduces critical structural and operational bottlenecks. Custom OEM roller racking systems—frequently deployed as pallet flow racking, carton gravity flow beds, and live storage systems—convert wasted aisle footprint into high-density storage cubes. Operating through gravity gradients and calibrated speed-control rollers, these systems deliver uncompromising First-In, First-Out (FIFO) material rotation, instantaneous stock staging, and maximized cubic space utilization. HEDA Shelves engineers and manufactures custom-built OEM roller racking solutions certified under stringent ISO 9001:2015 and CE standards to guarantee seismic stability, uniform load dispersion, and zero downtime.
Engineering-Grade Industrial Racking Solutions
Explore our turnkey, factory-direct industrial storage solutions fabricated from structural Q235B cold-rolled steel and engineered to client-specific bay spans, pallet dimensions, and loading requirements.

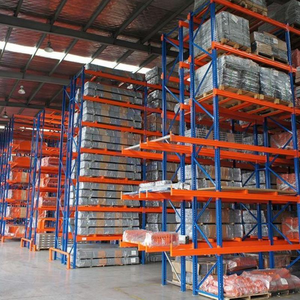

Engineered for 100% immediate pallet selectivity. Constructed with stepped beam profiles and multi-claw structural lock brackets to accommodate high-turnover logistics centers handling varied SKU formats.
View Specifications

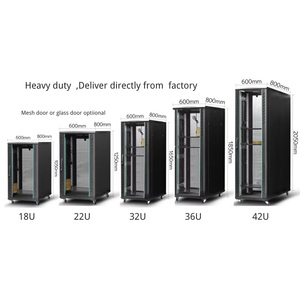

Precision-vented, electrostatic-discharge-safe network and server enclosures designed to protect warehouse management system (WMS) edge servers, IoT sensors, and communications nodes in rugged warehouse floors.
View Specifications

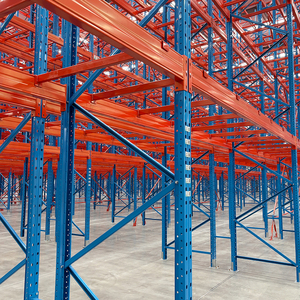

Sub-zero metallurgical formulation with high ductile-to-brittle transition resistance. Treated with freeze-stable polymer powder coating to prevent condensation rust and structural embrittlement down to -30°C.
View Specifications

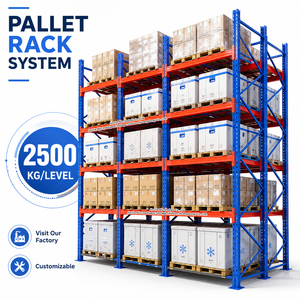

Extreme-capacity warehouse racking engineered for dense bulk industrial handling. Cold-formed closed-box beams and reinforced omega upright posts provide rigidity under continuous dynamic forklift impacts.
View Specifications

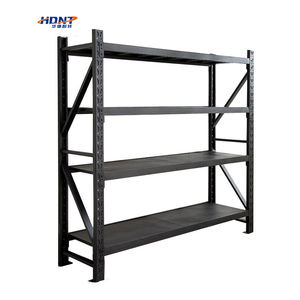

Treated with multi-stage immersion pickling, microcrystalline phosphating, and electrostatically cured polyester resin to withstand chemical off-gassing, salt spray, and extreme humidity without delamination.
View Specifications

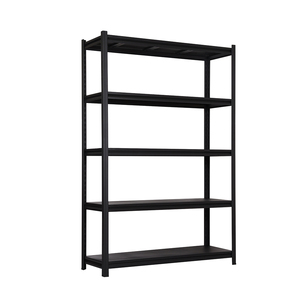

Open mesh architecture facilitates 70%+ overhead sprinkler penetration for NFPA compliance while preventing dust accumulation. Ideal for manual picking lines, cleanrooms, and automated bin buffers.
View Specifications

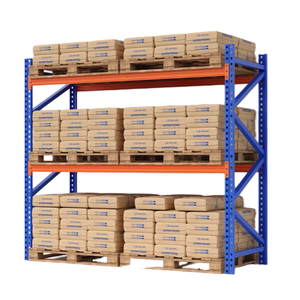

Boltless interlocking shelves engineered with variable-gauge cold-formed sheet metal. Provides adaptable picking bays for automotive sub-assemblies, industrial hardware, and e-commerce tote storage.
View Specifications

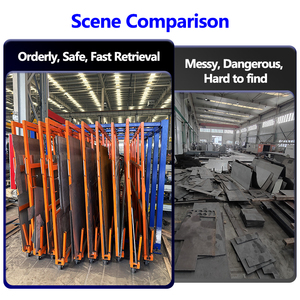

Eliminates civil slab-anchor downtime. Portable nesting steel racks engineered for dynamic seasonal surges, third-party logistics (3PL) buffer spaces, and bulk un-palletized raw inventory handling.
View SpecificationsTechnical Deep-Dive: Architecture of OEM Roller & Flow Racking
Understanding the critical mechanical sub-assemblies that ensure continuous, jam-free gravity flow inside high-density storage lanes.
Speed Controllers & Dynamic Braking
In deep-lane roller racking (exceeding 4 to 20 pallets deep), unchecked velocity creates catastrophic impact loads at the picking face. HEDA integrates centrifugal mechanical speed controllers along the roller bed that dynamically regulate descent velocity to a smooth 0.3 m/s, preventing kinetic crush damage regardless of pallet tare variations.
Structural Steel Rollers & Bearings
Standard PVC or light zinc rollers fail under heavy dynamic impacts. Our custom OEM lines utilize heavy-duty galvanized precision steel tubing fitted with deep-groove labyrinth-sealed ball bearings rated up to 1,500 kg per roller. Hexagonal axles secured in CNC-punched side channels eliminate structural vibration and track deviation.
Positive Pallet Separation Separators
At the picking front, line back-pressure from queued pallets can wedge the lead pallet, preventing safe forklift extraction. Our patented OEM foot-operated or automatic mechanical separation stops hold back upstream pallets until the retrieval operator safely clears the lead unit, ensuring OSHA and CSA-compliant warehouse operations.
Engineering Comparison: High-Density Warehouse Storage Topologies
Comprehensive metallurgical and operational metrics to benchmark custom roller racking against competing intralogistics configurations.
| Storage Methodology | Space Utilization | Rotation Logic | Throughput Velocity | Forklift Lane Redundancy | Capital Cost / Pallet |
|---|---|---|---|---|---|
| Pallet Flow (Roller Racking) | 85% - 92% (High-Cube) | Strict FIFO | Continuous / Rapid | Zero Aisles Inside Storage Cube | Moderate to High (Fast ROI) |
| Selective Pallet Racking | 35% - 45% (Aisle-Heavy) | Any (100% Selective) | Direct / Variable | Requires 3.0m - 3.8m Aisles / Bay | Low Initial Capital |
| Drive-In Storage Racking | 70% - 80% (Channel Dense) | LIFO (Last-In, First-Out) | Slow (Truck Enters Structure) | High Forklift Impact Vulnerability | Moderate |
| Push-Back Cart Racking | 65% - 75% (2-6 Deep) | LIFO | Moderate | Single Loading / Pick Aisle | Moderate |
| Automated Radio Shuttle | 88% - 95% (Automated) | FIFO / LIFO Hybrid | Automated / High | Eliminates Truck Entry Completely | High Initial Capital |
Strategic Procurement Trends: The Future of Dynamic Storage (2025–2030)
Anticipating structural, automated, and regulatory shifts across global warehousing infrastructure.
Convergence with AMR & AGV Infeed
The manual forklift transition is accelerating toward Autonomous Mobile Robots (AMRs). Modern OEM roller racking beds are now engineered with optical sensor gaps, laser-guided stops, and electromagnetic staging latches that allow AMRs to interface directly with flow lanes without human intervention.
Cold Chain & ESG-Driven Densification
Refrigerated warehouse cubic-foot energy costs exceed ambient storage by up to 300%. The global expansion of fresh food delivery and biopharma vaccines mandates maximum thermal density. Flow racking eliminates thermal convection air voids, saving cold-chain operators millions annually in HVAC utility drain.
High-Grade High-Tensile Steel Profiles
Procurement mandates are moving away from thick, heavy carbon steels toward high-strength, low-alloy (HSLA) steels. By using intelligent cold-roll profile geometry with stiffening ribs, our OEM roller racks yield higher flexural rigidity while reducing shipping tonnage and total project landed costs.
Why Enterprise Integrators Partner with HEDA Shelves
Direct manufacturing prowess, complete structural design autonomy, and uncompromising quality assurance since 2001.
24-Hour Free CAD & 3D Modeling
Supply your warehouse architectural DWG drawings, clear building heights, slab load capacities, and pallet profiles. Our veteran engineering department outputs comprehensive CAD placement plans, structural calculations, and 3D walkthrough visualizations within 24 hours.
Certified Seismic & Load Verification
HEDA manufacturing follows strict RMI (Rack Manufacturers Institute), FEM 10.2.02, and EN 15512 engineering methodologies. Every rack profile undergoes laboratory finite-element stress analysis (FEA) to confirm safety factors against zone-specific seismic accelerations.
Turnkey Export & Global Port Delivery
With an automated 10-step production sequence—from coil slitting and automated CNC column punching to electrostatic powder curing—we load ocean-optimized 40HQ containers direct from our Guangzhou factory gate to US & Canadian ports (LA/Long Beach, Houston, Savannah, Vancouver).
Frequently Asked Questions (Procurement & Technical FAQ)
Everything procurement heads and engineering consultants need to know when qualifying an OEM storage manufacturer.
What structural variables dictate the slope angle of gravity roller racking?
The standard incline angle for pallet flow lanes ranges from 1.5° to 2.5° (approximately 3% to 4.5% gradient). The exact pitch is determined empirically by pallet bottom board continuity (e.g., GMA 48"x40" 3-runner vs. perimeter-base EUR pallets), runner deflection under maximum payload (500 kg to 2,000 kg), roller material friction, and ambient operating temperatures, especially in sub-zero freezer installations.
Can HEDA provide stamped PE calculations and load tables in imperial units (lbs, ft)?
Yes. We routinely engineer projects for North American clients and issue shop drawings, structural column loads, and beam moment-resisting charts fully scaled in imperial measurements (feet, inches, pounds). These calculation packages are structured to streamline local structural Engineer of Record (EOR) plan reviews and municipal building department permitting.
How do you prevent pallet jamming in deep-lane flow beds?
We eliminate lane hang-ups through three integrated OEM defenses: full-width three-track galvanized steel roller layouts that distribute deflection evenly; entry funnels with heavy-duty side guide rails that align off-center loads during forklift deposit; and calibrated magnetic/centrifugal braking rollers positioned every pallet length to keep speeds below the threshold of load shifting.
What custom OEM branding options are available for integrators and distributors?
We provide comprehensive OEM private-label support. This includes customized RAL electrostatic powder-coating matches to your corporate branding, client-branded beam capacity calculation plaques, laser-engraved upright column badges, custom accessory tooling, and neutral/white-label export packing with container load optimization charts.
