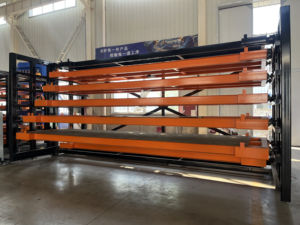

Multi-Tier Base
Multi-Tier Carbon Steel Powder Coated Anti-Rust Heavy Duty Storage Rack
- Uprights: 90x70 / 100x70mm
- Load: 1000-4000kg/Tier
- Epoxy-Polyester Coating
Core Component Architectures
Engineered Heavy-Duty Storage & Mezzanine Sub-Systems
Precision-manufactured in our ISO 9001:2015 and CE-certified fabrication plants. Designed around cold-rolled structural steel profiles, high-load column bases, and modular beam connectors to construct single or multi-tier rack-supported platforms.
High-Bay Heavy
High-Rise Heavy Duty Beam Racking 10-15m Tall Steel Storage Shelves
- Elevation: 10m to 15m Clear
- Box Beam: 80x50 to 160x50
- Seismic Base Anchor Ready
Dynamic High-Density
Heavy Duty Push Back Rack Adjustable Metal Pallet Storage System
- 2-6 Pallet Deep Nested Carts
- LIFO Inventory Logic
- Low Pitch Inclined Rails

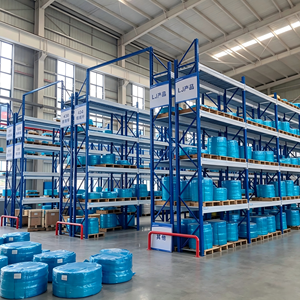

Longspan Modular
Adjustable Steel Warehouse Rack Long Span Shelving for Heavy Goods
- Span: 1500mm to 2700mm
- Steel / Wire Decking
- 50mm Pitch Adjustment
FIFO Flow
Factory Steel Gravity Flow FIFO Carton Roller Racking Systems
- High Throughput Picking
- Aluminum Alloy Roller Tracks
- Mezzanine Integrated Ready

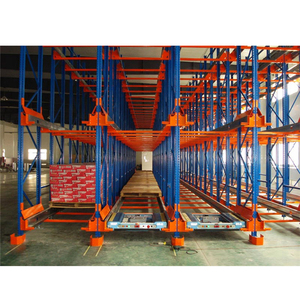

Semi-Automated
Automated Radio Shuttle Racking Equipment Pallet System
- Deep-Lane Radio Controlled
- -25°C Cold Storage Rated
- WMS/PLC Direct Interface

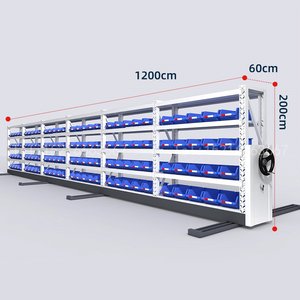

Max Cube Utilization
Mobile Pallet Racking System for High-Capacity Industrial Storage
- Motorized Base Carriages
- Floor Embedded Rails
- Single Floating Aisle Logic
Heavy Deck Picking
3000KG Custom Steel Deck Storage Rack for Parts & Plastic Bins
- 3,000kg Solid Deck Capacity
- Interlocking Steel Decking
- Mezzanine Platform Compatible
Engineering Mechanics
The Anatomy of Rack Supported Mezzanines (RSM)
A Rack-Supported Mezzanine (RSM) utilizes the vertical structural members of pallet racking or industrial heavy-duty shelving as the primary load-bearing columns to support upper flooring levels. Unlike traditional structural steel mezzanines—which demand massive wide-flange (H-beam) columns with expansive, unutilized footprints—an RSM eliminates dead airspace by converting every cubic foot of lower-level storage into structural support.
From a finite element analysis (FEA) perspective, dynamic load paths are transmitted directly down the cold-formed upright vertical columns to oversized seismic base plates anchored into the concrete slab. This dual functionality offers distribution center developers and 3PL warehousing operators a 100% to 250% increase in usable storage surface area without the astronomical capital expenditures and permitting lead-times associated with physical building footprint expansion.
Unified Load Dissipation
Cold-rolled upright posts act as structural columns, distributing live and dead loads across dense grid footings.
CapEx Amortization
Combines racking and structural mezzanine budgets into a single supply chain line item, saving 35-50% overall cost.
Seismic Shear Resistance
Incorporates engineered diagonal horizontal bracing profiles meeting RMI ANSI MH16.1 and IBC Seismic SDC D-F standards.
Custom Decking Systems
Tailored options from heavy electro-forged bar grating to B-deck corrugated steel with tongue-and-groove overlay.
Engineering Trade-Off Analysis: Storage Mezzanine Architectures
Evaluating structural efficiency, concrete slab requirements, and total cost of ownership (TCO) across standard industrial configurations.
| Evaluation Parameter | Rack-Supported Mezzanine (RSM) | Structural Steel Platform | Shelving-Supported Walkway |
|---|---|---|---|
| Primary Structural Core | Heavy-duty roll-formed pallet racking uprights (Q235B/Q355B) | Hot-rolled structural steel (ASTM A36 / I-Beams / H-Columns) | Cold-rolled longspan shelving uprights & step beams |
| Storage Density Efficiency | Maximum (92-98% Cubic Fill) | Moderate (Upper deck open; ground floor variable) | High (Optimized for small parts / hand-pick) |
| Floor Load Capacity Range | 50 to 250 lbs/sq.ft (250 – 1,250 kg/m²) UDL | 100 to 350+ lbs/sq.ft (500 – 1,700 kg/m²) UDL | 50 to 100 lbs/sq.ft (250 – 500 kg/m²) UDL |
| Concrete Slab Requirements | Standard 6"–8" slab (3,000–4,000 PSI) with distributed footings | Heavy deep footings or localized concrete core cuts required | Standard 5"–6" reinforced warehouse concrete slab |
| Capital Cost per Usable Sq. Ft | Lowest (Integrated structure amortizes steel) | Highest (Substantial raw structural steel tonnage) | Low to Medium (Limited to lightweight goods) |
| Reconfigurability & Scalability | High (Modular boltless/pin connectors, bolted bracing) | Low (Welded or heavy moment-plate bolted joints) | Very High (Easily reassembled or extended) |
Factory Verification
Why Global Integrators Partner with HEDA Shelves
Operating since 2001, Guangzhou Heda Shelves Co., Ltd. is a world-class OEM/ODM engineering powerhouse with complete in-house manufacturing, zero-broker markup, and rigorous export compliance.
323,000 Sq. Ft Production Campus
Over 30,000 m² of specialized production floor space equipped with 14 automated roll-forming lines, multi-axis laser cutting cells, and robotic CO2 shielding welding arrays capable of outputting 30,000 metric tons of structural racking steel monthly.
PE-Stamped Structural Calculations
Full CAD layout generation and 3D architectural rendering delivered within 24 hours. Load tables are formatted in both imperial (lbs, inches, psf) and metric units to seamlessly interface with local US/Canadian Engineers of Record (EOR) and building departments.
Certified Compliance (ISO, CE & RoHS)
Fully compliant with international quality management systems including ISO 9001:2015 (Cert No. 18624Q00169R0M), European CE Factory Production Control (2435-CPR-8605159), and non-toxic powder coating environmental verifications.
OEM & Private-Label Customization
Extensive ODM/OEM engineering for global material handling distributors. We customize column punch pitches (50mm, 75mm, 76.2mm teardrop), specialized connector brackets, bespoke safety handrails, and customized RAL thermoset powder coatings.
Container-Optimized Export Packing
Direct ocean logistics from Guangzhou / Shenzhen to North American hubs (Long Beach, Houston, Savannah, New York, Vancouver). Automated nested bundle racking ensures zero container volume wastage and structural protection during transoceanic transit.
2001
Established
25+ Years Racking Heritage
30,000t
Monthly Steel Output
Continuous Roll-Forming Lines
10,000+
Projects Completed
Worldwide Distribution Hubs
323ksq.ft
Manufacturing Campus
ISO 9001 & CE Certified
Quality Metallurgy
The 10-Stage Precision Racking Manufacturing Lifecycle
Structural integrity begins with mill-certified prime steel coils. Every upright, connector, and beam passes through our automated QA tolerance gates before dispatch.
01
Prime Steel Coils
Certified Q235B & Q355B high-tensile hot rolled steel verified via ultrasonic flaw testing.
02
Precision Slitting
CNC slitting lines ensure micron-level width tolerances across structural coil strips.
03
CNC Punching
Continuous mechanical press punches teardrop or diamond connector pitch patterns without burrs.
04
Roll-Forming
Multi-stand precision roll forming machines engineer complex upright structural ribbing.
05
Robotic Welding
Automated CO2/Argon shielding welding guarantees uniform beam connector and base-plate weld beads.
Future Forecasting
Strategic Sourcing Trends in Industrial Mezzanine Systems
As automated supply chains, robotics, and omnichannel delivery redefine warehousing logistics, procurement executives must plan mezzanine structures for the next decade of technology integration.
Robotics Integration
AMR & AGV Upper Deck Compatibility
Modern mezzanines are no longer merely manual carton-picking walkways. The accelerated adoption of Autonomous Mobile Robots (AMRs) requires decking with strict deflection limits (L/360 or L/480), electrostatic discharge (ESD) flooring, and uniform point-load dispersion under dynamic robotic wheelbases.
- Dynamic live-load floor ratings up to 250 psf
- Anti-vibration structural dampening gussets
- Seamless steel diamond decking with joint-free transitions
Micro-Hub Dynamics
Urban Infill & Clear-Height Maximization
With industrial real estate costs near record highs in metropolitan logistics corridors, developers are prioritizing vertical volume rather than lateral expansion. Mezzanine sourcing increasingly demands multi-tier platforms (3 to 4 elevated walk-levels) designed within existing 32-40 ft clear-height buildings.
- Triple-tier picking systems with integrated spiral chutes
- Continuous flue space maintenance for NFPA 13 compliance
- Vertical reciprocating conveyors (VRC) integration bays
Sustainable Engineering
Low-Carbon Steel & Direct Factory OEM
Supply chain security concerns have accelerated direct factory OEM procurement models. Global operations bypass intermediary trading firms, securing structural steel directly from audited factories that utilize electric arc furnace (EAF) low-carbon steel and environmentally certified coatings.
- Mill test certificates (MTC) traced to heat batches
- VOC-free electrostatic powder coating finishes
- Flat-packed container nesting cutting ocean transport carbon
Procurement Knowledge Base
Frequently Asked Questions for Industrial Buyers
Key technical, code compliance, and structural considerations when sourcing custom OEM rack-supported mezzanines from overseas manufacturing plants.
How does an OEM calculate concrete slab capacity for a rack-supported mezzanine?
Rack-supported platforms create concentrated post-load point forces that must not exceed the punching shear capacity or subgrade soil bearing limits of the warehouse slab. Standard installations require an uncracked, reinforced concrete floor of at least 6 to 8 inches thickness with a minimum compressive strength of 3,000 to 4,000 PSI. Our structural engineering department provides exact point-load calculation tables for every upright column, allowing your local Engineer of Record (EOR) to determine whether standard oversized seismic base plates suffice or if localized footings are required.
What fire safety and NFPA 13 sprinkler guidelines apply to multi-tier mezzanines?
Under NFPA 13 and local building codes, open bar grating decking with at least 50% open area may allow ceiling-mounted Early Suppression Fast Response (ESFR) sprinklers to penetrate to lower levels in select jurisdictions. However, multi-tier platforms or solid decking (such as B-deck with plywood) typically require dedicated in-rack sprinkler lines installed directly beneath the mezzanine floor joists. We engineer longitudinal and transverse flue spaces into all pallet racking bays to ensure full compliance with municipal fire protection ordinances.
Can HEDA Shelves supply seismic calculations for North American projects?
Yes. All structural members are calculated according to the American Iron and Steel Institute (AISI) S100 specifications for cold-formed steel structural members and the Rack Manufacturers Institute (RMI) ANSI MH16.1 standard. For projects situated in high seismic zones (Seismic Design Categories C through F, such as California, Washington, or British Columbia), we provide detailed dead, live, and seismic spectral response acceleration calculations (Ss, S1) to support municipal permitting reviews.
What decking surface material is best for high-traffic manual and cart picking?
The optimal decking depends on operational workflow: (1) Electro-forged heavy steel bar grating offers maximum airflow, lighting pass-through, and sprinkler compliance; (2) Galvanized B-deck corrugated steel with high-density tongue-and-groove Resista-Deck or engineered composite resin panels provides an ultra-smooth, low-noise surface ideal for rolling hand-carts and manual pallet jacks; (3) Solid checkered steel diamond plate delivers extreme impact and oil resistance in heavy industrial tooling facilities.
What are the lead times and container shipping terms for overseas delivery?
Standard fabrication lead times range between 20 and 35 calendar days following client approval of CAD shop drawings. Ocean freight transit to major West Coast North American ports (Long Beach, Vancouver) requires 14–18 days, while Gulf and East Coast ports (Houston, Savannah, New York) require 28–32 days. We support FOB, CIF, CFR, and turnkey DDP (Delivered Duty Paid) shipping terms, providing complete customs documentation, ISF filings, and packing manifests.
How are components marked and bundled to facilitate rapid job-site installation?
All upright columns, horizontal box beams, catwalk stringers, and decking sheets are color-coded, labeled, and bundled with stainless steel strapping according to distinct architectural floor phases. Each shipping container includes a laminated master packing list and corresponding 3D exploded assembly diagrams with numbered connection nodes, enabling certified third-party mechanical rigging crews to erect platforms up to 30% faster.
Transform Your Vertical Cubic Space: Request a Free Layout & Engineering Quote
Collaborate directly with our senior racking structural engineers. Send us your warehouse floor plan, clear height dimensions, and pallet weight specifications to receive a comprehensive CAD layout, 3D architectural rendering, and itemized factory-direct quote within 24 hours.
100% Confidential CAD Review
24-Hour Engineering Turnaround
Zero-Intermediary Factory Direct
