High-Performance Pallet Racking & Industrial Systems
Precision cold-rolled structural steel profiles custom-manufactured to support uniform distributed loads up to 4,000 kg per beam tier. Designed for rapid deployment across high-bay distribution centers, regional 3PLs, and automated warehouses.

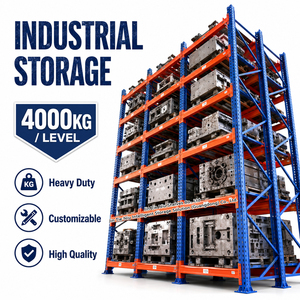

4000KG Heavy Duty Warehouse Rack Pallet Storage System Adjustable Beam Racking
- 4,000 kg (8,800 lbs) Tier Load
- 50mm / 75mm Pitch Pitch Adjustment
- Dual-Lug Structural Locking Pins

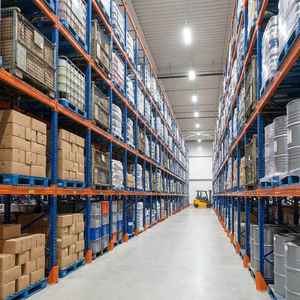

Heavy Duty Selective Pallet Racking Warehouse Storage Rack System Industrial Racks Adjustable For Building Materials
- 100% Immediate Pallet Accessibility
- Heavy Building Materials Compatible
- Q235B Cold-Rolled Boxed Beams
Supermarket Light Duty Double-Sided Automatic Spring Loaded Pusher Rack Shelf Plastic Stainless Steel Adjustable Size CE ROHS
- Self-Facing Spring Fed Pushers
- CE & RoHS Certified Plastic/Steel
- Micro-Fulfillment Speed Picker

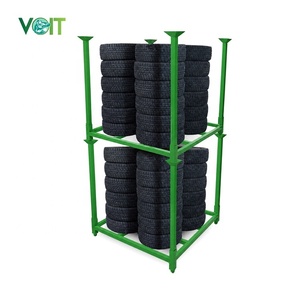

Industrial Warehouse Heavy-Duty Detachable Steel Passengers Tire Storage Rack
- Modular Stackable & Detachable
- Protects Passenger Tire Beads
- 4-High Loaded Stacking Capacity
Robust Longspan Shelving Systems Warehouse Organization Heavy Duty Shelves Competitive Price Stock Ready
- 500-1,000 kg Shelf Capacity
- Solid Steel Decking or Wire Mesh
- Rapid Knock-Down Assembly
4-Casters 16U 18u 22u 26u 32u 36u 42u Server Rack Cabinet, Lockable 19 Inch Cold Rolled Steel Network Cabinet Factory Supply
- 19" Standard ANSI/EIA RS-310-D
- 16U to 42U Cold-Rolled Chassis
- Ventilated Mesh & Cam Locks
Custom Adjustable Anti-Rust Storage Metal Stacking Racks Pallet Racking System Steel Shelving VNA Racking Narrow Aisle Rack
- Up to 15-Meter Vertical Reach
- Narrow 1.6m-1.8m Aisle Profile
- Guide Rails & Wire-Guided Base
Adjustable Durable Industrial Powder Coated Metal 5 Layer Heavy Duty Drive-In Pallet Rack Storage Racking System 2 Tons Load
- 2,000 kg / Pallet Point Rating
- Cold-Storage Deep-Lane Density
- Structural Formed Guide Rails
Guangzhou HEDA Shelves Co., Ltd. Manufacturing Infrastructure
Operating continuously since 2001, HEDA Shelves engineers heavy-duty intralogistics steel systems under rigorous ISO 9001:2015 and CE quality standards. We deliver certified load calculations, turnkey CAD layouts, and containerized logistics solutions to enterprise distribution hubs worldwide.
Certified Metallurgy & Cold-Forming
Fabricated exclusively from high-tensile Q235B and Q355B prime structural coil steel (ASTM A1011 equivalent). Roll-formed profiles undergo 14 continuous forming passes to maintain exact cross-sectional dimensional tolerances, preventing torsional buckling under heavy seismic loads.
10-Step Automated Chemical Pretreatment
Every structural upright, box beam, and bracing channel passes through an automated 10-stage immersion sequence: degreasing, dual acid pickling, zinc phosphating, and deionized water rinsing before electrostatic epoxy powder coating (60–80μm), preventing salt-fog corrosion.
Seismic PE Stamping & 24h Turnkey CAD
Our in-house design office of 30+ licensed structural engineers generates compliant 2D CAD architectural plans, beam deflection models (L/200 standard), and 3D BIM spatial models within 24 hours. Load ratings provided in metric and imperial for rapid local engineering sign-off.
Engineering Whitepaper: Next-Generation Intralogistics Storage & OEM Procurement
Modern industrial supply chains demand warehouse storage systems that go beyond static shelving. With industrial land prices and operating costs rising globally, distribution centers must maximize spatial density while preparing for automated material handling equipment (MHE), Automated Guided Vehicles (AGVs), and Autonomous Mobile Robots (AMRs).
Specifying custom OEM pallet shelf racks requires balancing metallurgical strength, seismic resistance, material-handling throughput, and unit-load lifecycle economics. Below is an engineering overview of structural optimization, global compliance, and future trends shaping industrial storage procurement.
"Structural storage integrity depends directly on cold-rolled steel profile mechanics. Specifying certified Q235B/Q355B alloys with continuous roll-forming ensures safety under static, dynamic, and seismic loads."
Material Metallurgy: Why Cold-Rolled Q235B vs. Q355B Dictates Deflection Limits
The safety of a heavy-duty selective pallet rack begins with its steel chemistry. Standard commercial steel exhibits variable yield points that can lead to unexpected frame deflection under full static loading. HEDA Shelves utilizes cold-rolled structural coil conforming to GB/T 700 Q235B (yield strength ≥ 235 MPa, tensile strength 370–500 MPa) and low-alloy high-strength Q355B (yield strength ≥ 355 MPa) for uprights exceeding 10 meters.
In selective beam design, deflection calculations adhere strictly to the ANSI MH16.1 / RMI and FEM 10.2.02 standard, enforcing a maximum deflection limit of δ ≤ L / 200, where L represents clear beam span. For a standard 2,700 mm (106-inch) dual-pallet beam, maximum permissible vertical deflection is limited to 13.5 mm under full rated load. HEDA box beams use continuous longitudinal laser seam welding to eliminate torsional twist, ensuring that dynamic forklift loading does not fatigue connector pins or beam welds.
Comparative Matrix: Pallet Storage Architecture & Operational Throughput
Choosing an industrial storage configuration requires balancing storage density against inventory accessibility. The comparison matrix below details key mechanical and logistics metrics across standard systems:
| Storage Architecture | Space Utilization | Pallet Selectivity | Inventory Flow | Recommended Pallet / SKU Profile | Capital Expenditure / Pallet |
|---|---|---|---|---|---|
| Selective Pallet Racking | 40% – 50% | 100% Immediate | FIFO / LIFO Flexible | High SKU variety, fast stock turnover (3PL, FMCG) | Baseline Economy ($) |
| Double Deep Racking | 55% – 65% | 50% Immediate | LIFO Priority | Medium SKU volume, paired pallet batching | Moderate ($$) |
| Very Narrow Aisle (VNA) | 70% – 80% | 100% Immediate | FIFO / LIFO Flexible | High roof-clearance DCs (>10m), automated reach trucks | Moderate-High ($$$) |
| Drive-In / Drive-Through | 75% – 85% | < 20% (Lane End) | LIFO (Drive-In) / FIFO (Through) | Bulk identical SKUs, cold chain storage, seasonal stockpiles | Moderate ($$) |
| Radio Shuttle Automation | 85% – 92% | Semi-Automated Lane | FIFO or LIFO Configurable | High-throughput cold storage freezers, beverage bottling | Capital Intensive ($$$$) |
| Rack-Supported Mezzanine | 180% – 250% Footprint | Multi-Tier Accessible | Manual / Conveyor Hybrid | E-commerce fulfillment, spare parts, carton-split picking | High Value Density ($$$) |
Future Procurement Trends in Industrial Storage (2026–2030)
1. Structural Preparation for Hybrid AMR & MHE Fleets
Warehouse automation is shifting from centralized stacker cranes to flexible Autonomous Mobile Robot (AMR) fleets. Future-ready racking requires widened bottom ground clearances, integrated base-level guide curbs, and floor-level docking targets. Floor anchorages must now resist cyclical lateral shear forces generated by automated vehicle navigation while maintaining beam clearances suitable for computer-vision positioning sensors.
2. Cold Chain Metallurgy and Low-Temperature Embrittlement
Global demand for temperature-controlled logistics (-25°C to -40°C) requires specialized low-temperature alloy formulations. Standard structural carbon steels can experience brittle ductile-to-brittle transitions under sub-zero conditions, increasing risk of catastrophic cracking upon forklift impacts. HEDA OEM designs for cold-storage installations incorporate micro-alloyed elements (Nb and V) with tested Charpy V-notch impact values at sub-zero temperatures, paired with powder coatings that retain elasticity under thermal contraction cycles.
3. Circular Sustainability and Modular Demountable Engineering
Supply chain agility requires demountable, relocatable racking structures. Bolted upright frames and tool-less teardrop/diamond locking connectors allow warehouses to reconfigure bay widths, beam levels, and row lengths as inventory profiles evolve. Prefabricated bolt-together mezzanine designs replace permanent structural welding on-site, enabling 100% structural component re-use and lowering embodied carbon across facilities.
4. Seismic Resiliency & International Code Harmonization
Modern distribution facilities require structural review under ASCE 7 / IBC seismic design provisions, European EN 15512, and Australian AS 4084 regulations. Engineering evaluations now account for non-linear dynamic behavior, post-buckling performance, and ductile floor-anchoring base plates. Proper base-plate sizing and high-tensile wedge anchor embedment depths ensure racks safely absorb ground acceleration without beam-dislodgement during seismic events.
Frequently Asked Procurement & Engineering Questions
Key technical details, seismic certifications, and custom manufacturing parameters answered directly by our structural engineering and export logistics team.
How are maximum pallet load capacities calculated and verified?
Capacities are calculated per ANSI MH16.1 and EN 15512 standards using finite-element analysis (FEA). Box-beam assemblies are physically test-loaded to 1.5× safety factor under distributed load, with beam deflection capped at L/200 before receiving structural sign-off.
Are your racks compatible with North American 48×40 inch GMA pallets?
Yes. We routinely fabricate frame depths (typically 42 inches / 1067 mm) and clear beam spans (typically 96, 108, or 144 inches) tailored for standard GMA wooden pallets, plastic hygienic pallets, and custom industrial steel skids, complete with drop-in wire decks and crossbars.
What custom OEM and ODM options are available for overseas dealers?
We provide comprehensive OEM manufacturing: proprietary upright punching profiles, customized hole pitches (50mm, 75mm, 76.2mm / 3-inch), private-label company embossing, bespoke powder coating color-matching (RAL spectrum), and custom-branded export packaging.
What documentation is provided for local building permits and seismic review?
Each OEM project includes certified shop drawings, detailed anchoring baseplate engineering, bill of materials, steel mill test certificates (MTC), coating thickness verification reports, and structural calculation summaries prepared for local engineer-of-record (EOR) review.
How do you prevent freight damage during ocean container transport?
Components are packed with high-strength PET strapping, corrugated edge-protector angles, waterproof stretch film, and wood-block spacers. Beams and uprights are bundled with precise weight balancing for direct unloading via standard forklift fork extensions.
What surface treatments are used for high-humidity or cold-chain facilities?
For standard indoor warehouses, we apply a 10-stage phosphating wash plus electro-statically applied thermosetting polyester powder coat. For freezers, coastal depots, or chemical environments, we offer hot-dip galvanizing (ISO 1461 compliant) or zinc-rich primer topcoats.
What is the typical production lead time for full container orders?
Standard full container load (FCL) orders of 20ft or 40ft High Cube containers are typically manufactured and quality-inspected within 15 to 20 business days following technical drawing approval, supported by our 30,000-ton monthly fabrication throughput.
Accelerate Your Storage Efficiency with Custom OEM Manufacturing
Connect directly with our engineering team for free CAD layouts, 3D warehouse capacity modeling, and comprehensive load-calculation schedules tailored to your facility's operational throughput.
