Industrial Steel Warehouse Finished Goods Structure
Integrated structural upright building frameworks combining clear-span civil engineering with automated multi-tier internal storage assemblies.
Factory-Engineered Systems
High-Performance Storage Racking & Upright Assemblies
Engineered to handle rigorous dynamic picking, heavy static pallet loading, and seismically certified warehouse environments.
Heavy-Duty Drive-in High-Density Pallet Racking
Heavy structural rails and multi-flange reinforced vertical uprights optimized for high-density LIFO cold-chain logistics.
Movotec MTG100 Dynamic Gravity Flow Racking
Precision sloped roller beds integrated into rigid OEM upright trusses for FIFO date-critical inventory distribution lines.
Industrial Selective Warehouse Pallet Rack
Direct-access tear-drop and omega upright configurations offering 100% pallet selectivity and broad GMA pallet compatibility.
Multilevel Heavy-Duty Euro-Pallet Rack Framework
Sized for 4-way entry logistics standards, engineered with custom diagonal cross-bracing to eliminate structural racking deflection.
High-Bay Boltless Heavy-Duty Storage Racking
Modular self-locking beam connectors combined with high-tensile cold-rolled columns for rapid multi-bay warehouse expansion.

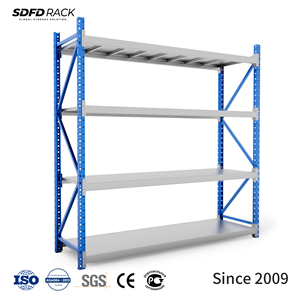

Custom Adjustable Long-Span E-Commerce Upright Shelving
Optimized 200kg-500kg level configurations designed specifically for high-velocity manual picking operations and mezzanine tiers.

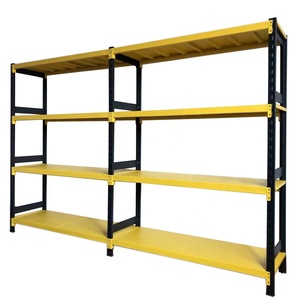

Heavy-Duty 4-Tier Industrial Warehouse Shelving
Multi-tier durable factory racking with anti-scratch epoxy electrostatic finish and reinforced welded baseplates.
Engineering White Paper
Structural Analysis & OEM Upright Frame Metallurgy
In-depth breakdown of cold-formed steel engineering, tensile integrity, and RMI / EN 15512 safety compliance standards.
Continuous Cold-Roll Forming
Our OEM upright lines employ 18 to 24 progressive roll-forming stages to gradually shape high-strength Q235B and Q355B coil stock. This gradual forming process preserves steel molecular microstructure, prevents micro-cracking at bend radii, and significantly increases yield strength at structural corners.
Omega & Multi-Flange Profiles
Unlike basic C-channels, custom upright profiles feature multi-bend return flanges and stiffened ribs. These additional geometry facets multiply the moment of inertia and radius of gyration, counteracting torsional buckling and mid-span flex under extreme axial compressive stress.
Seismic Dissipation & Trusses
Frames are tied together using computerized CNC-punched diagonal and horizontal K-truss or D-truss webbing. Engineered bolted joints with serrated flanged nuts maintain dynamic flex elasticity, absorbing and dissipating seismic forces without premature shear failure.
Rigorous Structural Verification & Stamped Calculations
Every rack frame manufactured in our automated factory can be custom-engineered to meet stringent North American RMI (Rack Manufacturers Institute) MH16.1 specifications or European EN 15512 codes. We provide certified structural calculations in both imperial (lbs/ft) and metric units to streamline local building permits and third-party engineering reviews.
Automated CNC column punching (50mm/75mm/76.2mm pitch)
ISO 9001:2015 & CE 2435-CPR-8605159 compliance
10-stage automated surface pretreat (Pickling & Phosphating)
Electrostatic thermosetting powder coat: 60-90 microns thick
Have a custom hole pattern, custom profile, or private-label specification?
Get a Quote
Strategic Procurement Analysis
Future Procurement & Technology Trends in Industrial Racking
How automation, micro-fulfillment, cold chain demands, and sustainable logistics are reshaping global OEM rack manufacturing.
1. Convergence with ASRS & Autonomous Mobile Robots (AMRs)
Traditional static pallet storage is rapidly integrating with automated shuttle bots and high-bay stacker cranes. Procurement managers are increasingly specifying upright tolerances within tight +/-0.5mm thresholds to eliminate sensor alignment faults in automated storage and retrieval systems (ASRS).
2. Steel Grade Optimization & Green Manufacturing
With corporate carbon accounting tightening across the Americas and Europe, warehouse infrastructure developers are moving towards micro-alloyed, high-yield steels (such as Q355B cold-formed coil). These deliver equal or superior load capacity while trimming gross steel mass, cutting freight tonnage and embodied carbon.
3. Resilient Anti-Corrosion for Cold Chain Facilities
Rapid expansion in frozen and refrigerated logistics has increased demand for specialized powder coatings and hot-dip galvanized upright assemblies capable of resisting condensation, thermal cycling, and aggressive chemical washing cycles without coating delamination.
Direct From The Factory
Why Tier-1 Distributors & Integrators Rely On HEDA Shelves
Over two decades of precision manufacturing excellence backed by comprehensive technical documentation, rapid prototyping, and end-to-end container logistics.
323,000 sq ft Mega Factory
Established in 2001, our production plant operates across 30,000 square meters with advanced automated profiling, roll-forming, and welding equipment producing 30,000 tons monthly.
Free 24h 3D CAD Layouts
Provide your warehouse dimensions, clear heights, pallet sizes, and forklift models. Our structural engineers generate CAD designs, 3D renderings, and bill of materials within 24 hours.
Certified Testing & Traceability
Every steel batch is subject to strict metallurgical inspection, thickness verification, weld penetration testing, and salt-spray corrosion resistance tests according to ISO 9001 and CE norms.
Optimized Container Logistics
Direct export experience shipping 20GP/40HQ containers into Los Angeles, Long Beach, Houston, Savannah, New York/New Jersey, and Vancouver with damage-preventing nested bundle packing.
Procurement Knowledge Base
Frequently Asked Questions on OEM Racking & Upright Sourcing
Essential guidance on specifications, seismic verification, pallet standards, and factory direct customization.
Q1: How do I determine the right upright column profile and steel gauge for my loads?
Column profile dimensions (e.g., 80mm, 90mm, 100mm, 120mm face widths) and thickness (ranging from 1.5mm / 16-gauge up to 2.5mm / 12-gauge) depend on beam level elevations, unsupported vertical lengths, and total frame weight capacities. We provide certified frame load rating charts calculating axial loads alongside seismic base factors for your exact facility layout.
Q2: Can your factory replicate proprietary hole patterns for existing warehouse racks?
Yes. As an OEM manufacturer, we design and produce custom tooling and computerized punching dies to replicate teardrop, slotted, structural-bolted, or unique European hex-hole patterns. This ensures complete interoperability with your current warehouse racking components and replacement upright inventories.
Q3: How do your upright frames comply with North American seismic and building permits?
We produce verified shop drawings, weld certifications, material test reports (MTRs), and structural data tables in both Imperial (feet/inches/lbs) and Metric units. These engineering packages are engineered for easy submission to your local structural engineer of record (SEOR) to stamp permit calculations across high-risk seismic zones.
Q4: What is the standard packaging method to prevent transit damage during sea shipping?
Uprights are nested horizontally, banded with heavy-duty tension steel straps, and protected by heavy corrugated cardboard and protective plastic wraps. We utilize custom wood dunnage spacers and forklift corner blocks, ensuring components arrive without transit abrasions or flange bending inside ocean shipping containers.
Q5: What surface finish options are available for outdoor or extreme cold conditions?
For standard distribution centers, our 10-stage automated pickling, phosphating, and electrostatic powder coating provides a resilient scratch-resistant finish. For cold-storage freezers or outdoor lumberyards, we supply hot-dip galvanizing conforming to ISO 1461 / ASTM A123 standards, delivering decades of maintenance-free rust resistance.
Q6: What is the typical lead time from CAD sign-off to factory container loading?
Standard OEM fabrication cycles range from 15 to 25 business days depending on order tonnage and whether custom tooling is involved. CAD drawings and initial engineering calculations are turned around within 24 hours of receiving site dimensions.
Connect Directly with Our Structural Racking Engineers
Send your project layout, storage volume targets, or OEM profile specifications to receive an itemized factory quotation, imperial engineering load charts, and free 3D CAD proposal within 24 hours.
