Explore our cold-formed, powder-coated steel racking portfolio. Tailored for heavy unit loads, palletized inventory, roll goods, and e-commerce picking channels, every component is rigorously engineered for structural integrity, load deflection compliance, and effortless installation.
Since 2001, Guangzhou Heda Shelves Co., Ltd. has served as a specialized engineering manufacturer of heavy industrial shelving, pallet racking arrays, and high-bay mezzanines. By integrating automated roll-forming, robotic welding, and high-efficiency pre-treatment systems, we deliver wholesale storage solutions engineered to ANSI MH16.1, RMI, and EN 15512 specifications.
Strict metallographic testing of primary Q235B and Q355B structural grade steel coils.
Continuous CNC-synchronized column punching ensuring pinpoint connector pitch precision.
Multi-stage cold bending forming creates multi-ribbed upright sections with high moment inertia.
Gas-shielded robotic welding on beam end connectors and heavy base plates for joint durability.
9-stage acid pickling, phosphating, and electrostatic polymer powder cure at 200°C.
Selecting the optimal racking typology is a balance between building clear height, SKU velocity, floor slab carrying capacity, and pallet handling machinery. Below is an engineering framework comparing standard industrial shelving configurations to maximize storage density without elevating operational picking times.

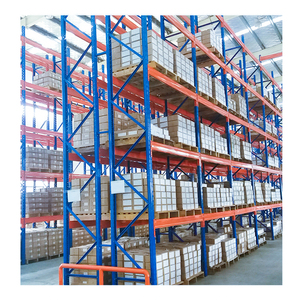

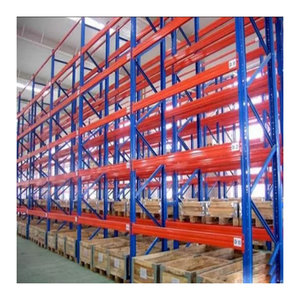

The global benchmark for multi-product fulfillment centers. Provides unhindered 100% direct accessibility to every individual pallet footprint without relocating adjacent stock. Compatible with counterbalance forklifts, narrow reach trucks, and standard wire decking.
Designed for low SKU proliferation and massive batch quantities such as cold chain preservation and raw ingredient processing. Eliminates intermediary transit aisles, driving warehouse volumetric utilization up to 80% while utilizing LIFO or radio-controlled FIFO flow.
Transforms high warehouse vertical clear heights into operational square footage. By employing heavy-duty uprights as structural load columns, an overhead steel grating or resin-deck platform is constructed for hand picking, light assembly, or automated carton sorting.
| Racking System | Typical Load Capacity | Floor Space Efficiency | Picking Throughput | Stock Rotation | ANSI / RMI Compliance |
|---|---|---|---|---|---|
| Standard Selective | 1,000 – 4,500 kg / level | 40% – 50% | Extremely Fast (100% Selective) | FIFO / LIFO | RMI Certified |
| Double Deep Racking | 1,000 – 3,500 kg / level | 60% – 65% | Moderate (Requires Reach Truck) | LIFO | RMI Certified |
| Drive-In Systems | 1,000 – 2,000 kg / pallet | 75% – 85% | Batch Dependent (Dense Storage) | LIFO | RMI Certified |
| Gravity Pallet Flow | 500 – 1,500 kg / lane | 70% – 80% | High Speed Continuous Flow | Pure FIFO | RMI Certified |
| Heavy Cantilever Rack | 500 – 3,000 kg / arm | 50% – 60% (Unobstructed front) | Fast for Bulky Goods | Direct Selective | RMI Certified |
| Industrial Longspan Shelf | 200 – 800 kg / shelf | High Vertical Shelf Packing | Manual Case / Piece Pick | Direct Selective | CE / ISO Compliant |
Global supply chain volatility, land acquisition costs, and carbon tax regulations are shifting how procurement leaders, system integrators, and plant directors source warehouse shelving units. An analytical view into the four macro trends dominating industrial racking acquisition over the next five years:
Traditional static shelving is giving way to hybrid infrastructure engineered to interface with automated guided vehicles (AGVs) and AMRs. Future racking specifications mandate wider base apertures, hardened impact-deflecting floor guides, and laser-guided rack upright alignments with deflection tolerances tighter than 1/500 to prevent automated shuttle positioning errors.
With distribution centers expanding in seismically active zones across the western United States, Canada, and the Pacific Rim, procurement departments now mandate site-specific structural design calculation packages. Factory suppliers must furnish complete finite element analyses (FEA) and dynamic seismic moment-connection data ready for local Professional Engineer (PE) stamping before fabrication.
Scope 3 carbon reduction pledges are altering supplier scorecards for multinational third-party logistics (3PL) providers. Warehouses are migrating from solvent-heavy paints toward VOC-free electrostatic powder coatings that pass 500-hour ASTM B117 salt spray tests, coupled with certified electric arc furnace (EAF) low-carbon scrap steel sourcing.
Distributors and material handling integrators are consolidating supply networks by partnering directly with Tier-1 OEM factories capable of private-label customization. Direct OEM relationships provide custom color matches, bespoke hole-pitch tooling, and container-optimized knock-down packaging that slashes transatlantic ocean freight costs by up to 35%.
Urban last-mile hubs demand high-bay shelving capable of sub-zero operating environments (-30°C). Steel grades must retain ductile notch toughness without low-temperature embrittlement, requiring specialized low-alloy silicon killed steel and dynamic carton flow tracks for continuous chilled grocery fulfillment.
In high-capacity warehouse operations, shelving failure is not an option. Our factory adheres to strict metallurgy and structural engineering limits, ensuring that every load beam and upright truss delivers predictable safety margins across tens of thousands of loading cycles.
All load-bearing upright frames utilize high-yield cold-rolled steel (yield strength up to 355 MPa / 51,500 psi). Continuous multi-roll profiling induces work hardening along corners, creating an exceptional strength-to-weight ratio that optimizes load capacities while lowering raw material tare weights.
All beam profiles—whether step beams for wire decking or interlocking box beams for pallet runners—are computed strictly to limit maximum vertical elastic deflection under safe working load (SWL) to less than 1/180 of the clear span, preventing permanent set and fatigue failure.
Components undergo an automated multi-stage washing, iron-phosphate bath, and deionized rinse prior to electrostatic powder application. Cured under continuous 200°C convective heat, the resulting 60–80 micron thick epoxy-polyester shell resists abrasions, fork impacts, and industrial chemical exposure.
Clear, direct answers for procurement officers, warehouse operations engineers, and overseas logistics integrators managing large-scale industrial storage racking and shelving investments.
