Engineered for rigorous material handling demands, extreme vertical clear-height requirements, and standard 48" x 40" GMA or custom pallets. Batch-inspected, high-tensile structural steel designs configured for optimal warehouse footprint utilization.
Tons Monthly Output
OEM Racking Expertise
Third-Party Validated
CAD Drawing Response
Modular medium-duty multi-tier shelving units engineered for fast assembly, flexible slotting, and high-frequency manual picking operations.
Eliminates working aisles to maximize cubic capacity up to 75%. Purpose-built for cold storage freezers, seasonal goods, and homogeneous SKU arrays.
Certified cold-rolled structural steel beams and uprights with custom hole punch pitch, backed by rapid structural calculation sheets and 24h engineering turnaround.
Precision dynamic front-facing shelf solutions with robust springs, stainless steel components, and CE/ROHS certified materials for automated retail presentation.
Compatible teardrop punching pattern, step beams with safety lock pins, and load capacity ratings formatted in imperial units (lbs/in) for American logistics hubs.
Tall frame configurations reaching up to 12+ meters. Engineered for reach-truck and VNA crane access with heavy cross-bracing and impact column protectors.
Corrosion-resistant SS304/SS201 hygiene shelving rated at 300kg/m load capacity. Anti-microbial, rust-proof, and designed for commercial wash-down zones.

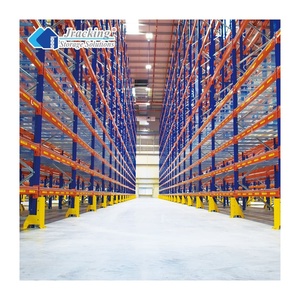

Precision cold-rolled vertical members designed according to European FEM/EN norms, providing 100% selective pallet accessibility and maximum structural safety margins.
High bay rack storage structures represent a mission-critical infrastructure investment in modern intralogistics. When warehouse designs surpass 8 meters (26 feet) of clear height and extend into 12-to-30-meter high-density territory, static calculation models shift dramatically from conventional light-duty framing to advanced dynamic structural engineering. Industrial high bay storage involves coupled axial, bending, and torsional forces caused by deep-load cantilevers, asymmetric pallet weights, dynamic forklift impacts, and seismic base excitation.
At HEDA Shelves, custom OEM high bay storage fabrication utilizes premier cold-formed Q235B and high-yield Q355B coil steels. Upright columns feature complex omega profiles with multiple return-flange stiffeners, yielding superior section moduli against torsional buckling without adding excessive dead weight. Below is our engineering benchmark table, comparing standard high bay configurations to help supply chain directors match throughput profiles with structural profiles:
| System Classification | Maximum Height Range | Pallet Accessibility | Typical Load Rating | Seismic & Building Integration |
|---|---|---|---|---|
| Selective High Bay Racks | Up to 14 meters (46 ft) | 100% Immediate Access | 1,000 – 4,000 kg / level | ✔ Floor-Anchored / RMI Calcs |
| VNA (Very Narrow Aisle) High Bay | Up to 18 meters (59 ft) | 100% Turret Truck / Rail | 1,500 – 3,500 kg / level | ✔ Heavy Base Plates + Guide Rails |
| Drive-In / Shuttle High Bay | Up to 12 meters (40 ft) | Dense Batch FIFO / LIFO | 1,500 kg / pallet slot | ✔ Top & Back Portal Bracing |
| Rack-Supported Clad Buildings | Up to 35+ meters (115 ft) | Automated Crane / AS/RS | Custom AS/RS Crane Loads | ✔ Integrated Wind & Roof Dead Loads |
To eliminate structural deflection failures, our beam-to-column connections are engineered with 4-to-5-hook stamped connector jaws featuring tapered engagement geometry. When loaded, gravitational forces actively lock the connector tighter into the column's teardrop or trapezoidal punches, eradicating beam roll-out risks even under asymmetric forklift placement.
Procurement directors and facility managers are shifting from commoditized steel bidding to total life-cycle engineering. As land inflation, carbon targets, and automation shape industrial warehousing, our manufacturing roadmap addresses the three defining shifts in global high bay procurement.
Manual forklift bays are converting into Autonomous Mobile Robot (AMR) and Stacker Crane infrastructure. OEM tolerance demands have compressed from standard ±3.0mm structural variances down to ±0.8mm tolerances across rail alignments, beam levels, and optical sensor targets.
North American UBC/IBC standards and European Eurocode 8 requirements enforce strict ductility, base anchorage anchoring, and non-linear dynamic time-history verification. Sourcing teams increasingly demand PE-stamped finite element calculations prior to extrusion.
Zero-VOC electrostatic powder coatings and specialized deep-freeze grain formulations prevent cold brittleness down to -30°C in perishable goods distribution. Modern buyers evaluate life-cycle corrosion resistance as a key KPI.
Combining 25+ years of factory-direct production, an expansive 323,000 sq ft production campus, and deep international export compliance to deliver uncompromising storage reliability.
Over two decades of engineering iterations across 10,000+ completed international warehousing installations worldwide.
Our dedicated structural engineering team provides complete warehouse layouts, beam load tables, and 3D schematics within 24 hours.
Full 10-step finishing line: automated slitting, multi-stage pickling, phosphating, and electrostatic powder curing for maximum durability.
Custom beam profiles, proprietary punch patterns, custom brand colors, and container-optimized packaging for dealers and integrators.
Essential engineering and operational clarifications for industrial buyers, 3PL logistics managers, and supply chain procurement specialists.
