High-precision dynamic gravity flow, heavy-duty carton live beds, and automated roller track systems engineered for optimal first-in-first-out (FIFO) logistics throughput and extreme cube utilization.
Explore our certified range of pallet flow lanes, dynamic roller tracks, structural cantilevers, and heavy-duty frame assemblies fabricated to strict international standards.

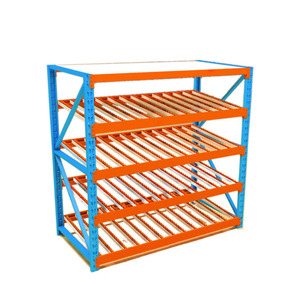

Full-depth gravity roller beds designed for rapid order fulfillment, zero energy consumption, and flawless first-in-first-out stock turnover in high-throughput DCs.
Engineered carrier chassis, precision crossmembers, and structural base components custom-welded to support automated conveyors and roller racking infrastructure.

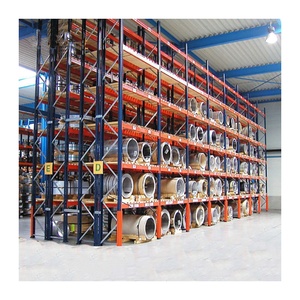

High-strength Q235B cold-rolled steel framing rated up to 10,000 lbs per beam pair, fully compatible with roller track drop-in adaptations and reach truck operations.
Inclined structural rail carts utilizing heavy-duty low-friction roller bearings, enabling deep 2-to-6 pallet storage positions while maintaining individual SKU access.

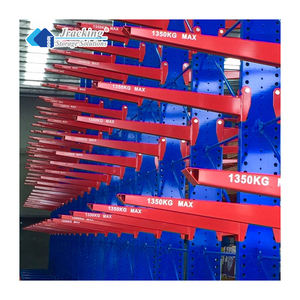

Unobstructed frontal design tailored for continuous profile handling, pipe staging, sheet lumber, and bulk bar stock with up to 6,600 lbs load capacity per arm tier.
Electro-galvanized and powder-finished ventilated steel wire decks designed to enhance overhead fire sprinkler clearance and prevent particulate buildup.
Demountable nesting post pallet racks that convert open bulk floor spaces into stable 3-to-4 high vertical storage clusters without dedicated structural bolting.

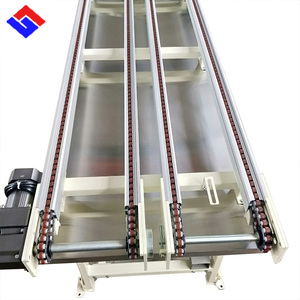

Motorized duplex chain and high-precision aluminum roller profile track engineered to feed live dynamic storage bays and high-speed automated sorting loops.
A comprehensive technical evaluation for distribution engineers, supply chain directors, and warehouse operations executives managing modern omnichannel fulfillment facilities.
Roller racking systems—commonly categorized under gravity flow racking and live pallet beds—rely on a calculated decline angle (typically 2.5% to 4.0% depending on the tare pallet weight and bottom construction) to transport palletized unit loads via gravitational acceleration. Unlike standard selective racking where access requires truck entry at every aisle point, roller systems convert vertical warehouse volume into continuous dynamic pipelines.
Critical engineering considerations center on centrifugal speed controllers and load separator devices. When an standard 48"x40" GMA pallet carrying 2,500 lbs moves down an incline, velocity must be constrained to safe working limits (under 0.3 m/s) using sealed planetary brake rollers. These energy-absorbing rollers counteract gravitational acceleration and prevent impact damage at the picking face. Furthermore, mechanical load separators relieve back-pressure from accumulating pallets in deep lanes (up to 20 pallets deep), ensuring that when the front pallet is retrieved by a forklift or AGV, the rear queue is locked in place until the extraction is complete.
| System Architecture | Operating Principle | Volume Utilization | Throughput Velocity | Stock Rotation Strategy |
|---|---|---|---|---|
| Pallet Flow (Roller Beds) | Gravity incline (2.5%–4%) with centrifugal brakes | 85% – 90% (Ultra High) | Rapid continuous pick-face feed | Strict FIFO (Date/Batch Controlled) |
| Push Back Racking | Nested carrier carts on inclined structural channels | 70% – 75% (High) | Medium batch access per lane | LIFO (Last-In, First-Out) |
| Radio Shuttle Automation | Independent battery vehicle on guided rail profiles | 85% – 92% (Maximum) | Programmed auto-cycle | Configurable FIFO / LIFO |
| Selective Pallet Racking | Static structural crossbeams with 100% aisle access | 40% – 45% (Low footprint efficiency) | Direct, individual position picking | Arbitrary / Dynamic |
As industrial warehouse leasing costs continue to set historical highs in North America and Europe, logistics operators are shifting procurement capital from pure real estate expansion to high-density cubic optimization. Roller racking systems represent an intrinsically decarbonized handling methodology: they operate entirely on gravitational kinetics, consuming zero kilowatt-hours during load transit within the storage bay, unlike fully motorized automated storage and retrieval systems (ASRS) that demand continuous baseline power.
Modern wholesale procurement trends highlight three primary vectors:
A. Autonomous Vehicle and AMR Compatibility: Future procurement mandates that picking faces and infeed stations feature precision centering guides, optical sensor clearance windows, and heavy-duty structural outfeed stops engineered to tolerate repetitive robotic end-effector and autonomous reach-truck dockings without frame distortion.
B. Hybrid Roller Track Modularity: Operations are moving away from fixed-pitch roller beds toward modular split-roller designs. These allow rapid track reassignment from wooden GMA pallets to plastic containers, wire-mesh cages, or slip-sheet loads by simply adjusting roller wheel configurations along pre-punched galvanized rail tracks.
C. Life-Cycle Steel Longevity: Global supply chain managers are standardizing on cold-formed high-tensile steel (Q235B/Q355B equivalent to ASTM A36/A572 Gr. 50) protected with electrostatic polyester powder coatings (70–90 microns) pretreated via multi-stage pickling and phosphating to prevent sub-film rust in cold storage environments down to -30°C.
Looking toward the 2026–2030 development horizon, roller racking systems are transforming from passive structural steel components into intelligent data nodes. The integration of passive RFID tracking, line-of-sight ultrasonic occupancy sensors, and rotational brake tachometers allows modern warehouse management systems (WMS) to track real-time pallet dwell times, identify lane jams before picking bottlenecks occur, and dynamically measure remaining FIFO inventory volume without manual scanning passes.
Backed by 25+ years of dedicated structural steel engineering, our Guangzhou manufacturing base delivers industrial storage solutions that adhere strictly to international building codes.
Established in 2001 with over 10,000 turnkey installations executed worldwide across chemical, pharmaceutical, cold chain, and retail fulfillment sectors.
Turnaround of comprehensive floor plans, load calculation sheets, and 3D architectural models within 24 hours to accelerate your capital expenditure approvals.
ISO 9001:2015 certified operations (Cert No. 18624Q00169R0M), CE Marking (2435-CPR-8605159), and strict adherence to ANSI MH16.1 & RMI design methodologies.
Massive 323,000 sq ft manufacturing facility equipped with continuous roll-forming lines, automated CNC punching, robotic welding, and powder coating tunnels.
Detailed technical answers addressing seismic calculations, floor capacity validation, pallet interface dynamics, and overseas export container packing.
Standard GMA 48"x40" hardwood pallets operate reliably at a 3% to 3.5% gradient. For softwoods, plastic pallets, or pallets with uneven bottom runner boards, our engineering group conducts laboratory test glides. Typically, at least three roller centers must maintain continuous contact with the pallet runners simultaneously to prevent point-load deflection and stuttering motion.
We supply comprehensive structural calculations, member section moduli (Ix, Iy), steel yield strength verification certs (MTRs), and detailed connection diagrams. These engineering packages are formatted in both imperial (lbs, ft-in) and metric standards, directly assisting your local licensed Professional Engineer (PE) in submitting code-compliant permit sets.
Yes. We engineer specialized cold-storage configurations using low-viscosity bearing grease, specialized synthetic polyurethane roller sleeves, and cold-resistant steel grades that prevent brittle fractures in temperatures down to -30°C (-22°F). Electrostatic powder finishes are cured to resist thermal cycling condensation corrosion.
Racking uprights and heavy beam bundles are strapped using high-tensile steel bands with corrugated edge protectors and wooden dunnage spacers for direct forklift container devanning. Roller tracks and delicate speed controllers are sealed in moisture-barrier wrap and packaged inside reinforced steel-framed crates to withstand multimodal intermodal transit.
Request a customized layout study, structural load calculation sheet, and full wholesale factory pricing catalog for your facility expansion project.
