Featured Industrial Pallet Racking Systems
Certified steel structures cold-formed to international structural tolerances (FEM 10.2.02, SEMA, and RMI MH16.1), providing optimal spatial utilization and structural safety across diverse intralogistics footprints.
Heavy Duty Selective Pallet Racking Warehouse Storage Rack System Industrial Racks Adjustable For Building Materials
- Steel Grade: Q235B / Q355B
- Load Capacity: 1,000–5,000 kg / Level
- Adjustability: 50mm / 75mm Pitch
- Accessibility: 100% Direct SKU Selectivity
Pallet Racking Warehouse Storage Heavy Duty Industrial Pallet Shelf Narrow Aisle Selective Warehouse Racking System
- Aisle Width: 1,600–1,900 mm
- Height Limit: Up to 15,000 mm
- Floor Footprint: 45% Floor Area Savings
- Guidance: Wire or Mechanical Rail

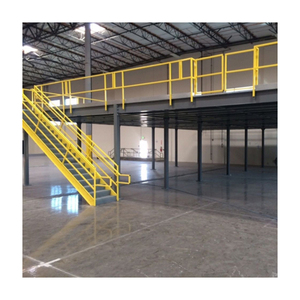

150 Square Meter Customized Attic Industrial Storage Pallet Racking 2 Floors Mezzanine Shelving Rack System Steel Platform
- Deck Capacity: 300–1,000 kg / m²
- Deck Material: Steel / Plywood / Grating
- Vertical Gain: 2 to 3 Storage Levels
- Stairs & Gate: Integrated Safety Railings
Heavy Duty Pallet Rack Shelving Pallet Racking Dimensions Warehouse Storage Racks Customized Adjustable Steel Q235B Pallet Rack
- Frame Profile: 80/90/100/120 mm Post
- Standard Color: RAL 5015 Blue / RAL 2004 Orange
- Connector: 3 or 4-Claw Locking Connector
- Baseplate: Heavy Duty Seismic Anchor Base
Powder Coated Pallet Racking 5 Tier Cold Rolled Steel Adjustable Heavy Duty 3000kg Capacity Customizable
- Tier Count: 5 Configurable Beam Levels
- Beam Rating: 3,000 kg Uniform Distributed Load
- Surface: Thermoset Epoxy Powder 60-80μm
- Pretreatment: Pickling & Phosphating Wash
Jracking Industrial Warehouse Racks Shelves EU Standard Pallet Rack System for Cold Room
- Thermal Range: -30°C to +40°C Low Temp Steel
- Standard: EN 15512 & EN 15620 Certified
- Protection: Hot-Dip Galvanized / Epoxied
- Density: Optimized Thermal Footprint
Warehouse Steel Storage Rack Steel Pallet Heavy Duty Adjustable Selective Pallet Racking System For Factory
- Pallet Types: Compatible with Steel & Wood
- Safety Pins: Fall-Proof Mechanical Spring Locks
- Beam Section: Welded Double C-Section / Box
- Deflection: Within L/200 Safety Allowance
Heavy-Duty Corrosion Protected Pallet Racking Systems For Warehouse and Factory Storage By Jinhui Warehousing Suppliers
- Coating: Polyurethane Anti-Corrosive Topcoat
- Application: Chemicals, Fertilizer & Maritime
- Impact Guards: Heavy Gauge Column Protectors
- Durability: 10+ Years Heavy Industrial Life
The Engineering Foundation: Steel Grades, Yield Stresses & Structural Safety
When engineering industrial warehouse storage infrastructure, structural integrity is directly governed by material metallurgy and precision roll-forming tolerances. As a premier China wholesale pallets and racking manufacturer, Guangzhou HEDA Shelves Co., Ltd. strictly adopts premium structural hot-rolled and cold-rolled strip steel grades conforming to Q235B and Q355B (comparable to ASTM A36 and ASTM A572 Grade 50 respectively).
Q235B steel provides a guaranteed yield strength of $f_y \ge 235 \text{ MPa}$ ($34 \text{ ksi}$) with superior elongation ($A \ge 26\%$), offering crucial ductile deformation characteristics that absorb dynamic impact from counterbalanced and reach forklifts without catastrophic brittle shear. For extreme high-bay installations exceeding 12 meters in height or seismic design categories (SDC D through F), our structural engineers implement Q355B low-alloy high-strength steel with a minimum yield stress of $355 \text{ MPa}$, allowing for slimmer upright cross-sections that reduce dead loads while increasing column buckling resistance.
| Storage Racking System | Direct SKU Accessibility | Volumetric Space Utilization | Rotation Principle | Optimal Application Scenario |
|---|---|---|---|---|
| Selective Pallet Racking | 100% (Instant) | 40% – 50% | FIFO / LIFO | High SKU variety, fast FMCG turnover, multi-client 3PL facilities. |
| Double-Deep Racking | 50% (Two-Pallet Deep) | 55% – 65% | FILO / LIFO | Mid-SKU counts, pantograph reach truck operations, dry goods storage. |
| Drive-In / Drive-Thru | Low (Per Lane Access) | 70% – 80% | LIFO (Drive-In) / FIFO (Thru) | Cold storage, seasonal bulk stock, uniform agricultural crops. |
| Push-Back Cart Racking | Front-Face Direct Access | 65% – 75% | LIFO (Gravity Nested Carts) | Bulk batch handling (2–6 deep), food & beverage processing hubs. |
| Radio Shuttle Automation | High Lane Selectivity | 80% – 90% | FIFO or LIFO (Selectable) | Deep lane automation, refrigerated freezers, high-turnover logistics. |
| Rack-Supported Mezzanine | 100% Combined Levels | 150% – 200% Usable Area | Manual / Modular | E-commerce fulfillment centers, automotive spare parts, picking operations. |
Future Sourcing & Procurement Trends (2025–2030)
Global procurement directors, third-party logistics operators (3PLs), and industrial supply-chain architects are shifting their purchasing strategies from baseline unit-cost comparisons to Total Cost of Ownership (TCO) models and lifecycle structural resilience. Sourcing wholesale pallets and racking systems from China has matured from simple contract manufacturing into high-tier joint engineering development.
AS/RS Ready Modular Configurations
Procurement contracts increasingly stipulate strict millimetric upright tolerances (within ±0.5mm across 12m verticals) to support downstream automation retrofits, such as autonomous mobile robots (AMRs), automated guided vehicles (AGVs), and stacker cranes without structural remanufacturing.
Seismic Micro-Zoning & PE Calculations
North American and European buyers now mandate full site-specific seismic calculations based on IBC 2024, ASCE 7-22, and Eurocode 8. Upright frame designs require certified anchorage engineering, baseplate thickness verifications, and professional engineer (PE) stamped structural packages.
Decarbonization & Circular Metallurgy
Enterprise tenders demand Environmental Product Declarations (EPDs) and low-carbon footprint cold-formed steel manufacturing. By adopting renewable energy in roll-forming and electrostatic dry powder recapture systems, forward-thinking China factories ensure complete Scope 3 compliance.
Technological Evolution in Warehouse Racking Fabrication
Modern warehouse racking manufacturing relies on automated continuity. The integration of CNC multi-station roll-forming lines enables continuous variable cold-profile bending of complex omega-shaped upright columns. These multi-bend profiles introduce up to 14 stiffening facets into the cold-formed section, significantly improving the section modulus ($W_x, W_y$) and resisting torsional flexural buckling under heavy live loads.
Furthermore, robotic welding cells provide continuous gas-metal arc welding (GMAW) for high-stress beam end connectors (3-claw, 4-claw, and 5-claw configurations). Automated welding ensures deep, non-porous throat penetration between the connector plate and the box beam profile, exceeding the dynamic cyclic load requirements mandated by EN 15512:2020. Finish quality is equally vital: our electrostatic thermoset epoxy-polyester powder coating undergoes a 10-stage automated pre-treatment system (including high-pressure degreasing, acid pickling, nano-ceramic silane/phosphate conversion, and deionized water rinsing), achieving a dry film thickness (DFT) of 60 to 80 microns with over 500 hours of continuous ASTM B117 salt spray resistance.
Why Direct Sourcing from HEDA Shelves Sets Industry Benchmarks
Combining 25+ years of factory-direct manufacturing with specialized engineering tailored for international port logistics, distributor distribution, and turnkey project execution.
323,000 Sq Ft Infrastructure
Our expansive manufacturing campus in Guangzhou houses dedicated slitting, roll-forming, stamping, robotic welding, and powder coating lines capable of outputting 30,000 metric tons of finished racking per month.
Free 24-Hour Layout Engineering
Our in-house design office provides full CAD floor plans, 3D BIM models, and load-table calculations in imperial (lbs/ft) or metric units within 24 hours of receiving your warehouse architectural drawings.
ISO 9001 & CE Certified
Verified adherence to international building quality standards with complete Mill Test Certificates (MTC EN 10204 3.1), third-party mechanical tensile reports, and documented drop-pin shear tests.
Container-Optimized Logistics
Engineered bundle bundling, protective edge wrap, and custom palletizing specifically designed for 20GP, 40GP, and 40HQ ocean containers to prevent transit chafing and optimize total landed freight cost per pallet location.
Steel Inbound QC
Chemical & tensile verification on coils.
Continuous Slit
Precision strip slitting within ±0.1mm.
Auto Punching
CNC pitch alignment for uniform beams.
Roll-Forming
Multi-stage cold bending for high rigidity.
Robotic Weld
100% full penetration connector joints.
Pretreatment
Chemical pickling & silane wash.
Powder Coat
Electrostatic cure at 180°C–200°C.
Batch Load Test
Destructive & deflection load testing.
Protective Pack
Strapped wood-dunnage container pack.
Global Dispatch
CIF, FOB, DDP delivery to your port.
Frequently Asked Questions for Wholesale Buyers
Direct technical answers addressing structural certification, seismic zoning, installation parameters, and import logistics for commercial purchasers.
• How do you ensure compliance with US RMI and European EN 15512 standards?
Our structural designs are engineered to conform directly with RMI (Rack Manufacturers Institute) MH16.1 specifications and European Standard EN 15512. We supply detailed calculation reports covering beam deflection limits ($L/200$), column stability, perforated upright net section efficiency, and connector moment capacity test records.
• What documentation is provided for local building permit and seismic approval?
We provide full structural documentation including complete 2D/3D CAD shop drawings, component section property sheets, steel mill test reports (MTC 3.1), and anchor baseplate pull-out calculations. These documents are prepared to allow your local Engineer of Record (EOR) to stamp the drawings for municipal permitting.
• Are your racking beams and uprights compatible with US teardrop and European profiles?
Yes. In addition to our proprietary high-rigidity diamond-hole and butterfly-hole systems, HEDA manufactures standard 2-inch pitch teardrop compatible systems engineered specifically for the North American wholesale and replacement market, allowing seamless integration with existing warehouse facilities.
• How do you pack racking components to prevent damage during ocean transit?
Beams and uprights are sorted by piece marks and banded using high-tensile steel strapping over corrugated edge protectors and waterproof plastic wrap. Timber dunnage blocks are secured beneath bundles to facilitate immediate forklift unloading from shipping containers without scuffing the powder-coated finish.
• What are typical manufacturing lead times for 5 to 20 shipping containers?
Standard production cycles for full container load (FCL) orders typically range between 15 and 25 working days from technical drawing approval. Our 30,000 m² plant operates continuous high-speed roll-forming lines capable of handling fast-track logistical expansions on compressed construction timelines.
• Can you customize beam lengths and frame depths for non-standard GMA pallets?
Every system is fully customizable. While we maintain standard tooling for 48″ × 40″ GMA, 1200 × 800 mm Euro, and 1200 × 1000 mm ISO pallets, our automated slitting and punching machinery easily configures custom beam spans, frame depths (from 600mm to 1500mm), and heavy-duty wire mesh decking or steel shelf panel inserts.
Request an Engineered Layout & Wholesale Factory Quotation
Send your warehouse dimensions, clear height, pallet weights, and forklift specifications. Our engineering team will deliver a comprehensive 2D/3D layout design and an itemized factory-direct commercial quotation within 24 hours.
