Heavy Duty Corrosion Protected Racking System (1000KG)
Solid beam structure engineered with steel picking panels, electrostatic powder coating, and carton live pick compatibility.
Engineered Equipment Lineup
Standard & Heavy-Duty Warehouse Storage Configurations
Explore factory-direct industrial racking systems engineered from high-yield Q235B cold-rolled steel. Every beam, column, and shelf is tested under strict static deflection and horizontal seismic parameters to guarantee workplace safety and space density.
Steel Boltless Heavy Duty Rack System with Corrosion Shield
Interlocking toolless assembly with passivated phosphate finish, tailored for rapidly changing logistics inventory hubs.
Custom Heavy-Duty Metal Warehouse Storage Cargo Rack
Reinforced iron frame configuration engineered for odd-sized mechanical parts, stamping tooling, and raw raw materials.

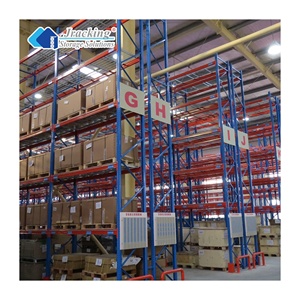

Jracking EU Standard Custom Heavy-Duty Pallet Racking
Full FEM 10.2.02 and EN 15512 standard compliance for Euro pallets and standard GMA 48x40-inch pallet racking operations.
Multi-Layer Adjustable Double-Sided Light Duty Shelving
150kg/tier dynamic capability, modular pitch adjustment at 50mm increments for high-density e-commerce picking setups.
Warehouse Heavy Duty Loft Platform & Mezzanine Floor
Dual-purpose space maximization turning unused clear height into picking mezzanines and integrated pallet racking rows.
Heavy Duty Metal Industrial Shelving & Stacking System
Cold-rolled box beam engineering with welded safety connectors, designed for rough forklift dock transfers and staging.
90 Inches Heavy Duty 5-Layer Powder Coated Steel Shelving
High-gauge industrial uprights with scratch-proof powder coat finish for distribution buffer rooms and maintenance stores.
2001
Established Since (25+ Yrs)
30,000 m²
Modern Production Plant
30,000 t
Monthly Cold Steel Output
10,000+
Global Projects Delivered
Strategic Procurement Insights
Emerging Procurement Trends in Global Warehouse Infrastructure
Industrial facility procurement teams face structural cost shifts, changing safety codes, and tight logistics schedules. Modern procurement of warehouse shelving requires assessing operational lifecycle ROI rather than superficial unit prices.
Total Landed Cost vs. Steel Gauge Integrity
Global supply chain managers are shifting from local stocking distributors to factory-direct wholesale contracts from audited Chinese manufacturers. By specifying Q235B structural roll-formed profiles and optimizing container cubing (40HQ load planning), enterprises lower per-pallet position costs by 28% to 42% while retaining traceable material mill certificates.
Bilingual Stamped Engineering Calculations
Permit issuance across North American (RMI ANSI MH16.1), European (EN 15512), and Australian (AS 4084-2023) authorities requires precise calculation packages. Procurement directors now mandate suppliers deliver complete finite element analysis (FEA), seismic design category calculations, and dual-unit imperial/metric fabrication shop drawings within 24–48 hours.
Consolidated Ecosystem Shipments
Procuring uprights from one vendor, wire mesh decking from another, and column guards from a third introduces mismatch delays and compounded freight expenses. Leading 3PLs and logistics operators now prefer vertically integrated factories that manufacture upright frames, step beams, wire decking, drop-in dividers, and seismic anchor systems on an integrated manifest.
Engineering Evolution
Structural Development Trends in Modern Industrial Shelving
The convergence of omnichannel micro-fulfillment, temperature-controlled cold chains, and robotics has redefined industrial shelving engineering requirements.
ASRS & Autonomous Mobile Robot Integration
Static shelving is evolving into dynamic staging buffers. Tolerances for beam camber and deflection have tightened to 1/200th of the span to accommodate optical sensors on automated guided vehicles (AGVs) and Autonomous Mobile Robots (AMRs), minimizing picking delays.
Sub-Zero Cryogenic Coating Resins
Cold chain logistics operations down to -30°C cause standard epoxy coatings to become brittle and micro-fracture under forklift vibrations. High-performance polyester-TGIC powder formulations and pre-treatment zinc phosphating now deliver crack-resistant flexibility and corrosion longevity.
Vertical Cubic Maximization (Multi-Tier Lofts)
With real estate development costs escalating worldwide, single-level selective racking is frequently upgraded to rack-supported mezzanines. Combining picking aisles overhead with pallet storage below effectively doubles usable square footage without renegotiating facility leases.
| System Architecture | Typical Beam Load | Pallet Selectivity | Space Utilization | Optimal Logistics Application |
|---|---|---|---|---|
| Selective Pallet Racking | 1,000 – 4,500 kg / level | 100% Direct Access | 40% – 50% | High-SKU 3PL warehouses, fast FMCG rotation |
| Drive-In / Drive-Through | 1,000 – 2,000 kg / pallet | Last-In First-Out (LIFO) | 75% – 85% | Cold storage, beverage bulk holding, low-SKU runs |
| Radio Shuttle Automation | 500 – 1,500 kg / pallet | LIFO & FIFO Automated | 85% – 90% | High-volume dairy, cold freezer, pharmaceutical reserves |
| Structural / Rack Mezzanines | 300 – 1,000 kg / m² | Multi-Level Manual Access | 100% Vertical Multiplier | E-commerce fulfillment, spare parts picking, archive staging |
Guangzhou HEDA Shelves Co., Ltd.
Direct Factory Manufacturing Authority Since 2001
With over two decades of dedicated research, manufacturing, and export execution, Guangzhou Heda Shelves Co., Ltd. operates as a key manufacturing partner for logistics distribution centers, supply chain integrators, and racking distributors worldwide.
Our 30,000 m² modern manufacturing hub utilizes automatic continuous cold roll-forming lines, computerized multi-station punching presses, precision robotic welding stations, and a fully automated continuous electrostatic powder coating line capable of exceeding 30,000 metric tons of steel output monthly.
- Engineering-First Consultation: Complete 2D layout planning, 3D structural modeling, and finite load calculations delivered within 24 hours.
- Rigid In-House Quality Control: Raw coil inspection, tensile yield validation, ultrasonic weld testing, and dry film coating thickness audits on every batch.
- Container Export Optimization: Bundling with protective bubble wrapping, heavy steel banding, and engineered palletizing to eliminate sea container transit damage.
ISO 9001:2015 Cert. No. 18624Q00169R0M
CE Marking No. 2435-CPR-8605159
RoHS Material Tested
Addressing Purchasing Questions
Frequently Asked Questions for Warehouse Shelving Procurement
Key information regarding international logistics, structural engineering, load testing, and custom manufacturing parameters.
How does HEDA ensure steel quality and consistent beam deflection ratings?
We purchase verified Q235B (equivalent to ASTM A36) and high-yield Q345 hot-rolled coil stock directly from state-owned steel mills, each backed by batch mill test certificates (MTC). Profiles undergo structural roll-forming to ensure uniform cross-sectional thickness. Our engineering team limits maximum beam working deflection to 1/180th of the clear span under rated uniformly distributed load (UDL), in accordance with ANSI MH16.1 and EN 15512 safety protocols.
Can you deliver engineering layouts and load ratings in imperial units (lbs, ft, in)?
Yes. Our global engineering department routinely develops CAD floor plans, elevation sheets, capacity plaques, and seismic load tables in both imperial (pounds, inches, feet) and metric formats. This ensures smooth handoff to your local installer, permitting department, or structural Engineer of Record (EOR).
What is your typical production lead time and ocean container load factor?
Standard bespoke manufacturing runs range between 15 to 25 business days depending on tonnage. Upright frames are either flat-packed knocked-down (bolt-together) or precision pre-welded depending on shipping mode. Knocked-down uprights allow us to maximize cubic volume, fitting up to 26–28 metric tons into a single 40HQ container and lowering per-unit ocean freight costs.
How are surface coatings protected against corrosion and salt air during ocean freight?
Every steel part undergoes a multi-stage pre-treatment: degreasing, acid pickling, rust removal, and phosphate passivation, followed by an automatic thermosetting epoxy-polyester powder coat baked at 180°C to 200°C. Standard dry film thickness measures between 60 to 90 microns. For sea transit, bundles are wrapped in industrial corrugated paper, stretch-wrapped, edge-protected, and packed with desiccant packets to prevent maritime oxidation.
What technical parameters must I provide to obtain a layout and quotation?
To generate a preliminary layout and itemized price schedule within 24 hours, our engineering staff requires:
(1) Usable building dimensions and unobstructed clear height to ceiling obstructions;
(2) Pallet dimensions (width, depth, overall height including cargo);
(3) Maximum gross weight per pallet load;
(4) Forklift specifications (minimum turning radius, mast lift height, clear aisle requirement);
(5) Operating temperature and local seismic coefficient requirements.
