Heavy-Duty Warehouse Storage Solutions
Direct mill-sourced Q235B/Q355B structural steel components designed for high-density storage, structural longevity, and maximum load capacity in global industrial facilities.
Boltless Heavy-Duty 5-Layer Industrial Shelving Unit (500 kg/Tier)
Custom 4-Tier Heavy-Duty Warehouse Storage & Stacking Rack Unit
High-Load Metal Stacking Pallet Shelf Rack (1,000–2,000 kg/Tier)
Engineered Heavy-Steel Multi-Level Pallet Racking Frame System
Galvanized Long Span Industrial Sheet Metal Shelving (400 kg/Tier)
Hot-DIP Galvanized Single-Pole Solar Ground Mounting Steel Racking
Heavy-Duty Custom Drive-In Pallet Racking System for Cold Storage

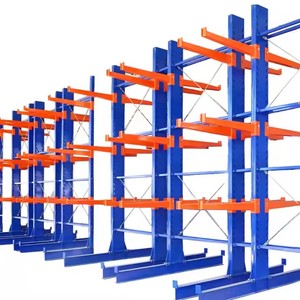

Heavy-Duty Cantilever Racking System for Pipe, Timber & Bar Storage
Engineering Analysis: Sourcing Industrial Racking from Chinese Manufacturers
In modern industrial supply chains, warehouse storage systems are no longer treated as passive metal shelves; they represent mission-critical structural equipment engineered to withstand massive dynamic and static loads, continuous material handling stresses, and seismic forces. Procuring heavy-duty industrial racking directly from leading Chinese factories allows warehouse managers, third-party logistics (3PL) providers, and industrial distributors to lower their capital expenditure (CapEx) per pallet position by 30% to 55% while maintaining strict adherence to international structural engineering standards such as ANSI/RMI MH16.1, EN 15512, and AS 4084.
Understanding the engineering nuances of cold-rolled structural steel, section modulus optimization, automated roll-forming tolerances, and surface finishing technologies is essential to identifying a capable manufacturing partner versus a low-tier broker. Guangzhou Heda Shelves Co., Ltd. has spent over two decades developing integrated manufacturing protocols that bridge Chinese production efficiency with Western compliance criteria, producing high-bay selective pallet racking, structural steel mezzanines, automated shuttle tracks, and cantilever arms with documented traceability from prime steel coils to containerized sea freight.
Structural Comparison of Core Warehouse Racking Architectures
Selecting the optimal racking system requires a granular cross-examination of SKU velocity, selective accessibility, building floor slab loading limits, and total volumetric storage density. Below is an engineering overview of standard industrial systems manufactured across our production lines:
| Racking Architecture | Pallet Selectivity | Cubic Space Utilization | Inventory Rotation | Typical Load Rating | Primary Industrial Application |
|---|---|---|---|---|---|
| Selective Pallet Racking | 100% Immediate Access | 40% - 50% | FIFO / LIFO Flexible | 1,000 – 4,500 kg / level | Fast-moving FMCG, retail e-commerce DCs, 3PL multi-tenant facilities. |
| Drive-In / Drive-Thru | Low (Lane-dependent) | 70% - 85% | LIFO (Drive-In) / FIFO (Drive-Thru) | 1,000 – 2,000 kg / pallet | Refrigerated food distribution, cold chain freezers, bulk batch storage. |
| Radio Shuttle Automation | High per level / lane | 80% - 90% | Automated FIFO / LIFO | 500 – 1,800 kg / pallet | High-throughput beverage warehouses, meat packing, deep-lane blast freezers. |
| Pallet Flow (Gravity) | High pick-face access | 75% - 85% | Strict FIFO Enforced | 800 – 1,500 kg / lane | Pharmaceutical expiry control, perishable foods, component assembly staging. |
| Cantilever Racking | 100% Unobstructed | 50% - 65% | Direct Crane / Forklift | 500 – 3,500 kg / arm | Steel pipes, lumber bundles, extruded aluminum, building materials, drywall. |
| Rack-Supported Mezzanine | Multi-Tier Picking | 150% - 250% (Floor Area) | Dynamic Multi-Level | 300 – 1,000 kg / m² | Automotive spare parts, apparel e-fulfillment, high-SKU manual pick zones. |
Metallurgical Quality & Manufacturing Rigor
From prime hot-rolled strip steel slitting to robotic laser-guided welding and multi-stage surface passivations, discover how Chinese factory-direct racking maintains international structural safety.
Prime Certified Steel Coils
Direct supply agreements with Baosteel, Shougang, and Ansteel ensure uniform grain structure, predictable elongation, and documented chemical certifications.
- Q235B & Q355B Grade Structural Steel
- Certified Tensile Strength: 370 - 510 MPa
- Strict carbon, phosphorus, and sulfur limits
Continuous Roll-Forming Tolerances
Advanced multi-roller CNC profiling lines cold-form complex upright columns with up to 12 distinct bending facets for superior torsional stiffness under asymmetric loading.
- Upright Profile Thickness: 1.5mm to 3.0mm
- Pitch Precision: ±0.2mm over 12-meter length
- Standard 50mm / 75mm / 76.2mm beam pitch
Electrostatic & HDG Surface Finishing
Automated 8-stage pre-treatment (degreasing, acid pickling, zinc phosphating) followed by robotic thermosetting epoxy-polyester powder coating or ISO 1461 hot-dip galvanizing.
- Coating Thickness: 60 - 80 μm dry film
- Salt Spray Resistance: ASTM B117 > 500 hrs
- Hot-Dip Galvanizing: > 85 μm for outdoor use
Our 10-Stage Precision Fabrication Workflow
Full operational transparency across Guangzhou Heda Shelves' manufacturing floor ensures every upright, box beam, base plate, and brace is verified before sea export.
Raw Steel Inspection
Chemical spectrometry & ultrasonic thickness verification of mother coils.
Precision Coil Slitting
High-speed CNC slitter lines shear steel to precise profile develop-widths.
CNC Column Punching
High-tonnage progressive dies punch teardrop, hex, or diamond slot holes.
Cold Section Bending
Multi-station cold roll rollers gradually form structural profile contours.
Beam Interlock Forming
Continuous seam-welded step beams & interlocking double-C box beam forming.
Automated Deburring
Mechanical edge-radius polishing to eliminate burrs and sharp corners.
Robotic Shielded Welding
CO2 automated welding cells fuse heavy connectors with deep penetration.
Chemical Pretreatment
Multi-tank acid descaling, water rinsing, and silane/phosphate passivating.
Powder Cure Coating
Reciprocating electrostatic spray guns and 200°C convection curing ovens.
Final QC & Bundling
Cross-cut adhesion checks, barcoding, steel-strapping, and dunnage packaging.
Future Procurement Trends in Industrial Racking
As automated supply chains, cold-chain food security, and ESG compliance evolve, the technical criteria for procuring heavy-duty racking are transforming rapidly.
Sub-Millimeter Tolerances for Robotics
With Autonomous Mobile Robots (AMRs), Automated Guided Vehicles (AGVs), and Automated Storage and Retrieval Systems (ASRS) dominating modern distribution centers, racking manufacturers must now hold column verticality to 1:1000 tolerances. Future procurement specifications require integrated guide rails, bottom-clearance optimization for underslung AMR lifters, and robotic docking baseplates that integrate with floor expansion joints.
Cryogenic Metallurgy & Density Maximization
Refrigerated warehouse electrical expenses have made cubic space efficiency vital. Global cold chains are rapidly replacing traditional selective layouts with dense 4-way radio shuttle and high-bay mobile racking systems. From a metallurgy perspective, operating temperatures below -30°C trigger steel embrittlement, requiring micro-alloyed steels with verified Charpy V-notch impact toughness values at low temperatures.
Smart Sensing & Low-Carbon Steel Supply
Enterprise procurement directors now demand Environmental Product Declarations (EPDs) reflecting scrap-recycled Electric Arc Furnace (EAF) steel and non-toxic powder formulations free of VOCs. In tandem, structural health monitoring is emerging: smart IoT strain sensors embedded into critical upright columns provide real-time alerts if a forklift impact causes permanent deformation or exceeds deflection thresholds.
International Certifications & Engineering Standards Compliance
Entering international logistics projects demands verified regulatory compliance. Guangzhou Heda Shelves Co., Ltd. operates in full compliance with global manufacturing and safety accreditation schemes:
ISO 9001:2015
Cert No: 18624Q00169R0M
CE Certification
EN 1090 & CPR 2435-CPR-8605159
RoHS Compliance
Heavy-Metal-Free Powder Coating
RMI & FEM Design
ANSI MH16.1 & FEM 10.2.02 Standards
Our engineering department provides comprehensive calculation documentation for local jurisdictional approvals across North America (PE Stamped calculations compatible with IBC and NFPA 13 seismic and sprinkler requirements), Australia (AS 4084:2023 steel storage racking compliance), and the European Union (EN 15512 static calculation methods).
Heavy-Duty Racking Procurement FAQ
Answers to common structural, logistics, and compliance questions from supply chain executives and warehouse engineers sourcing directly from China.
How are beam deflection limits (L/200 vs L/250) calculated for heavy-duty industrial racking?
Under ANSI/RMI MH16.1 and EN 15512 specifications, maximum allowable vertical beam deflection under full operational load is calculated as L/200 (where L is the clear span distance between uprights). For automated system applications or pallet flow configurations where incline tolerances are critical to prevent hang-ups, an engineered deflection limit of L/250 or L/300 is mandated. Our engineering team supplies finite element analysis (FEA) reports verifying deflection metrics for every customized box beam section.
How does HEDA handle seismic design parameters (Spectral Acceleration Ss/S1) for overseas facilities?
When designing racking for high-seismic zones such as California, Chile, New Zealand, or Japan, our structural team models the installation according to USGS / IBC earthquake hazard levels. We optimize upright column thickness (up to 3.0mm), enlarge baseplate footprints (e.g., 180x150x8mm with dual wedge anchor holes), utilize heavier bracing patterns, and specify high-tensile Grade 8.8 structural bolts to absorb dynamic ground accelerations without rack frame buckling.
How do we calculate freight packaging to eliminate sea transit rust and transport damage?
Ocean transit subjects steel to high humidity and salt atmospheres. HEDA employs a 4-tier protection strategy: (1) all upright columns and beams are bundled with non-slip timber dunnage; (2) components are wrapped in micro-perforated VCI (Vapor Corrosion Inhibitor) plastic stretch film; (3) exposed beam connectors are protected with corner edge protectors; and (4) high-strength PET/steel strapping secures bundles inside 40ft High Cube (40HQ) containers to prevent rubbing damage.
What is the standard production lead time and minimum order quantity (MOQ) for custom warehouse projects?
For standard custom selective or drive-in racking projects, our standard production lead time is 18 to 25 days following signed CAD approval. Our monthly throughput of 30,000 metric tons allows us to process 50-container orders efficiently. The minimum order quantity is typically one 20GP container (approx. 18-20 tons of steel), but prototype samples or trial bays can be manufactured for enterprise supply chain validation.
Are HEDA beam and frame profiles compatible with standard North American 48" x 40" GMA pallets?
Yes. While our standard manufacturing produces metric frames, we frequently manufacture standard imperial-dimension profiles for American and Canadian distributors. Our beam lengths are customized for dual 48"x40" GMA pallets (96" or 108" clear span), frame depths are standardized at 42" or 44" for proper pallet overhang, and drop-in wire decking steps match standard North American crossbars.
How are warranty claims, field installation guidance, and replacement parts handled globally?
HEDA provides a comprehensive 5-to-10 year structural warranty across our industrial racking product lines against manufacturing defects and weld failures. Every order includes a comprehensive installation manual, 3D step-by-step assembly diagrams, and fastener torque tables. If site revisions occur, replacement frames, beams, row spacers, and column post protectors are dispatched via expedited sea or air freight.
Plan Your Warehouse Racking Layout with Our Engineers
Send us your warehouse CAD drawing, clear ceiling height, pallet dimensions, and forklift specifications. Our engineering office will deliver a full CAD floorplan, 3D load simulation, and factory-direct wholesale quotation within 24 hours.
