Featured Industrial Racking & High-Density Storage Lineup
HEDA Shelves delivers turn-key intralogistics systems manufactured to strict FEM 10.2.02 and RMI specifications. Explore our core range of heavy-duty pallet racks, cantilever solutions, and boltless warehouse setups optimized for rapid dispatch and maximum volumetric efficiency.
Boltless Adjustable Heavy Duty Load-Bearing 300kg/Layer Steel Racks
Modular industrial boltless architecture designed for rapid assembly, continuous load capacity of 300kg per level, and multi-tier utility.
Long Span Boltless Steel Racking Adjustable Height Medium Duty 5-Layer
Finished with epoxy electrostatic powder coating, providing anti-corrosion protection for parts distribution centers and carton operations.

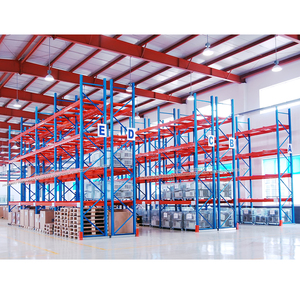

Selective Pallet Racking Heavy Duty Cold Storage Supplier 4 Loading Levels
100% pallet selectivity rating with rated loads spanning 500-3000kg per level. Built for high-throughput fulfillment and cold facilities.

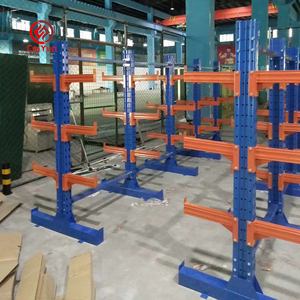

Double Layer Cantilever Shelves for Manufacturing Plant Pipe/Profile Storage
Engineered for long-form profiles, raw steel tubing, and extruded plastics with unhindered horizontal handling and modular arm spacing.
Heavy Duty Cold Rolled Steel Cantilever Racking 5 Layer Single/Double Side
Structural-grade column profiles supporting extreme loads. Configurable in single or double-sided bays with custom-tapered arms.
Heavy Duty Double/Single Side Cantilever Racking System High Load Storage
High-rigidity bolted column-to-base construction prevents deflection when loading timber bundles, industrial steel rods, and bar stock.
Ultra Heavy Duty Industrial Pallet Racking 2000kg with Dual Anti-Collision Beams
Equipped with reinforced column protectors and wrap-around guide rails to mitigate MHE forklift impacts in heavy transit aisles.
Heavy Duty and High Level Racking Pallet Shelf Strong Load Bearing
Designed for vertical warehouse optimization up to 12+ meters clear height. Tight manufacturing tolerances ensure precise plumb lines.
Engineering Principles: Why Double Deep Pallet Racking Dominates Modern Distribution
Balancing storage density against SKU accessibility remains the central operational challenge for warehouse managers and logistics engineers worldwide. Double deep pallet racking systems directly resolve this bottleneck by eliminating unnecessary forklift aisles without requiring the massive capital outlay associated with fully automated AS/RS systems.
Aisle-to-Footprint Compression
In standard selective racking systems, every single bay requires a dedicated access aisle, resulting in a floor footprint utilization of only 35% to 40%. Double deep configurations position two standard pallet rows back-to-back from the aisle face. By pairing four pallet depths between access corridors, warehouses immediately recapture up to 30% of lost floor space, dramatically slashing real estate costs per storage unit.
Cold-Formed High-Tensile Steel
At HEDA Shelves, our manufacturing process utilizes premium grade Q235B and high-yield Q355B cold-rolled steel coils. Because double deep reach trucks exert higher torsional loads when placing pallets into the second depth, our structural engineers integrate cold-formed upright profiles featuring continuous omega-rib stiffeners and double-flanged box beams that eliminate long-term structural deflection.
Pantograph & Reach Truck Harmony
Double deep operations depend entirely on specialized material handling equipment (MHE) equipped with double-reach pantograph scissor mechanisms or telescopic forks. Our shop drawings detail precise clearance thresholds, bottom floor guide angles, and upper beam level clearances to ensure MHE operators operate without snagging rear pallets, maintaining peak loading velocity.
Engineering Comparison: Double Deep vs. Alternative Racking Systems
A comprehensive architectural evaluation of space efficiency, throughput dynamics, capital expenditure, and structural behavior across primary high-density configurations.
| Storage Racking System | Volumetric Density | Selectivity Rating | Pallet Rotation Rule | Required Handling Equipment | Relative CAPEX Index |
|---|---|---|---|---|---|
| Double Deep Pallet Racking | High (55% - 65%) | 50% Immediate Access | FILO (First In, Last Out) | Double-Reach / Pantograph Forklift | Low - Medium (Optimal ROI) |
| Selective Pallet Racking | Low (35% - 40%) | 100% Immediate Access | FIFO / FILO Flexible | Standard Counterbalance / Reach | Baseline (Lowest) |
| Drive-In / Drive-Thru Racking | Very High (70% - 80%) | Low (Single Lane SKU) | Strict FILO / Strict FIFO | Standard Counterbalance | Medium |
| Push Back Racking (2-6 Deep) | High (60% - 70%) | Medium (Per Lane) | FILO (Gravity nested carts) | Standard Forklift | High (Mechanical cart hardware) |
| Automated Radio Shuttle Racking | Extreme (80% - 90%) | Automated Batch Deep-Lane | Configurable FIFO / FILO | Standard MHE + Radio Shuttle Carts | Very High (Electronic automation) |
The Future of Double Deep Storage: Procurement Trends & Innovations
Driven by rising industrial land valuations and escalating cold-chain operating overhead, global buyers are refining procurement parameters for high-density warehouse systems.
Cold Chain Thermal Efficiency
In temperature-controlled and flash-freezer facilities (-25°C to -30°C), cooling an empty cubic meter incurs staggering electrical costs. Modern buyers are standardizing on double deep racking because it reduces freezer building volume requirements while avoiding the frozen battery maintenance pitfalls inherent in battery-dependent automated shuttles.
Finite Element Analysis & Seismic Design
Engineering compliance has evolved from generic static tables to building-specific FEA modeling. Global procurement contracts now routinely mandate full structural calculations accounting for site-specific seismic ground accelerations, soil profiles, and dynamic aisle braking forces in accordance with AS 4084, EN 15512, and RMI MH16.1 codes.
AGV & AMR Integration Compatibility
The boundary between manual reach-truck operations and automated guided vehicles (AGVs) is closing rapidly. Double deep layouts engineered today are designed with tight beam punch tolerances and integrated sensor reflectors, allowing seamless retrofitting of vision-guided automated deep-reach AGVs as labor costs rise.
Guangzhou HEDA Shelves: Enterprise Manufacturing Heritage
Headquartered in Guangzhou, China, HEDA Shelves operates as a trusted industrial manufacturing titan, providing end-to-end structural steel storage systems for over two decades across North America, Europe, Australia, and the Middle East.
Fully Certified Quality Infrastructure
Our manufacturing processes adhere rigorously to ISO 9001:2015 Quality Management Systems (Cert No. 18624Q00169R0M) and European CE Construction Products Regulation (CE Marking No. 2435-CPR-8605159). Chemical and metallurgical mill certificates accompany every production batch, ensuring 100% traceability from raw steel coil to packed container.
Proprietary Automated Roll-Forming Lines
HEDA's 30,000 m² production facility houses automated continuous CNC roll-forming lines, automated hydraulic punch presses, robotic laser welding stations, and a closed-loop electrostatic powder coating system featuring automated multi-stage pickling and phosphating pre-treatments that prevent internal rust formation.
Engineering Support & 24h CAD Turnaround
We eliminate purchasing friction by offering overseas distributors, warehouse developers, and system integrators complete 2D layout planning, 3D structural modeling, and imperial-to-metric engineering cross-referencing within 24 hours of receiving site blueprints. We supply stamped structural data ready for your local engineer of record.
Frequently Asked Questions (FAQ) for Double Deep Racking Procurement
Clear engineering insights addressing structural, mechanical, and logistical queries encountered by international buyers sourcing from China.
What specific forklift equipment is required to operate a double deep pallet racking system?
How does the "honeycomb effect" impact double deep operational storage capacity?
Can HEDA Shelves double deep uprights and beams support severe seismic zone installations?
What are the key manufacturing tolerance and material specifications used in your factory?
How does HEDA Shelves package and secure container loads for international ocean transit?
Request an Engineered Layout & Factory Quote Within 24 Hours
Partner directly with Guangzhou HEDA Shelves Co., Ltd. Provide your warehouse dimensions, clear ceiling heights, pallet sizes, and load ratings to receive an optimized 2D/3D CAD blueprint and itemized export proposal.
