Industrial Warehouse Picking Racks & Staging Systems
From single-piece manual picking workstations to high-throughput dynamic carton live storage and automated deep-lane shuttle picking buffers, each unit is cold roll-formed from high-yield Q235B/Q355B structural steel.
Modular Components

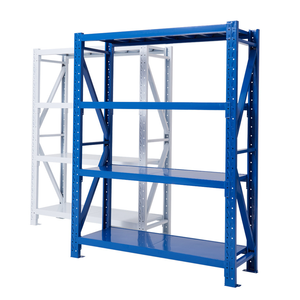

Manual Picking 300-500kg
Heavy-Duty Picking
Slotted Angle

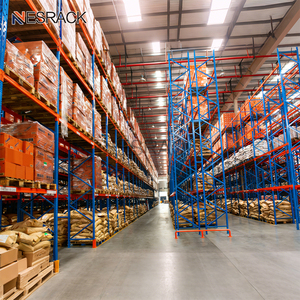

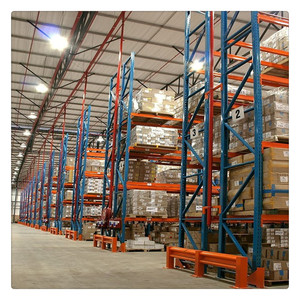

Double-Deep Pallet

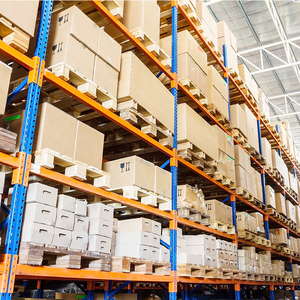

Textile & Roll Storage
Modular Commercial
Technical White Paper
Engineering Architecture of Modern Warehouse Picking Racks
A systematic evaluation of mechanical stress tolerances, ergonomic golden-zone picking trajectories, and structural load distribution in modern fulfillment and distribution centers.
Dynamic Carton Flow & Roller Track Picking
Carton live storage systems rely on gravity-fed roller tracks inclined at a calibrated 2.5° to 3.5° angle. By separating loading from discharge faces, pickers operate in zero-traffic dedicated aisles, increasing throughput by up to 140% compared to static longspan shelving.
- True FIFO batch rotation for FMCG & pharma
- Aluminum alloy roller tracks with brake rollers
- Integrated Pick-to-Light (PTL) wiring channels
Multi-Tier Rack-Supported Picking Mezzanines
Capitalizing on warehouse cubic clear height, rack-supported multi-tier platforms leverage heavy-duty upright frames (up to 120mm profile width) to double or triple usable floor surface without building expansion, utilizing galvanized steel bar grating or high-density timber decking.
- Point load ratings engineered up to 1,500 kg/m²
- Integrated vertical spiral chutes & pallet gates
- Compliant with NFPA 13 sprinkler penetration rules
High-Density 4-Way Radio Shuttle Picking Buffers
Combining heavy-duty selective rack frameworks with autonomous robotic shuttles, these systems bridge the gap between high-density deep-lane reserve storage and active order-picking replenishment, executing computer-guided batch retrievals at speeds exceeding 1.2 m/s.
- Operates smoothly from -30°C freezer to +45°C ambient
- Eliminates forklift rack collision damage entirely
- WMS/WCS interface via secure industrial Wi-Fi
| Picking Rack Topology | Primary Material Standard | Structural Load Rating | Deflection Criteria (Limit) | Optimal Order Picking Profile | Seismic Resistance Class |
|---|---|---|---|---|---|
| Static Longspan Shelving | Q235B Cold-Rolled Steel | 300 – 800 kg / Shelf level | L / 200 (EN 15512) | Low-to-medium velocity, high SKU variety | |
| Gravity Carton Live Flow | Q235B / High-Impact PP Rollers | 100 – 300 kg / Roller Lane | L / 250 (FEM 10.2.02) | High velocity FMCG, e-commerce each-pick | |
| Multi-Tier Picking Mezzanine | Q355B Structural Heavy Gauge | 500 – 1,500 kg / m² Floor Deck | L / 300 (AISC 360-16) | Piece/split-case picking across 2–4 tiers | |
| Double Deep Pallet Racking | Q235B High-Yield Strip Steel | 1,000 – 4,000 kg / Beam Level | L / 180 (RMI MH16.1) | Full pallet staging & bulk carton replenishment | |
| 4-Way Automated Shuttle Buffer | Cold-Drawn Galvanized Guide Rails | 1,500 kg / Pallet Position | L / 350 Precision Tolerance | AS/RS Automated goods-to-person picking |
Strategic Procurement Insights
Future Warehouse Picking Rack Procurement Trends (2025–2030)
Navigating shifting raw material indexes, container shipping logistics optimization, seismic structural compliance, and the global shift toward automated Goods-to-Person (G2P) pick stations.
01
Steel Index Price Hedging
Global procurement teams are shifting away from spot-rate purchases, instead partnering with vertically integrated Chinese manufacturers capable of long-term hot-rolled coil (HRC) raw material cost hedging, locking in fixed pricing per metric ton over multi-quarter schedules.
02
CBM & Freight Optimization
With ocean freight volatility, leading exporters engineer beam sections and teardrop uprights with nested geometry. Modular slotted angle and teardrop profiles maximize 40HQ container cube utilization up to 92%, substantially dropping landed cost per cubic meter.
03
Automation-Ready Uprights
Purely manual racks are being replaced by hybrid systems. Warehouses now specify standardized CNC-punched uprights (50mm/75mm/76.2mm pitch) designed to receive Autonomous Mobile Robot (AMR) top-transfer docking plates and AGV pick-induction guides seamlessly.
04
Stricter Seismic & PE Stamp Demands
North American and European building jurisdictions require verified structural engineering calculations under RMI MH16.1-2021 and Eurocode 3. Sourcing partners must deliver native 3D FEA stress simulations and licensed PE (Professional Engineer) calculation documentation.
Enterprise Credentials
Why Global Tier-1 3PLs & Industrial Integrators Rely on HEDA
Guangzhou Heda Shelves Co., Ltd. has stood at the forefront of industrial racking engineering since 2001, providing end-to-end design, precision roll-forming, and rapid overseas container fulfillment.
2001
Year Established
25+ Years of Racking R&D
323,000sq ft
Production Campus
30,000 m² High-Precision Facility
30,000t
Monthly Steel Output
Continuous Roll-Forming Lines
10,000+
Global Projects
Delivered Across 130+ Countries
Quality Assurance Standard
Inside HEDA's 10-Step Precision Manufacturing Process
Every upright frame, box beam, and bracing connector undergoes automated tolerances testing, chemical surface pretreatment, and zero-defect powder coating before leaving the plant.
STEP 01
Certified Steel Coils
Spectrometer tested prime Q235B/Q355B coils.
STEP 02
Precision Slitting
High-speed longitudinal slitting within ±0.05mm.
STEP 03
CNC Servo Punching
Automated punch presses for precise hole pitch.
STEP 04
Continuous Cold Bending
Progressive roll passes to optimize rigidity.
STEP 05
Profile Cold-Rolling
18-station cold roll mills for uprights & beams.
STEP 06
Deburring & Polishing
Automatic chamfering to eliminate sharp burrs.
STEP 07
Robotic CO2 Welding
Full penetration robotic welding on beam end connectors.
STEP 08
Chemical Pretreatment
9-stage acid wash & zinc phosphating conversion.
STEP 09
Electrostatic Powder Coat
Thermoset polyester powder cured at 200°C (60–90µm).
STEP 10
Batch QC & Stowing
Barcode tagging & export dunnage container packing.
ISO 9001:2015 #18624Q00169R0M
CE Marking #2435-CPR-8605159
RoHS Compliance Verification
Structural Integrity Load Test
Procurement Intelligence
Frequently Asked Questions for Global Racking Buyers
Clear, direct, and technically verifiable answers addressing structural verification, international freight tariffs, load deflection limits, and building code approvals.
What steel grades are used, and do you supply mill test certificates (MTC)?
We source prime, hot-rolled pickled and oiled strip coils exclusively from major domestic mills (such as Baosteel and Shougang). Our standard picking rack uprights and step beams are manufactured from high-yield Q235B (yield strength ≥ 235 MPa, tensile strength 375–500 MPa, comparable to ASTM A36) and Q355B for extreme-load high-bay mezzanine columns (comparable to ASTM A572 Grade 50). Full EN 10204 3.1 Mill Test Certificates detailing chemical composition and mechanical elongation accompany every production run.
How do your picking rack beam deflection limits comply with ANSI MH16.1 and EN 15512?
For manual carton picking and pallet load beams, our finite element stress models adhere strictly to the deflection threshold of L/180 per RMI ANSI MH16.1 specifications, and L/200 for European projects governed by FEM 10.2.02 / EN 15512 standards. For automated radio shuttle picking systems where sensor calibration demands ultra-tight tolerances, we engineer deflection to not exceed L/350 under full operational working load.
Can you deliver dual imperial (lbs/ft) and metric (kg/mm) structural drawings for local building permits?
Yes. Our in-house structural engineering department provides comprehensive CAD floor plan layouts, cross-sectional elevations, anchor bolt pull-out calculations, and baseplate point-load data formatted in both imperial and metric systems. These submittals are prepared to facilitate direct review, stamping, and submittal by your local licensed Professional Engineer (PE) or municipal building department.
What surface finish options are provided for cold-storage freezer picking zones?
For ambient temperature fulfillment centers, our 9-stage phosphating followed by thermosetting polyester electrostatic powder coating (DFT 60–90 microns) delivers superior impact resistance. For cold-chain environments operating from -20°C down to -30°C, we provide continuous hot-dip galvanized (HDG) steel components adhering to ASTM A123 / ISO 1461, ensuring zinc coating thickness ≥ 70 microns to prevent brittle failure and flaking under thermal cycling.
How do you protect components against shipping damage and container moisture during ocean transit?
All upright columns and longspan beams are bundled using heavy-duty steel strapping over corrugated edge corner protectors, wrapped in impermeable polyethylene stretch film, and elevated on wooden dunnage blocks for safe forklift unloading. Containers are balanced for axle-weight compliance and fitted with industrial calcium chloride desiccants to prevent container sweat and oxidation during multi-week transoceanic shipping.
What is the lead time from CAD sign-off to container dispatch at Guangzhou port?
Standard warehouse picking rack systems typically require 15 to 22 business days from finalized drawing approval to container sealing. High-volume projects requiring 20+ ocean containers (500+ tons) are produced on phased production lines within 25 to 35 calendar days, supported by our 30,000-ton monthly roll-forming capacity and close proximity to Guangzhou and Shenzhen deepwater ports.
Request an Engineer-Approved Warehouse Picking Layout in 24 Hours
Send your building dimensions, clear ceiling height, pallet or carton handling unit weights, and daily picking throughput requirements. Our structural design team will return a verified CAD layout, 3D visualization model, and landed ocean freight calculation within 1 business day.
