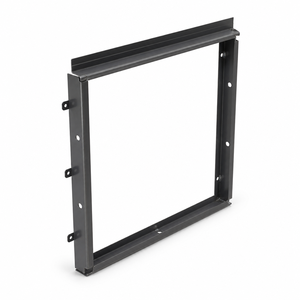

Bulk Tubular Subframe Metal Frames Crossmember Carrier

  • Engineering: Precision Robotic Mig Welding
  • Base: Structural Pallet Platform Support
  • Surface: Electrostatic Anti-Scratch Powder
View Details → Send an Inquiry
North America Standard Teardrop Pallet Rack Wholesale Teardrop Rack Beams Uprights Manufacturer

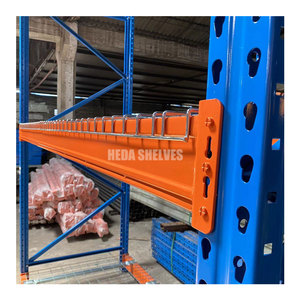

Teardrop Selective Pallet Rack Beams & Uprights

  • Standard: 100% Compatible USA Teardrop
  • Pitch: 2-inch (50.8mm) Increment Lock
  • Beam Style: Step Beams for Wire Decking
View Details → Send an Inquiry
Hardware Fasteners Carbon Steel Zinc Plated Hex Nut DIN934 Class 8 for Heavy Duty Pallet Rack

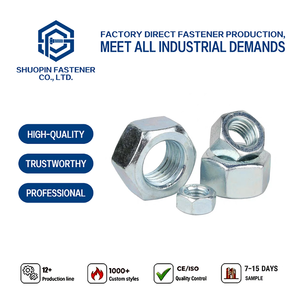

Carbon Steel Zinc Plated Hex Nut DIN934 Class 8

  • Tensile Grade: High-Tensile Class 8.8
  • Finish: Anti-Corrosion Hot Dip Galvanized
  • Usage: Seismic Base & Mezzanine Assembly
View Details → Send an Inquiry
Multi-Tier Floor Customized Office Mezzanine System Elevator 2-3 Floors Stairs 500-3000kg

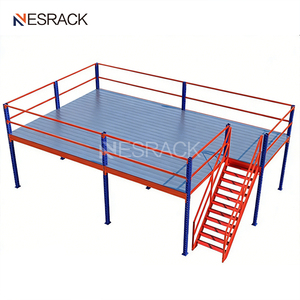

Customized Office Pallet Rack Mezzanine Platform

  • Rating: 500 - 3000 kg / Square Meter
  • Levels: 2-3 Floors with Industrial Stairs
  • Decking: Steel Plank, Grating, or Bimodal
View Details → Send an Inquiry
Safety Component Metal Row Spacers for Supermarket Warehouse Heavy Duty Pallet Racking System

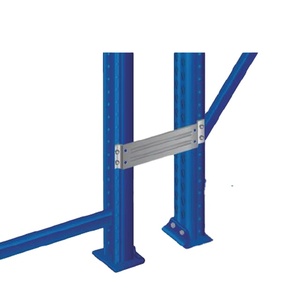

Heavy Duty Back-to-Back Metal Row Spacers

  • Function: Flue Space Maintenance (NFPA 13)
  • Lengths: 150mm - 450mm Custom Clearance
  • Steel: Thick-gauge Formed Channel Carbon Steel
View Details → Send an Inquiry

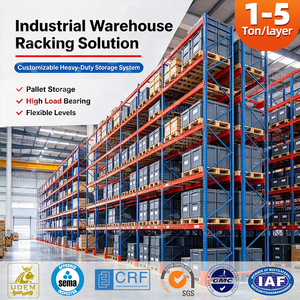

Flagship System Heavy Duty Warehouse Selective Pallet Racking System 1000-4500kg Load Q235B

Heavy Duty Selective Pallet Rack 1000-4500kg Load

  • Selectivity: 100% Direct Immediate Access
  • Steel Grade: SS400 / Q235B Cold-Formed Steel
  • Certification: ISO9001:2015 & CE Compliant
View Details → Send an Inquiry
Engineering White Paper

Structural Mechanics & Metallurgy of Selective Racking Systems

An authoritative engineering breakdown of column stability, beam-to-column rotational stiffness, and cold-formed cold-rolled carbon steel specifications governed by international safety codes.

Selective pallet racking represents the global engineering baseline for unit-load material handling across distribution logistics, manufacturing warehouses, and cold chain distribution centers. As China's leading selective pallet racking manufacturer and exporter, Guangzhou Heda Shelves Co., Ltd. designs structural systems tailored to meet stringent western mechanical benchmarks, including the American Rack Manufacturers Institute (RMI ANSI MH16.1), the European Committee for Standardization (CEN EN 15512 / EN 15620), and Australasian AS 4084 guidelines.

Critical Engineering Principle: Pallet rack capacity is not merely a function of steel thickness; it is governed by the moment of inertia ($I_x, I_y$), the torsional warping constant ($C_w$), beam connector rotational restraint stiffness ($F_{conn}$), and the unbraced column length ($L_{eff}$) between longitudinal beam elevations.

Omega (Ω) Profile Columns

Roll-formed with 11 to 13 continuous forming roll stations. The patented closed multi-bend geometry prevents torsional-flexural buckling and significantly increases yield strength under localized forklift mast impacts.

Twin-C Welded Box Beams

Fabricated by seam-welding two cold-formed C-channels with high-precision continuous automated submerged-arc welding machines. Delivers extreme resistance to torsional twisting and lateral-torsional deflection under dynamic load placements.

Safety Connector Physics

Equipped with 3-claw, 4-claw, or 5-claw high-strength forged connectors engineered with tapered interlocking teeth. Integral spring-steel locking pins endure in excess of 1,000 kg upward shear force to prevent accidental dislodgement.

Metallurgical Integrity: Q235B vs. Q355B vs. ASTM A36 Standard Equivalencies

The structural reliability of HEDA racking begins at raw steel procurement. We source exclusively prime hot-rolled and cold-rolled coiled strip steel from Tier-1 national mills, primarily Baosteel and Shougang Group. Every production batch is certified with Mill Test Certificates (MTC) conforming to EN 10204 Type 3.1, verifying exact chemical compositions (Carbon ≤ 0.20%, Silicon ≤ 0.35%, Manganese ≤ 1.4%, Phosphorus ≤ 0.045%, Sulfur ≤ 0.045%) and mechanical thresholds.

Standard heavy-duty upright frames and beams utilize Q235B carbon structural steel, which features a minimum yield point ($R_e$) of 235 MPa and ultimate tensile strength ($R_m$) ranging from 375 to 500 MPa, functioning as a direct engineering equivalent to ASTM A36 and European S235JR. For high-bay automated installations exceeding 12 meters in height or facilities situated in Zone 4 seismic active regions, HEDA engineers deploy micro-alloyed Q355B steel ($R_e \ge 355\text{ MPa}$, equivalent to ASTM A572 Grade 50 / S355JR). This reduces deadweight steel tonnage while improving structural ductile energy dissipation under cyclic ground motion.

Advanced 9-Stage Surface Finishing: Corrosion & Abrasion Protection

Industrial racking systems operate in challenging ambient environments, ranging from high-humidity coastal shipping centers to corrosive chemical handling hubs and sub-zero cold storage facilities. To deliver a design lifespan exceeding 20 years, HEDA operates a continuous, closed-loop multi-stage chemical pretreatment and electrostatic powder spraying production tunnel:

  • Stages 1 to 3: High-Pressure Alkaline Degreasing & Deoxidizing: Removes rolling lubricants, synthetic drawing oils, and surface contaminants at 60°C.
  • Stages 4 to 5: Cascading Ultrasonic Acid Pickling & Water Rinses: Strips mill scale and microscopic oxides to expose pure steel crystal lattice.
  • Stage 6: Nano-Ceramic Zinc Phosphating Pre-treatment: Forms a micro-crystalline hydrophobic conversion layer that improves paint mechanical shear adhesion by 300%.
  • Stages 7 to 8: Deionized Demineralized Water Rinsing & Thermal Flash Dehydration: Eliminates ionic conductivity to completely prevent sub-film osmotic blistering.
  • Stage 9: Electrostatic Powder Coating & Convection Baking: Pure polyester thermosetting powders are electrostatically applied at 60-80 kV and cured in a gas-fired convection oven at 180°C - 200°C for 22 minutes. The resulting coating layer achieves a dry film thickness (DFT) of 70 to 90 μm, pencil hardness ≥ 2H, cross-hatch adhesion of Grade 0 (ISO 2409 / ASTM D3359 Grade 5B), and withstands over 500 hours of neutral salt spray testing (ISO 9227 / ASTM B117) without blistering or rust creepage.
Procurement Strategy & Decision Matrix

Selective Racking vs. High-Density Systems: Comparative Analysis

Selecting the optimum storage geometry requires balancing SKU profile, selectivity, footprint real estate expense, and operational handling velocity. Evaluate systems across key engineering parameters.

Racking System Classification Pallet Selectivity Floor Space Utilization Vertical Cube Utilization Stock Rotation Strategy Forklift Equipment Compatibility Relative Capital Cost
Selective Pallet Racking 100% Direct 40% – 45% Standard (Up to 12m) FIFO or LIFO Counterbalance, Reach, VNA Turret Lowest CapEx
Double-Deep Pallet Racking 50% Immediate 55% – 60% Good (Up to 11m) LIFO Deep-Reach Pantograph Truck Low-Medium
Drive-In / Drive-Through Rack < 15% (Lane End) 65% – 75% High (Up to 10m) Strict LIFO (FIFO Drive-Thru) Standard Counterbalance, Reach Moderate
Push Back Cart Racking 20% – 30% per Face 60% – 70% Moderate (2-6 Deep) LIFO Standard Counterbalance, Reach High
Gravity Pallet Flow Racking Lane Front Only 70% – 80% High (Dynamic Flow) Strict True FIFO Standard Forklifts / AGVs Premium
Automated Radio Shuttle Racking Semi-Automated 80% – 88% Ultra-High (Up to 24m) Flexible FIFO & LIFO Standard Forklifts + Shuttles High-Tech Investment

Future Procurement Trends: Transforming Global Warehousing (2025–2035)

Procurement directors and supply chain engineers are no longer treating industrial storage racks as inert steel shelving. Over the next decade, racking procurement is undergoing fundamental shifts driven by automation, sustainability, and seismic code revisions:

1. AMR & AGV Integration

Standard selective racking is being re-engineered with micro-tolerance floor anchors, optical fiducial targets, and laser-guided vehicle clearances to accommodate autonomous forklifts operating at zero-clearance margins.

2. Cold-Chain Resiliency

With the exponential growth of biological pharmaceuticals and pre-packaged frozen logistics, selective racks are formulated with low-temperature impact toughness ($A_k \ge 27\text{ J}$ at $-30^\circ\text{C}$) to eliminate cold embrittlement fractures.

3. Green Steel & Decarbonization

North American and European enterprise buyers actively audit supply chains for Scope 3 emissions. HEDA integrates electric arc furnace (EAF) low-carbon steel coils and 100% VOC-free powder formulations.

4. Modular Mezzanine Conversion

Escalating industrial land costs demand modular vertical adaptability. Upright columns now feature engineered top-splice pre-punched patterns allowing painless conversion into multi-tier rack-supported mezzanine floors.

Enterprise Strengths & Factory Heritage

Why HEDA Shelves Dominates Global Racking Exports

Based in Guangzhou, China, Guangzhou Heda Shelves Co., Ltd. has established the benchmark for custom warehouse storage design, factory-direct pricing, and verified quality management since 2001.

24-Hour CAD & 3D Modeling

Send us your warehouse CAD floor plan, clear building ceiling height, pallet dimensions, and forklift lift profile. Our in-house licensed structural engineering department returns an optimized 2D CAD layout and high-definition 3D visualization within 24 hours.

Imperial & Metric Engineering Data

We prepare complete calculation reports, frame load tables, and beam capacity stamps in both imperial (pounds, inches, feet) and metric units (kg, mm, meters). Your local registered Professional Engineer (PE) or building inspector can seamlessly verify compliance.

Optimized Ocean Container Packing

Uprights and beams are bundled with shock-dampening cardboard interleaves, structural edge protectors, and waterproof plastic shrink wrapping. Palletized for rapid forklift devanning, maximizing 40HQ container fill rates up to 26–28 metric tons without transit scratching.

2001
Year Founded
25+ Years Racking Authority
323,000+
Sq Ft Production Campus
30,000 m² Modern Facility
30,000t
Monthly Output
Metric Tons of Cold-Formed Steel
10,000+
Completed Projects
Delivered Across 130+ Countries
Enterprise Procurement Guidance

Frequently Asked Sourcing & Engineering Questions

Get precise technical clarity on structural calculations, seismic permits, container logistics, and steel fabrication standards from our senior engineering team.

How is maximum beam deflection calculated under ANSI MH16.1 vs. EN 15512?
Under both North American RMI (ANSI MH16.1) and European EN 15512 standards, beam deflection under maximum design working load (uniformly distributed load, UDL) must not exceed $L/180$, where $L$ is the clear span length between upright frames (e.g., maximum 13.5 mm deflection on a standard 2440 mm / 96-inch beam). For automated AS/RS or systems handling sensitive robotic machinery, HEDA designs systems to a more stringent $L/200$ or $L/300$ criterion to eliminate mast binding and ensure smooth sensor reading.
What is the load capacity difference between Q235B and Q355B steel?
Q235B delivers a nominal yield strength of 235 MPa, ideal for standard industrial warehousing with pallet loads up to 1,500 kg per position. Q355B offers a yield strength of 355 MPa (a 51% increase in elastic limit). Utilizing Q355B allows us to reduce cross-sectional steel gauge while preserving identical structural load limits, which optimizes total deadweight and cuts international ocean shipping freight costs significantly.
Can HEDA supply seismic structural calculations for USA & Canada permits?
Yes. We furnish comprehensive finite element analysis (FEA) structural calculation packages, anchor bolt pull-out verification data, seismic spectral acceleration response ($S_s, S_1$), and shop fabrication drawings. These deliverables are custom-formatted for rapid submission to your local domestic Engineer of Record (EOR) for state or provincial professional engineer (PE) stamping and municipal building permit sign-off.
Are HEDA teardrop beams compatible with existing US brand uprights?
Yes. Our teardrop series follows standard North American center-to-center pitch dimensions (2-inch / 50.8 mm increments). Upright columns and beam connector rivets interlock seamlessly with major North American brands, allowing warehouse operators to expand, replace, or reconfigure their existing racking installations without purchasing proprietary components.
What aisle dimensions are required for different forklift models?
Aisle dimensions depend entirely on your material handling equipment. Standard Counterbalance 4-wheel forklifts require 3.6 to 4.2 meters (12 to 14 ft) clear aisle space. Narrow-Aisle Reach Trucks operate within 2.7 to 3.0 meters (9 to 10 ft). Very Narrow Aisle (VNA) Man-Up Turret Trucks or articulated forklifts require only 1.6 to 1.9 meters (5.5 to 6.2 ft), dramatically raising floor utilization from 40% up to 60%.
How does HEDA prevent rust and corrosion during multi-week ocean transport?
Ocean transit subjects cargo to salt fog, humidity swings, and condensation (container sweat). In addition to our thermoset powder coating (tested to 500+ hours ASTM B117 salt spray), all containerized bundles are packed with heavy-duty desiccants, wrapped in moisture-barrier polymer film, and isolated from steel container floors with treated wooden dunnage in full compliance with ISPM-15 phytosanitary standards.
How does raising the first beam level affect the upright frame capacity?
Frame capacity is inversely proportional to the square of the unbraced column length ($L_{eff}^2$). If the bottom beam is positioned at 2,000 mm above the baseplate instead of 1,200 mm to allow ground-level pallet staging, the frame load capacity drops by approximately 25% to 35% due to Euler buckling phenomena. HEDA structural engineers recalculate column profile gauge and introduce heavy horizontal base-ties to maintain structural integrity.
What are the minimum concrete slab specifications needed for installation?
For standard selective pallet racks up to 8 meters high with leg loads under 5,000 kg, a reinforced concrete slab with a minimum thickness of 150 mm (6 inches) and compressive strength of 20 to 25 MPa (3,000 PSI) is required. High-bay systems, narrow aisle configurations, or seismically active facilities require a 200 mm to 250 mm (8-10 inch) slab rated at 28 to 35 MPa (4,000-5,000 PSI) with verified F-min floor flatness.
Can selective pallet racking support mezzanine floor conversions?
Yes. Rack-supported mezzanines utilize the upright columns of selective pallet racks as structural vertical pillars to support intermediate catwalk floors, staircases, and handrails. This eliminates dedicated structural steel columns, saving over 40% in structural steel expenditures while instantly doubling your usable square footage.
What is the standard production lead time and minimum order quantity (MOQ)?
Our standard production cycle for one to three 40ft HQ containers (approx. 500 to 1,500 pallet positions) is 14 to 20 working days. Because we operate 16 continuous automated roll-forming lines, we accommodate standard project runs as well as high-volume rollouts exceeding 50 containers per month. Our MOQ is 1 full 20ft container to optimize ocean freight economics.
