Certified High-Performance Racking & Industrial Shelving Systems
Direct from Guangzhou Heda Shelves' 30,000 m² automated production facility: precision roll-formed cold-rolled profiles compliant with RMI MH16.1, EN 15512, and AS 4084 engineering standards.
Cold Storage Heavy Duty
Jracking Modular Design Warehouse Storage Shelf CE Certified Heavy Duty Pallet Racking System for Cold Room
- Temperature Rating: -35°C to Ambient
- Load Capacity: 1,000–4,500 kg/tier
- Safety Cert: CE / EN 15512
Unit Load Pallets
Flexography 4-Way Warehouse Rack Pallet Euro Single Faced Pallets 1200x1000 mm
- Standard Dimension: 1200 × 1000 mm
- Handling Type: 4-Way Entry
- Dynamic Rating: 1,500 kg Load
Industrial Shelving
CE Certified Industrial Warehouse Steel Shelving System Heavy Duty Storage Racks Metal Racking Durable Cargo Shelves
- Steel Grade: Q235B High Yield
- Beam Elevation: 50/75mm Pitch Pitch
- Finish: Epoxy Powder Coating
Adjustable 5-Tier

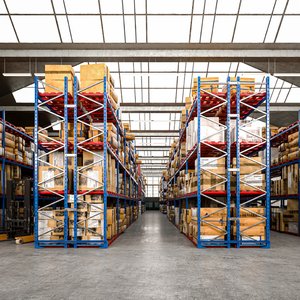

Steel Rack System Heavy Duty Pallet Racking 4000kg Warehouse Storage Rack System 5-Tier Adjustable Industrial Racks
- Level Capacity: Up to 4,000 kg/tier
- Connector: 4-Claw Safety Lock
- Upright Profile: 90/100/120mm Omega
Medium Duty Shelf

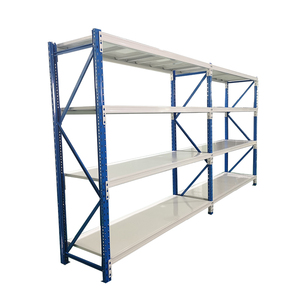

Middle Duty Style Selections Shelf
- Tier Rating: 200–500 kg/layer
- Decking Option: Steel / Wire / Wood
- Assembly: Boltless Interlock
Light Duty Shelving
Adjustable Steel Light Duty Shelving, Easy Assembly Industrial Rack, Warehouse Storage Shelves Supplier
- Modularity: Rapid Knock-Down
- Coating: Scratch-Resistant Hybrid
- Field Application: E-Commerce Sorting
Boltless Metal Racks
Heda Manufacture Storage Shelves Metal Boltless Warehouse Shelves System Medium Duty Racks for Sale
- Structural Joint: Rivet / Keyhole Slot
- Footprint: Compact Picking Aisle
- Standard: ISO 9001:2015 QC
Push-Back 30,000kg
Industrial Heavy Duty Push-Back Pallet Racking System Anti-Collision Corrosion Protection 30000kg Capacity Steel Wire Mesh Deck
- Bay Capacity: 30,000 kg Total Bay
- Cart Rail: Nested Incline Rollers
- Decking: Galvanized Wire Mesh
Executive Engineering Overview: Structural Physics of Selective Pallet Racking
Selective pallet racking represents the global benchmark for direct-access unit-load warehousing, accounting for more than 70% of installed industrial pallet systems across North America, Europe, and Australasia. In modern logistics engineering, selective racking is characterized by its singular operating principle: 100% individual selectivity to every pallet position without honeycombing or product reshuffling. This dynamic affords warehouse operators an unmatched velocity of stock rotation, full SKU visibility, and seamless compatibility with standard counterbalance, reach, and VNA (Very Narrow Aisle) lift trucks.
However, procuring selective pallet racking from Chinese manufacturers requires structural precision far beyond nominal steel tonnage. Top-tier Chinese original equipment manufacturers (OEMs), pioneered by industry veterans such as Guangzhou HEDA Shelves Co., Ltd. (established in 2001), engineered the transition from rudimentary angle-iron shelving to precision roll-formed cold-formed structural steel. Every structural upright column operates as a thin-walled, open-section compressive member subjected to combined axial compression and biaxial bending moments under static, live, and seismic cyclic stresses.
Technical Benchmark: High-grade structural uprights roll-formed by Tier-1 Chinese suppliers utilize high-tensile Q235B or Q355B hot-rolled strip steel, engineered to deliver a minimum yield strength of $f_y = 235\text{–}355\text{ MPa}$, strictly adhering to RMI (Rack Manufacturers Institute) MH16.1 specifications and European Standard EN 15512:2020 limit-state design criteria.
Cross-Sectional Mechanics and Component Anatomy
A true commercial-grade selective racking framework relies on a mathematically modeled equilibrium between three primary structural components:
- Omega-Profile Upright Columns: Continuously cold-rolled with multi-stage bending dies (utilizing up to 24 rolling stations) to induce work hardening at section corners, thereby increasing the effective cross-sectional moment of inertia ($I_x, I_y$). Column punchings feature teardrop, diamond, or metric butterfly geometries punched at precision 50mm or 75mm (or 2-inch imperial) centers.
- Interlocking Step and Box Beams: Fabricated from twin C-sections seam-welded by automated robotic plasma/MIG lines into rigid rectangular box profiles. End connectors feature 3-claw or 4-claw stamped steel teeth designed to create a semi-rigid beam-to-column rotational joint (governed by rotational stiffness parameter $K_b$), counteracting frame side-sway without requiring external cross-aisle bracing.
- Bracing Trusses and Baseplate Assemblies: Cold-formed C-channel diagonal and horizontal braces bolted to the uprights in triangular Pratt or Warren truss topologies. Baseplates are heavy gauge (6.0mm–12.0mm) stamped plate anchors, distributed with dual structural expansion anchors engineered to transfer dynamic shear forces directly into the C25/C30 reinforced floor slab.
China Racking Factory Audit & Technical Capabilities Scorecard
Supply chain risk mitigation demands empirical verification of steel coil metallurgical provenance, automated welding tolerances, and powder coat polymerization chemistry.
Coil Integrity & Yield Testing
Direct supply partnerships with Baosteel and Shougang ensure certified mill test certificates (MTC) with strict carbon equivalent limits (CEV < 0.40) ensuring weld ductile capacity.
Continuous CNC Roll-Forming
Multi-roller forming mills featuring automated optical laser calibration maintain structural tolerances within ±0.5mm across 12-meter continuous single-piece upright frame members.
10-Stage Surface Treatment
Automated ultrasonic degreasing, zinc-phosphate micro-etching, and electrostatic epoxy-polyester thermosetting powder coat applied to a uniform thickness of 60–80 microns.
Export Staging & Packaging
Timber-dunnaged steel bundles, wrapped in moisture-resistant vapor barrier film and steel strappings engineered specifically for high-cube (40HQ) ocean freight container payloads.
Structural System Selection Matrix: Selective vs. High-Density Racking
Selecting the optimal storage framework requires balancing space utilization, SKU selectivity, and operational capital expenditure (CapEx). Below is an analytical engineering comparison derived from empirical logistics modeling across 10,000+ completed projects:
| Racking Topology | Pallet Selectivity | Volume Utilization | Aisle Width (Clearance) | Stock Rotation Logic | Relative CapEx / Position |
|---|---|---|---|---|---|
| Standard Selective | 100% (Instant) | 40% – 50% | 3.0m – 3.6m (Counterbalance/Reach) | FIFO / LIFO Unrestricted | Baseline ($) |
| Double-Deep Selective | 50% (Secondary) | 55% – 65% | 3.0m – 3.4m (Pantograph Reach) | LIFO per double pair | Baseline + 20% |
| Very Narrow Aisle (VNA) | 100% (Instant) | 60% – 70% | 1.5m – 1.8m (Wire/Rail Guided) | FIFO / LIFO Unrestricted | Baseline + 45% |
| Push-Back (Cart/Roller) | 20% – 50% | 65% – 75% | 2.8m – 3.2m (Standard Reach) | Strict LIFO (Gravitational) | Baseline + 110% |
| Drive-In / Drive-Through | < 15% (Batch) | 70% – 80% | Specialized Drive-in Lanes | Strict LIFO (Drive-In) / FIFO | Baseline + 60% |
| Radio Shuttle Automation | Lane Dependent | 80% – 90% | Main Loading Cross-Aisles | Programmable FIFO / LIFO | Baseline + 220% |
Emerging Trends Reshaping Industrial Pallet Racking Procurement
Macro supply chain disruptions, warehouse robotics integration, and decarbonization mandates are radically altering how multinational companies evaluate and buy structural warehouse steel.
Autonomous Mobile Robot (AMR) Convergence
The standard selective rack is transitioning to robotic symbiosis. Procurement contracts now demand millimeter-exact beam tolerances (±1.0mm) to support autonomous pallet reach-trucks (AGVs) and underside AMR shuttles operating without human laser guidance.
Cold Chain Thermal Resilience & Green Steel
With global temperature-controlled logistics booming, demand has surged for micro-alloyed structural steels that retain Charpy V-notch impact toughness down to -35°C without brittle cleavage fracture, manufactured via energy-efficient electric arc furnaces (EAF).
BIM Integration & Seismic FEA Validation
Tier-1 procurement teams now reject generic quotes in favor of digital twins: 3D Building Information Modeling (BIM/Revit models) accompanied by project-specific Finite Element Analysis (FEA) validating static, second-order ($P-\Delta$), and seismic performance.
Why Global Industrial Leaders Partner with Guangzhou Heda Shelves
Since its founding in 2001 in Guangzhou, China, Guangzhou Heda Shelves Co., Ltd. has grown to become an international powerhouse in material handling infrastructure. Operating from an integrated 30,000 square-meter production complex staffed by over 300 experienced engineers, CNC machine operators, and quality-control inspectors, HEDA delivers a sustained monthly manufacturing throughput exceeding 30,000 metric tons of finished racking steel.
Unlike export traders or regional assembling middlemen, HEDA Shelves controls the full structural engineering lifecycle in-house:
24-Hr CAD & 3D Engineering
Rapid layout optimization including building clearance, sprinkler NFPA 13 flue space, and egress compliance in metric or imperial units.
Finite Element Validation
Component sizing (upright gauge, beam cross-sections, deflection limits $L/200$) calculated precisely against real pallet weights.
ISO 9001 & CE Production
Automated slitting, punching, roll-forming, and welding conducted under strict European CE and ISO 9001:2015 management systems.
Turnkey Ocean Logistics
Container-optimized bundle loading directly from Guangzhou/Shenzhen ports to Los Angeles, Houston, Savannah, Rotterdam, and Vancouver.
Factory Qualification Advantage: HEDA Shelves provides verifiable third-party test reports, load capacity certificates, and professional engineer (PE) calculation sheets ready to support municipal permit acquisition and rack safety compliance across North America, Europe, Australia, and the Middle East.
Frequently Asked Questions (FAQ) for Global Racking Buyers
Straightforward, engineering-backed answers addressing the most common technical, regulatory, and logistics inquiries encountered when importing industrial pallet racking.
Plan Your Storage Expansion with Factory-Direct Engineering Expertise
Whether optimizing an existing regional distribution center or designing a new 50,000-pallet automated facility, our structural engineering team delivers custom CAD drawings, 3D BIM simulations, and factory-direct pricing within 24 hours.
