Engineered Pallet Racking Series: Built for High-Density Operations
Each heavy-duty storage profile is fabricated utilizing certified Q235B and high-strength Q355B structural coil steel, roll-formed under automated tolerances, and pre-treated for anti-corrosion resilience across industrial environments.
Heavy Duty Warehouse Storage Pallet Racking System
- 100% SKU Access
- 1,000–4,500 kg/Tier
- 75mm Pitch
5/6 Layer Heavy Light Duty Steel Warehouse Rack Adjustable Industrial Shop Storage 400kg Garage Metal Workshop Shelf
- Boltless Quick-Lock
- 400 kg/Layer
- Anti-Rust Finish
Heavy Duty Pallet Rack Warehouse Storage Racking System 2500kg Per Level 5 Layers OEM Factory
- 2,500 kg/Tier Rated
- Box Beam Profile
- Seismic Certified
High Load Capacity 8-Layer Anti-Rust Powder Coated Steel Rack Heavy Duty Warehouse Storage System for Industrial Pallet Use
- 8-Tier Elevation
- Epoxy Powder Coat
- GMA/Euro Ready

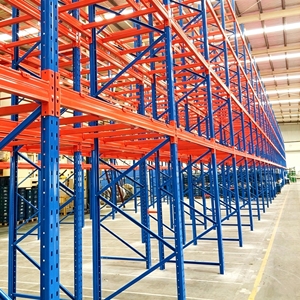

Hot Selling Adjustable Heavy Duty Steel Industrial Racks 6 8 10 Layer High Bay Warehouse Storage Selective Pallet Racking System
- 6–10 Layers Config
- Omega Column Core
- Reach Truck Ready
Drive in Pallet Racking Warehouse Rack Dividers Stacking Shelves for Warehouse Storage
- 85% Space Density
- LIFO Bulk Storage
- Continuous Rail
Custom Heavy Duty Steel Pallet Rack Industrial Storage Rack System for Warehouse Warehousing
- Custom Footprint
- Decking Variations
- Heavy Stamping
Factory Selling Industrial Heavy-Duty Steel Warehouse Pallet Storage Racks Multi-Layer Selective Pallet Racking Shelves System
- Factory Direct Direct
- Dual Upright Ties
- 3,000 kg Tier Cap
China’s Premier Pallet Racking Fabrication Authority
Operating from Guangzhou since 2001, Guangzhou Heda Shelves Co., Ltd. has established itself as an elite manufacturer in the heavy-duty industrial storage sector. Our massive 30,000 square meter (approx. 323,000 sq ft) production campus and specialized workforce exceeding 300 experienced engineers, CNC fabricators, and certified welders churn out an unrivaled monthly output of up to 30,000 metric tons of engineered steel racking.
When international supply chains, 3PL distribution centers, cold-storage conglomerates, and heavy automotive assembly plants source from China, load-bearing reliability and steel chemistry consistency remain non-negotiable. Our engineering infrastructure operates fully under ISO 9001:2015 quality frameworks and European CE Marking (EN 15512) construction product verifications. We deliver imperial and metric dual-dimensioned calculations ready for municipal permitting, stamped PE (Professional Engineer) sign-offs, and rigorous local seismic building code compliance across North America, Europe, Australia, and the Middle East.
ISO 9001:2015
CE 2435-CPR
RoHS Tested
End-to-End Advanced Racking Manufacturing Process
Unlike small trade intermediaries, our in-house facility controls every physical transformation from prime slit-coil arrival to containerized ocean freight packaging, maintaining structural integrity across millions of continuous cycles.
01. Steel Coils
Raw Material QC
Certified high-tensile Q235B/Q355B coils tested for yield strength and elongation.
02. Slitting
Precision Slitting
Automated uncoiling, flattening, and high-speed longitudinal profile slitting.
03. Punching
CNC Column Punch
Continuous mechanical hole punching maintaining 0.1mm pitch accuracy for safety locks.
04. Cold Bending
Cold Bending Roll
Progressive multi-roll forming ensuring work-hardened flanges and rib stiffness.
05. Beam Roll
Profile Roll Forming
Seamed box-beam and stepped-beam fabrication designed for exact deflection limits.
06. Deburring
Deburring & Grind
Automated weld smoothing and burr removal eliminating sharp hazard edges.
07. Welding
Robotic MIG Weld
Multi-prong heavy connector clips welded with argon-shielded robotic precision.
08. Pre-Treatment
Acid Pickling & Phos
7-stage chemical immersion stripping mill scale and etching surface for paint bonds.
09. Powder Coat
Powder Coating Line
Automated reciprocators applying uniform 60–80μm electrostatic thermoset powder.
10. Shipping QC
Final Inspection & Pack
Dunnage protection, steel banding, and ocean-optimized container packing.
Engineering Selection Matrix for Global Logistics Procurement
Selecting the optimal pallet storage typology requires balancing structural throughput, SKU accessibility, floor footprint utilization, and seismic stability under target dynamic load envelopes.
| System Typology | Pallet Selectivity | Space Density | Inventory Flow | Forklift Compatibility | Estimated Cost / Position | Primary Industrial Application |
|---|---|---|---|---|---|---|
| Standard Selective | 100% (Instant) | FIFO / LIFO Flexible | Standard Counterbalance / Reach | $45 – $75 | 3PL FMCG, General Merchandising, E-Commerce Hubs | |
| Double Deep Racking | 50% (Pairwise) | Strict LIFO | Pantograph Deep-Reach Truck | $65 – $95 | Dry Food Distribution, Paper Mills, Buffer Storage | |
| Drive-In / Drive-Thru | 15% – 25% | LIFO (Drive-In) / FIFO (Thru) | Specialized Narrow Counterbalance | $80 – $120 | Cold Storage Freezers, Beverage Wholesalers, Seasonal Batches | |
| Push-Back (Cart/Roll) | 2–6 Pallets Deep | Gravity LIFO | Standard Forklift (Mast-Tilted) | $140 – $220 | Mid-Turnover Warehouses, Automotive Spares, Chemicals | |
| Pallet Flow (Gravity) | High Lane Density | Strict FIFO | Standard Separated Picking Trucks | $180 – $290 | Pharmaceuticals, Perishable Cold-Chain, High-Throughput Buffers | |
| Radio Shuttle Cart | Automatic Deep Lane | FIFO or LIFO Programmable | Standard Forklift + Shuttle Carrier | $160 – $260 | Modern Cold Storages, Meat Processing, Automated Buffer Hubs | |
| Cantilever Systems | 100% Linear Unobstructed | Variable / Multi-Level | Side Loaders / 4-Way Forklifts | $90 – $180 | Timber Yards, Steel Pipe Logistics, Sheet Metal Distribution |
Macro Sourcing & Engineering Trends in Pallet Racking
Global supply chain instability, warehouse labor constraints, and rising industrial land costs are radically redefining how procurement directors evaluate Chinese structural steel manufacturers.
High-Yield Thin-Gauge Cold Metallurgy
The industry is transitioning rapidly from standard Q235 mild steel to micro-alloyed Q355B and S355MC cold-formed profiles. Through complex roll-formed multi-rib stiffening geometries, engineers reduce raw member dead-weight by 12% to 18% while enhancing ultimate torsional buckling resistance.
Weight & Freight OptimizationTurnkey Automation (AMR & ASRS) Ready
Racking is no longer static metal; it is the structural spine of automated guided vehicles (AGV), autonomous mobile robots (AMR), and vertical automated storage retrieval cranes. Tight fabrication tolerances of ±0.5mm across vertical upright runs are now mandatory to prevent optical sensor triangulation errors.
Robotics Co-EngineeringSeismic Performance & Dynamic Damping
Global buyers require full Finite Element Analysis (FEA) nonlinear time-history seismic simulations conforming to RMI MH16.1 (USA), AS 4084-2023 (Australia), and Eurocode 3. Modern beam-connector brackets incorporate patented shear-dissipation clips that absorb ground acceleration shocks.
Life-Safety ComplianceTotal Landed Cost & Knitted Freight
Procurement teams are moving beyond simple FOB factory prices to total landed cost analysis. Top Chinese tier-1 factories optimize container loading schemes through staggered upright nesting, pre-assembled frame trusses, and standardized bundling that slash port de-vanning hours by up to 40%.
Landed Cost EfficiencyFrequently Asked Questions: Sourcing Pallet Racking from China
Critical engineering, compliance, freight, and structural verification answers to de-risk your overseas warehouse procurement.
How does Chinese structural steel grade Q235B & Q355B map to Western standards?
Chinese national standard GB/T 700 Q235B is metallurgical equivalent to ASTM A36 (USA) and EN 10025-2 S235JR (Europe), with a minimum yield strength of 235 MPa. Grade Q355B corresponds directly to ASTM A572 Grade 50 and European S355JR, offering a 355 MPa minimum yield. We supply verified Mill Test Certificates (MTC) with each heat number to validate carbon equivalent, yield, tensile, and Charpy V-notch impact values.
Can HEDA Shelves supply calculations stamped by a licensed Professional Engineer (PE)?
Yes. For projects across the United States, Canada, and Australia, we prepare detailed engineering structural calculation packages in both imperial and metric formats. We cooperate with affiliated third-party structural engineering firms in destination jurisdictions to review local seismic ground acceleration (Ss, S1 parameters), slab anchor bolt embedment, and provide official stamped PE shop drawings for municipal building permit approval.
What is the standard beam deflection limit utilized in your engineering design?
Our baseline structural beam design adheres strictly to the ANSI MH16.1 and FEM 10.2.02 standard of L/180 for standard warehouse operations under full uniformly distributed load (UDL). For automated retrieval systems (ASRS), fragile beverage logistics, or high-bay narrow aisle operations, we engineer heavier box-beam profiles to satisfy tighter deflection limits of L/200 or L/240 as specified by client operational guidelines.
How is paint adhesion guaranteed in harsh, high-humidity, or cold-storage environments?
Corrosion failure is prevented during our 7-stage pre-treatment line, which removes surface oils, scales, and etches an active zinc phosphate micro-layer. Our thermoset polyester powder coating is cured in computerized baking ovens at 180°C–200°C, producing a 60–80 micron film that passes ASTM D3359 cross-hatch tape adhesion tests (Class 5B) and exceeds 500 hours of continuous salt-spray testing. Hot-dip galvanized uprights are optionally available for extreme moisture or outdoor yards.
How are shipping bundles packed to avoid transit damage in 40ft High Cube containers?
Upright frames are interlaced and separated with timber skids and corrugated corner protectors, banded with heavy polyester steel strapping. Beams are stacked in precision counts, palletized on custom steel cradles with lifting points, and shrink-wrapped with vapor-barrier polyethylene film. Desiccant packs are positioned in every container to neutralize condensation ("container sweat") during trans-equatorial ocean shipping.
What is your production lead time, and what information is needed for an initial quotation?
Standard 1–5 container orders require 15 to 22 business days from final approved CAD drawing. To generate a 24-hour itemized quotation and 3D rendering, our engineering desk requires: (1) Warehouse building CAD or dimensional sketch showing clear height and obstructions; (2) Pallet dimensions (Width × Depth × Height including load overhang); (3) Maximum weight per pallet; and (4) Forklift model, minimum turning radius, and maximum reach elevation.
Request an Engineered Layout & Landed Price Proposal
Connect directly with Guangzhou HEDA Shelves' lead structural application engineers. Accelerate your facility expansion with verified factory-direct pricing, certified load-distribution tables, and free CAD layouts issued within 24 hours.
- Free 2D/3D CAD Drawing in 24 Hrs
- Dual Imperial/Metric Load Schedules
- ISO 9001 & CE Certified Documentation
- Direct FOB/CIF/DDP Ocean Freight Estimates
Confidential structural engineering consultation. Zero obligation. Custom fabrication available for private labels, racking distributors, and 3PL integrators globally.
