Flagship Industrial Pallet Racking & Material Handling Configurations
Precision cold-roll formed from certified high-tensile Q235B and Q355B structural steel coil. Every system undergoes continuous ultrasonic weld testing, automated CNC punch sequencing, and 12-stage electrostatic powder coating.
Selective Storage
VNA Optimized

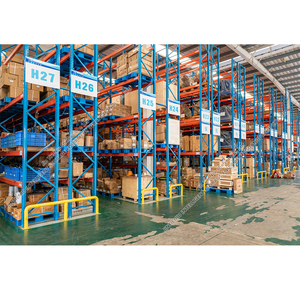

Corrosion Guard
Smart Automation
Dynamic LIFO
Commercial Display
Why Global Supply Chains Source Direct from HEDA Racking Plants
Operating from our sprawling manufacturing headquarters in Guangzhou, China, we combine 25+ years of heavy structural manufacturing with western engineering validation, turnkey freight handling, and end-to-end load compliance.
Free 24h CAD & 3D Modeling
Our internal civil and structural engineering desk delivers comprehensive AutoCAD architectural layouts, forklift pathway verifications, and photorealistic 3D warehouse renderings within 24 hours of receipt of drawing files.
Dual Imperial & Metric Output
Eliminate site conversion errors. All structural calculation books, beam deflection data, seismic footprint plans, and bill of materials can be issued simultaneously in pounds/inches (lbs/ft) and metric kilograms/millimeters (kg/mm).
ISO 9001 & CE Certified Purity
Operating under ISO 9001:2015 cert 18624Q00169R0M and CE Factory Production Control 2435-CPR-8605159. We test hot-rolled strip chemistry (carbon equivalent, silicon, yield strength) on every production coil lot before slitting.
Optimized Container Packing
Proprietary steel bundle cradles and custom wooden chocks maximize 40ft HQ cube utilization up to 98% with zero transit chafing. Shipped direct to Los Angeles, Long Beach, Houston, Savannah, Rotterdam, and Vancouver ports.
Engineering Principles of Cold-Formed Steel Pallet Racks: From Material Science to Dynamic Seismic Stability
In global industrial supply chains, warehouse storage systems are no longer treated as simple static furniture; they represent critical civil-structural assets designed to protect multi-million-dollar inventory and personnel. As a leading exporter and Tier-1 Chinese pallet racking manufacturer, HEDA Shelves engineers each system according to international codifications including the Rack Manufacturers Institute (RMI) Specification ANSI MH16.1, the European Committee for Standardization EN 15512, and Australasia’s AS 4084-2023.
1. Metallurgical Composition and Cold-Roll Forming Dynamics
The structural efficacy of pallet racking columns and step beams initiates at the raw steel mill level. Our manufacturing campus procures certified high-strength structural coil (primarily Baosteel and Shougang Steel) adhering to grades Q235B (yield strength ≥ 235 MPa, tensile strength 370–500 MPa) and Q355B (yield strength ≥ 355 MPa, tensile strength 470–630 MPa). Cold-roll forming transforms these planar steel strips into complex multi-bend open profiles (omega-shaped upright posts with up to 12 longitudinal cold bends). Each cold bend induces localized strain hardening, artificially elevating the section's effective yield capacity at critical flange and rib corners while maintaining adequate elongation (≥ 21%) to avoid brittle fracture under dynamic seismic loading.
Column perforations (teardrop, hex-slot, or diamond-lock configurations) are punched on automated CNC servo-feed hydraulic presses prior to roll-forming. This pre-punching sequence preserves precise centerline hole spacing (typically 50mm, 75mm, or 76.2mm / 3-inch increments) within tight dimensional tolerances of ±0.15mm over a 12-meter continuous vertical upright length, eliminating accumulated beam connector elevation error during high-bay warehouse erection.
2. Connection Rigidity, Torsional Buckling, and Moment Deflection Limits
A fundamental parameter distinguishing premium industrial rack manufacturers from commoditized metal workshops is the rotational stiffness of the beam-to-column connector (the semi-rigid joint characteristic curve, $F-\phi$). Pallet rack beams do not behave as perfectly pinned or entirely rigid connections; they function as semi-rigid joints. HEDA's proprietary 3-claw, 4-claw, and 5-claw high-strength forged connectors engage directly with precision-punched column slots. When locked via electro-galvanized spring steel safety pins capable of resisting upwards shear dislodgment of over 1,000 kg, these connections achieve exceptional moment resistance ($M_k$).
Deflection criteria across international design codes mandate that beam deflection under safe working load ($SWL$) must not exceed $L/200$ (under RMI standards) or $L/250$ to $L/300$ (under EN 15512 / FEM guidelines), where $L$ is the clear span distance between upright frames (e.g., maximum deflection of 13.5mm on a 2700mm beam carrying two 1000kg standard GMA pallets). This stringent deflection boundary prevents excessive dynamic bounce during forklift placement and mitigates progressive eccentric load buildup on adjacent bays.
Seismic Baseplates & Geotechnical Anchor Embedment
Seismic zoning (IBC Zones 1 through 4 / Seismic Design Categories A–F) dictates foundation design. In earthquake-prone zones, column upright footings incorporate heavy ductile steel baseplates up to 16mm thick, fastened with seismic-approved expansion or chemical epoxy resin anchors engineered to resist combined uplift, horizontal shear, and overturning moments.
- Finite element analysis (FEA) on anchor shear planes
- Slotted baseplate designs allowing minor concrete shifting
- Overturning moment safety factor > 1.5
NFPA 13 Fire Sprinkler & Flue Space Optimization
Modern mega-distribution centers cannot secure municipal operational permits without passing rigorous fire marshal scrutiny. Racking layouts must incorporate continuous longitudinal (between back-to-back rows) and transverse (between pallet loads) flue spaces ranging from 3 inches to 6 inches, guaranteeing clear penetration for ceiling ESFR (Early Suppression Fast Response) sprinklers.
- Row spacers equipped with mechanical pallet stop brackets
- NFPA 13 & 230 compliant wire mesh deck permeability ≥ 70%
- Pre-punched conduit pathways for in-rack sprinkler pipe runs
Automated Surface Passivation & Powder Cross-Linking
Long-term atmospheric resistance prevents micro-pitting corrosion that degrades structural load integrity over decades. HEDA utilizes a rigorous 10-stage automated surface preparation line featuring hot alkaline degreasing, ultrasonic water rinsing, zinc-manganese phosphating, and electrostatic powder deposition baked at 200°C.
- Film thickness held consistently between 60 to 90 microns
- Passes 500-hour ASTM B117 neutral salt spray corrosion testing
- Cryogenic cold-chain epoxies rated to -30°C without embrittlement
Emerging Procurement Trends & Technological Paradigms in Industrial Warehousing
Global land inflation, skyrocketing warehouse labor rates, and nearshoring imperatives are revolutionizing how supply chain directors, fulfillment giants, and 3PL enterprises evaluate warehouse steel infrastructure investments.
1. Convergence of AS/RS and Rack-Clad Building Enclosures
Rather than erecting a standard pre-engineered metal building (PEMB) and retrofitting internal racks, Tier-1 logistics hubs increasingly procure Rack-Supported Buildings (Rack-Clad Enclosures). The rack structure itself serves dual duty: carrying hundreds of thousands of pallet positions internally while simultaneously acting as the primary structural skeleton that supports external wall cladding, roof purlins, snow drift loads, and hurricane wind forces.
Combined with automated stacker cranes (AS/RS) operating at vertical heights exceeding 35 to 45 meters, this paradigm reduces total structural steel consumption by 20–30% and compresses civil construction schedules by over 4 months.
2. Cold Chain Micro-Alloyed Steels for Cryogenic Fulfillment
The explosive global demand for frozen pharmaceutical biologics and fresh-frozen food delivery has placed severe strains on traditional carbon steels. At temperatures below -20°C (-4°F), standard carbon structural steel undergoes a ductile-to-brittle transition, rendering uprights and beam connectors vulnerable to catastrophic shatter upon low-speed forklift impact.
Procurement teams are actively pivoting toward micro-alloyed, vacuum-degassed steels with controlled additions of Vanadium, Niobium, and Nickel. These chemistries guarantee Charpy V-notch impact energy absorption ≥ 27 Joules at -40°C, accompanied by zinc flake or heavy hot-dip galvanized finishes resistant to condensation cycles.
3. Digital Twin Modeling & Embedded IoT Strain Telemetry
The next decade of racking procurement emphasizes real-time structural health monitoring (SHM). Enterprise distribution centers are deploying smart racks equipped with wireless optical or piezoelectric strain gauges and 3-axis accelerometer sensor pods mounted at lower column sections.
These arrays interface directly with cloud-based warehouse digital twins, immediately alerting safety directors whenever an MHE (Material Handling Equipment) collision induces localized plastic deformation, permanent out-of-plumb lean exceeding 1/200, or localized beam overload—enabling predictive maintenance prior to rack collapse.
| Storage Architecture | Floor Footprint Utilization | SKU Access / Selectivity | FIFO / LIFO Inventory Flow | Ideal Industry Use-Case | CapEx Intensity (per Pallet) |
|---|---|---|---|---|---|
| Standard Selective Pallet Rack | 35% – 45% (Aisle Intensive) | 100% Immediate Direct Access | Either (Configurable) | General Warehousing, 3PLs, High-SKU Retail | Low ($) |
| Very Narrow Aisle (VNA) | 55% – 65% (Aisles < 1.6m) | 100% Direct Turret / Swing Reach | Either (Configurable) | High-Density Regional Hubs, Spare Parts | Moderate ($$) |
| Drive-In / Drive-Through Rack | 65% – 75% (Eliminates Aisles) | Low (Last Pallet Traps Previous) | Strict LIFO (Drive-In) / FIFO (Through) | Seasonal Bulk, Cold Storage Freezers | Moderate ($$) |

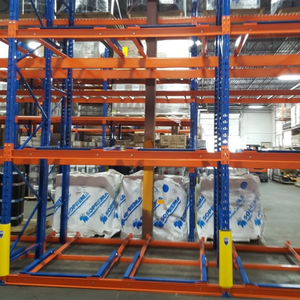

| Push Back Racking (Nested Carts) | 60% – 70% (2 to 6 Deep Lanes) | Medium (Front Face Selectivity) | Strict LIFO Flow | Food & Beverage, Manufacturing Buffer Stock | Moderate-High ($$$) |
| Pallet Flow (Gravity Roller Lanes) | 70% – 80% (Dynamic Inclined Beds) | Medium (Per Pick Face) | Strict Guaranteed FIFO | Perishable Dairy, Pharma, High Throughput | High ($$$$) |
| Radio Shuttle Automation | 75% – 85% (Deep-Lane Robotic Cart) | Automated Batch Selectivity | Flexible FIFO or LIFO | Cold Storage Logistics, Central Distribution | High ($$$$) |
| AS/RS High-Bay Rack Structure | 85% – 95% (Cubic Height to 40m) | 100% Automated Crane Retrieval | System-Software Controlled | E-Commerce Mega-Hubs, Dark Warehouses | Highest ($$$$$) |
| Cantilever Racking System | N/A (Linear Open Frontage) | 100% Open Unobstructed Access | Manual Batch Handling | Steel Pipe, Timber, Sheet Board, Extrusions | Moderate ($$) |
Essential Answers for International Warehouse Systems Buyers
Direct technical clarifications on international building codes, seismic engineering validation, container packaging, customs documentation, and landed costs.
We supply comprehensive structural calculation packages, detailed finite element component analyses, anchor pull-out ratings, and AutoCAD shop drawings generated strictly to RMI ANSI MH16.1 and local IBC (International Building Code) criteria. These engineering packages are structured for immediate hand-off to your local state- or province-licensed Professional Engineer (P.E. / S.E.) for final seal, seismic review, and high-piled combustible storage permitting.
Every production run is accompanied by Mill Test Certificates (MTC) conforming to EN 10204 Type 3.1, detailing exact heat numbers, chemical ladle analysis (C, Si, Mn, P, S), and mechanical tensile/yield properties. In addition, our ISO 9001 quality department regularly provides third-party SGS / Bureau Veritas verification reports verifying weld penetration, coating thickness (dry film thickness > 70μm), and cross-hatch adhesion ASTM D3359 ratings.
Yes. We manufacture fully compatible universal teardrop punch geometries that match traditional American standard profiles. This allows distribution centers to seamlessly integrate HEDA replacement beams, upright extensions, and heavy-duty wire mesh decking into legacy systems from Interlake, Mecalux, Ridg-U-Rak, or Speedrack without replacing entire rows.
Standard production cycles range between 18 to 28 business days depending on overall tonnage and custom color formulations. Ocean shipping to West Coast ports (Los Angeles, Long Beach, Vancouver) averages 14–18 days, while Gulf and East Coast gateways (Houston, Savannah, New York/New Jersey) require 28–34 days. Total lead time from approved engineering drawings to site delivery commonly tracks between 6 to 8 weeks.
All components undergo a 12-stage chemical pretreatment incorporating zinc-iron phosphating that passivates the bare steel surface against rust oxidation. Beams and uprights are bundled with heavy-gauge corrugated corner guards, non-marking high-tensile PET strapping, and vapor corrosion inhibiting (VCI) poly-wrap. Furthermore, heavy desiccants are distributed throughout every 40-foot container to neutralize moisture condensation during sea voyage temperature transitions.
Yes. We maintain active private-label OEM and ODM manufacturing partnerships with leading material handling integrators across Europe, North America, and Australia. We offer custom punching profiles, proprietary embossed brand logotypes on beam end-connectors, bespoke powder coating color palettes (RAL / Pantone matching), and export carton packaging printed with your specific corporate identity.
Transform Your Warehouse Floor Utilization & Cut Total Landed Rack Costs
Connect immediately with HEDA's senior structural logistics engineering desk. Submit your warehouse architectural CAD plan, clear ceiling height, pallet specifications, and forklift model to receive a certified layout, seismic analysis, and itemized landed quotation within 24 hours.
