Engineered from premium hot-rolled Q235B and Q355B structural steel, our load-bearing systems are designed to maximize volumetric cube efficiency, cycle velocity, and structural safety across high-throughput logistics facilities.
Telescopic nested cart design storing 2 to 6 pallets deep. Gravity-fed continuous wheel beds eliminate forklift aisle entry while maintaining multi-lane selectivity.
Laser-cut, CNC-bent 304 stainless steel containment and sanitary storage architectures. High chemical washdown resistance for pharma and food processing.
Multi-pitch adjustable box-beam racking engineered for freight distribution hubs. Features cold-formed upright profiles with 50mm, 75mm, or 76.2mm pitch adjustments.

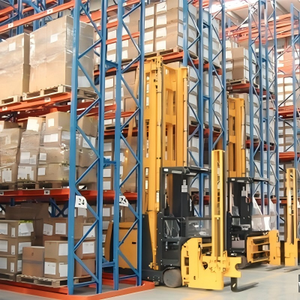

Condenses operating aisles to as narrow as 1,600mm. Maximizes warehouse clear heights up to 16 meters with wire or mechanical floor guidance compatibility.
Versatile heavy-duty shelving units engineered for mechanical workshops, manufacturing staging, and maintenance facilities needing high structural durability.
Standard distribution configuration supporting standard GMA 48x40 and Euro pallets. High structural beam rigidity eliminates deflection under continuous heavy dynamic loads.
300kg/tier uniform load rating designed for commercial catering, cold walk-in freezers, and hospital staging. Anti-corrosive stainless finish compliant with hygiene standards.
Tool-free rapid modular assembly for e-commerce picking lines and automotive spare parts. Drop-in steel decking shelves provide versatile split-tier adjustments.
Procuring warehouse racking from China requires strict adherence to structural mechanics, cold-forming continuous roll profiles, and international safety codes. Explore our engineering benchmarks below.
We source prime mill-certified Q235B (yield strength ≥ 235 MPa) and Q355B (yield strength ≥ 355 MPa equivalent to ASTM A572 Grade 50). Full chemical analysis and mechanical tensile test reports (EN 10204 Type 3.1) accompany every batch.
Full conformance with ANSI MH16.1 (RMI specification for industrial steel storage racks), FEM 10.2.02 (European code for pallet racking design), and AS4084-2012. Uprights and beams are designed with a safety factor ≥ 1.67 under uniform load limits.
Seismic calculations incorporate site-specific SDS/SD1 spectral response parameters according to ASCE 7 and IBC standards. Heavy-duty ductile baseplates, enlarged anchor patterns, and reinforced diagonal truss lacing mitigate shear deformation.
Automated 5-stage chemical pretreatment line featuring hot alkaline degreasing, ultrasonic cleaning, and zinc phosphating. Electrostatic TGIC polyester powder coating cured at 200°C yields a scratch-resistant finish passing 500-hour ASTM B117 salt spray tests.
Evaluate space density, SKU rotation, equipment compatibility, and capital expenditure across major industrial shelving and racking topologies.
| Storage Topology | Floor Space Utilization | Pallet Selectivity | Handling Equipment Required | Rotation Principle | Typical Application Sector |
|---|---|---|---|---|---|
| Selective Pallet Racking | 40% – 50% | 100% Direct Access | Standard Counterbalance, Reach Truck | FIFO or LIFO | General 3PLs, E-Commerce, Retail Distribution Centers |
| Very Narrow Aisle (VNA) | 60% – 70% | 100% Direct Access | Articulated Forklifts, Turret Trucks, Man-Up Cranes | FIFO or LIFO | High-Ceiling Logistics Parks, High-Value Pharmaceutical Warehousing |
| Push-Back Pallet Rack | 70% – 75% | Selective by Lane (Front Face) | Standard Counterbalance Forklift | Strict LIFO | Cold Storage Facilities, Medium-Turnover Food & Beverage Hubs |
| Radio Shuttle Racking | 80% – 85% | Automated Lane-End Pick Face | Forklift + Semi-Autonomous Pallet Shuttle | Configurable FIFO / LIFO | Deep Freeze Chambers, Agricultural Seeds, Bulk FMCG Staging |
| Drive-In Racking | 75% – 80% | Lane-Dependent Retrieval | Narrow Counterbalance or Reach Truck | LIFO | Uniform SKU Seasonal Staging, Raw Material Bulk Storage |
| Rack-Supported Mezzanine | 100% – 200% Floor Area | Full Manual / Conveyor Access | Forklift Pallet Gate, Goods Lift, Spiral Conveyor | Multi-Tier Manual Pick | Automotive Spare Parts, Apparel Fulfillment, Archive Records |
Global logistics facilities are transitioning from static storage frames to robotic integration interfaces. Procurement directors must anticipate these key structural shifts.
Automated Mobile Robots (AMRs) and Automated Storage and Retrieval Systems (ASRS) demand beam deflection tolerances under L/300 and floor-to-upright plumblines tighter than ±1.5mm. Racking is no longer static iron; it serves as a calibrated robotic operating grid.
With biological pharmaceuticals and blast-freezer grocery hubs expanding, racking steel requires low-temperature impact toughness testing (Charpy V-Notch at -30°C) to prevent brittle fracture hazards under dynamic shock loads inside cold storage chambers.
Global supply chains require verified Environmental Product Declarations (EPD). Chinese top-tier manufacturers are adopting Electric Arc Furnace (EAF) low-carbon recycled steel coils and solvent-free low-VOC curing powders to meet strict Western ESG mandates.
To hedge escalating ocean freight and regional construction delays, global engineering buyers favor prefabricated boltless connector brackets and standardized modular spans that cut field assembly time by 45% while optimizing container cubing efficiency.
HEDA Shelves eliminates broker margins by integrating full-cycle structural calculations, automated roll-forming, dual-stage quality control, and seamless containerized shipping.
Our structural team provides full plan-views, 3D elevation renderings, and load capacity tables formatted in both imperial (lbs/in/ft) and metric units within 24 hours of receiving site blueprints.
Certified under ISO 9001:2015 (Cert No. 18624Q00169R0M), CE Marking (No. 2435-CPR-8605159), and RoHS directives. Weld seams conform to AWS D1.1 structural steel welding codes.
Custom heavy-gauge steel frame bundling, moisture-barrier wrapping, and corner protectors maximize 40ft High Cube container utilization up to 26 metric tons without in-transit surface chafing.
We supply component section properties, raw yield certs, and node stiffness data ready for review by your North American licensed Professional Engineer (PE) for local municipal seismic permitting.
Comprehensive engineering, regulatory, and logistics answers addressing real international import challenges.
We test cold-formed section profiles under axial compression, beam-end connector moment resistance, and cyclic shear in accordance with ANSI MH16.1 and FEM 10.2.02. Load charts stipulate uniform distributed load (UDL) ratings with safety factors exceeding 1.67, with structural calculations signed off by in-house structural engineers.
Yes. We deliver full CAD layouts, beam level elevations, and calculation dossiers in both Imperial (lbs, inches, feet) and Metric (kg, mm, meters). This ensures direct compatibility with local installers, municipal building inspectors, and warehouse management systems.
Standard production cycles range from 15 to 25 days depending on project tonnage. Ocean container shipping to US West Coast ports (Los Angeles/Long Beach) takes roughly 14–18 days, while shipments to Gulf (Houston) and East Coast ports (Savannah, NY/NJ) average 28–35 days. CIF, FOB, and DDP terms are supported.
We offer flexible trade compliance pathways, including optimized HS code classifications (such as 7308.90), dual-sourcing arrangements, and direct supply of hybrid structural mezzanine components and custom accessories that comply with specific international trade frameworks.
Every production run undergoes a 10-point QC regimen: raw coil thickness micrometer checks, laser punch pitch verification (±0.5mm over 10m), ultrasonic weld inspection, powder coating thickness gauge testing (60–80 μm), and pre-shipment trial bay assembly to guarantee hole-alignment precision on site.
Yes. We supply any standard RAL color finish (safety orange RAL 2004, gentian blue RAL 5010, graphite grey RAL 7016, etc.), along with heavy-gauge column base wraps, rack-end crash barriers, pallet back-stops, drop-in galvanized wire decking, and row spacers.
Send your building dimensions, clear roof heights, pallet dimensions, and forklift specifications. Our engineering team will return a compliant 2D CAD layout, 3D visualization, and comprehensive price schedule within 24 hours.
