High-Capacity Industrial Racking Systems
Manufactured using certified high-tensile structural steel, custom-punched with exact column pitch, and finished with advanced electrostatic powder coating lines.
Factory Supply Radio Shuttle Rack Heavy Duty Pallet Shuttle Racking System High Density Warehouse Storage Custom OEM Supplier
Custom Commercial Stack Metal Pallet Racking Fabric Roll Stacking Shelves Spare Storage Display Storage Rack for Warehouse
Heavy Duty Steel Fabric Roll Pallet Warehouse Racking Systems Steel Pallet Industrial Racks Nepal, Bhutan, Bangladesh
Heavy Duty Pallet Rack Warehouse Storage Racking System 2500kg Per Level 5 Layers OEM Factory
Industrial Warehouse Pallet Rack System Warehouse Racking Beam Teardrop Uprights Size Storage Customize Capacity Warehouse Rack
Customized Industrial Mezzanine Floor Rack Heavy Duty Steel Warehouse Storage Platform Multi Level Shelving Manufacturer

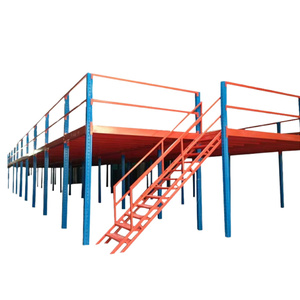

Heavy Duty Mezzanine Platform Mezzanine Racking System Pallet Rack Support Customized
2001.
Established Year (25+ Yrs)
30,000t
Monthly Steel Output
323ksq ft
Modern Facility Scale
10k+
Global Projects Completed
Strategic Procurement Analysis: The Shift in Global Racking Logistics
As international supply chain velocity increases and fulfillment infrastructure scales vertically, logistics managers face higher pallet storage costs, shifting seismic codes, and stricter floor-area footprint constraints. Procuring custom racking directly from tier-one Chinese factories provides North American and global enterprise distribution facilities an optimized balance between raw material capital efficiency and tailored structural engineering.
Key Factor in Modern Sourcing: Racking durability is fundamentally determined at the roll-forming stage. Direct OEM manufacturing guarantees automated CNC slitting, multi-stage cold bending, and proprietary dual-pass pickling and phosphating cycles before finish application. This sequence prevents micro-fracturing along upright perforations and mitigates corrosion under heavy cyclic loading.
| System Configuration | Standard Capacity | Handling Profile | Structural Optimization Baseline |
|---|---|---|---|
| Selective Pallet Racking | 200 – 4,000 kg / Level | 100% SKU Selectivity | Compatible with 48"x40" GMA pallet geometries and custom box beams |
| Radio Shuttle Automation | Up to 2,000 kg / Pallet | High-Density LIFO / FIFO | Integrated guide rails, remote fleet tracking, sub-zero cold storage ready |
| Rack-Supported Mezzanine | 300 – 1,000 kg / m² | Multi-Tier Hand-Pick + Bulk | Heavy cold-formed structural channels, integrated stairway & drop gates |
| Teardrop Frame Pattern | Up to 30,000 lbs Frame Cap | Universal Interchangeability | ANSI MH16.1 compliance baseline for North American retrofits |
Technological & Procurement Trends Driving the Market
Understanding where warehouse infrastructure is headed allows supply chain directors to construct future-proof logistics operations with long equipment service lives.
High-Density Semi-Automation
Rising cubic-foot real estate valuations demand higher density. Shuttle systems and dynamic flow racks are replacing conventional wide-aisle storage to eliminate wasted transit corridors and compress warehouse footings.
Seismic & Site Engineering Validation
Purchasers prioritize factories capable of generating full calculations stamped by the local Engineer of Record (EOR), calculating dynamic baseplate shear, beam deflection ratios, and high-tensile column anchors.
Integrated Anti-Corrosive Finishes
With massive growth across refrigerated cold-storage chains (-30°C) and hazardous chemical containment, electrostatic polymer curing and hot-dip galvanizing prevent premature degradation from moisture and chemistry.
Engineering Competencies of Guangzhou Heda Shelves
End-to-end manufacturing, custom design iterations, and container-optimized export packaging handled under unified accountability.
Rapid 24-Hour Layout Response
Send structural clear heights, floor plans, and pallet loading parameters to receive a custom CAD layout, 3D visualization, and detailed Bill of Materials within 24 business hours.
Optimized Ocean Packaging
Beams, upright frames, and structural trusses are palletized with protective edge-banding and moisture barriers, custom-dimensioned to maximize weight limits within 20GP/40HQ shipping containers.
Full-Tier Certification Auditability
Our quality management systems operate under audited ISO 9001:2015 standards, CE factory production control declarations, and verified structural compliance documentation.
Procurement FAQ: International Racking Sourcing
Direct technical answers to common questions regarding structural compliance, pallet specs, coatings, and import processes.
How does the factory verify load capacities and beam deflections?
Every upright profile and box-beam cross-section undergoes finite element analysis (FEA) and physical yield testing. Structural load tables are calculated to maintain a safety factor conforming to international baselines, ensuring maximum allowable beam deflection stays within L/180 (or L/240 for specialized automated installations) under uniformly distributed loads (UDL).
Can custom dimensions match North American 48"x40" GMA pallets and teardrop uprights?
Yes. We regularly produce teardrop hole-punch patterns on 2" increments compatible with standard North American styles. Standard beam lengths such as 96", 108", and 144" are engineered alongside 42" and 48" frame depths to support standard GMA wood, plastic, or perimeter base wire containers.
What anti-corrosion protection is used for humid or cold storage facilities?
All fabricated steel parts pass through an automated 10-step surface preparation line, including degreasing, ultrasonic cleaning, pickling, and zirconium/phosphating conversion coating. We then apply thermosetting TGIC-free epoxy-polyester powder coat, cured at 200°C for uniform adhesion. Hot-dip galvanization is available for sub-zero freezer builds and corrosive environments.
What engineering documentation is supplied for local permit sign-offs?
We provide dimensional shop drawings, anchor bolt reaction schematics, material mill certificates, and structural calculation sheets showing steel grades (e.g., Q235B, Q355B or equivalent ASTM grades). Local structural engineers use this calculation set to complete site-specific seismic reviews and permit approvals.
What is standard manufacturing lead time and sea freight handling?
Standard OEM production for 2 to 10 shipping containers averages 15 to 25 business days from approved CAD shop drawings. Shipments operate on FOB, CIF, or DDU/DDP terms, with container stuffing diagrams created to balance axle limits and minimize unloading times on site.
Plan Your Storage Project with Certified Engineers
Submit your warehouse floor layout, beam capacity needs, and facility heights for a structural design proposal, 3D CAD visualization, and container price estimate.
