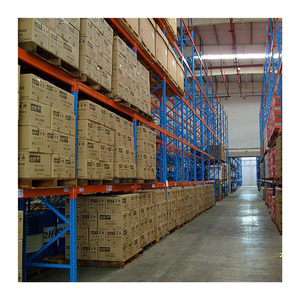

Customized Heavy Duty Steel Warehouse Storage Shelf
Tailor-made multi-tier pallet racking system engineered specifically to customer clear-height tolerances, floor load parameters, and seismic zone requirements.
Industrial Wall Shelf With Integrated Drainage Groove
Ergonomic wall-mounted stainless and coated shelving featuring drainage channel routing for pharmaceutical, cold room, and food preparation facilities.

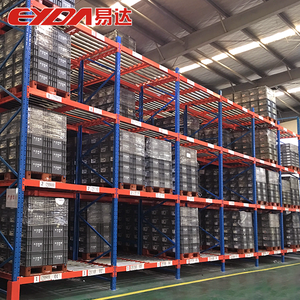

5-Layer Gravity Flow Dynamic Pallet Storage Rack
Automatic FIFO dynamic gravity flow lanes integrated with mechanical speed controllers and entry guides for high-cadence date-sensitive FMCG logistics.
Universal Heavy Duty Industrial Pallet Rack System
High-torsion structural beam connections with interlocking safety pins, providing rigid structural containment for high-density 3PL distribution centers.
Corrosion-Protected Selective Single-Deep Pallet Rack
100% immediate pallet selectivity engineered with electrostatic epoxy powder coating for automotive part warehouses, manufacturing hubs, and garages.
Why Tier-1 Global Procurement Officers Partner With HEDA
Combining 25+ years of precision structural steel manufacturing with ISO 9001:2015, CE Marking, and comprehensive North American code readiness.
Rapid 24-Hour CAD / 3D Layout
Our in-house structural engineers supply complete AutoCAD layouts, 3D parametric renderings, and itemized bills of materials (BOM) within 24 hours of receiving building specs.
Dual Imperial & Metric Calculations
Load calculation sheets, structural safety tables, and anchor embedment requirements are generated natively in both lbs/ft/in and kg/mm for effortless Engineer-of-Record (EOR) stamping.
Certified Metallurgical Integrity
Every profile is cold-rolled from verified Q235B / Q355B coil stock. Batch ultrasonic thickness verification and mill test certificates (MTC) accompany every container departure.
Pre-Treatment & Anti-Corrosion Coating
A rigorous 7-stage chemical pickling and phosphating pre-wash ensures 60–80 micron electrostatic powder coat adhesion, resisting humidity, cold-storage condensation, and abrasion.
Container-Optimized Marine Stowage
Uprights and beam bundles are custom-strapped with protective timber dunnage, anti-scratch foam padding, and balanced center-of-gravity planning for zero transit deflection in 40HQ containers.
CE & ISO 9001:2015 Traceability
Fully compliant with CE Certificate 2435-CPR-8605159, ISO 9001:2015, and RoHS standards. Standardized quality gates prevent dimensional tolerance stackups on high-bay assemblies.
Architectural Comparison: Pallet Storage Systems Selection Matrix
Industrial supply chain leaders must evaluate structural pallet racking not simply as passive steel, but as the core structural asset that governs warehouse lifecycle efficiency. Below is an engineering evaluation comparing the seven primary racking configurations fabricated in our Guangzhou manufacturing facility:
| System Architecture | Pallet Selectivity | Volumetric Density | Inventory Rotation | Capital Cost / Position | Ideal Industrial Application |
|---|---|---|---|---|---|
| Selective Pallet Racking | 100% Immediate | Moderate (40–50%) | FIFO / LIFO Any | Economical | High SKU distribution, 3PL hubs, FMCG picking |
| Double-Deep Pallet Rack | 50% (Two-deep) | Medium-High (60%) | LIFO | Economical | Bulk manufacturing, staging, pantries with reach trucks |
| Drive-In / Drive-Thru | Low (Lane-dependent) | Maximum (75–85%) | LIFO (Drive-In) / FIFO | Moderate | Cold storage freezers, seasonal goods, homogenous SKU |
| Push-Back Carts (2–6 Deep) | Medium (Per Lane) | High (70–75%) | LIFO | Moderate-High | Medium SKU velocity, beverage staging, dynamic coolers |
| Gravity Pallet Flow Rack | Face Selective | Maximum (80–85%) | Strict FIFO | Premium (Dynamic) | Perishable food, pharmaceuticals, cross-dock buffer |
| Radio Shuttle Automation | Semi-Automated Lane | Ultra-High (85–90%) | FIFO or LIFO | High (Automation) | Sub-zero cold logistics, automated production buffering |
| Heavy Duty Cantilever | 100% Frontal | Open Profile | Free Selective | Moderate | Lumber, steel bar stock, extruded PVC pipe, sheet plate |
Structural Cold-Forming & Metallurgy Standards (Q235B vs. Q355B)
The structural integrity of a warehouse pallet shelving system is governed by the yield strength (Fy) and ultimate tensile strength (Fu) of the raw carbon steel coil. At HEDA Shelves, we employ continuous automated roll-forming machines configured to form omega-shaped upright columns with up to 14 multi-stage cold bending points. This geometry imparts significant sectional modulus advantages, resisting torsional buckling under seismic moments.
For standard industrial ambient conditions, continuous structural carbon steel grade Q235B (equivalent to ASTM A36) delivers yield strength of ≥ 235 MPa, offering an ideal ductile response under standard floor impact and dynamic load cycles. For high-bay AS/RS rack-supported buildings, heavy cantilever arms, or seismic zones requiring response spectra compliance (ASCE 7, IBC Chapter 16), our factory utilizes low-alloy high-strength Q355B (equivalent to ASTM A572 Grade 50) with yield strength exceeding 355 MPa. All welded connections adhere strictly to certified gas metal arc welding (GMAW) processes under ISO 3834-2.
Seismic Design Criteria and Allowable Deflection Calculations
International warehouse safety requires rigorous adherence to deflection limits under design loads. In accordance with RMI MH16.1 (Specification for the Design, Testing and Utilization of Industrial Steel Storage Racks) and FEM 10.2.02, beam member design deflection under safe uniform working load is capped at L / 200 (where L is the clear span length between upright frame columns), with specialized AS/RS systems engineered to a stiffer L / 300 to preserve automated shuttle optical alignment. Upright frames are anchored with heavy-duty wedge or chemical mechanical anchors calculated to withstand combined axial gravity load and overturning base shear moments caused by horizontal spectral acceleration during seismic events.
Future Procurement Trends in Industrial Storage (2025–2030)
How automation integration, decarbonized green steel procurement, and cold-chain explosion are redefining international warehouse supply chain planning.
Autonomous Mobile Robot (AMR) Interface Compatibility
Traditional forklift-only racking is giving way to hybrid profiles. Upright base plates and bottom clearance elevations are now engineered to allow low-profile AGVs and AMRs to dock directly beneath pallet positions without structural collision.
Total Cost of Ownership (TCO) Sourcing Over Spot Price
Global procurement teams evaluate landed cost by factoring in container cube utilization, ease of boltless onsite assembly, galvanizing longevity, and pre-punched accessories rather than initial FOB steel poundage pricing.
Vertical Cube Maximization & Rack-Clad Architecture
Skyrocketing land acquisition costs are driving facilities to build upwards of 30–40 meters. Rack-supported buildings (where the shelving frames serve as the primary structural skeleton supporting building roof and walls) are accelerating globally.
Sub-Zero Cold Chain High-Density Explosion
Refrigerated and blast-freezer cubic space is exponentially more costly to operate than ambient warehouses. Demand for 4D radio shuttle deep-lane automation is surging, compressing required aisle volume by up to 60%.
Decarbonized Green Steel & Eco-Coating Compliance
Leading multinational retailers require carbon transparency. Sourcing shifts towards electric arc furnace (EAF) scrap steel coils, closed-loop water treatment lines, and zero-VOC lead-free electrostatic powder coat chemistries.
Modular Rack-Supported Structural Mezzanines
Instead of single-tier footprints, modern e-commerce fulfillment hubs adopt modular multi-level picking platforms. This allows companies to double or triple usable floor surface area without undertaking civil zoning expansions.
Inside the HEDA Automated Precision Production Facility
Every single pallet beam, upright column, base plate, and cross-tie follows an auditable 10-phase production quality protocol.
Frequently Asked Questions: Global Pallet Racking Procurement
Authoritative answers addressing engineering verification, customs tariffs, shipping calculations, and quality assurance.
What engineering documentation does HEDA provide for local municipal permit approvals?
When importing pallet racking systems into North America, the European Union, Australia, or the Middle East, municipal building departments require comprehensive structural calculations for seismic and live loads. HEDA Shelves provides complete engineering documentation packages including AutoCAD floor plans, cross-sectional elevations, joint stiffness calculations, and anchor embedment requirements. These packages are delivered with both metric and imperial units (lbs, ft, in), enabling your local licensed Professional Engineer (PE) or Engineer of Record (EOR) to verify and apply their structural engineering stamp rapidly.
How do you prevent shipping damage and optimize container fill rates for ocean freight?
Structural steel components are vulnerable to transit friction, salt-spray corrosion, and container weight imbalances. HEDA operates a dedicated container-loading engineering desk. Upright frames are systematically nested, banded with heavy polyester/steel strapping, and isolated with high-density EPE foam and corner protectors. Beams are stacked in custom wooden crating jigs configured precisely to the interior clear dimensions of 40-foot High Cube (40HQ) maritime containers. A standard 40HQ container comfortably accommodates 22 to 26 metric tons of pallet racking components without shifting during ocean transit.
What is the standard manufacturing lead time for full container load (FCL) orders?
For standard selective pallet racking and teardrop configurations, our production lead time is typically 15 to 20 business days from approved CAD shop drawings. For complex engineered systems involving automated radio shuttle tracks, gravity roller beds, or structural steel mezzanine platforms, lead times generally range from 25 to 30 business days. Expedited production slots are available for fast-track warehouse fit-outs requiring staged container rollouts.
Can HEDA customize beam lengths and frame depths to match existing racking systems?
Yes. As a factory-direct OEM/ODM manufacturer, we engineer custom roll-forming tooling and stamping profiles. Whether your existing facility utilizes American teardrop racking (compatible with 2-inch pin spacing), European 50mm / 75mm pitch connectors, or Australian box-beam configurations, our technical engineering team fabricates components that match your existing frame depths (e.g., 36", 42", 48" or 1000mm, 1100mm) and beam length profiles seamlessly.
How do you verify weld integrity and powder coating adhesion?
Quality assurance at HEDA Shelves is managed under certified ISO 9001:2015 protocols. Welded beam end-connectors undergo regular destructive weld shear testing and non-destructive magnetic particle inspection. Finished powder-coated steel undergoes cross-hatch adhesion testing (ASTM D3359), impact resistance testing, and continuous neutral salt spray exposure tests (ASTM B117) exceeding 500 hours to ensure corrosion resistance in humid or cold-storage environments.
What information is needed to receive a complete CAD design and quote?
To receive a verified structural design and itemized quotation within 24 hours, our engineering department requires: (1) Architectural warehouse CAD drawing or building dimensions with clear ceiling height; (2) Pallet dimensions (Width x Depth x Height, including product overhang); (3) Maximum weight per loaded pallet position; (4) Forklift model, maximum lifting height, and minimum aisle turning radius (AST); and (5) Facility ambient temperature profile and local seismic design category.
