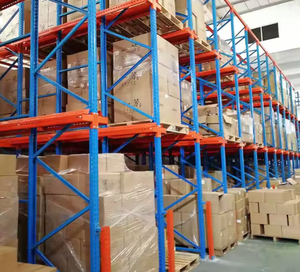

Featured Pallet Flow & Gravity Storage Systems
Factory-direct OEM/ODM modular racking engineered for maximum volumetric density and high-throughput FIFO logic.
Enterprise Profile: China's Premier Pallet Flow System Manufacturer
In modern industrial logistics, maximizing volumetric cube utilization while strict adherence to First-In, First-Out (FIFO) stock rotation is the cornerstone of operational profitability. As leading racking engineering pioneers based in Guangzhou, China, Guangzhou Heda Shelves Co., Ltd. (operating over 323,000 sq ft of automated manufacturing space) delivers heavy-duty gravity pallet flow solutions engineered to rigorous international standards including ISO 9001:2015, CE Certification, and ANSI/RMI MH16.1 specifications.
30,000 Ton Monthly Capacity
Equipped with high-precision CNC roll-forming machinery, robotic MIG welding cells, and continuous electrostatic powder-coating lines utilizing certified Q235B structural cold-rolled steel.
Certified Structural Integrity
Every beam profile, incline brake assembly, and roller axle undergoes rigorous static deflection and dynamic impact load testing to guarantee absolute zero-failure reliability under maximum capacity.
Custom Engineering & CAD/3D
Our in-house structural engineers return full imperial and metric CAD floor plans, FEA stress analyses, and 3D clearance renderings within 24 hours of receiving site parameters.
Engineering Physics & Mechanics of Pallet Flow Racking
A Pallet Flow System (also known as Gravity Flow Racking) operates on an unpowered dynamic principle that utilizes gravitational potential energy combined with mechanical braking controls. By mounting inclined roller tracks on a pre-calculated gradient—typically 3/8 inch to 1/2 inch per linear foot (approx. 3% to 4% slope)—pallets automatically glide from the loading/rear face to the picking/front face.
Critical Mechanical Subsystems Engineeered by HEDA Shelves
- Indirect & Direct Centrifugal Speed Controllers: To prevent runaway pallets, internal centrifugal brake rollers automatically engage when pallet velocity exceeds 0.3 m/s, maintaining a controlled, steady descent speed regardless of load weights ranging from 300 kg to 1,500 kg per pallet.
- Safety Pallet Separator Latches: Positioned at the discharge picking face, mechanical separator mechanisms physically hold back trailing pallets by 6 to 8 inches. This removes line pressure (back pressure) from the lead pallet, allowing forklifts to extract pallets cleanly without dangerous friction or hang-ups.

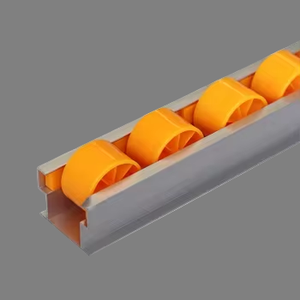

- Heavy-Duty Steel & Polyurethane Rollers: Formed with high-grade precision ball bearings and dust-proof seals, our roller options feature custom-molded polyurethane coatings or zinc-plated carbon steel shafts designed to withstand extreme cold chain environments down to -30°C.
- Self-Centering Entry Guides: Flared entry rails at the loading face automatically align off-center pallets before they enter the lane, eliminating track derailment and rack beam structural impact.
Comparative Technical Matrix: Pallet Flow vs. High-Density Alternatives
Selecting the optimal warehouse storage architecture requires balancing pallet density, SKU selectivity, inventory throughput speeds, and initial capital expenditure (CAPEX).
| Storage System Type | Inventory Logic | Floor Space Utilization | Throughput Speed | Selectivity Level | CAPEX per Pallet Position |
|---|---|---|---|---|---|
| Pallet Flow (Gravity) | Strict FIFO | 85% – 90% (Maximum) | High (Dedicated aisles) | Medium (1 SKU per lane) | Moderate – High |
| Selective Pallet Rack | FIFO / LIFO | 35% – 40% (Low) | High (Direct access) | 100% (Every pallet) | Low |
| Drive-In Racking | Strict LIFO | 70% – 75% (High) | Low (Forklift inside rack) | Low (Bulk SKUs) | Low – Moderate |
| Push Back Racking | Strict LIFO | 70% – 80% (High) | Moderate | Medium (2–6 deep) | Moderate |
| Radio Shuttle Racking | FIFO / LIFO | 80% – 88% (Maximum) | High (Semi-Automated) | Medium – High | High (Motorized) |
Future Procurement & Engineering Trends in Gravity Flow Systems
1. AMR and AGV Guided Integration
As distribution centers transition toward full warehouse automation, Pallet Flow lanes are increasingly engineered with optical sensor brackets, magnetic positioners, and custom entry guides tailored for Autonomous Mobile Robots (AMRs) and Automated Guided Vehicles (AGVs). China factories are leading the development of zero-tolerance pick faces that guarantee exact pallet alignment for robotic clamp pickers.
2. IoT-Enabled Brake & Roller Monitoring
The next generation of high-density gravity flow incorporates smart kinetic rollers embedded with Bluetooth and vibration sensors. These micro-sensors monitor rotational speed, thermal buildup in freezer applications, and mechanical wear, alerting maintenance teams to potential roller jams before operational downtime occurs.
3. Low-Carbon Eco-Coated Rollers
Global ESG mandates require suppliers to reduce carbon footprints throughout the steel supply chain. Leading Chinese manufacturers now utilize energy-efficient cold-rolling processes, fully recyclable thermoplastic polymer rollers, and lead-free powder coatings that eliminate volatile organic compounds (VOCs) while extending salt-spray corrosion resistance past 500 hours.
4. Modular Global Supply Chain Packaging
To combat rising international ocean freight costs, forward-thinking China suppliers engineer pre-assembled, modular roller cassette tracks. These compact cassette modules stack perfectly inside standard 40ft High Cube containers, maximizing shipping density and reducing overseas job-site installation labor by over 40%.
Frequently Asked Questions: Procurement & Importing Guide
Key technical and commercial answers for logistics directors, project engineers, and supply chain managers.
Why source Pallet Flow Racking directly from Chinese factories?
Sourcing directly from top-tier Chinese racking manufacturers like HEDA Shelves delivers significant financial and technical advantages. China accounts for world-leading steel production capacity and refined supply chains. Buyers gain access to high-grade Q235B cold-rolled structural steel, factory-direct OEM pricing (typically saving 25% to 40% compared to Western integrators), and fully customized design parameters without paying extreme tooling premiums.
How do you calculate the correct incline gradient (pitch) for gravity tracks?
The standard mathematical pitch for heavy-duty pallet flow tracks ranges between 3.5% and 4.0% incline (approximately 3/8" to 1/2" drop per linear foot). However, the precise pitch depends on pallet bottom construction (e.g., 2-way vs 4-way entry GMA pallets, Euro pallets, or plastic pallets), bottom board orientation, total load weight variation, and operating ambient temperature. Our engineering department conducts physical roll tests with customer pallet samples before mass manufacturing.
Can Pallet Flow Systems operate reliably in Cold Storage and Deep Freezers?
Yes. Gravity flow systems are ideal for high-density cold chain warehouses because they maximize expensive refrigerated volume. For sub-zero operations (down to -30°C), HEDA Shelves equips flow lanes with special low-temperature synthetic lubricants, anti-freeze brake internal grease, stainless steel roller bearings, and specialized cold-resistant polyurethane wheels that will not crack or flatten under static pressure.
What happens if a pallet damaged or spluted wood enters the flow lane?
Damaged wooden pallets with broken bottom runners or dangling splinters can cause jams in standard roller lanes. To mitigate this risk, our systems feature full-width steel rollers rather than narrow twin-track wheels, along with entry-face inspection guides. Furthermore, we recommend equipping flow racks with wire mesh secondary safety screening or under-lane catch pans to prevent debris from falling to lower tiers.
How does HEDA Shelves ensure structural seismic compliance for US/EU imports?
Our structural engineering team utilizes advanced Finite Element Analysis (FEA) software to design rack frames, baseplates, and anchor bolt patterns compliant with regional building codes, including RMI (Rack Manufacturers Institute) specs for North America and FEM 10.2.02 for European markets. Detailed engineering calculation packages are provided so your local Engineer of Record (EOR) can stamp project permits seamlessly.
What is the typical manufacturing lead time and ocean shipping container setup?
Standard factory manufacturing lead time is 20 to 30 days following approval of CAD approval drawings. All racking upright frames, beams, and pre-assembled roller tracks are securely bundled using steel strapping, edge protectors, and waterproof plastic shrink wrap. Components are packed to maximize container floor space and cubic volume, fitting up to 22,000 kg of structural steel per 40ft HQ container.
What warranty and quality control documentation is supplied?
Every shipment includes mill test certificates (MTC) proving steel chemistry and yield strength, powder coating thickness test logs, static load deflection test reports, and an official 5-year structural warranty certificate. Replacement brake rollers and mechanical latches are provided in spare parts kits shipped inside every project container.
How do I request an engineering proposal and landed quotation?
Simply click the "Get a Quote" button on this page. To accelerate your layout design, please share your building CAD drawing or floor dimensions, clear ceiling height, pallet dimensions (W x D x H including load), minimum/maximum pallet weight, number of SKUs, and target storage capacity. Our technical sales team responds within 24 hours with an initial CAD layout and itemized price breakdown.
Why Partner with Guangzhou Heda Shelves Co., Ltd.?
Founded in 2001, Guangzhou Heda Shelves Co., Ltd. has grown into a world-class racking authority serving customers across North America, Europe, Southeast Asia, Australia, and the Middle East. Located in Haizhu District, Guangzhou, our facility combines robust manufacturing scale with attentive engineering support.
End-to-End One-Stop Service
From initial site survey analysis and structural engineering calculation to factory production, international customs clearance, and global installation supervision, we handle every link in the supply chain.
Strict Quality Management
Certified under ISO 9001:2015 and CE quality standards. All structural welds are 100% inspected, and structural uprights undergo automated multi-stage pickling, phosphating, and powder curing.
Optimize Your Warehouse Density Today
Transform your storage facility with factory-direct gravity flow racking. Contact our senior engineering team now to receive a free CAD floor plan layout and custom factory quote within 24 hours.
