Engineering Whitepaper Analysis
Physics, Dynamics, and Kinematic Control in Gravity Pallet Flow Racking

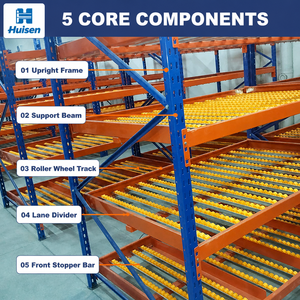

In modern high-velocity fulfillment facilities, Flow-Through Pallet Racking (frequently designated as Gravity Flow or Dynamic Pallet Racking) represents the pinnacle of compact density and strict first-in, first-out (FIFO) product discipline. Unlike static selective configurations requiring up to 60% of floor space reserved exclusively for truck transit aisles, flow-through architectures rely on inclined structural roller beds (typically set at a controlled slope of 3% to 4%) leveraging natural gravitational forces to slide full unit loads from the rear replenishment charging aisle down to the active retrieval picking face.
From an applied materials science perspective, the operational viability of deep-lane gravity flow (accommodating up to 20 or more pallets in depth) hinges upon three critical physical assemblies: centrifugal speed controller brakes, balanced roller configurations, and mechanical separation stop separators. Without calibrated brake drums integrated directly into the roller tracks, accelerating pallet momentum presents catastrophic collision threats to racking upright columns and forklift operators at the exit threshold.
| Kinematic Parameter | Standard Pallet Flow Track | Heavy-Duty Industrial Brake Flow | Full-Width Steel Rollers (Freezer Grade) |
|---|---|---|---|
| Recommended Slope Angle | 3.0% – 3.5% (approx. 3/8" per foot) | 3.5% – 4.0% (variable pitch) | 3.8% – 4.5% (compensating for low-temp oil drag) |
| Load Rating Per Position | 500 – 1,000 kg (1,100 – 2,200 lbs) | 1,000 – 1,500 kg (2,200 – 3,300 lbs) | Up to 2,000 kg per pallet (drum/liquid containment) |
| Speed Braking Control | Every 2nd pallet position | Every single pallet position | High-torque silicone-sealed centrifugal brakes |
| Pallet Deflection Tolerance | < L/200 (wood or plastic) | < L/300 (structural runners required) | Rigid steel frame / reinforced GMA runners |
As China's leading manufacturing authority in high-density intralogistics storage systems, Guangzhou Heda Shelves leverages over 25 years of structural roll-forming expertise to calculate exact section moduli, buckling loads, and kinetic energy dissipation rates. Whether executing projects for ambient consumer goods or -30°C deep freeze logistics hubs, our factory-direct engineering ensures fail-safe operational longevity under relentless 24/7 duty cycles.
Strategic Procurement Horizons
Future Procurement & Technological Trends in Pallet Flow Systems
How automated guided vehicles (AGVs), digital twin load monitoring, and climate-neutral steel procurement are reshaping warehouse storage investment through 2030.
AGV & AMR Integration-Ready Pick Faces
Global supply chain managers are transitioning from manual counterbalanced forklifts to autonomous reaching trucks. Modern flow racking must incorporate precision photo-electric dock interlocks, millimeter-accurate entry guides, and automatic backstop releases to prevent AMR mechanical clutching failures.
Standardized GMA & Euro Cross-Compatibility
Procurement teams increasingly demand split-roller universal beds that effortlessly handle standard 48"x40" North American GMA pallets, 1200x800mm Euro pallets, and plastic perimeter-base pallets across identical lanes without jamming or runner fracturing.
Embedded IoT Kinetic Status Sensors
The rise of warehouse execution systems (WES) necessitates smart racking. Next-generation flow beds integrate self-powered piezoelectric rotation monitors that notify operators in real time if a lane exhibits speed-brake wear, cold-temperature grease thickening, or pallet blockages.
Enterprise Manufacturing Advantage
Guangzhou Heda Shelves Co., Ltd. — Engineering Precision Since 2001
With an expansive 30,000 square meter (323,000+ sq ft) production campus and a high-yield capacity reaching 30,000 metric tons of processed structural steel monthly, HEDA Shelves delivers turn-key dynamic warehouse engineering. Our vertically integrated facility executes every phase: from cold-roll coil slitting and automated CNC column punching to chemical pickling, anti-corrosive phosphating, and state-of-the-art electrostatic powder coating.
ISO 9001:2015 Cert. #18624Q00169R0M
CE Marking #2435-CPR-8605159
ANSI MH16.1 & RMI Compatible Engineering
Direct Mill Pricing
Request a Free 24-Hour Layout & Engineering Calculation
Send your building dimensions, clear ceiling heights, and pallet specifications. Our engineers generate full 3D CAD plans and itemized landed quotations.
Send an Inquiry2001
Established in Guangzhou
30,000t
Monthly Steel Output
10,000+
Global Projects Completed
323Kft²
Manufacturing Campus
Procurement Knowledge Base
Frequently Asked Questions: Sourcing Flow Racking from China
In-depth answers addressing structural engineering, international seismic compliance, roller bed selection, and maritime freight logistics.
How does HEDA ensure pallet flow safety on deep-lane 15+ pallet runs?
For deep-lane gravity configurations, kinetic acceleration poses substantial collision risks. We engineer multi-stage centrifugal speed-controllers spaced every pallet length along the lane. These internal planetary gear brakes engage friction pads proportionately to rotational speed, capping terminal pallet descent at an OSHA-compliant 0.25 to 0.3 meters per second. Additionally, our patented mechanical end-stop separators isolate the front-most pick pallet from the rear line pressure, ensuring forklift operators can extract pallets effortlessly without binding.
Can your structural designs accommodate both imperial (lbs/ft) and metric specs?
Yes. Over 40% of our export fabrication serves logistics operations across the United States, Canada, and Mexico. Our engineering division prepares structural calculations, beam deflection tables (< L/180 or L/240), and CAD shop drawings completely formatted in Imperial dimensions (inches, feet, pounds per pair of beams) as well as SI Metric units. This eliminates conversion ambiguity for local project engineers, general contractors, and permit review bodies.
What steel grades and anti-corrosion treatments are deployed for cold chain storage?
For sub-zero cold chain and freezer facilities (operating down to -30°C / -22°F), standard carbon steels become brittle. We utilize certified Q235B and high-yield Q355B hot-rolled micro-alloyed steel coils exhibiting tested Charpy V-notch impact toughness at low temperatures. Racking components undergo a ten-step surface treatment finishing with a 70–90 micron electrostatic thermosetting polyester powder coat that resists cracking, chipping, and condensation rust under cyclic defrost conditions.
How are pallet flow racks packed to prevent maritime shipping damage in 40ft HQ containers?
Heavy upright frames are bundled with customized protective timber saddles, while beam packs are isolated with corrugated buffers and steel strapping tensioned to prevent shifting during ocean transit. Roller tracks and sensitive speed-retarder assemblies are pre-assembled into modular rail cassettes, moisture-sealed with vapor-corrosion-inhibitor (VCI) shrink wrap, and packed into reinforced wooden crates to ensure plug-and-play installation upon destination site unboxing.
What are the critical pallet criteria required for successful gravity flow operations?
Pallet quality is paramount in flow racking. Cracked bottom runners, protruding nails, or warped deck boards can cause hang-ups midway down an enclosed lane. We recommend standard GMA grade ‘A’ hardwood pallets or heavy-duty perimeter-base rackable plastic pallets. When dealing with mixed fleets or soft wooden pallets prone to sagging under sustained loads (> L/200 deflection), our team specifies three-rail continuous full-width steel roller assemblies rather than segmented polycarbonate skate-wheels.
Does HEDA supply engineer-stamped calculations for city building and seismic permits?
While municipal permit approvals ultimately require the physical wet stamp or digital signature of a locally licensed Professional Engineer (PE) or SE of Record within your state or province, HEDA Shelves provides comprehensive engineering packages. These include 3D structural frame analyses, anchor bolt shear/pullout values, baseplate moment capacities, and dead/live load design certifications compliant with RMI (Rack Manufacturers Institute) MH16.1 standards to facilitate rapid PE review.
