High-Throughput Aisle & High-Density Storage Racks
Engineered from premium Q235B/Q355B cold-rolled structural steel, batch-tested to RMI and FEM 10.2.02 deflection limits, optimized for North American GMA pallets and global container shipping.
High Capacity Steel Stacking Racks (3-Layer Heavy-Duty)
- 1,500 kg/Tier
- Stackable 4-High
- Modular Posts
Industrial Steel Gravity Flow Roller Racking (FIFO Carton Flow)
- Smooth Roller Bed
- Strict FIFO Flow
- High-Density Pick

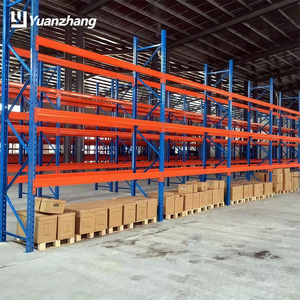

YZ Adjustable Multi-Layer Heavy Industrial Pallet Rack Shelves
- 75mm Pitch Adjust
- Up to 4,000 kg/Level
- Powder Coated
Industrial Stacking Nestainer Pallet Racks (Inverted-Nest)
- Bulk Bulk-Cargo
- Space-Saving Nesting
- Q235 Tubing
MDF Heavy Industrial Multi-Functional Wall Racking & Shelves
- Reinforced Brackets
- High-Density Board
- Parts Storage
Custom FIFO Gravity Pallet Flow Racks (Braked Roller Lane)
- Centrifugal Brakes
- End-Stop Separator
- Up to 25 Pallets Deep
Modular Gravity Track Carton & Pallet Flow Racking System
- Aluminum Skate Wheels
- Split Lane Guides
- High Throughput
Heavy Duty Selective Steel Q235 Pallet Racking System
- 100% Selectivity
- Tear-Drop / Diamond
- 48″×40″ GMA Ready
Engineering Excellence & Sourcing Benchmark for China Aisle Racking
In modern supply chain architecture, modern distribution centers face acute structural inflation: skyrocketing real estate acquisition costs per square foot, unprecedented SKU diversification fueled by omnichannel commerce, and relentless labor velocity demands. In response, modern logistics engineering has pivoted from horizontal footprint expansion to high-density vertical exploitation. As supply chain directors, industrial architects, and 3PL procurement specialists look to the international supply ecosystem, identifying top-tier China aisle racking manufacturers and factories has evolved beyond simple unit-price comparison into an exacting audit of metallurgical purity, automated roll-forming tolerances, structural finite element modeling (FEM), and end-to-end supply chain traceability.
Chinese manufacturing hubs—specifically within the specialized industrial belts of Guangdong (Guangzhou, Foshan, Dongguan) and Jiangsu/Zhejiang—possess unprecedented vertical integration. Tier-1 producers integrate cold-rolled steel slitting, precision CNC multi-station column punching, progressive roll profiling, automated robotic welding, multi-stage pre-treatment chemical phosphating, and electrostatic powder coating in a continuous, automated workflow. However, distinguishing an actual structural manufacturer from an export broker is paramount. Authentic industry leaders maintain dedicated structural R&D engineering offices capable of issuing peer-reviewed calculation packages verified against both American ANSI MH16.1 / RMI standards and European EN 15512 / FEM 10.2.02 guidelines.
Aisle Geometry Classification & Operational Physics
Aisle racking systems are fundamentally defined by the physical spatial envelope required for material handling equipment (MHE) navigation versus volumetric storage efficiency. The dimensional allocation of clear aisle widths directly impacts floor space utilization, equipment capital expenditure, and cycle times:
| Aisle Racking Configuration | Clear Aisle Width (ft / mm) | Required MHE Typology | Floor Space Efficiency | Direct Selectivity | Primary Industrial Application |
|---|---|---|---|---|---|
| Wide Aisle (Standard Selective) | 11.5 – 13.0 ft (3.5 – 4.0 m) | Counterbalance Forklift (Sit-down) | 35% – 40% | 100% Single Pallet | Low-throughput DCs, fast SKU turnover, variable pallet sizes |
| Narrow Aisle (Reach System) | 8.5 – 10.0 ft (2.6 – 3.0 m) | Pantograph Reach Truck / Stand-up | 45% – 52% | 100% Single Pallet | General retail distribution, e-commerce fulfillment hubs |
| Very Narrow Aisle (VNA) | 5.2 – 6.2 ft (1.6 – 1.9 m) | VNA Turret Truck / Order Picker (Wire/Rail Guided) | 60% – 70% | 100% Single Pallet | High clear-height DCs (up to 18m), pharmaceuticals, high-density SKU |
| Drive-In / Drive-Through | Continuous Lane Cavity | Counterbalance / Reach (Restricted cab) | 70% – 80% | LIFO / FIFO by Lane | Cold storage freezers, bulk beverage, seasonal batch staging |
| Deep-Lane Radio Shuttle | Working Transfer Aisle Only | Autonomous Shuttle Car + Standard Forklift | 80% – 88% | Automated Batch FIFO/LIFO | Sub-zero cold chain, automotive buffers, FMCG massive batch storage |
Future Sourcing & Procurement Trends: Navigating 2026–2030
The procurement playbook for industrial racking systems is undergoing profound structural shifts. Sourcing professionals are moving away from tactical transaction purchasing toward integrated life-cycle risk mitigation. The following macro procurement trends dominate the strategic roadmap of international buyers engaging with top Chinese manufacturing partners:
Landed TCO vs. Ex-Factory Arbitrage
Savvy logistics buyers prioritize Total Cost of Ownership (TCO). Procurement models now integrate mill-test certifications, robotic powder coating micron thickness (ensuring 600+ hours salt spray performance), precise beam-box nest packing to hit maximum 40HQ container cube weight limits (26,000+ kg), and standardized component labeling that reduces on-site mechanical installation labor by up to 28% in high-wage destinations like the United States, Canada, and Europe.
Seismic Micro-Zoning & PE Stamping
Regulatory enforcement regarding warehouse seismic safety has accelerated across North American IBC/UBC zones and European Eurocode 3/8 jurisdictions. Racking procurement from China now requires full pre-engineered finite element calculations, cold-formed design stress analysis under cyclic dynamic load, and certified chemical/physical mechanical properties of Q235B and high-yield Q355B coil stock to enable rapid structural PE stamping by local licensed engineers.
AMR / AGV Intralogistics Interoperability
Racking is no longer static metal; it is the physical framework for warehouse robotics. Top Chinese factories are redesigning bottom-tier elevations, baseplate footings, clear span deflection profiles, and run-spacer geometries to accommodate Autonomous Mobile Robots (AMRs), automated guided reach trucks, pallet lifters, and vision-guidance fiducial markers directly onto upright frames.
Technological Evolutions in Racking Manufacturing
Technologically, the aisle racking industry in China is actively adopting continuous automated roll-forming equipment featuring 24-to-32 roll pass sequences. This incremental cold-bending technique eliminates residual inner material stress, generating upright profiles with extreme sectional modulus rigidity. Welded beam end connectors now leverage multi-claw interlocking hooks (3-claw, 4-claw, and 5-claw configurations) engineered with robotic gas metal arc welding (GMAW), ensuring penetration consistency impossible to achieve with manual torch welding. Furthermore, pre-treatment processes have moved from outdated manual chemical baths to continuous automated phosphating and silane conversion coating lines, dramatically elevating powder adherence and eliminating delamination risks even in demanding sub-zero cold chain environments down to -30°C (-22°F).
Guangzhou HEDA Shelves: Tier-1 Manufacturing Capabilities
Established in 2001, Guangzhou Heda Shelves Co., Ltd. stands as a premier benchmark for China's modern warehouse storage fabrication industry. Headquartered in Guangzhou with state-of-the-art production facilities spanning over 30,000 square meters (approx. 323,000 sq ft), Heda Shelves operates over 20 dedicated automated roll-forming and powder-coating lines. Supported by more than 300 skilled technical personnel, structural calculation engineers, and dedicated international project managers, our manufacturing infrastructure produces an extraordinary 30,000 metric tons of precision structural steel storage racking per month.
For international distributors, 3PL providers, and major corporate facilities throughout the United States, Canada, Europe, and Latin America, HEDA operates as an integrated manufacturing partner providing turn-key engineering accountability. We supply imperial drawings (dimensions in feet/inches and load capacities in pounds), detailed structural calculation books ready for professional engineer (PE) seismic review, customized bundle packaging optimized for ocean freight shipping, and end-to-end OEM/ODM brand manufacturing for regional integrators.
ISO 9001:2015 Certified
Certificate 18624Q00169R0M verifying end-to-end quality management from coil reception to final container loading.
CE Certified (EN 15512)
Compliance certificate No. 2435-CPR-8605159 confirming construction product structural integrity for high-bay installations.
RoHS Chemical Safety
Powder coatings and surface pretreatments 100% free of lead, cadmium, hexavalent chromium, and hazardous VOCs.
24h Turnaround CAD/3D
In-house structural engineering team delivers complete plan layouts, elevations, and 3D warehouse simulations in 24 hours.
Frequently Asked Questions: Sourcing Aisle Racking from China
Below are technical, logistical, and commercial answers compiled by our chief structural engineers to address the most critical questions encountered by procurement professionals importing industrial warehouse racking systems:
