Featured Industrial Racking & High-Density Storage Systems
Direct from our 323,000 sq ft manufacturing plant. Precision roll-formed, robotic weld-inspected, and electrostatic powder-coated structural racking configurations engineered to maximize vertical cubic footprint and minimize pallet handling cycle times.
ASRS / Sheet Metal
Automated Sheet Metal Drawer Retrieval System
- Capacity: 1,000kg - 5,000kg / drawer
- Control: PLC Motorized Electric Roll-out
- Application: Laser sheet loading & heavy dies
Industrial Shelving
5-Layer Adjustable Longspan Steel Storage Rack
- Capacity: 200kg - 800kg Uniform Level
- Pitch Adjustment: 50mm Butterfly Hole
- Finish: AkzoNobel Epoxy Powder Coating
Heavy Duty Pallet
Heavy-Duty Selective Pallet Racking System
- Capacity: Up to 5,000kg (11,000 lbs) / Tier
- Steel Grade: Certified Q355B / S355 Cold Rolled
- Selectivity: 100% Immediate Pallet Accessibility
Dynamic High-Density
Heavy-Duty Push-Back Cart Pallet Racking
- Storage Density: 2 to 6 Pallets Deep / Lane
- System Capacity: Up to 30,000kg Bay Weight
- Rotation: LIFO High-Speed Pallet Feeding
CNC Manufacturing
Huamai AI Intelligent High-Power Fiber Laser Cutter
- Application: Precision Racking Upright Slitting
- Laser Source: 6,000W - 20,000W High Speed
- Tolerance: Micron-level beam connector joints
Boltless Rivet
5-Tier Heavy Duty Boltless Rivet Shelving System
- Load Rating: 150kg - 300kg / Uniform Level
- Assembly: 100% Nut & Bolt Free Interlock
- Decking: E1 Structural MDF or Steel Deck
Modular Stacking
Heavy-Duty Foldable Steel Pallet Stacking Frame
- Stacking Height: Up to 4-5 Tiers Fully Loaded
- Handling: 4-Way Forklift Entry Base Channels
- Space Saving: 80% Volume Collapse on Return
Commercial Steel

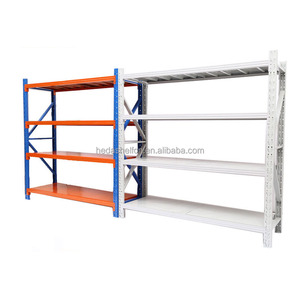

Industrial 4-Tier Heavy Boltless Storage Rack
- Capacity: 300kg - 500kg Heavy Point Load
- Corrosion Shield: Multi-stage Zinc Phosphating
- Config: Modular Starter + Add-on Integration
Industrial Storage Typology Breakdown: Mechanical & Operational Evaluation
Selecting an industrial warehouse storage matrix requires a multidimensional engineering balance between SKU diversification, storage density, vertical clear-height cube utilization, pick frequency, and capital expenditure amortization.
1. Selective Pallet Racking
The structural benchmark across global supply chains. Selective racking guarantees direct, unhindered 100% pallet selectivity to all stored SKUs at any given second. Sized to match standard GMA 48"x40", EUR 1200x800mm, and industrial containers, this system minimizes forklift travel time and operator cycle latency. Configured either as single-reach aisles (3.2m to 3.8m for counterbalance trucks) or Very Narrow Aisle (VNA) designs (1.6m to 1.9m with wire-guided turret trucks) utilizing building heights beyond 15 meters.
2. Drive-In & Drive-Through Racking
Engineered for extreme volumetric compression, drive-in systems eliminate individual operating aisles by creating continuous multi-tier cantilevered pallet support rails. Forklifts drive physically into deep structural bays (up to 10+ pallets deep). Best suited for high-volume, low-SKU manufacturing profiles operating under LIFO (Last-In, First-Out) or double-sided FIFO (Drive-Through) protocols. Ideal for blast freezers, cold chain warehouses, and raw material buffer facilities where temperature maintenance costs necessitate minimal cubic waste.
3. Radio Shuttle & Semi-Automated AS/RS
The next-generation standard bridging static steelwork and fully automated logistics. Independent, battery-powered radio shuttles traverse internal high-precision galvanized guide rails, lifting, transporting, and depositing unit pallets deep within internal tunnels without truck entry. This structural separation eliminates 95% of accidental forklift upright impacts, permits tunnel depths exceeding 40 meters, speeds batch processing by 400%, and integrates seamlessly with warehouse management systems (WMS) via industrial Wi-Fi.
4. Dynamic Gravity Pallet Flow
Designed strictly for strict FIFO rotation of date-sensitive perishable goods, pharmaceuticals, and high-velocity fast-moving consumer goods (FMCG). Heavy-duty zinc-plated steel roller beds inclined at a calculated 3% to 4% grade convey pallets smoothly from the loading facade to the discharge pick face utilizing natural gravity. Integrated centrifugal speed governors control rolling momentum regardless of pallet mass, while spring-loaded separation brakes prevent forward pallet crushing during unloading.
5. Push-Back Cart Racking Systems
Dynamic deep-lane LIFO storage without requiring forklifts to enter structural uprights. Pallets are staged on a series of nested, telescoping structural steel rolling carts riding on inclined structural channel tracks. When loading, the operator uses the incoming pallet to push back previously stored carts. When extracting, gravitational descent gently advances back carts to the front unload station. Provides 2 to 6 pallet positions deep per level with individual SKU access at every single vertical beam level.
6. Structural Cantilever & Mezzanines
Specialized solutions for non-palletized and extended payloads. Cantilever racks feature robust vertical structural columns and free-standing horizontal arms capable of bearing individual point loads up to 5,000kg without front column obstruction—the quintessential engineering solution for structural steel piping, lumber, bar stock, and extrusion packs. Concurrently, rack-supported and structural steel mezzanines double or triple floor square footage by turning overhead air space into multi-level pick modules.
Racking System Performance & Specification Index
Evaluate operational trade-offs across capital expense, storage volumetric density, forklift requirements, and inventory turnover kinetics before releasing RFQ documentation.
| Racking Architecture | Pallet Selectivity | Density Rating | Stock Rotation | Aisle Clearance Required | Forklift Compatibility | Primary Industrial Sector |
|---|---|---|---|---|---|---|
| Selective Standard | 100% Direct | Baseline (40-50%) | FIFO or LIFO | 3.0m - 3.8m Standard | Counterbalance, Reach | 3PL, Multi-SKU E-Commerce, Retail DCs |
| Very Narrow Aisle (VNA) | 100% Direct | High (65-75%) | FIFO or LIFO | 1.6m - 1.9m Narrow | VNA Wire-Guided Turret | High-Ceiling Logistics Parks, Central Hubs |
| Drive-In / Drive-Thru | Low (<15% Lane) | Very High (75-85%) | LIFO (Drive-In) / FIFO | Internal Drive Lanes | Standard Reach / Counterbalance | Cold Storage Freezers, Beverage Bulk Bottling |
| Push-Back (2-6 Deep) | Moderate (Per Lane) | High (70-75%) | Strict LIFO | 2.8m - 3.2m Standard | Standard Counterbalance, Reach | Wholesale Distribution, Cold Staging, Chemicals |
| Gravity Pallet Flow | Pick-Face Dedicated | Extremely High (85%) | Strict FIFO | Separate Load / Pick Aisles | Counterbalance, Reach | Pharmaceuticals, Perishable Foods, Dairy |
| Radio Shuttle Automation | Lane End Selectivity | Maximum (>85%) | FIFO or LIFO Flexible | Transfer Cross-Aisle Only | Any Standard Lift Truck | Deep Freeze (-30°C), High-Throughput Buffers |
| Cantilever Systems | 100% Lineal Face | Tailored to Length | Random Access | 4.0m - 5.5m Wide | Side Loader, Multi-directional | Structural Steel, Extrusions, Timber, Piping |
CE Certification & International Structural Calculation Standards
Industrial racking is not merely warehouse shelving—it is a heavy-load, life-safety-critical steel structure. Exporting to the European Union, the United States, and Australasia mandates verified engineering compliance with rigid statutory structural directives.
EN 15512: European Limit State Design
Our steel racking systems are fully validated under EN 15512 (Steel static storage systems – Adjustable pallet racking systems – Principles for structural design). Unlike obsolete elastic stress models, limit state structural analysis accounts for thin-walled cold-formed steel section buckling, torsional warping, perforation pattern reduction coefficients, and beam-to-column connector semi-rigidity rotational stiffness testing.
CE Marking Directive 305/2011/EU (CPR)
Under Notified Body Factory Production Control (FPC) surveillance, our facility holds valid CE Marking certificate 2435-CPR-8605159 conforming to harmonized structural steel execution standards (EN 1090-1 / EN 1090-2 Execution Class EXC2). Every exported consignment ships with a certified Declaration of Performance (DoP), structural 3.1 chemical & physical mill test certificates, and non-destructive welding inspection reports.
Seismic Qualification & Safe Working Deflection
Designs comply strictly with EN 16681 seismic dynamic response spectrum calculations and US RMI (Rack Manufacturers Institute) ANSI MH16.1 specifications. Maximum horizontal sway and beam mid-span vertical deflections are limited strictly to L/200 under maximal design load combinations (1.4 Dead Load + 1.5 Live Load), guaranteeing structural stability during active seismic events, accidental forklift kinetic snags, or floor slab settling.
Future Procurement Trends in Industrial Storage & Material Handling
Warehouse logistics is navigating an aggressive transition toward full electrification, robotic mobility, and autonomous fulfillment. Industrial buyers must anticipate technological trajectories to future-proof their capital investments.
1. AMR & AGV Floor Synergy
Pallet racks are increasingly designed with open bottom-level ground clearances and recessed floor-channel bracing to allow Autonomous Mobile Robots (AMRs) to traverse underneath structural bays for rapid tote handling, case-picking, and automated pallet transport without human forklift traffic.
2. High-Yield Micro-Alloy Steel
Procurement is shifting away from standard commercial carbon steel toward structural grades like Q355B, S355MC, and Domex high-strength micro-alloy sheets. These materials deliver 40% superior tensile yield strength, cutting total racking deadweight while expanding dynamic bay load envelopes.
3. Sub-Zero Cold Chain Coatings
Surging cold chain investments necessitate specialized anti-embrittlement zinc-aluminum-magnesium (ZAM) hot-dip formulations and low-temperature elastic powder coatings that resist condensation micro-fracturing and structural peeling down to -35°C freezer environments.
4. Modular TCO & Circular Demountability
Corporate buyers now evaluate Total Cost of Ownership (TCO) based on lifecycle demountability, reconfiguration flexibility, and global resale liquidation values. Boltless connector brackets, modular column splice joints, and interchangeable beam clips safeguard warehouse asset versatility.
Guangzhou HEDA Shelves Co., Ltd. – Manufacturing Authority Since 2001
With over 25 years of specialized mechanical expertise in industrial warehouse racking fabrication, Guangzhou HEDA Shelves operates a centralized 323,000 sq ft (30,000 m²) manufacturing base in Haizhu District, Guangzhou. Our facility integrates automated uncoiling, multi-station continuous roll-forming lines, computerized punching presses, heavy robotic CO2 shielded welding stations, and an environmentally compliant 10-stage automated pickling-phosphating electrostatic powder coating facility.
- Free Engineering CAD & 3D Modeling: Complete structural layout blueprints, aisle turning radii validations, and clearance drawings generated within 24 hours of RFQ submission.
- Bilingual Engineering Units: Full structural calculation packages provided in both Imperial (lbs / ft / in) and Metric (kg / mm / m) units ready for local Engineer of Record (EOR) plan-check sign-offs.
- Intermodal Export Packing: Heavy-gauge steel bundled with protective angle boards, strapped with high-tensile steel bands, and container-cubed to optimize ocean freight fill rates to major North American, European, and Asian deep-water ports.
- Total OEM / ODM Agility: Custom upright profiles, non-standard column gauges, specialized powder coat RAL corporate colors, and tailored beam connector hooks engineered to match existing client racking brands.
In-House 10-Stage Precision Production & QC Pipeline
Every structural upright, box beam, row spacer, base plate, and wire mesh deck produced in our Guangzhou factory executes through a continuous quality-monitored manufacturing process to ensure strict dimensional repeatability.
01. Raw Material Incoming Inspection
Spectrometric chemical analysis and tensile yield testing of every certified Q235B / Q355B steel coil lot before warehouse intake.
02. High-Precision Slitting
Automated slitting machines cut steel coils into calibrated longitudinal strips matching exacting beam and upright profile tolerances.
03. High-Speed CNC Punching
Multi-station continuous press stamping ensures micron-precision 50mm, 75mm, or 76.2mm pitch diamond, teardrop, or butterfly hole patterns.
04. Multi-Stage Cold Roll-Forming
Progressive 18 to 24 roll-stand pass rollers cold-shape Omega-profile upright posts and step/box beams, hardening steel integrity.
05. Robotic Jig Welding
Computer-controlled robotic welding arm cells join heavy 3-claw/4-claw beam connector heads to horizontal tubes without human fatigue.
06. Mechanical Deburring & Polishing
High-speed automated linishing and tumbling deburrs all cold sheared edges, ensuring safe handling and optimal paint adhesion.
07. 10-Tank Pickling & Phosphating
Chemical degreasing, rust-stripping acid bath, and dense zinc phosphate conversion coating prevent subterranean corrosion.
08. Electrostatic Powder Coating
Swiss Gema automatic electrostatic guns apply uniform 70-90 micron thermoset polyester epoxy powder, baked at 200°C for durable gloss.
Industrial Racking Procurement & Engineering FAQ
Direct technical and operational answers to the most frequent inquiries submitted by warehouse supply chain vice presidents, industrial general contractors, logistics integrators, and procurement directors.
