Engineering Principles of Heavy-Duty Pallet Rack Decking
Pallet rack decking acts as the critical horizontal load-bearing interface within industrial storage systems, safeguarding against point loading failures, sagging timber runners, broken bottom boards, and dropped pallet incidents. When architecting warehouse storage systems for distribution centers, manufacturing facilities, and automated multi-tier pick towers, specifying structural decking requires rigorous adherence to static stress analysis, flammability rating codes, and dynamic deflection limits.
Under European standard EN 15512 and the American National Standard ANSI MH26.2 (Design, Testing, and Utilization of Industrial Steel Rack Decking), load ratings must account for both uniformly distributed loads (UDL) and concentrated line/point loads imparted by industrial pallet feet and pallet truck straddle legs. Modern cold-rolled steel decking utilizes precision-profiled Q235B structural carbon steel, treated with anti-corrosion pre-treatments including automated pickling, phosphating, and electrostatically cured thermo-setting polyester powders or continuous hot-dip galvanization.
| Decking Structural Type | Typical Raw Material | Uniform Distributed Load (UDL) | Sprinkler Water Ingress (NFPA 13) | Deflection Threshold | Ideal Application Environment |
|---|---|---|---|---|---|
| Flared Waterfall Wire Mesh Deck | Cold-drawn Q235B carbon steel wire (4.5mm–6.0mm) + U-channels | 500 kg to 2,500 kg / level (1,100–5,500 lbs) | > 70% Open Area (Full Compliance) | L / 200 max under design load | Standard box beam & structural roll-formed beams, 3PL logistics |
| Step Waterfall Wire Deck | Low carbon wire with formed 14-gauge step-fitting channels | 800 kg to 3,000 kg / level (1,760–6,600 lbs) | > 70% Open Area (Optimal Airflow) | L / 250 max under design load | Standard 1-5/8" step beams, order picking lines, retail inventory |
| Galvanized Solid Steel Decking | Zinc-coated sheet steel (1.0mm–2.5mm cold rolled) | 1,000 kg to 4,500 kg / level (2,200–10,000 lbs) | 0% (Requires in-rack fire sprinklers) | L / 300 ultra-rigid tolerance | Automotive tooling, dies, small parts, oily machinery parts |
| Perforated Steel Panel Decking | Punched structural sheet with drainage perforations | 800 kg to 3,500 kg / level (1,760–7,700 lbs) | > 50% Water Drainage Rating | L / 250 max under design load | Hazardous chemicals, pharmaceutical manufacturing, paint storage |
| Drop-in Bar Grating Decking | Welded heavy bearing bars and twisted cross rods | 2,000 kg to 6,000 kg / level (4,400–13,200 lbs) | > 80% High Flow Penetration | L / 350 heavy-industrial duty | Heavy steel coil cradles, engine blocks, aerospace fabrication |
Fire Code & NFPA 13 Alignment
Insurance directives and National Fire Protection Association (NFPA) standard 13 mandate that any warehouse rack deck exceeding 20 sq ft must allow minimum 50% vertical water penetration. Wire mesh decks allow upwards of 70% clear open area, eliminating chimney barriers and suppressing high-challenge hazards instantly.
Channel Load Transference
Engineered support channels—formed in inverted 'U', standard flanged, or custom hat-channel geometries—transfer vertical mass directly into the horizontal step or box beam flanges. High-precision resistance welding secures each wire junction to withstand repetitive forklift drops.
Seismic & Lateral Restraint
In seismic-active zones conforming to FEMA 460 and Eurocode 8, decking cannot vibrate out of position. Waterfall edges wrap the outer beam faces by 38mm to 50mm, while pre-punched fastener holes permit mechanical locking through self-drilling tek screws directly into rack step sections.
Emerging Global Sourcing Trends in Warehouse Decking Systems
Procurement directors and supply chain engineers are executing fundamental shifts in how pallet rack decking is sourced, specified, and lifecycle-managed. The convergence of mega-fulfillment distribution networks, stringent workplace safety audits, cold-chain expansion, and carbon-reduction targets has changed warehouse accessories from commodity purchases into engineered risk-mitigation assets.
1. Shift from Timber to All-Steel Decking
Escalating insurance premiums associated with combustible wooden batten decks and composite particle boards have triggered sweeping conversion toward non-combustible steel wire decks. Beyond eliminating fire load, steel wire decking eliminates wood splinter contamination, wood borer rot, and moisture retention in cold rooms.
2. Compatibility with AMR & Automated Shuttles
Automated Storage and Retrieval Systems (ASRS) and autonomous mobile robots (AMRs) impose tighter beam tolerances and surface flatnesses. Next-generation decking integrates flush-top inset channels and recessed perimeter waterfalls, preventing mechanical snagging of sensor arrays or optical reflectors.
3. Hybrid Zinc-Aluminum Anti-Corrosion Finishes
Conventional electro-galvanizing often fails prematurely in -30°C blast freezers or coastal marine hubs due to zinc whisker formation and condensation corrosion. Buyers now specify advanced continuous hot-dip galvanizing (≥60μm thickness) or zinc-nickel coatings achieving 500+ hours in neutral salt spray testing (ASTM B117).
4. Total Cost of Acquisition (TCA) Optimization
Cross-border logistics costs dictate nested packaging design. Leading exporters engineer wire mesh waterfall geometries and flared channel profiles to nest tightly on ocean shipping skids, increasing 40HQ container packing efficiency by up to 35% and substantially cutting landed unit costs.
Technological Developments in Steel Decking Fabrication
Precision manufacturing in warehouse racking accessories requires automated production lines that eliminate human welding variance and structural micro-fractures. At Guangzhou Heda Shelves, advanced continuous automated multi-spot mesh welding machines ensure every wire intersection possesses uniform shear resistance and tensile cohesion.
CNC Automated Multi-Head Welding
Our facility operates multi-head digital projection welders that fuse up to 48 cross-wire junctions in a single cycle. Digital micro-processor control prevents cold-weld joints and wire thinning, maintaining wire structural integrity and eliminating sharp burs that cut handlers' gloves.
Cold-Bending Profile Stress Optimization
Support channels undergo CNC roll-forming rather than abrupt press-brake stamping. Progressive cold roll passes ensure the yield strength of Q235B cold-rolled steel increases without inducing residual micro-cracking along channel radius lines.
Automated Surface Pretreatment Lines
Prior to powder application, steel decking undergoes an 8-stage immersion process: degreasing, twin water rinses, pickling for rust removal, surface conditioning, zinc-phosphate conversion coating, and passivation sealing. This prepares the steel substrate for maximum polymer adhesion.
Frequently Asked Questions: Pallet Rack Decking Procurement
Detailed technical answers for warehouse design engineers, third-party logistics estimators, and international procurement managers importing racking components.
What is the difference between Flared Waterfall and Step Waterfall wire mesh decks?
How do you calculate safe uniform distributed load (UDL) vs point loading on decking?
How does CE Certification (EN 15512) apply to pallet rack accessories and decking?
Can HEDA Shelves supply custom imperial load charts and stamped shop drawings for North America?
What packaging and bundling techniques are used to prevent transit damage in ocean freight?
Why Global Supply Chains Partner with HEDA Shelves

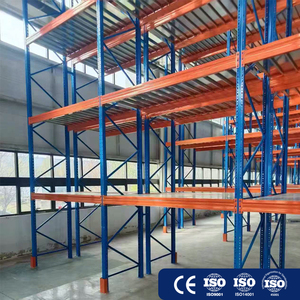

Established in 2001, Guangzhou Heda Shelves Co., Ltd. has grown into one of Asia's most technologically proficient manufacturers and global exporters of heavy-duty pallet racking systems, multi-tier mezzanine floors, and industrial shelving accessories. Operating from our modern 30,000 m² (323,000 sq ft) industrial complex with more than 300 experienced engineers, CNC operators, and quality specialists, we achieve a monthly steel throughput exceeding 30,000 metric tons.
Full-Cycle In-House Manufacturing
From prime hot-rolled and cold-rolled steel coils to high-speed CNC punching, automated roll-forming, dual-robot welding cells, and continuous non-polluting powder coating, every stage is controlled in-house with end-to-end batch traceability.
ISO 9001:2015 & CE Quality Systems
Our facility operates an internationally audited quality management framework (Certificate 18624Q00169R0M) alongside CE construction certification. Incoming raw steels undergo spectrometer chemical analysis and yield-strength tensile testing before release to production.
With over 10,000 successful logistics, cold storage, pharmaceutical, automotive, and commercial distribution installations executed across North America, Europe, Australia, and Southeast Asia, HEDA Shelves supplies direct container shipments and OEM/ODM private-label manufacturing programs for regional racking distributors, integrators, and large warehouse owners worldwide.
Optimize Your Facility with CE-Certified Rack Decking
Submit your warehouse layout, beam clear spans, and pallet load profiles. Our senior structural engineers deliver customized CAD designs, static load calculations, and itemized factory-direct export quotations within 24 hours.
