Precision Storage Systems & Heavy-Duty Pallet Racks
Manufactured under strict ISO 9001:2015 quality control with automated roll-forming and CE certified steel profiles. Explore our heavy-load industrial racks configured for standard and narrow aisle footprints.
Blue & Orange Pallet Racking, Carpet Hanging Shelf Rack
- Dual-tone anti-corrosion powder coating
- Tailored for rolls, carpets & bulk textiles
- Adjustable beam height with safety locking pins
Collapsible Logistics Mobile Gravity Pallet Roller Rack
- Gravity roller bed with dynamic brake rollers
- Collapsible modular structure for flexible 3PL
- FIFO high-density inventory optimization

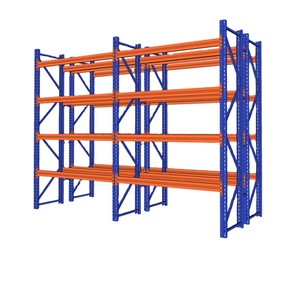

Heavy-Duty Storage Rack Pallet System for Industry
- Load capacity up to 5,000 kg per beam level
- High-yield Q235B/Q355B structural steel uprights
- Custom upright depth & beam lengths for GMA pallets
5-Layer Heavy Duty Drive-In Pallet Racking System
- Eliminates working aisles for 80% cube density
- Formed continuous guide rails with load stops
- 2 Tons rated capacity per storage position
Light-Duty Commercial Stockroom Shelving System
- Boltless snap-together assembly for quick set-up
- Cold-rolled solid steel decking panels
- Stockroom, archive & manual bin picking
CE & AS4084 Certified Warehouse Pallet Rack Shelf
- Verified compliance with AS4084-2012 & EN 15512
- Precision column punch hole pitch 50mm / 75mm
- Reinforced baseplates for anchor seismic stability
AS/RS Automated High-Bay Heavy-Duty Pallet Racking
- Engineered for heights exceeding 30 meters
- Tight EN 15620 Class 100/200 deflection tolerances
- Direct interface for automated stacker cranes
Heavy Duty Adjustable Cold-Rolled Warehouse System
- Electrostatic thermoset epoxy coating
- Interlocking beam connectors with 3-claw teeth
- Standard & narrow aisle operational configurations
The Architecture of Very Narrow Aisle (VNA) Pallet Racking
In modern logistics, land acquisition costs and escalating cubic warehouse expenses have elevated Narrow Pallet Racking (VNA) from an operational preference to a financial necessity. This system compresses working aisles to as little as 1,500 mm – 1,800 mm, recapturing up to 45% of floor space compared to wide-aisle counterbalance arrangements.
Cold-Formed High-Yield Upright Geometry
Narrow racking requires extraordinary structural rigidity. Standard selective racks tolerate moderate frame sway; however, VNA racks reaching 12m to 18m demand rigid upright profiles roll-formed from high-yield Q355B micro-alloyed steel. Column sections incorporate complex return folds to elevate torsional stiffness, ensuring load compliance under European standard EN 15512:2020 under dynamic turret truck braking forces.
Floor Flatness & EN 15620 Tolerance Classes
The operational safety of narrow aisle racking is fundamentally tied to floor flatness. Narrow aisle turret trucks and order pickers operate with millimeters of beam clearance. HEDA manufactures frames calibrated to EN 15620 Class 300 (VNA) requirements. This engineering avoids mechanical snagging and dynamic mast tilt, accounting for concrete slab F-min / DM specifications.
Aisle Guidance: Inductive vs. Mechanical Rail
VNA trucks do not steer manually within storage lanes. Our factory engineers manufacture structural steel bottom guide rails (typically L100x75 or L125x75 cold-formed angles) anchor-bolted to the concrete slab to direct truck chassis. Alternatively, for facilities adopting inductive wire guidance, our upright base assemblies feature recessed anchor points to prevent frequency interference.
Future Procurement & Technological Trends in High-Density Storage
Global supply chains are transitioning toward automated intralogistics, sustainability mandates, and tighter dimensional tolerances. Procurement directors must anticipate how structural steel systems interact with next-generation automated material handling machinery.
1. Integration of Autonomous VNA AGVs & AMRs
Manual turret trucks are being rapidly complemented by driverless VNA Automated Guided Vehicles (AGVs). AGVs operate with continuous millimeter-level sensor sweeps; any beam deflection under variable weight triggers safety stops. Procurement trends show a decisive shift toward high-precision beam connectors with three-point claw welds and zero-play drop-in locking devices to eliminate false optical alerts.
2. Rigorous CE Construction Products Regulation (CPR) Verification
Regulatory authorities across the EU and North America increasingly treat industrial pallet racks as structural architectural components under EN 1090-1 and the Construction Products Regulation (CPR). Factory-level CE marking is no longer optional. Specifiers now mandate Factory Production Control (FPC) audit documentation, European Steel Declaration of Performance (DoP), and full traceability from prime coil heats to final packaged uprights.
3. Decarbonized Steel & Eco-Certified Pretreatment
Environmental, Social, and Governance (ESG) criteria are actively transforming racking procurement. Major corporate buyers require documented life-cycle assessments (LCAs). HEDA Shelves addresses this through heavy-metal-free, zero-VOC electrostatic powder coatings and continuous acid-free ultrasonic degreasing lines, delivering 500+ hours of ASTM B117 salt-spray corrosion resistance without environmental contamination.
Structural Racking Systems Comparative Analysis
Selecting the optimal storage topology requires balancing aisle footprint, equipment capital expense, and direct pallet selectivity. Review how Narrow Pallet Racking compares directly against other mainstream warehouse configurations.
| System Architecture | Typical Aisle Width | Clear Height Range | Floor Space Utilization | Selectivity Ratio | Material Handling Unit | CE Structural Standard |
|---|---|---|---|---|---|---|
| Narrow Pallet Racking (VNA) | 1,500 – 1,800 mm | Up to 18 Meters | Very High (85%) | 100% (Instant) | Turret Truck / Man-Up / VNA AGV | EN 15512 / EN 15620 Class 300 |
| Wide Aisle Selective Racking | 3,200 – 3,800 mm | Up to 11 Meters | Standard (45%) | 100% (Instant) | Counterbalance / Reach Truck | EN 15512 Class 400 |
| Double-Deep Selective | 2,900 – 3,200 mm | Up to 12 Meters | Moderate (60%) | 50% (Secondary Deep) | Pantograph Reach Truck | EN 15512 / ANSI MH16.1 |
| Drive-In / Drive-Through | Lane Dependent | Up to 10 Meters | High (75%) | LIFO / Batch SKU | Standard Counterbalance Forklift | EN 15512 / AS4084 |
| Pallet Flow (Gravity Flow) | Dedicated Load/Pick Aisles | Up to 12 Meters | Very High (80%) | FIFO Strict Batch | Standard Reach Truck | EN 15512 / EN 15620 |
| Automated AS/RS High-Bay | 1,350 – 1,600 mm | Up to 40 Meters | Maximum (95%) | 100% Automated | Rail-Mounted Stacker Cranes | EN 15620 Class 100/200 |
*Data compiled from HEDA Shelves structural design calculations and typical project implementations adhering to European and international warehouse safety codes.
Why Tier-1 Distributors & 3PLs Source Direct from HEDA
Operating since 2001, Guangzhou Heda Shelves Co., Ltd. is an industry-leading manufacturer supplying warehouse storage solutions across Europe, North America, Australia, and the Middle East. Direct factory sourcing provides verifiable structural safety, scalable manufacturing throughput, and dedicated engineering oversight.
323,000 Sq Ft Manufacturing Campus
Our 30,000 m² automated production facility in Guangzhou houses high-speed continuous roll-forming lines, automated laser slitting, multi-head punching systems, and robotic welding stations designed for heavy structural rack fabrication.
CE & ISO 9001:2015 Verified Compliance
Full accredited certification portfolio including CE Marking (Certificate No. 2435-CPR-8605159), ISO 9001:2015 Quality Management System (18624Q00169R0M), RoHS material safety reports, and AS4084-2012 test compliance.
24-Hour Free CAD & 3D Modeling
Our structural engineering department develops layout drawings, elevations, and structural capacity schedules in feet/inches (lbs) or millimeters (kg). We issue complete permit-ready engineering packages within 24 hours.
10-Step Quality Assurance Cycle
Every component follows an audited 10-stage lifecycle: certified prime coil intake → CNC slitting → column punching → cold roll-forming → robotic welding → shot blasting → 5-stage pickling/phosphating → electrostatic powder curing → laser inspection → container pack.
10,000+ Projects in 130+ Countries
Over two decades of OEM and ODM racking delivery to major third-party logistics (3PL) providers, cold chain distribution networks, pharmaceutical freezers, and industrial automotive warehouses worldwide.
Freight-Optimized Nesting & Port Access
Strategically situated near Guangzhou and Shenzhen deepwater ports. Specialized wooden dunnage bundling and computerized container loading protect powder-coated surfaces while cutting ocean shipping costs.
Frequently Asked Questions on CE Certified Narrow Racking
Technical, regulatory, and commercial questions answered directly by our warehouse racking structural engineering team.
What is the minimum working aisle width for a narrow pallet racking system?
Working aisle width in a Very Narrow Aisle (VNA) system is determined by the specific material handling equipment selected. For articulated reach trucks, aisle widths typically range between 1.8m and 2.1m. For dedicated wire-guided or rail-guided turret trucks (man-up or man-down order pickers), aisle widths can be narrowed down to 1.5m – 1.65m for standard 1,200 x 800 mm Euro pallets or 1,200 x 1,000 mm industrial pallets, providing safe beam clearances of 100mm on each side.
How does HEDA ensure CE compliance for European and international projects?
Our pallet racking is certified under CE certificate 2435-CPR-8605159, confirming strict conformity with EN 15512 (Steel static storage systems – Adjustable pallet racking systems – Principles for structural design) and EN 15620 (Tolerances, deformations and clearances). Raw steel coils undergo yield-strength testing, and our manufacturing plants undergo annual Factory Production Control (FPC) audits. We supply a formal Declaration of Performance (DoP) and full mill test certificates with every container.
What concrete slab specifications are needed for tall narrow pallet racks?
Because narrow racking routinely reaches 10m to 18m with small footprint baseplates, concentrated point loads on the concrete slab are significantly higher than in standard racking. Slabs must generally be designed to sustain point loads of 80 kN to 160 kN per leg, with minimum slab depth of 180mm to 250mm reinforced concrete (30-40 MPa). Furthermore, the floor must conform to DIN 18202 Table 3 Line 4 or TR34 Free Movement / Defined Movement (DM-2) specifications to eliminate turret truck sway.
Can existing standard selective racking be converted into a narrow aisle configuration?
Yes, converting an existing warehouse to VNA is one of the most cost-effective ways to expand capacity without relocating. However, upright frames must be analyzed by our engineers for buckling resistance, as VNA systems often add higher beam tiers. Additionally, bottom guide rails or inductive floor wires must be retrofitted, and aisle run-out zones must be recalculated to ensure sufficient turning radii for the new turret truck equipment.
What is the standard production and shipping lead time for overseas orders?
Our standard production cycle is 15 to 25 business days for orders up to ten 40-foot High Cube (40HQ) containers, supported by our 30,000 metric ton monthly capacity. Ocean transit times vary by destination port: 14 to 22 days to US West Coast ports (Los Angeles/Long Beach), 28 to 35 days to US East Coast and European main ports (Rotterdam, Hamburg, Felixstowe). We provide complete CIF, FOB, and DDU logistics coordination.
How does HEDA handle seismic design engineering for earthquake-prone zones?
For projects in seismic zones (such as California, Chile, New Zealand, Japan, or southern Europe), our engineering team utilizes finite element analysis (FEA) compliant with EN 16681, RMI ANSI MH16.1, and regional building codes (IBC). We integrate seismic back bracing towers, heavy ductile footplates, high-grade anchor bolts, and increased upright steel gauge thicknesses to safely absorb lateral and longitudinal ground accelerations.
Ready to Maximize Your Pallet Storage Density?
Consult with HEDA Shelves' technical engineering department today. Submit your facility CAD drawing, clear ceiling height, pallet dimensions, and operational throughput targets to receive an engineer-stamped narrow aisle layout, structural load analysis, and factory-direct price quotation within 24 hours.
