High-Capacity Industrial Heavy-Duty Storage Modules
Explore standard, dynamic, and specialized CE-approved racking topologies engineered for cold chain facilities, heavy manufacturing, sheet metal processing, and high-density pallet consolidation.
Why Tier-1 3PLs and EPC Contractors Specify Our Racking Systems
Combining heavy structural steel roll-forming engineering with comprehensive CE and ISO qualification. We eliminate supply chain risk through end-to-end design, FEA structural calculation, and certified containerization.
Dual Engineering Units (Imperial & Metric)
We supply native shop drawings, bill of materials (BOM), and seismic calculations delivered in feet, inches, and pounds (lbs) alongside metric layouts. This allows North American PE reviewers, municipal building inspectors, and general contractors to approve designs without error-prone conversions.
Full CE & ISO 9001:2015 Traceability
Certified under CE Marking No. 2435-CPR-8605159 and ISO 9001:2015 (Certificate 18624Q00169R0M). Every batch of raw Q235B and Q355B structural coil undergoes incoming tensile verification, ultrasonic weld bead inspections, and zinc phosphating adhesion testing before shipment.
Rapid 24-Hour CAD/3D Layout Turnaround
Our in-house project engineering division consists of over 30 structural engineers. Submit warehouse boundary dimensions, pallet heights, clear ceiling spans, and reach truck telemetry to receive custom structural layouts, load deflections, and itemized quotations in under 24 hours.
Precision Cold Roll-Forming Technology
Equipped with computerized high-speed multi-stage roll-forming mills, automated continuous punch presses, and robotic MIG welding stations. Profile tolerances are held within ±0.5mm across upright posts, interlocking box beams, and slotted front connector brackets.
Container-Optimized Ocean Packaging
Exporting to major global deep-water ports including Long Beach, Houston, Savannah, New York, Rotterdam, and Vancouver. Structural steel bundles are banded with steel strapping, edge-protected with heavy corner angles, and palletized to maximize 40HC container cube utilization and minimize demurrage.
OEM & Private-Label Dealer Programs
We operate as a high-capacity tier-1 manufacturing partner for major material handling integrators and regional racking distributors. Offering custom powder coat RAL color matching, proprietary connector tab stampings, custom packaging labels, and direct project site drop-shipping.
Accelerate Your Warehouse Capacity Assessment
Supply your facility CAD floorplan or pallet inventory specs to receive a complimentary 3D rendering, seismic capacity analysis, and FOB/CIF landed cost quotation within 24 hours.
Inside Our 10-Stage Standardized Industrial Racking Production Line
Every upright frame, beam connector, and floor tie passes through our tightly monitored 10-step metallurgical forming and finishing cycle to ensure flawless load deflection performance under dynamic industrial warehouse duty.
Certified Raw Coil
Incoming certified Q235B/Q355B structural steel coil verified for chemical composition and tensile limits.
Precision Slitting
High-precision slitting lines slice wide master coils into exact ribbon widths for upright and beam roll profiles.
CNC Column Punching
High-speed hydraulic punching dies create uniform 50mm or 75mm teardrop/diamond pitch slots with zero drift.
Continuous Roll-Forming
Multi-station cold roll formers shape heavy structural steel profiles into closed box beams and ribbed uprights.
Cold Bending & Sizing
Automated flying hydraulic saws shear uprights and structural beams to precise specified customer clearances.
Robotic MIG Welding
Automated robotic welders bond beam end connectors and heavy base footplates with deep root penetration.
Deburring & Polishing
Edges, welds, and punching perimeters are mechanically polished to prevent sharp burrs and ensure operator safety.
Pickling & Phosphating
Submersion in multi-stage acid baths removes mill scale and establishes an anti-corrosive chemical anchor coating.
Electrostatic Coating
Automatic spray booths apply lead-free polyester thermoset powder cured at 200°C for extreme scratch resistance.
QC Batch Verification
Final dimensional check, mil-spec coating thickness testing, bundle nesting, and container export securing.
Engineering Evaluation: Pallet Racking Architectures Compared
Selecting the optimal pallet racking framework requires balancing capital expenditure per storage location, SKU variety, handling equipment velocities, and warehouse cube utilization factors.
| Storage Topology | Space Utilization | Pallet Selectivity | Inventory Rotation | Clear Aisle Requirement | Primary Industrial Application |
|---|---|---|---|---|---|

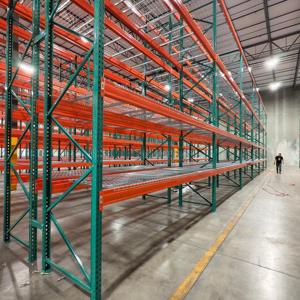

| Selective Pallet Racking | 40% – 50% | 100% Direct Access | FIFO or LIFO | 3.0m – 3.6m (Reach / Counterbalance) | Multi-SKU 3PL warehouses, e-commerce fulfillment hubs, mixed FMCG distribution. |

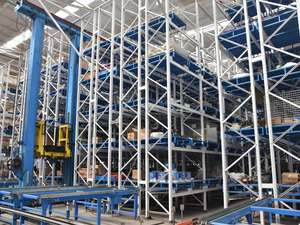

| Double Deep Racking | 60% – 65% | 50% Direct Access | LIFO | 2.8m – 3.2m (Pantograph Reach Truck) | Mid-velocity items, high pallet volume per SKU, food processing buffer storage. |
| Push Back Racking | 70% – 75% | First of 2–6 Pallets | LIFO | Standard Working Aisle | Cold storage freezers, bulk beverage staging, multi-pallet SKU consolidation. |
| Drive-In / Drive-Through | 75% – 85% | Lane Facing Pallets | LIFO / FIFO | Forklift Enters Storage Bay | High-cube cold stores, seasonal produce packaging, standardized single SKUs. |
| Gravity Pallet Flow | 80% – 90% | Pick-Face Dedicated | True FIFO Rotation | Separate Infeed & Retrieval Aisles | Date-sensitive foodstuffs, pharmaceutical cold chain, fast-moving order picking. |
| Radio Shuttle Automation | 85% – 92% | Lane Automated | FIFO or LIFO | Aisle-Free Deep Bay (Shuttle Driven) | High-turnover deep freeze, automated production warehouses, mega distribution hubs. |
Future Procurement Trends in Industrial Pallet Storage Systems
Global warehouse operations are navigating seismic shifts driven by rising industrial real estate costs, labor shortages, and ESG sustainability directives. Below are the structural trends defining future-proof intralogistics procurement.
ASRS & Shuttle-Ready Upright Framing
Conventional static racking is increasingly designed with integrated rail profiles and sensor brackets to permit future retrofitting of robotic autonomous mobile shuttles and stacker cranes without structural tear-down.
- Tight deflection tolerances (<1/1000 span)
- Laser-measured guide channels
- Sensor and cable raceway integration
Performance-Based Seismic Engineering
Global procurement standards demand documented seismic resilience under high-consequence zones (IBC, Eurocode 8, AS 4084). Suppliers must validate cold-formed steel moment frames using dynamic non-linear finite element modeling.
- High-ductility steel alloys (Q355B / S355JR)
- Oversized baseplates with wedge anchors
- PE/P.Eng structural stamped calculation packages
Circularity & Zero-VOC Powder Finishes
Corporate ESG requirements place stringent emphasis on the carbon footprint of structural steel. Modern facilities procure racking manufactured via electric arc furnaces and coated with zero-solvent electrostatic powder resins.
- Lead-free, heavy-metal-free RoHS compliance
- Pre-galvanized profiles for corrosive outdoor duty
- 100% recyclable end-of-life steel reclamation
Frequently Asked Questions: Global Pallet Racking Sourcing
Essential engineering, compliance, and shipping clarifications for warehouse operations directors, procurement executives, and materials handling project managers.
What is the practical significance of CE Certification on pallet racking?
CE marking confirms that our structural pallet racking systems conform to European Construction Products Regulation (CPR 305/2011/EU) and EN 15512 standards. It guarantees certified yield strength, factory production control (FPC), and verifiable structural deflection metrics required by municipal safety inspectors and corporate property underwriters.
Are systems compatible with standard North American 48×40 inch GMA pallets?
Yes. Our beams and frame depths are tailored to 48″ × 40″ GMA wooden or plastic pallets, as well as 1200×800mm EUR and 1200×1000mm industrial platforms. Typical frame depths are engineered at 42″ (1067mm) to provide the code-mandated 3″ front and rear pallet overhangs for wire deck resting.
How do you assist with seismic engineering calculations and building permits?
We supply comprehensive structural engineering packets including member properties, section modulus, anchor pull-out loads, and dynamic finite element simulations. These documentation sets are structured specifically for review and stamping by your local licensed Professional Engineer (PE or P.Eng) for local building permit authorization.
What documentation is required to generate a turn-key quotation?
To produce an exact CAD layout and itemized price breakdown, please submit your warehouse floor CAD or dimensioned sketch, clear overhead clearance to fire sprinklers, pallet specifications (width, depth, height including payload), gross pallet weight, and the turning radius/lift elevation of your forklift fleet.
How are structural components protected against damage during ocean freight?
Upright posts and load beams are bundled with industrial high-tensile steel strapping, interspaced with protective timber dunnage, and wrapped in heavy-duty moisture-barrier films. Upright end-caps and beam connector ears are shielded with impact-resistant edge protectors to eliminate container friction damage.
Can you provide custom powder coat formulations for sub-zero freezer duty?
Yes. For cold storage and blast freezers operating between -10°C and -35°C, we employ specialized cold-cured hybrid epoxy-polyester coatings applied over an extensive zinc-phosphate pre-treatment. This process prevents cold brittleness, flaking, and condensation undercutting over long duty cycles.
Consult With a Senior Warehouse Storage Architect
Whether upgrading an existing distribution center or outfitting a multi-acre greenfield distribution park, our engineering staff is standing by to optimize your facility's cubic capacity.
