Featured Industrial Pallet Racking & Heavy-Duty Systems
Explore our high-performance warehouse racking configurations, precision-manufactured with premium certified Q235B/Q355B structural steel, available with hot-dip galvanized (ISO 1461), Sendzimir continuous pre-galvanized (EN 10346), or dual epoxy powder-coated finishes.
Automated ASRS
Durable Shuttle Heavy Duty Rack System ASRS 4-Way Radio Shuttle Racking
Semi-automated and fully automated deep-lane storage system utilizing 4-way intelligent satellite carriers for both FIFO and LIFO pallet retrieval in compact high-bay footprints.
- Galvanized Runner Rails
- Cold-Resistant Shuttles
- 90%+ Volume Utilization
Cold Storage Ready

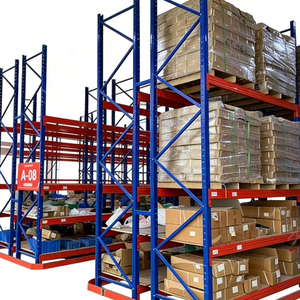

Heavy-Duty Cold Chain Multi-Level High-Bay Pallet Racking
Engineered for cold storage facilities operating from 0°C to -35°C. Features cryogenic-rated steel, protective galvanized base plates, and moisture-resistant epoxy finishes.
- Operating to -35°C
- Anti-Condensation
- High-Yield Uprights
Logistics Component
Custom Reinforced PP Pallet Feet for Warehouse Automation
Ultra-durable, high-impact polypropylene footings specifically designed for automated guided vehicles (AGVs), conveyor interfaces, and rack pallet bottom shock absorption.
- High-Impact Polymer
- Abrasion Resistant
- Automation Interlock
Heavy Bar & Pipe

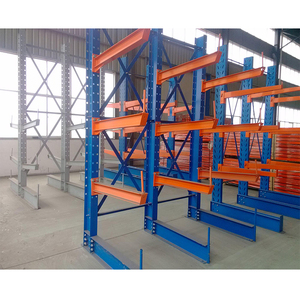

Heavy Duty Cantilever Racking System for Pipes, Steel & Lumber
Unobstructed frontal access for long and bulky materials. Available with hot-dip galvanized hot-rolled structural steel I-beams for outdoor harsh weather yard applications.
- Single/Double Sided
- Up to 5,000 kg/Arm
- Hot-Dip Galvanized
Selective Standard

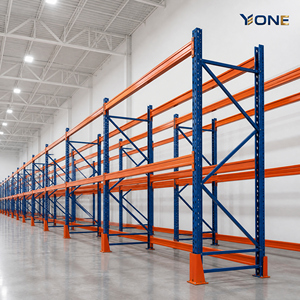

Heavy Duty Pallet Racking Warehouse Storage System Q235B Steel
Universal industrial selective racking featuring 50mm/75mm pitch adjustability, CE certified load beams, bolted bracing upright trusses, and customizable wire mesh decking.
- 100% Pallet Selectivity
- 50mm/75mm Pitch
- GMA / Euro Compatible
Manual Picking

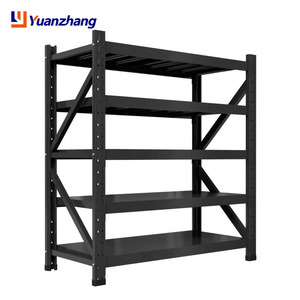

Custom Steel Heavy Duty Shelving 300kg-800kg per Layer
Versatile longspan boltless steel shelving suitable for carton picking, maintenance spares, automotive aftermarket distribution centers, and e-commerce picking lines.
- Boltless Rapid Assembly
- Steel / Timber Shelves
- High Density Tiering
Push-Back Dynamic

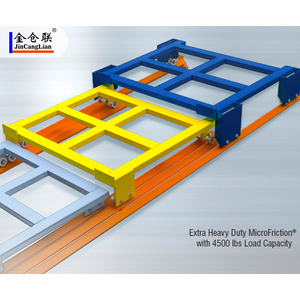

High-Density Steel Push-Back Pallet Racking with 2~5 Carts
Accumulative dynamic storage with nested rolling carts on inclined steel structural rails. Provides high-density LIFO storage with reduced aisle requirements compared to standard selective setups.
- 2 to 6 Pallets Deep
- Single Loading Aisle
- Self-Centering Carts
Vertical Expansion

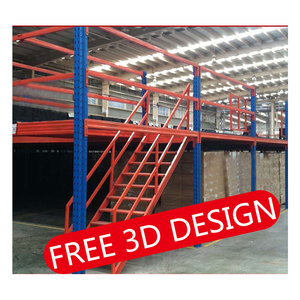

Warehouse Heavy-Duty Rack-Supported Mezzanine Floor System
Multi-tier structural platform leveraging heavy-duty pallet racking frames as load-bearing columns. Doubles or triples cubic storage capacity without requiring building civil expansions.
- Galvanized Steel Grating
- Integrated Staircases
- 300-1500 kg/m² Rating
Why CE Certified Galvanized Pallet Racking Dominates Demanding Environments
In modern industrial intralogistics, standard electrostatic powder coating often proves insufficient when subjected to high humidity, sub-zero refrigeration condensation, chemical fumes, or outdoor atmospheric exposure. As global logistics operators, third-party logistics (3PL) conglomerates, and cold-storage providers scale their capital investments, the demand for CE Certified Galvanized Pallet Racking has emerged as the global benchmark for risk mitigation and asset longevity.
Structural pallet racking systems operating under European Standard EN 15512:2020 (Steel static storage systems - Adjustable pallet racking systems - Principles for structural design) and the European Construction Products Regulation (CPR 305/2011) must fulfill stringent load-bearing stability, ultimate limit state (ULS), and serviceability limit state (SLS) criteria. When zinc coating technologies are coupled with cold-formed structural steel profiles (Q235B and Q355B), the steel substrate achieves lifelong cathodic protection against oxidation.
Corrosion Performance Matrix: Zinc Galvanized vs. Traditional Coatings
| Evaluation Parameter | Standard Powder Coating | Pre-Galvanized (Sendzimir EN 10346) | Hot-Dip Galvanized (HDG ISO 1461) |
|---|---|---|---|
| Coating Thickness Range | 50 – 80 µm (Paint Film) | 18 – 25 µm (Metallurgical) | 65 – 100+ µm (Alloyed Zinc) |
| Bonding Mechanism | Mechanical & Electrostatic adhesion | Metallurgical Zinc-Iron Diffusion | Intermetallic Fe-Zn Alloys + Pure Zn |
| Cathodic Self-Healing | None (Rust creeps under film) | Active (Sacrificial Anode Action) | Superior (Fills scratch gaps dynamically) |
| Cold Storage (-35°C Cycle) | Cracks & Peels from micro-frost | Stable, Zero Thermal Shocks | Optimum, Lifetime Cold Resilience |
| Atmospheric Category (ISO 12944) | C1 to C2 (Indoor dry only) | C2 to C3 (Moderate moisture) | C4 to C5-M / CX (Aggressive marine/chemical) |
| CE Verification Status | Standard Visual Pass | Certified EN 1090-2 EXC2 | Full CE Marking CPR 305/2011 |
A crucial factor for warehouse safety managers is the structural impact resistance of galvanized racking. When a forklift tine strikes an epoxy-coated upright, the paint film tears, leaving the bare steel vulnerable to moisture and atmospheric oxygen. Within months, internal oxidation weakens the structural cross-section of the upright profile, compromising beam node load transfer capacity.
In contrast, zinc’s standard reduction potential of -0.76 V compared to iron’s -0.44 V ensures that even when a deep scratch exposes the underlying steel core, the surrounding zinc sacrifices itself to precipitate protective zinc hydroxycarbonate, completely preventing subsurface rust undermining. This metallurgical permanence makes galvanized pallet racking the premier option for cold food chains, chemical plants, and open-air transshipment hubs.
Engineering Excellence Since 2001: HEDA Shelves
Operating from Guangzhou, China, Guangzhou Heda Shelves Co., Ltd. is an industry-leading manufacturer of heavy-duty industrial warehouse systems, delivering verified structural integrity to clients throughout North America, Europe, Australia, and Latin America.
Why Supply Chain Leaders Partner with HEDA Shelves
We eliminate the risks of overseas racking procurement through end-to-end technical governance, verified quality compliance, and responsive project support.
Full CE & ISO Certification
Independently audited under ISO 9001:2015 (Certificate 18624Q00169R0M) and CE Marking (Certificate 2435-CPR-8605159). Compliant with EN 15512, EN 15620, and EN 1090 structural steel execution standards.
Rapid 24-Hour CAD & 3D Modeling
Our in-house team of structural engineers translates your architectural layout, floor slab drawings, and clear mast heights into complete CAD elevation drawings, imperial load schedules, and 3D BIM visualizations within 24 hours.
Container-Optimized Logistics
Components are pre-bundled, color-coded, labeled, and containerized with specialized wood dunnage to maximize ocean freight space utilization and prevent transit damage during port operations.
Complete Traceability & Testing
Every steel coil undergoes raw material yield testing, chemical spectrometry, and coating thickness checks. Material test certificates (MTRs) and structural deflection reports are supplied with every order.
Controlled 10-Stage Racking Manufacturing Workflow
Coil Verification
Prime Q235B/Q355B coils verified via tensile & elongation spectroscopy.
High-Speed Slitting
Automated uncoiling and precision slitting to exact section strip widths.
CNC Pitch Punching
Continuous hydraulic stamping of 50mm/75mm upright connector teardrops.
Continuous Roll Forming
Multi-stand roll mills shape high-stiffness omega and box profiles.
Robotic Welding
Robotic welding of heavy beam claws, connectors, and footplates.
Chemical Pretreatment
Automated immersion pickling, degreasing, rinsing, and phosphating.
Zinc Galvanizing
Continuous hot-dip immersion or precision Sendzimir roll processing.
Quality Deflection QC
Batch test verification of weld penetration, thickness, and tolerances.
Export Protective Pack
Steel strapping, edge protectors, and waterproof plastic film wrapping.
Container Loading
Custom container dunnage layouts for safe ocean transport.
Future Procurement Trends in Galvanized Warehouse Racking (2025–2030)
Global warehouse real estate costs continue to rise, driving facility operators away from horizontal sprawl toward high-bay, narrow-aisle (VNA) and automated shuttle configurations. In response, enterprise procurement teams are shifting how they specify racking systems. Here are four pivotal trends transforming the industry:
Frontiers in Pallet Racking Engineering: Cold-Formed Metallurgy & Smart Sensing
The structural storage sector is evolving from passive steel shelving into high-performance, dynamic engineering infrastructure. Advanced design principles and modern production techniques are shaping three key technological breakthroughs:
Micro-Alloy High-Strength Steels
Transitioning from standard low-carbon steels to micro-alloyed niobium-titanium steels (such as Q355B and S355MC) allows roll-forming thinner gauge profiles that deliver equal or greater yield strengths (355+ MPa). This reduces dead-load building weight while cutting shipping costs and overall environmental impact.
IoT Structural Health Monitoring
High-bay seismic racks are increasingly integrated with digital strain-gauge sensors and MEMS accelerometers mounted directly to column base plates. These battery-powered wireless nodes detect accidental forklift impacts, measure real-time beam sag, and flag settlement before it threatens system safety.
Zinc-Aluminum-Magnesium (ZAM) Coatings
Emerging ZAM alloy surface coatings (composed of 93.5% Zn, 3.5% Al, and 3% Mg) offer up to triple the corrosion resistance of pure zinc in high-chloride marine environments. The magnesium creates a dense, insoluble simonkolleite barrier that provides exceptional self-healing protection over drilled and punched holes.
Frequently Asked Questions: Sourcing CE Certified Galvanized Racking
Find direct, technical answers to critical compliance, structural specification, and international freight questions to streamline your supplier qualification process.
What specific standards govern CE Certification for galvanized pallet racking?
CE Marking for pallet racking in European and international trade falls under the Construction Products Regulation (EU CPR 305/2011). Because static storage racks are classified as structural elements, they must adhere to:
- EN 15512: Structural design principles for adjustable pallet racking systems, defining limit state calculation models.
- EN 15620: Dimensional tolerances, deflections, and clearances required for safe manual and automated forklift operation.
- EN 15629: Technical specification guidelines for storage equipment.
- EN 15635: Operational guidelines and maintenance inspection routines.
- EN 1090-1 & EN 1090-2 (EXC2): Factory Production Control (FPC) for structural steel manufacturing and welding compliance.
Guangzhou Heda Shelves Co., Ltd. holds CE Certificate 2435-CPR-8605159, confirming full legal compliance for structural delivery throughout the European Economic Area and international ports requiring equivalent structural assurance.
When should I specify Hot-Dip Galvanized (HDG) versus Pre-Galvanized steel?
The choice between Hot-Dip Galvanized (HDG) and Pre-Galvanized profiles depends primarily on your facility's environmental exposure and mechanical wear conditions:
- Pre-Galvanized (Sendzimir / EN 10346): Ideal for indoor cold chain freezers, clean pharmaceutical facilities, food warehouses, and low-moisture indoor facilities. It provides a smooth, uniform surface that minimizes pallet slippage and dust accumulation, while delivering substantial cost savings.
- Hot-Dip Galvanized (HDG / ISO 1461): Recommended for outdoor open-air lumber yards, coastal docks subject to sea spray, agricultural fertilizer storage, high-humidity composting centers, and chemical drum warehouses (ISO 12944 C4 to C5 categories). Its heavy 65–100 µm zinc layer provides maximum resistance to aggressive chemical attack and abrasive forklift impact.
Can HEDA Shelves supply calculations and drawings in Imperial units for North America?
Yes. Our engineering department routinely develops structural shop drawings, elevation schedules, and load plaques using both Imperial units (lbs, inches, feet) and Metric units (kg, mm, meters). Our calculation packages are prepared to support seismic reviews (RMI MH16.1 specifications, IBC codes) and local Engineer of Record (EOR) stamping across the United States and Canada.
How does zinc galvanizing perform in sub-zero blast freezers (-30°C)?
Sub-zero conditions present major challenges for standard paint finishes. Repeated thermal cycling causes micro-cracking in paint films, allowing ambient moisture to seep in, freeze, expand, and peel the protective layer away.
Galvanized coatings, by contrast, are metallurgically bonded to the steel substrate through intermetallic iron-zinc alloy layers. Zinc retains its structural ductility and thermal contraction rates similar to structural carbon steel down to -40°C, eliminating flaking, peeling, and corrosion from freezer defrost cycles.
What project data is required to receive a comprehensive CAD design and quotation within 24 hours?
To deliver an itemized quotation, structural bill of materials, and CAD layout within 24 hours, our engineering team requires:
- Building Footprint: Usable length, width, clear building height to underside of trusses, and positions of columns, fire systems, or dock doors.
- Pallet Profile: Dimensions (width, depth, overall load height including pallet) and maximum gross weight per pallet.
- Material Handling Equipment: Forklift model, mast lift height, minimum turning radius, and required aisle operating width (AST).
- Operational Environment: Ambient indoor, cold storage freezer temperature, or outdoor coastal exposure, along with target seismic zone requirements.
What are the lead times and shipping packaging practices for full container loads?
Standard fabrication lead times average 15 to 25 business days depending on total steel tonnage. Uprights, step beams, and structural frames are strapped into rigid, container-optimized steel-banded bundles with heavy corner protectors and plastic film weatherproofing. Component bundles are tagged with weather-resistant barcoded labels matching the erection drawings to simplify inventory verification and speed up assembly on site.
