Global technical directory and engineering specification guide for heavy-duty warehouse racking systems, structural mezzanines, and high-density industrial pallet storage solutions.

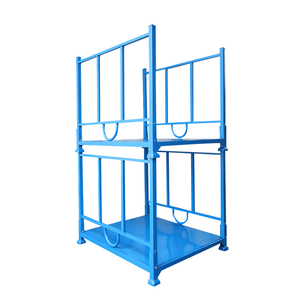

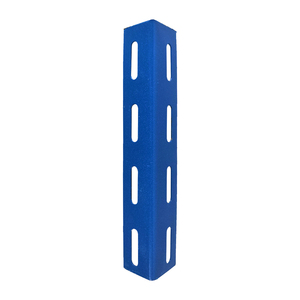

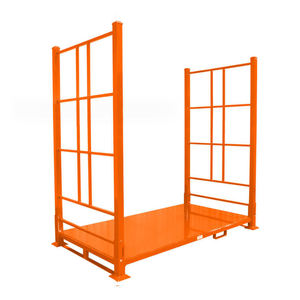

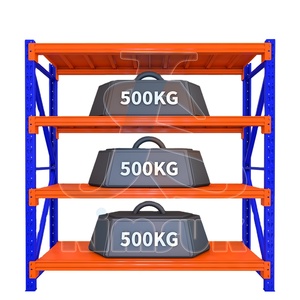

Certified Heavy-Duty Inventory

Engineered Bulk Storage Systems & Racking Configurations

Precision cold-roll formed, structural steel racking units certified for European and North American logistics operations. Each system is designed with customizable bay elevations, seismic base anchoring, and high yield-strength profiles.

2001

Established Engineering Track Record

30,000t

Monthly Cold Steel Processing Capacity

323,000sq ft

Integrated Manufacturing Campus (30,000m²)

10,000+

Global Projects Successfully Commissioned

Structural White Paper Analysis

Structural Integrity & Global Compliance: The Engineering Anatomy of CE Racking

Within international warehousing logistics, the specification of industrial bulk storage racks demands absolute conformity with mechanical limit states, seismic resilience guidelines, and cold-formed thin-walled steel engineering standards. As an audited exporter and manufacturer, Guangzhou Heda Shelves Co., Ltd. builds racking infrastructures governed by strict European standards, specifically EN 15512:2020 (Steel static storage systems – Adjustable pallet racking systems – Principles for structural design) and the structural execution mandate of EN 1090-1 (CE Execution Class EXC2).

Every upright frame and horizontal box-beam profile is cold-formed from high-tensile certified steel coils (Q235B, Q355B, and S355JR). The structural yield strength ($\sigma_y \ge 235 \text{ MPa to } 355 \text{ MPa}$) is systematically tested against elastic buckling, torsional distortion, and local plastic deformation through Finite Element Analysis (FEA) computer modeling.

Deflection Criteria & Safety Factors:

Our engineered beam spans maintain a strict allowable deflection limit under maximum working payload of $\delta \le L / 200$ for automated handling and $L / 250$ for conventional counterbalanced forklift bays, coupled with a minimum structural safety factor of 1.5 against structural collapse under static gravitational loads.

Seismic Baseplate FEA Anchoring
Batch Material Mill Test Reports (MTR)
ISO 9001:2015 Audited QC Matrix
Automatic Safety Lock Pin Retention
HEDA Shelves Racking Production Floor and Automated Roll Forming Lines
Automated Roll-Forming Facility (Guangzhou, China) Continuous CNC roll-forming lines producing 55mm to 120mm upright columns with synchronized punching for accurate connector tooth engagement.
Enterprise Reliability

Why Global Supply Chains Source From HEDA Shelves

Over 25 years of specialized storage fabrication allows our engineering bureau to deliver custom floor plans, robust structural calculations, and seamless ocean container dispatch to tier-1 ports across Europe, North America, the Middle East, and Australasia.

Quarter-Century Engineering Heritage

Founded in 2001, our 300+ engineers and fabrication technicians have resolved storage bottlenecks across 10,000+ logistics centers, 3PL terminals, cold stores, and manufacturing depots.

24-Hour Free CAD & 3D Design

Send your warehouse architectural DWG drawings and receive complete isometric layout schematics, pallet position counts, flue space validations, and structural load calculations within 24 hours.

Superior Anti-Corrosion Finishing

Components undergo an automated 7-stage pretreatment sequence—degreasing, acid pickling, surface conditioning, and phosphating—followed by electrostatic thermosetting powder coating (60–80 μm).

Imperial & Metric Bilingual Documentation

All drawings, installation manuals, safety load signage, and assembly packs are furnished in dual imperial (lbs, ft, in) and metric (kg, mm) formats, simplifying review by local structural engineers of record.

Engineering Selection Matrix

Bulk Storage Racking Architectures Compared

Select the optimal structural framework by balancing warehouse footprint efficiency, SKU density, stock rotation methodologies, and material handling vehicle access.

Racking Architecture Typical Payload / Bay Pallet Selectivity Floor Space Efficiency Rotation Principle Primary Industrial Use Case
Selective Pallet Racking 1,000 – 4,500 kg 100% Direct Access 40% – 50% footprint FIFO / LIFO Agile High-SKU distribution, 3PL, e-commerce fulfilment hubs
Drive-In / Drive-Through 1,000 – 2,000 kg/lane Low (Lane Specific) 70% – 85% footprint LIFO (Drive-In) / FIFO Cold storage freezers, seasonal inventory, uniform SKUs
Push Back Racking 1,000 – 1,500 kg/cart Moderate (Face Open) 65% – 75% footprint LIFO (Gravity Cart) Food wholesale, chemical barrels, mid-SKU buffers
Pallet Flow (Gravity) 500 – 1,800 kg/lane Moderate (Front Lane) 75% – 85% footprint Strict FIFO (Roller Run) Perishable foods, dairy, pharmaceutical expiration control
Radio Shuttle Automation 1,500 – 2,000 kg/shuttle Semi-Automated 80% – 90% footprint FIFO or LIFO Programmable Automated cold rooms, meat processing, beverage mass storage
Structural Cantilever Up to 6,000 kg/arm 100% Front Unobstructed 55% – 65% footprint Random Access Steel pipes, timber beams, drywall, aluminum extrusion bundles
Zero-Defect Quality Control

10-Stage Precision Heavy Industrial Manufacturing Sequence

Every ton of structural steel is subjected to tightly controlled automated roll forming, robotic welding, and non-destructive testing before packing into ocean containers.

Raw materials certified steel coils 01
Certified Steel Coils

Verification of yield and tensile strength, chemical composition, and thickness tolerance.

Precision steel slitting and cutting 02
Precision Slitting

High-speed coil slitting to exact cross-sectional band dimensions with minimal edge camber.

Automated column punching line 03
CNC Column Punching

Continuous hydraulic CNC punch press guaranteeing uniform 50mm, 75mm, or 76.2mm hole pitch.

Cold bending forming process 04
Cold Roll Forming

Multi-stand roller dies progressively forming complex upright profiles with up to 12 stiffening bends.

Profile forming for box beams 05
Box Beam Seaming

Twin interlocking C-channel roll-forming and continuous seam welding for torsion-proof load beams.

Polishing and deburring steel edges 06
Deburring & Polishing

Mechanical edge rounding and weld spatter removal, ensuring operator safety during handling.

Robotic welding of beam connectors and baseplates 07
Robotic CO2 Welding

Precision multi-axis robotic welding jigs for connector end plates, base footings, and bracing gussets.

Chemical pickling and phosphating tank line 08
Pickling & Phosphating

Immersion bath surface cleansing eliminating mill scale, rust, and oil to anchor powder primer.

Electrostatic powder coating booth 09
Electrostatic Coating

Automated powder coating booths applying durable epoxy-polyester coatings cured in 200°C baking tunnels.

Quality control inspection and shipping 10
QC & Ocean Packing

Dimensional gauging, dry film thickness (DFT) checks, and steel-banded bundle palletization.

Strategic Market Analysis

Procurement Trends Reshaping Industrial Bulk Racking (2025–2030)

Global supply chain directors and facility planners are modernizing storage procurement to accommodate rapid automation, environmental benchmarks, and nearshoring resilience.

Trend 01: Automation Ready

AMR, AGV & ASRS Compatibility

Modern bulk racking procurement requires tight construction tolerances to interface with Autonomous Mobile Robots (AMRs), Automated Guided Vehicles (AGVs), and Automated Storage and Retrieval Systems (ASRS). Standard deflection and deflection angle criteria are shifting from general static thresholds ($\delta \le L/200$) to millimeter-accurate kinematic parameters ($\pm 1.5\text{ mm}$) to avoid robotic optical-sensor abort faults.

  • Sensor-grade reflector and barcode target brackets
  • Ultra-flat slab baseplate shimming systems
  • High-bay clad-rack architectural structures
Trend 02: Thermal Optimization

Cold-Chain Freezers & Dense Cubic Velocity

With sub-zero refrigerated warehousing costs commanding 3.5× higher energy capital than dry ambient storage, buyers are shifting en masse toward ultra-dense dynamic systems such as Radio Shuttle carts and deep-lane Push Back racking. Procurement specifications now emphasize steel formulations with documented impact toughness down to −30°C (Charpy V-notch testing) to prevent low-temperature ductile-to-brittle steel fracture.

  • Impact-resistant low-temp structural steel (S355NL)
  • Lubricant-free cold-rated bearing assemblies
  • 75% reduction in cubic air volume footprint
Trend 03: Circular Resiliency

Modular Reconfiguration & Decarbonization

Corporate ESG directives are reshaping tender criteria. Enterprise buyers favor factory-bolted modular frames over site-welded monolithic designs. This provides complete modular adaptability—allowing beam elevations to be reset as packaging geometries morph—while facilitating localized repair and retaining high residual lifecycle asset values during facility decommissioning or warehouse leases transfers.

  • Zero-VOC epoxy powder coating curing systems
  • Bolted structural uprights with field-replaceable lower legs
  • 100% recyclable structural steel recyclability index
Heavy-duty racking system for hazardous drum storage
Reinforced Industrial Chemical Logistics Installation Engineered with welded drum cradles, integrated containment sump mesh, and double-flanged column protectors capable of absorbing 10 kJ fork truck collisions.
Advanced Engineering & Metallurgy

Material Science Innovations: Optimizing High-Strength Thin-Walled Profiles

The core challenge in industrial racking design centers on maximizing axial load capacity per kilogram of steel without inducing local plate instability. HEDA Shelves addresses this through proprietary 12-bend cold roll-forming geometry. By introducing intermediate longitudinal stiffeners along the web and flanges of the upright column, our structural profiles increase effective second moment of area ($I_x, I_y$) and torsional rigidity ($J$) by up to 28% compared to standard open omega profiles.

Furthermore, in surface protection technology, the industry is transitioning from standard atmospheric paints to thermoset zinc-rich cross-linked primers combined with polyurethane or polyester topcoats, providing salt-spray corrosion resistance exceeding 500 hours (ASTM B117) for high-humidity and seaside logistics ports.

Digital Twin & Stress Analysis:

Our engineering bureau utilizes 3D kinematic simulation software to model beam connector spring stiffness ($C_{R,ini}$) and joint rotational behavior, ensuring that frame sway calculations match real-world static and dynamic forklift stocking impacts precisely.

Audited Compliance

International Certifications & Third-Party Validation

Direct factory production control certified under European Construction Products Regulation (CPR) and international quality assurance protocols for rapid vendor onboarding.

ISO 9001:2015 Quality Certificate

ISO 9001:2015

Cert. No: 18624Q00169R0M
Audited Quality Management System spanning initial design, manufacturing, and technical customer service.

CE Marking Certificate

CE Marking (CPR)

Cert. No: 2435-CPR-8605159
Harmonized European standard compliance covering structural execution, factory production control, and steel safety.

RoHS Hazardous Substances Mark

RoHS Compliant

Material Eco-Safety
Certified free from hazardous heavy metals and toxic additives across all surface coatings, sealants, and accessories.

Mill Test Reports (MTR)

Batch Traceability
Complete chemical and physical tensile test certificates provided with every bill of lading for customs and PE signoff.

Purchaser Knowledge Base

Bulk Storage Racks Procurement: Technical FAQ

Engineered answers for warehouse operations managers, general contractors, 3PL procurement leads, and structural consultants.

What documents are included in your CE and ISO compliance package for export? +

Every commercial export order includes a comprehensive engineering dossier: the official Factory Production Control (FPC) CE Certificate (No. 2435-CPR-8605159), ISO 9001:2015 Quality Management certificate, structural design calculation packages referencing EN 15512 or RMI standards, batch Mill Test Reports (MTR) showing yield strength and elongation, and detailed CAD installation drawings. This ensures seamless permit approval with local building authorities and structural engineers of record (EOR).

Can your racking systems be engineered to satisfy local seismic zone requirements? +

Yes. Our engineering department routinely models seismic base shear and spectral acceleration coefficients according to Eurocode 8 (EN 1998), IBC (International Building Code), and ASCE 7. We customize upright frame profiles, increase column wall gauge, integrate reinforced diagonal horizontal truss bracing, and engineer enlarged baseplates with heavy wedge anchor patterns to resist lateral earthquake accelerations.

How do you optimize container packing to minimize ocean freight costs? +

Bulk steel racking is dense and heavy; optimizing ocean logistics requires balancing container payload weight against cubic meter (CBM) volume. Upright frames can be shipped unassembled (knock-down form) to increase packing density by 60% compared to welded frames, allowing up to 26–28 metric tons to fit inside standard 40-foot High Cube (40HC) containers. All beams, frames, and decking are steel-banded on protective timber bunks with corner board edge guards and clear barcode identification.

What is the standard beam deflection allowance under maximum pallet load? +

In accordance with EN 15512:2020 and RMI specification MH16.1, our load beams are designed to not exceed a vertical deflection of $\delta \le L / 200$ (where $L$ is the clear span distance between upright columns) when subjected to uniformly distributed pallet loads (UDL). For automated shuttle bays and precise reach-truck facilities, we can design to tighter tolerances ($\delta \le L / 250$ or $L / 300$).

Are HEDA racking components compatible with existing teardrop or diamond rack profiles? +

Yes. As an OEM and ODM manufacturer, our tooling includes universal American Teardrop punch patterns, European 50mm and 75mm slotted pitching, and Australian 76.2mm diamond hole configurations. If you are retrofitting or expanding an existing warehouse bay, our engineers can manufacture drop-in compatible upright frames and beam connectors that match your existing pitch geometry.

What surface finish options are provided for cold-chain freezers and outdoor lumber yards? +

For standard dry warehousing, we apply high-durability electrostatic thermoset epoxy-polyester powder coating (60–80 μm). For sub-zero blast freezers and cold storage environments (−30°C), we employ specially formulated anti-brittleness powder coatings that prevent micro-cracking. For outdoor lumber yards, chemical washdown zones, and coastal environments, we provide hot-dip galvanizing according to ISO 1461, delivering zinc coating thicknesses of 70–100 μm for decades of rust-free service.

What information is required to receive a comprehensive CAD layout and quotation? +

To generate an accurate layout and quotation within 24 hours, our engineering bureau requires: (1) Warehouse architectural drawings showing internal building dimensions, clear ceiling height, column grid coordinates, and door/dock locations; (2) Pallet specifications including width, depth, overall height (including product), and maximum gross load weight; (3) Forklift model, mast lift height, and minimum right-angle aisle turning radius; and (4) Desired stock turnover mode (FIFO or LIFO).

Request an Engineered Racking Layout & Landed Export Quotation

Connect directly with HEDA Shelves structural engineers. Receive free 2D/3D CAD warehouse planning schematics, seismic engineering calculations, and door-to-port landed container cost estimates within 24 hours.
